DESCRIPTION
MOBOT AGV FlatRunner MW is an Industrial-Robot from WObit. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 750 kg, 480 min runtime, 1800 kg payload.

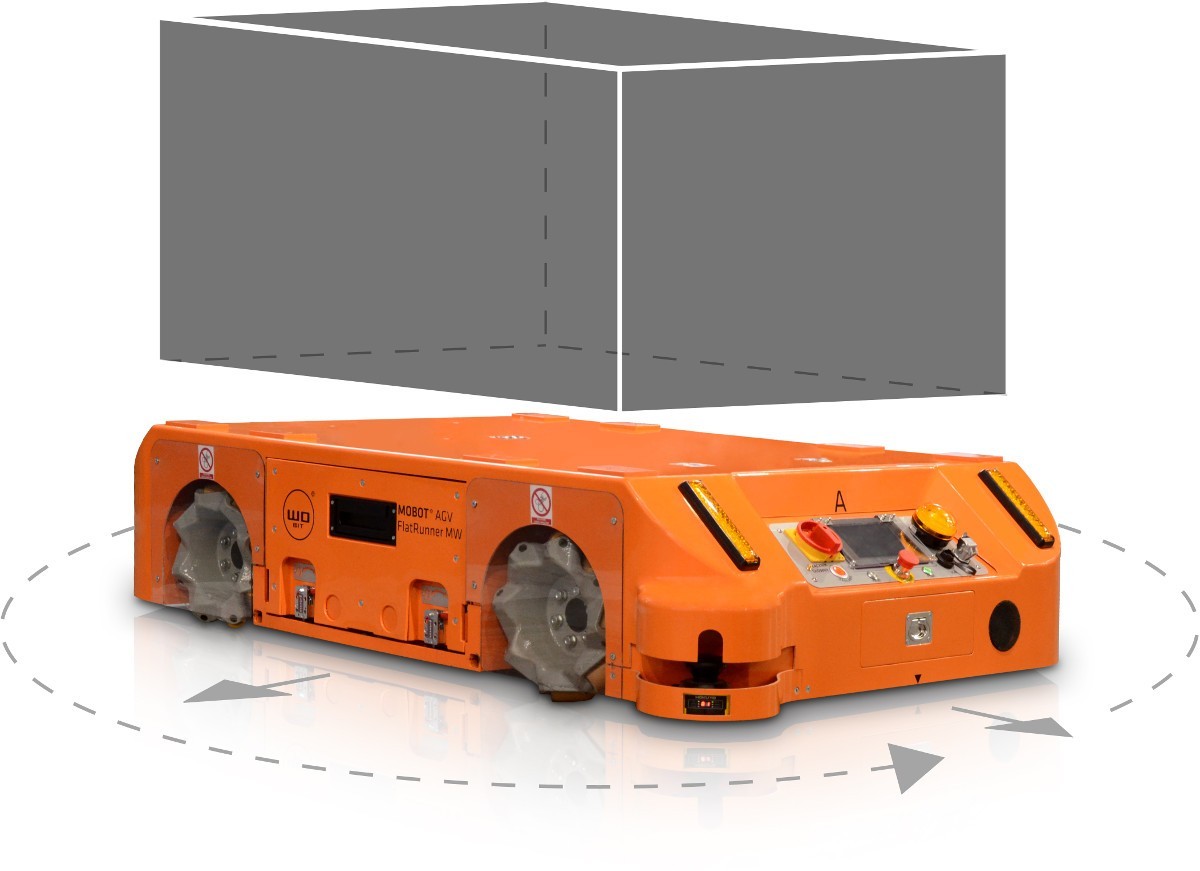

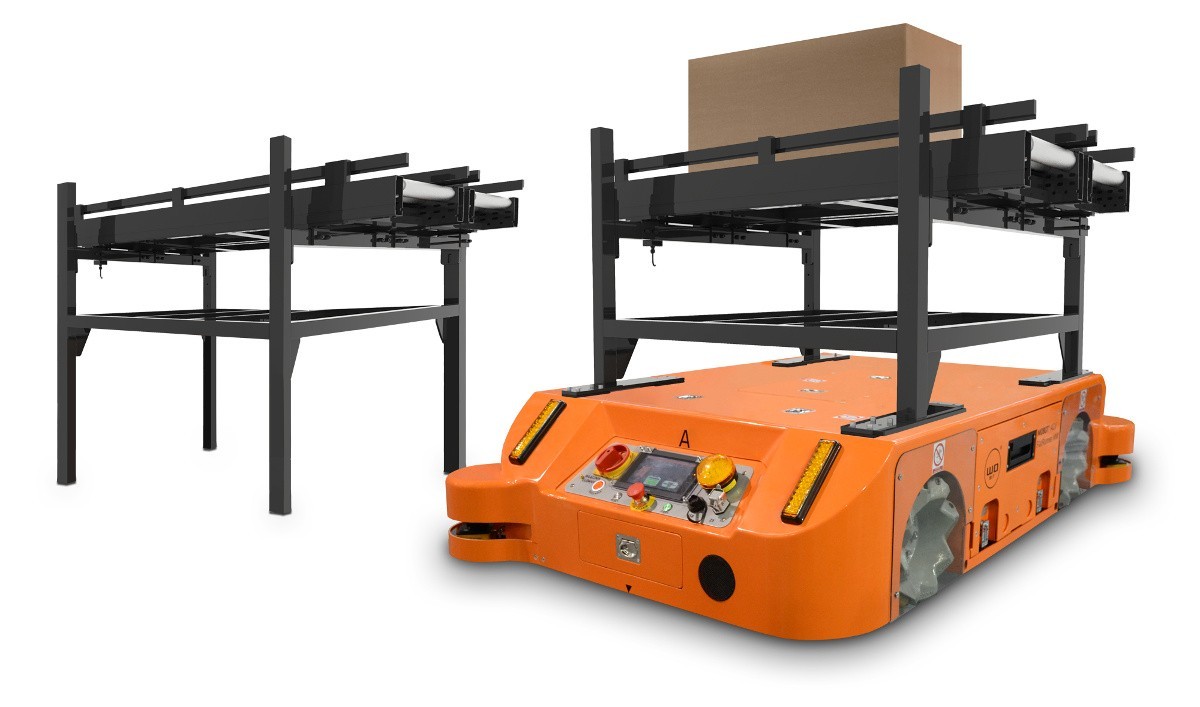

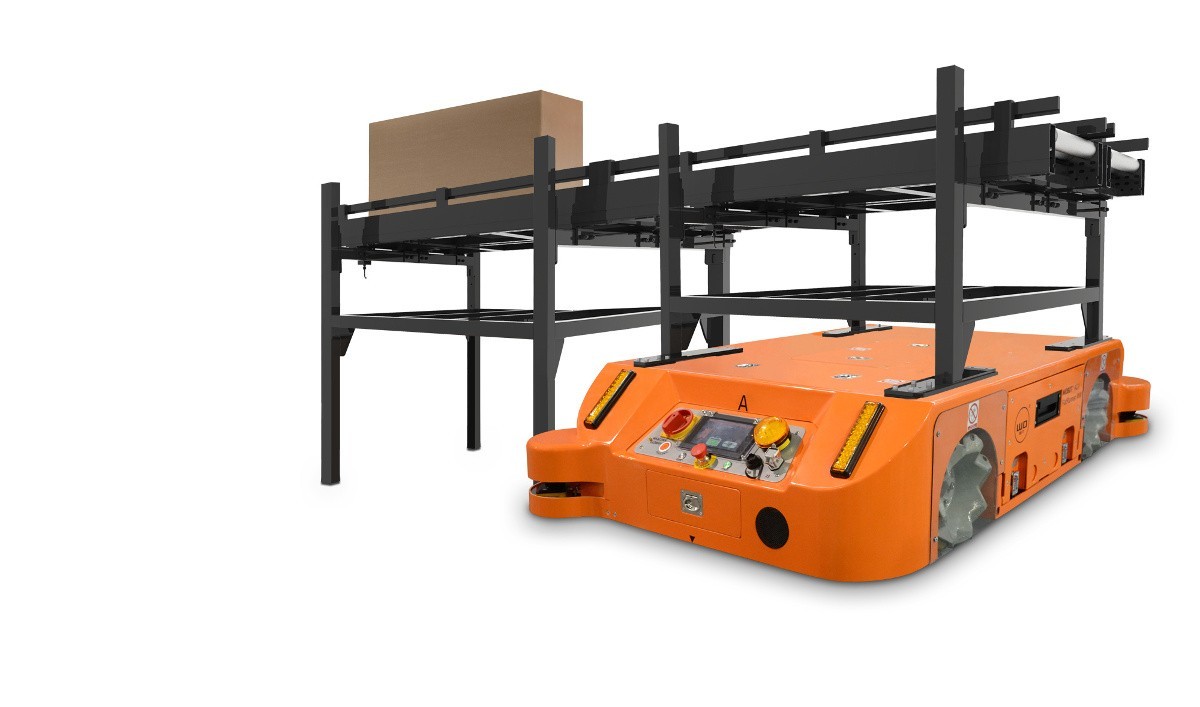

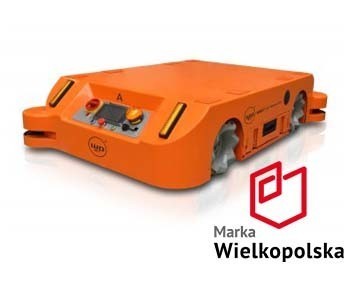

The MOBOT AGV FlatRunner MW is WObit's original heavy omnidirectional platform: four brushless servo motors drive 310 mm Mecanum wheels so it moves in any direction and turns on the spot, carrying up to 1,800 kg bolted to its top or raised 70 mm by its lifting system. Two or four 158 Ah/12 V traction batteries in quick-change cassettes give about 8 hours at full load, recharging in 3.5 or 7 hours. It navigates with WObit's LMS laser mapping system - building a map of its surroundings and locating itself on characteristic points such as walls, without reflectors or floor markings - combined with a vision system that can follow a line and position the robot precisely; missions are configured in the MOBOT RoutePlanner software and dispatched from a control terminal over 2.4 GHz Wi-Fi, with Ethernet/Modbus TCP and other I/O for integration. Safety laser scanners make it slow down or stop for obstacles, and a touch operator panel, emergency stops and light and sound signals support work alongside people. It drives at up to 3 km/h with 4.5 kW of nominal power, is rated IP30 for 5-45 C, measures 1,973 x 1,254 x 420 mm and weighs about 750 kg.
FEATURES
- Payload 1,800 kg
- 70 mm lifting system
- Omnidirectional Mecanum drive (4 servo motors, 310 mm wheels)
- Max speed 3 km/h
- 4.5 kW
- 2 or 4x 158 Ah/12 V batteries
- about 8 h
- charge 3.5 h / 7 h
- LMS laser navigation + vision line tracking
- 2x 2D safety laser scanners
- IP30
- 5-45 C
- Size 1,973 x 1,254 x 420 mm
- about 750 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 750 kg |
|---|---|
| Dimensions | L 1.97 m × W 1.25 m × H 420 mm |
| Payload | 1800 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.99 km/h |
| Environment | Indoor plants; 5-45 C, 5°C to 45°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2x 2D safety laser scanner, 2x vision line-tracking system |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 750 kg |
|---|---|
| Dimensions | L 1.97 m × W 1.25 m × H 420 mm |
| Payload | 1800 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.99 km/h |
| Environment | Indoor plants; 5-45 C, 5°C to 45°C |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | 2x 2D safety laser scanner, 2x vision line-tracking system |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MOBOT AGV FlatRunner MW?
The MOBOT AGV FlatRunner MW is WObit's original heavy omnidirectional platform: four brushless servo motors drive 310 mm Mecanum wheels so it moves in any direction and turns on the spot, carrying up to 1,800 kg bolted to its top or raised 70 mm by its lifting system.
Who makes the MOBOT AGV FlatRunner MW?
The MOBOT AGV FlatRunner MW is made by WObit, a robotics company based in Poland.
How much does the MOBOT AGV FlatRunner MW cost?
WObit has not publicly announced pricing for the MOBOT AGV FlatRunner MW. You can enquire through RobotAIGeek for current pricing.
What is the MOBOT AGV FlatRunner MW used for?
The MOBOT AGV FlatRunner MW is designed for heavy-load-transportation, intralogistics, material-handling, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the MOBOT AGV FlatRunner MW?
The MOBOT AGV FlatRunner MW has a payload capacity of 1,800 kg.
How much does the MOBOT AGV FlatRunner MW weigh?
The MOBOT AGV FlatRunner MW weighs 750 kg.
How fast is the MOBOT AGV FlatRunner MW?
The MOBOT AGV FlatRunner MW can move at speeds of up to 2.99 km/h.
What is the battery life of the MOBOT AGV FlatRunner MW?
The MOBOT AGV FlatRunner MW runs for about 480 minutes on a charge.
