MOBOT AGV CubeRunner MW

DESCRIPTION

MOBOT AGV CubeRunner MW is an Industrial-Robot from WObit. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 150 kg, 480 min runtime, 200 kg payload.

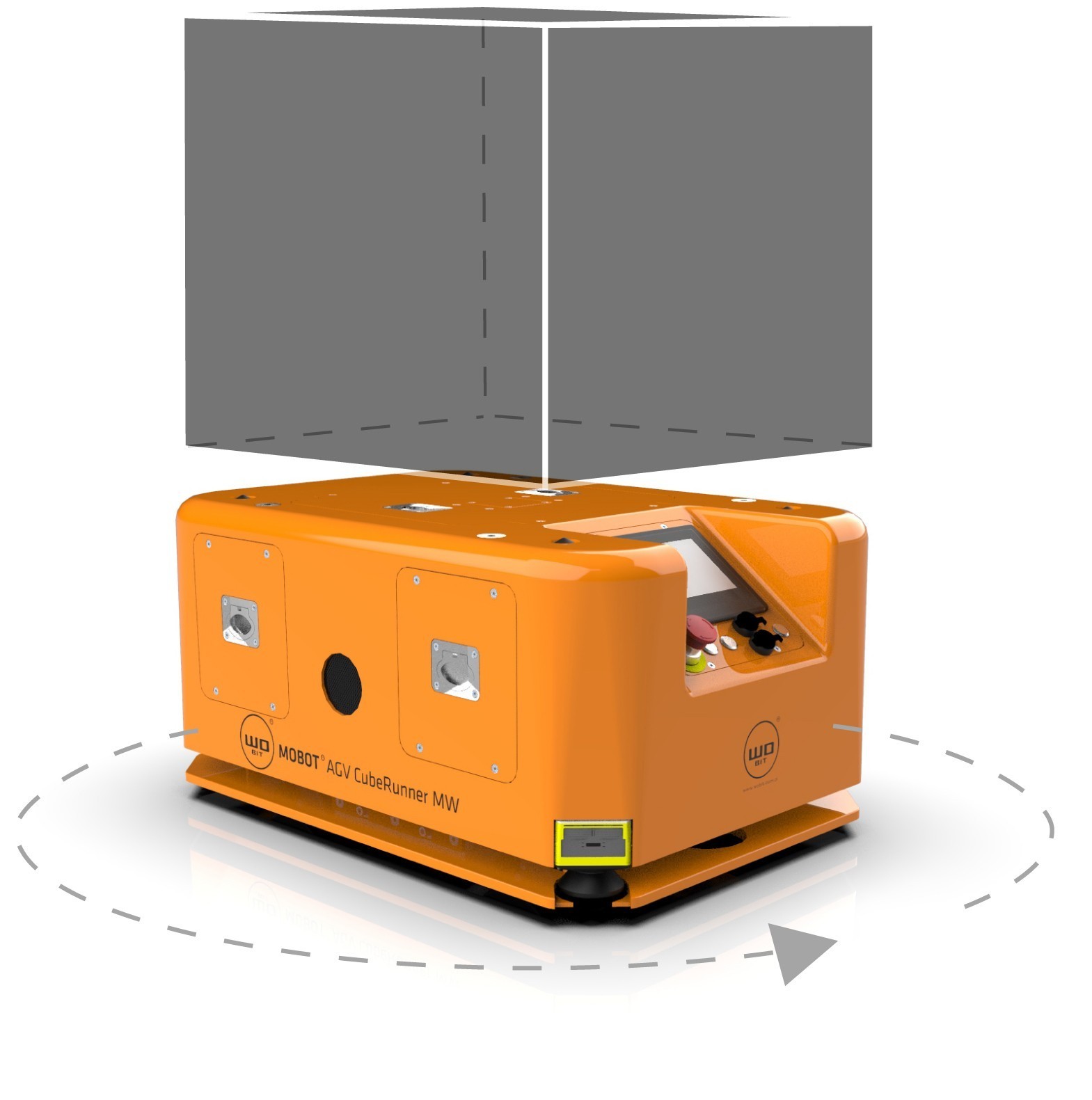

The MOBOT AGV CubeRunner MW combines the CubeRunner format with omnidirectional Mecanum wheels: four brushless servo motors let it move in any direction and turn on the spot, and loads up to 200 kg are bolted to its top or raised 70 mm by its lifting system so they clear the navigation and safety scanners. A 30 Ah/44 V lithium-ion battery gives about 8 hours at full load and recharges in about 1 hour on the optional 20 A charger or 4 hours on the standard 5 A charger. It navigates with WObit's LMS laser mapping system - building a map of its surroundings and locating itself on characteristic points such as walls, without reflectors or floor markings - combined with a vision system that can follow a line and position the robot precisely; missions are configured in the MOBOT RoutePlanner software and dispatched from a control terminal over 2.4 GHz Wi-Fi, with Ethernet/Modbus TCP and other I/O for integration. Safety laser scanners make it slow down or stop for obstacles, and a touch operator panel, emergency stops and light and sound signals support work alongside people. It drives at up to 3.5 km/h, uses two line-tracking vision systems and two safety laser scanners, is rated IP30 for 5-45 C, measures 800 x 550 x 453 mm and weighs about 150 kg.
