DESCRIPTION
MOBOT AFLS14 is an Industrial-Robot from WObit. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 2060 kg, 600 min runtime, 1400 kg payload.

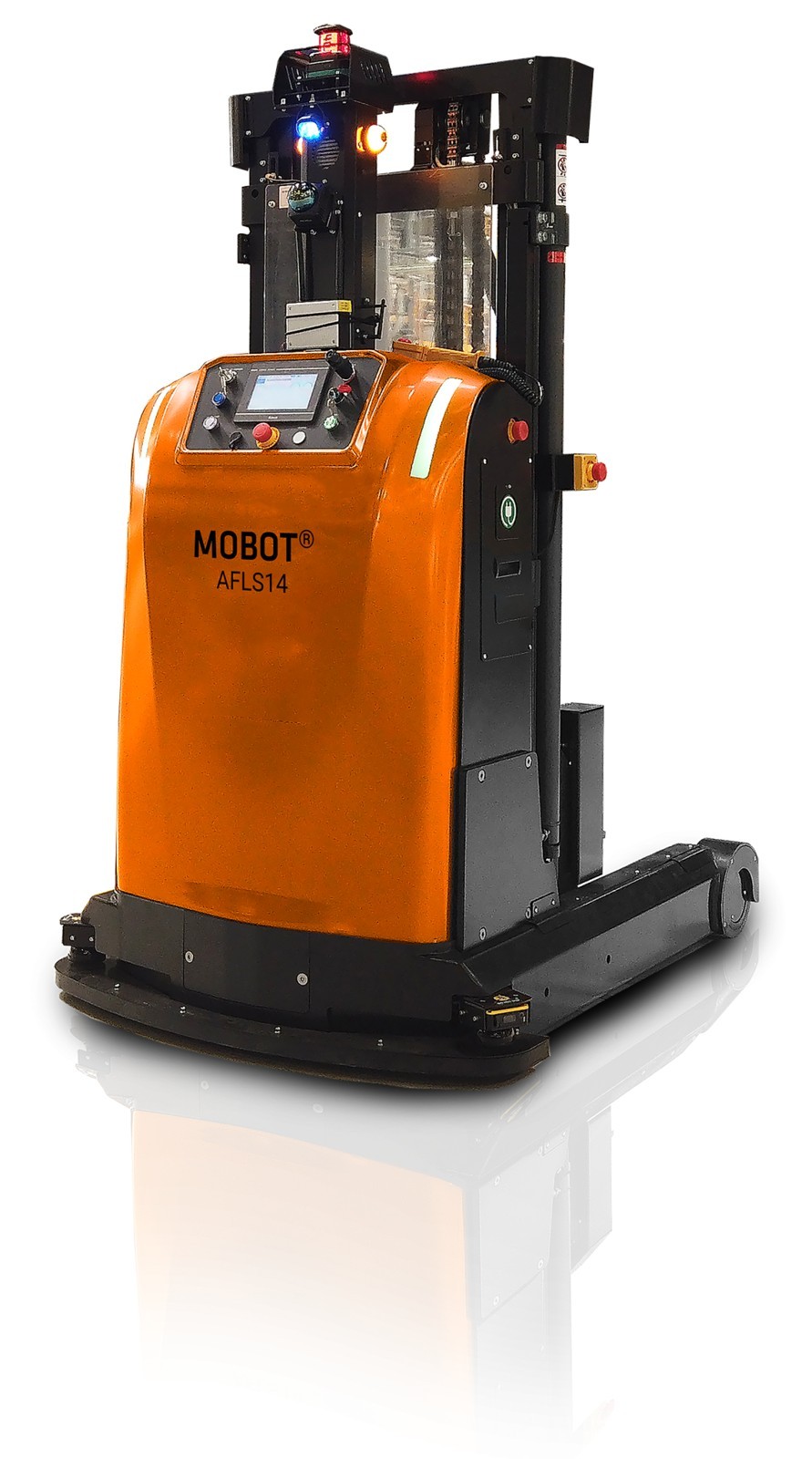

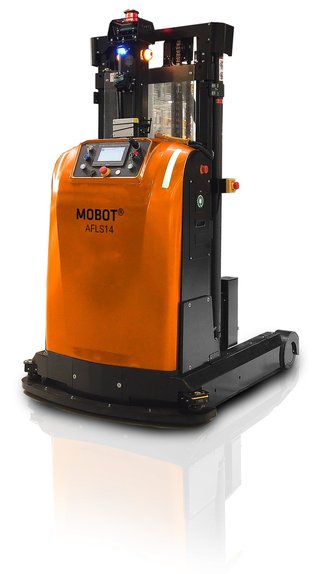

The MOBOT AFLS14 is WObit's autonomous reach truck, handling pallets of up to 1,400 kg and lifting them to 3,000 mm, with forks 1220 x 120 x 40 mm set 400-700 mm apart and a 500 mm load centre. It navigates by laser SLAM without reflectors, with millimetre-level positioning, and its safety system - a 2D safety laser scanner, a separate navigation scanner and fork-height protection - detects obstacles and prevents collisions; it is controlled from a touch operator panel with an emergency stop, signals with light and sound, charges manually or automatically, and works at 0-50 C. The AFLS14 carries three SICK nanoScan3 safety scanners. A 24 V/180 Ah LiFePO4 battery gives about 10 hours and charges from 10 to 80% in about 2.5 hours; it reaches 1.4 m/s, turns on a 1,482 mm radius, handles 3% slopes, steps of 10 mm and gaps of 30 mm, measures 2,190 x 1,192 x 2,228 mm and weighs 2,060 kg.
FEATURES
- Reach truck
- load 1,400 kg
- lift 3,000 mm
- Forks 1220 x 120 x 40 mm
- outer width 400-700 mm
- SLAM navigation without reflectors
- Speed 1.4 m/s
- turning radius 1,482 mm
- LiFePO4 24 V/180 Ah
- about 10 h
- 10-80% in about 2.5 h
- 3x SICK nanoScan3 safety scanners + fork-height protection
- Size 2,190 x 1,192 x 2,228 mm
- 2,060 kg
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2060 kg |
|---|---|
| Dimensions | L 2.19 m × W 1.19 m × H 2.23 m |
| Payload | 1400 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.04 km/h |
| Environment | Indoor warehouses; 0-50 C, 0°C to 50°C |
| Power | |
| Battery Life | 600 min |
| Sensing & Compute | |
| Sensors | 2D safety laser scanner, 3x SICK nanoScan3, fork-height protection |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2060 kg |
|---|---|
| Dimensions | L 2.19 m × W 1.19 m × H 2.23 m |
| Payload | 1400 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.04 km/h |
| Environment | Indoor warehouses; 0-50 C, 0°C to 50°C |
| Power | |
| Battery Life | 600 min |
| Sensing & Compute | |
| Sensors | 2D safety laser scanner, 3x SICK nanoScan3, fork-height protection |
| Connectivity | 2.4 GHz Wi-Fi; MOBOT RoutePlanner |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MOBOT AFLS14?
The MOBOT AFLS14 is WObit's autonomous reach truck, handling pallets of up to 1,400 kg and lifting them to 3,000 mm, with forks 1220 x 120 x 40 mm set 400-700 mm apart and a 500 mm load centre.
Who makes the MOBOT AFLS14?
The MOBOT AFLS14 is made by WObit, a robotics company based in Poland.
How much does the MOBOT AFLS14 cost?
WObit has not publicly announced pricing for the MOBOT AFLS14. You can enquire through RobotAIGeek for current pricing.
What is the MOBOT AFLS14 used for?
The MOBOT AFLS14 is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the MOBOT AFLS14?
The MOBOT AFLS14 has a payload capacity of 1,400 kg.
How much does the MOBOT AFLS14 weigh?
The MOBOT AFLS14 weighs 2,060 kg.
How fast is the MOBOT AFLS14?
The MOBOT AFLS14 can move at speeds of up to 5.04 km/h.
What is the battery life of the MOBOT AFLS14?
The MOBOT AFLS14 runs for about 600 minutes on a charge.
