DESCRIPTION
MANIFESTO/INDY Elbow is a Medical-Robots from Motorica. It is built for Medical-Assistance, Rehabilitation, Helping. Key figures: 0.9 kg.

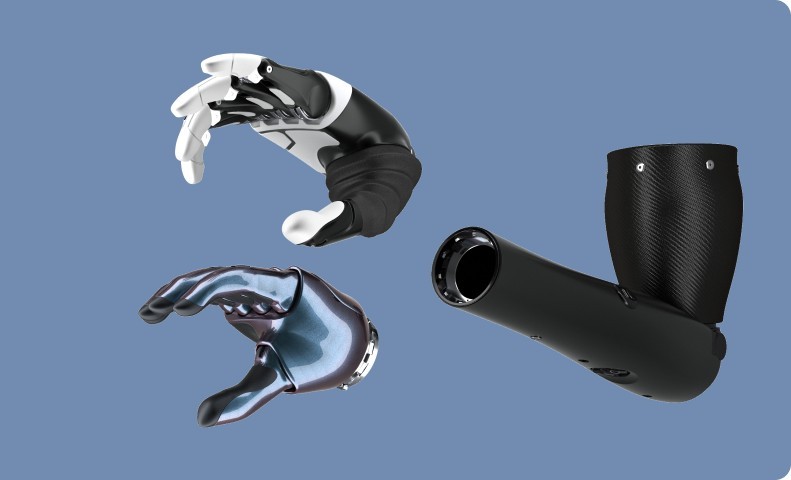

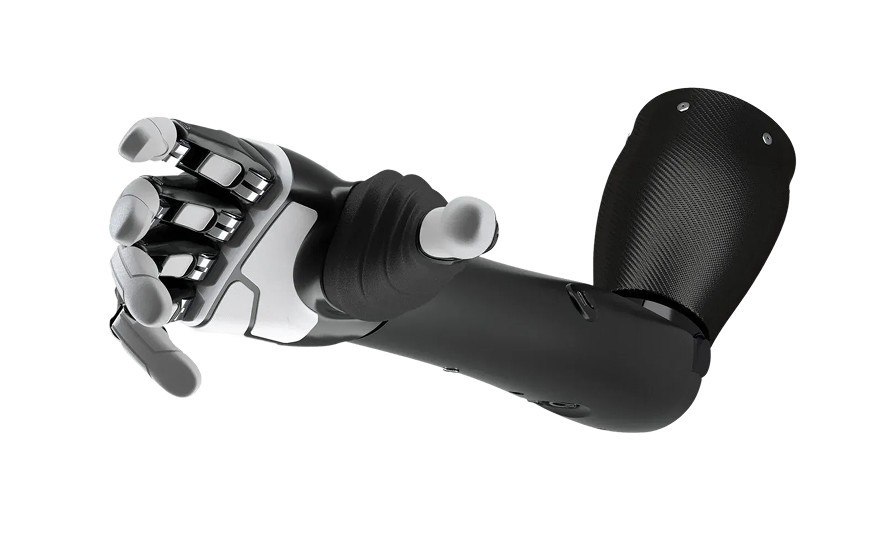

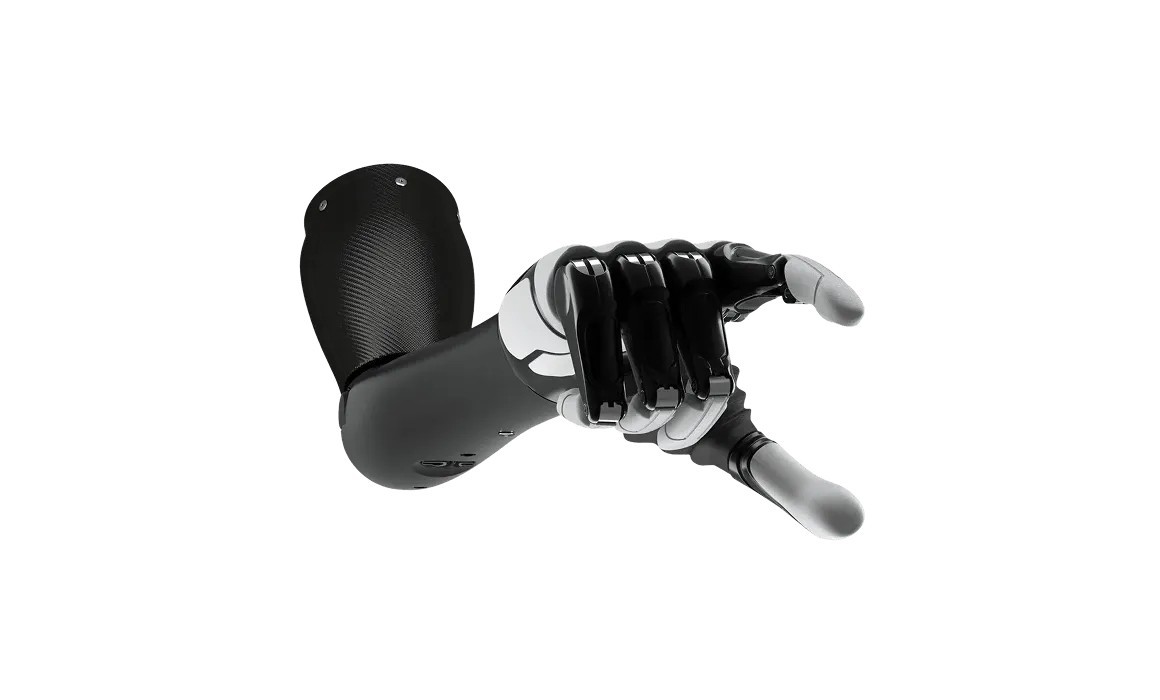

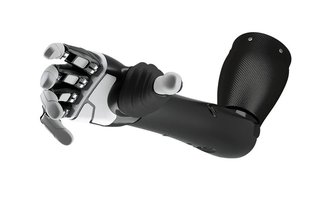

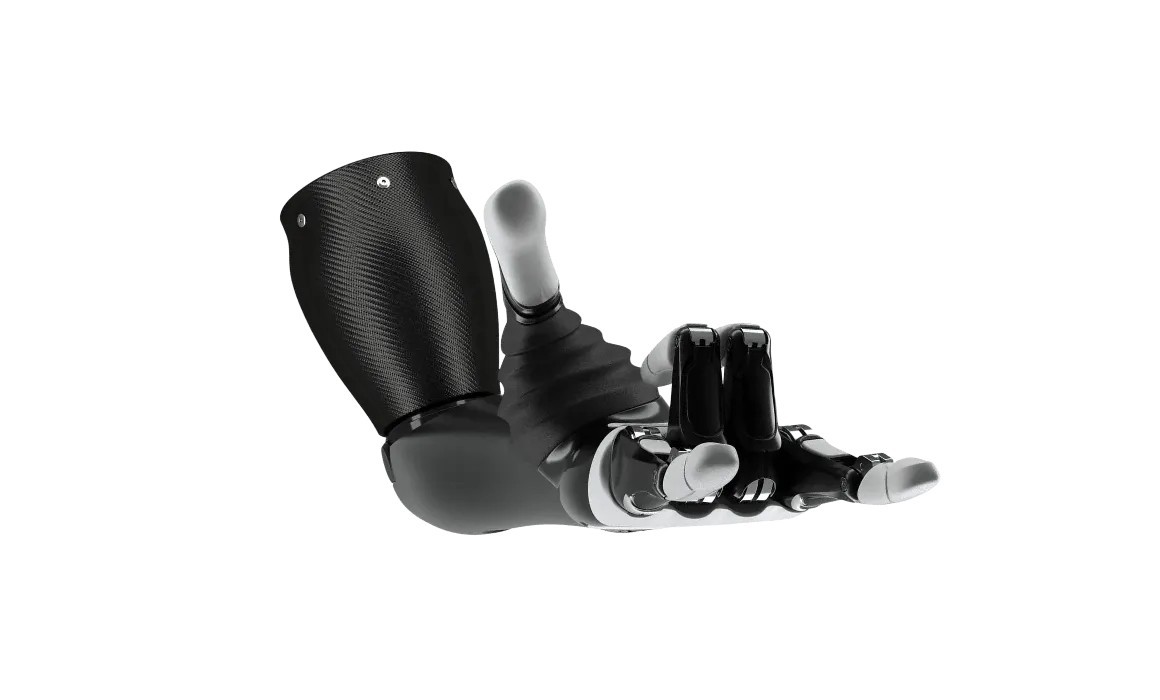

The MANIFESTO/INDY Elbow is Motorica's bionic prosthesis for above-elbow (shoulder-level) amputations, part of its robotic prosthesis line. It combines a mechanically driven elbow joint, which the wearer bends from 15 to 145 degrees and locks at the required angle, with either the multi-grip MANIFESTO hand or the single-grip INDY hand, whose opening and closing is driven by a small, powerful electric motor under EMG sensor control. The hand rotates passively up to 180 degrees, the prosthesis is protected to IP54 and weighs from 940 g, and a three-strap harness with a leather underarm pad adjusts fit in three directions. It gives 800 to 1,200 grips per charge at 7.4-7.5 V, recharges in two to six hours and works from -10 to +40 C. It is intended for users aged 12 and over and helps with everyday household tasks.
FEATURES
- Bionic above-elbow prosthesis
- Mechanical elbow joint: flexion 15-145 deg, lockable
- MANIFESTO (multi-grip) or INDY (single-grip) hand module
- Motor-driven hand under EMG sensor control
- Passive hand rotation up to 180 deg
- IP54
- from 940 g
- 800-1,200 grips per charge
- 7.4-7.5 V
- 2-6 h charging
- Three-strap harness with leather underarm pad
- Ages 12+
- 10 to +40 C
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 0.94 kg |
|---|---|
| Mobility | |
| Movement Type | Other |
| Environment | Worn daily by upper-limb amputees |
| Sensing & Compute | |
| Sensors | surface EMG sensors |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 0.94 kg |
|---|---|
| Mobility | |
| Movement Type | Other |
| Environment | Worn daily by upper-limb amputees |
| Sensing & Compute | |
| Sensors | surface EMG sensors |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MANIFESTO/INDY Elbow?
The MANIFESTO/INDY Elbow is Motorica's bionic prosthesis for above-elbow (shoulder-level) amputations, part of its robotic prosthesis line.
Who makes the MANIFESTO/INDY Elbow?
The MANIFESTO/INDY Elbow is made by Motorica, a robotics company based in Russia.
How much does the MANIFESTO/INDY Elbow cost?
Motorica has not publicly announced pricing for the MANIFESTO/INDY Elbow. You can enquire through RobotAIGeek for current pricing.
What is the MANIFESTO/INDY Elbow used for?
The MANIFESTO/INDY Elbow is designed for medical-assistance, rehabilitation, helping, and upper-limb prosthesis for activities of daily living. It is used in healthcare and homes settings.
How much does the MANIFESTO/INDY Elbow weigh?
The MANIFESTO/INDY Elbow weighs 0.94 kg.
