DESCRIPTION
MANIFESTO Hand is an End-Effectors from Motorica. It is built for Medical-Assistance, Rehabilitation, Helping. Key figures: 0.8 kg, 300 min runtime, 15 kg payload.

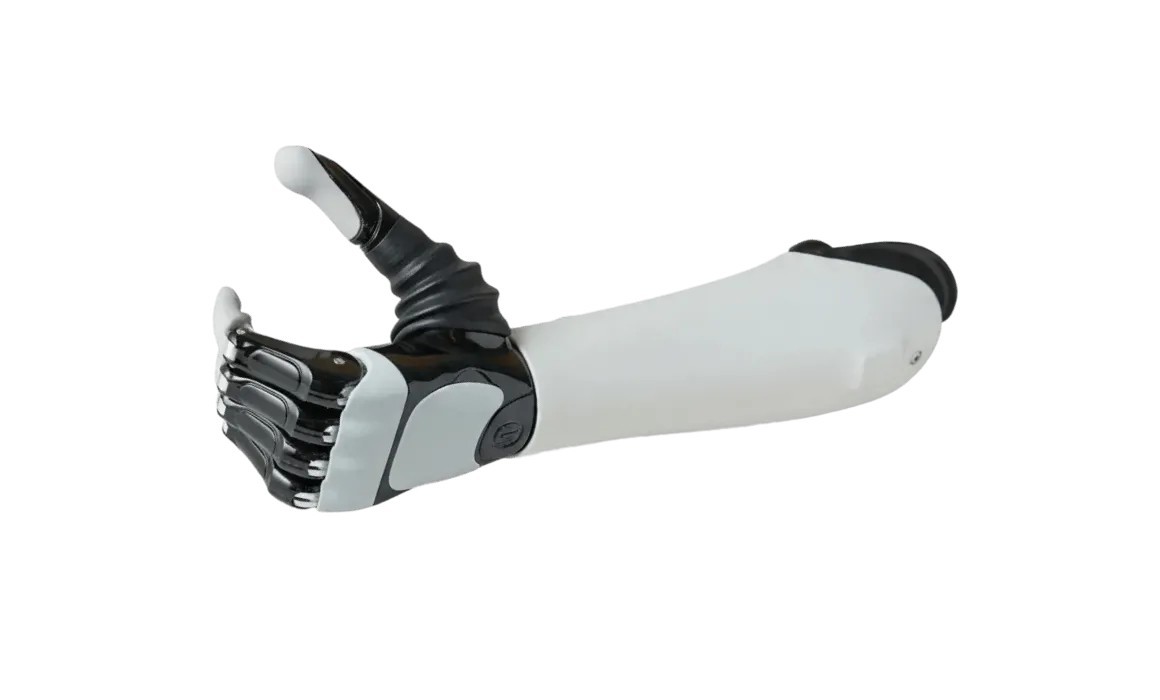

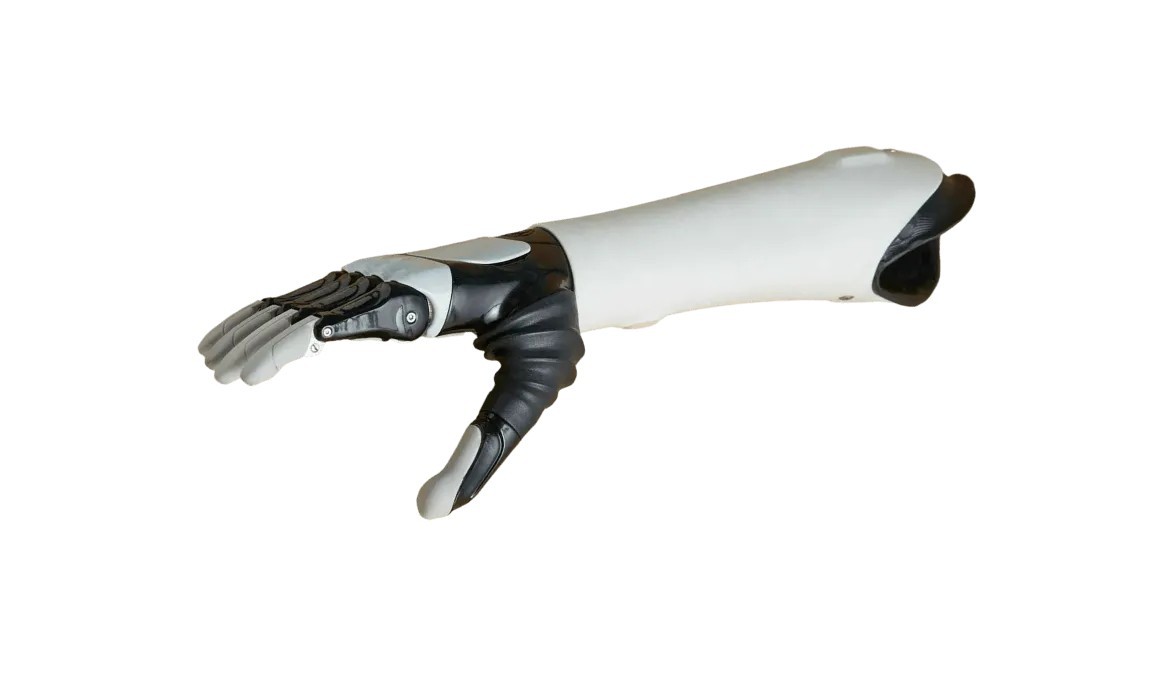

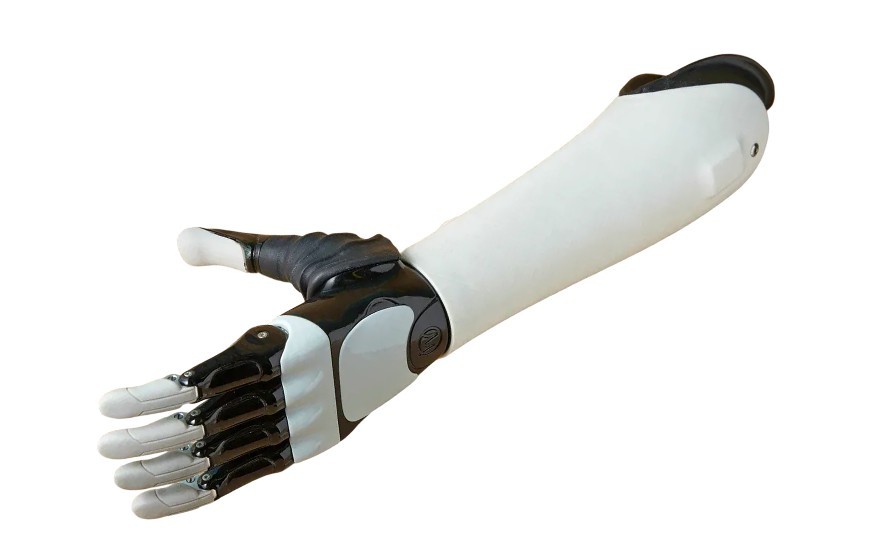

MANIFESTO Hand is Motorica's multi-grip bionic forearm prosthesis. Controlled by surface EMG sensors that read the user's muscle activity, its fingers move independently through 17 configurable gestures shown on the product page - among them fist, pinch, key grip, glass grip, pronation and supination - with 23 individual gestures listed in its specifications. The hand opens up to 132 mm, lifts up to 15 kg, rotates passively up to 180 degrees with an optional quick-disconnect 360-degree rotator, and is protected to IP52. It runs from five hours - about 1,000 grips - per charge at 7.4 V and recharges in five to six hours. Motorica gives the weight as from 780 g for the prosthesis and 500-560 g for the hand without socket. It is intended for users aged 12 and over and works at +5 to +35 C.
FEATURES
- Multi-grip bionic forearm prosthesis
- Surface EMG sensor control
- independent fingers
- 17 configurable gestures on page
- 23 individual gestures in specs
- Hand opening up to 132 mm
- lifts up to 15 kg
- Passive wrist rotation up to 180 deg
- optional quick-disconnect 360 deg rotator
- IP52
- From 5 h / ~1,000 grips per charge
- 7.4 V
- 5-6 h charging
- Ages 12+
- +5 to +35 C
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 0.78 kg |
|---|---|
| Payload | 15 kg |
| Mobility | |
| Movement Type | Other |
| Environment | Worn daily by upper-limb amputees |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | surface EMG sensors |
| Connectivity | Mobile app (sensor tuning) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 0.78 kg |
|---|---|
| Payload | 15 kg |
| Mobility | |
| Movement Type | Other |
| Environment | Worn daily by upper-limb amputees |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | surface EMG sensors |
| Connectivity | Mobile app (sensor tuning) |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MANIFESTO Hand?
MANIFESTO Hand is Motorica's multi-grip bionic forearm prosthesis. Controlled by surface EMG sensors that read the user's muscle activity, its fingers move independently through 17 configurable gestures shown on the product page - among them fist, pinch, key grip, glass grip, pronation and supination - with 23 individu…
Who makes the MANIFESTO Hand?
The MANIFESTO Hand is made by Motorica, a robotics company based in Russia.
How much does the MANIFESTO Hand cost?
Motorica has not publicly announced pricing for the MANIFESTO Hand. You can enquire through RobotAIGeek for current pricing.
What is the MANIFESTO Hand used for?
The MANIFESTO Hand is designed for medical-assistance, rehabilitation, helping, and upper-limb prosthesis for activities of daily living. It is used in healthcare and homes settings.
What is the payload capacity of the MANIFESTO Hand?
The MANIFESTO Hand has a payload capacity of 15 kg.
How much does the MANIFESTO Hand weigh?
The MANIFESTO Hand weighs 0.78 kg.
What is the battery life of the MANIFESTO Hand?
The MANIFESTO Hand runs for about 300 minutes on a charge.
