DESCRIPTION

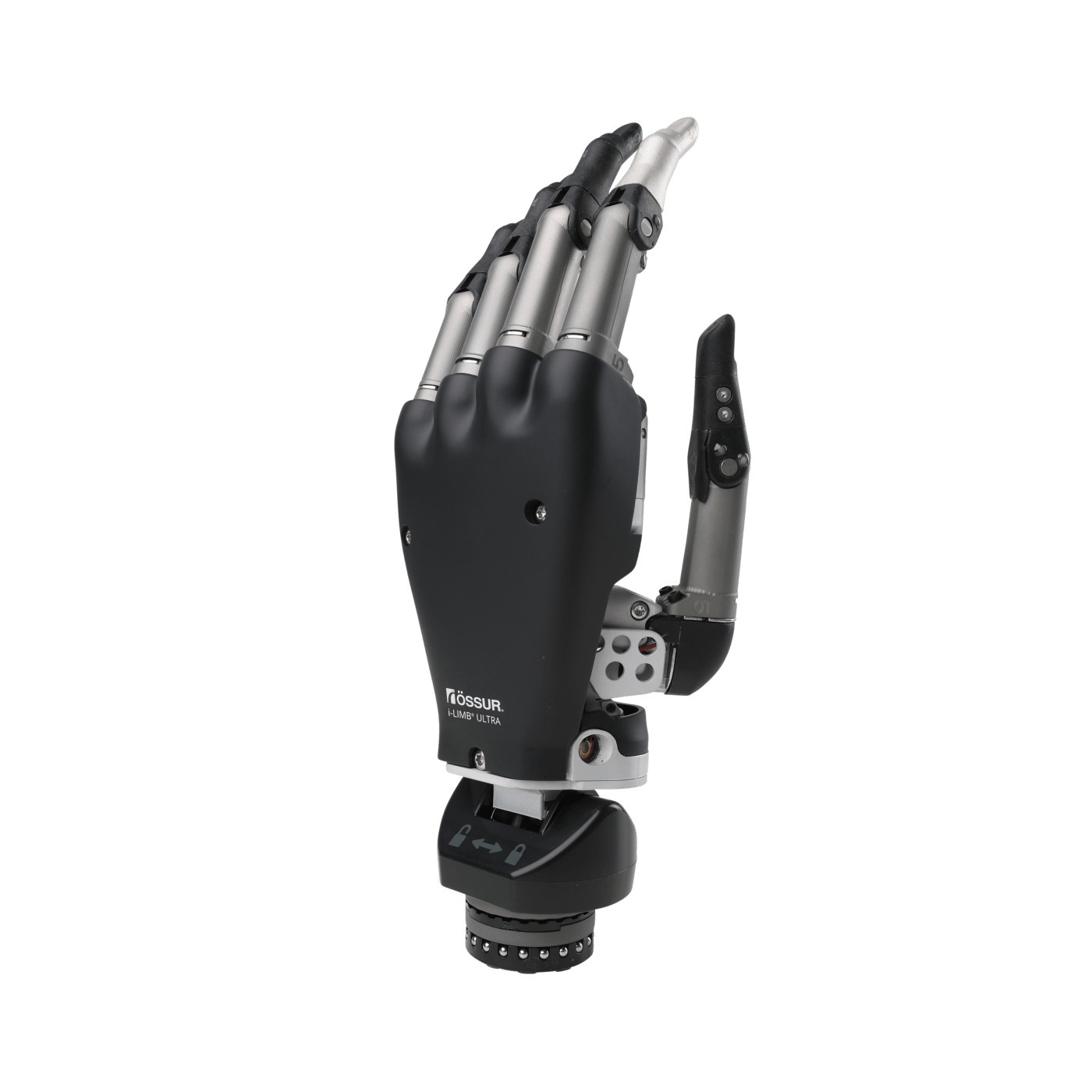

i-Limb Ultra is an End-Effectors from Össur. It is built for Material-Handling, Medical-Assistance, Helping. Key figures: 0.5 kg, 6 degrees of freedom.
i-Limb Ultra is an Össur multi-articulating myoelectric hand with five individually powered fingers and an electrically rotating thumb with manual override, which switches automatically between lateral and oppositional positions. It offers 18 automated grips, selected by muscle-signal triggers or Quick Grips in the app, with Vari-Grip for extra grip strength and Auto-Grasp to stop objects slipping. Digits are titanium in sizes S, M and L for 50% more carry load, and Speed Boost raises digit speed by up to 30%. The hand holds a static load of up to 90 kg (40 kg extra small), each finger up to 32 kg, and closes fully in 0.8 seconds. It weighs 488 g in medium/large with a wrist disconnect and runs on a 7.4 V lithium-polymer battery of 2,000 or 1,300 mAh, configured through the Biosim and My i-Limb apps.
FEATURES
- 5 individually powered digits + electrically rotating thumb with manual override
- 18 automated grips
- muscle triggers and app Quick Grips
- Vari-Grip extra grip strength
- Auto-Grasp anti-slip
- Speed Boost up to +30%
- Titanium digits (S/M/L) for +50% carry load
- Static hand load limit 90 kg (XS 40 kg)
- finger carry load 32 kg (XS 20 kg)
- open-to-close 0.8 s
- Weight: 488 g (M/L, wrist disconnect)
- 432-628 g across sizes and wrists
- 7.4 V Li-polymer battery, 2,000 or 1,300 mAh
- Sizes XS, S, M, L
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 0.488 kg |
|---|---|
| Mobility | |
| Movement Type | Other |
| Degrees of Freedom | 6 |
| Environment | Worn daily by people with upper-limb loss (transradial, transhumeral, wrist disarticulation) |
| Actuators | Individually motorized digits (DC motors) |
| Power | |
| Battery Life | Rechargeable lithium polymer, 7.4 V nominal; 2,000 mAh or 1,300 mAh |
| Sensing & Compute | |
| Sensors | EMG electrodes or FSRs (myoelectric input) |
| Connectivity | Bluetooth (Biosim and My i-Limb apps) |
| Software / AI | Biosim (clinician) and My i-Limb (user) apps |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 0.488 kg |
|---|---|
| Mobility | |
| Movement Type | Other |
| Degrees of Freedom | 6 |
| Environment | Worn daily by people with upper-limb loss (transradial, transhumeral, wrist disarticulation) |
| Actuators | Individually motorized digits (DC motors) |
| Power | |
| Battery Life | Rechargeable lithium polymer, 7.4 V nominal; 2,000 mAh or 1,300 mAh |
| Sensing & Compute | |
| Sensors | EMG electrodes or FSRs (myoelectric input) |
| Connectivity | Bluetooth (Biosim and My i-Limb apps) |
| Software / AI | Biosim (clinician) and My i-Limb (user) apps |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the i-Limb Ultra?
i-Limb Ultra is an Össur multi-articulating myoelectric hand with five individually powered fingers and an electrically rotating thumb with manual override, which switches automatically between lateral and oppositional positions.
Who makes the i-Limb Ultra?
The i-Limb Ultra is made by Össur, a robotics company based in Iceland.
How much does the i-Limb Ultra cost?
Össur has not publicly announced pricing for the i-Limb Ultra. You can enquire through RobotAIGeek for current pricing.
What is the i-Limb Ultra used for?
The i-Limb Ultra is designed for material-handling, medical-assistance, helping, and myoelectric upper-limb prosthesis. It is used in consumer and healthcare settings.
How much does the i-Limb Ultra weigh?
The i-Limb Ultra weighs 0.49 kg.
How many degrees of freedom does the i-Limb Ultra have?
The i-Limb Ultra has 6 degrees of freedom.
