DESCRIPTION
MANIFESTO Fingers is an End-Effectors from Motorica. It is built for Medical-Assistance, Rehabilitation, Helping. Key figures: 0.7 kg, 300 min runtime, 20 kg payload.

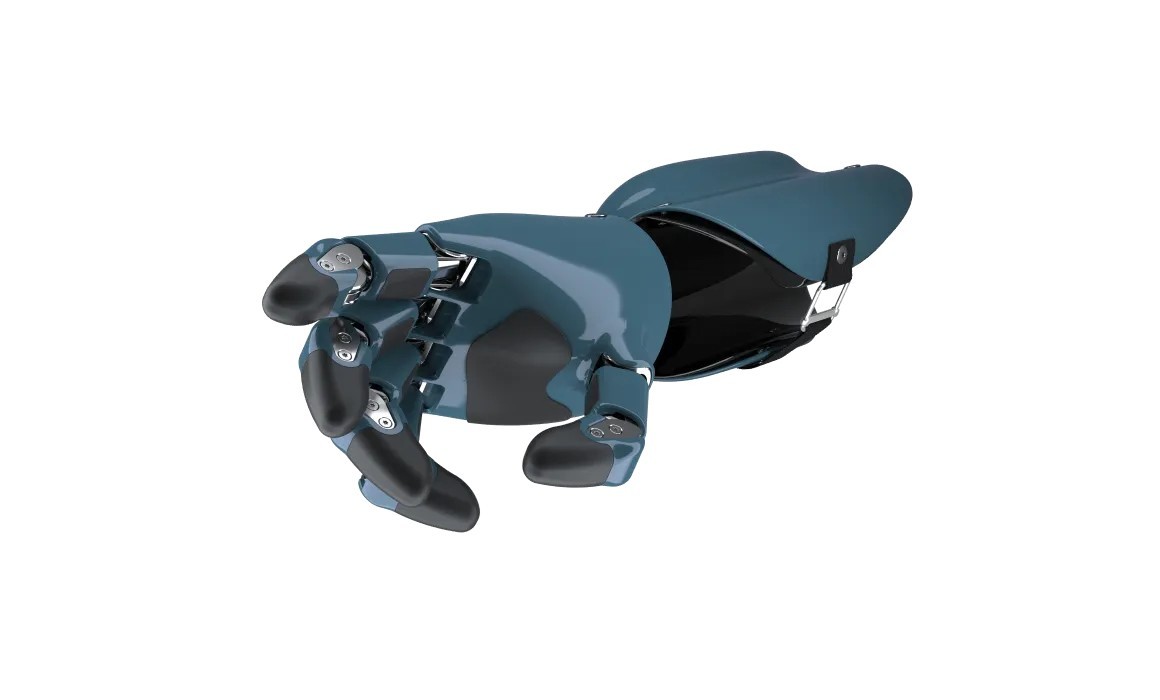

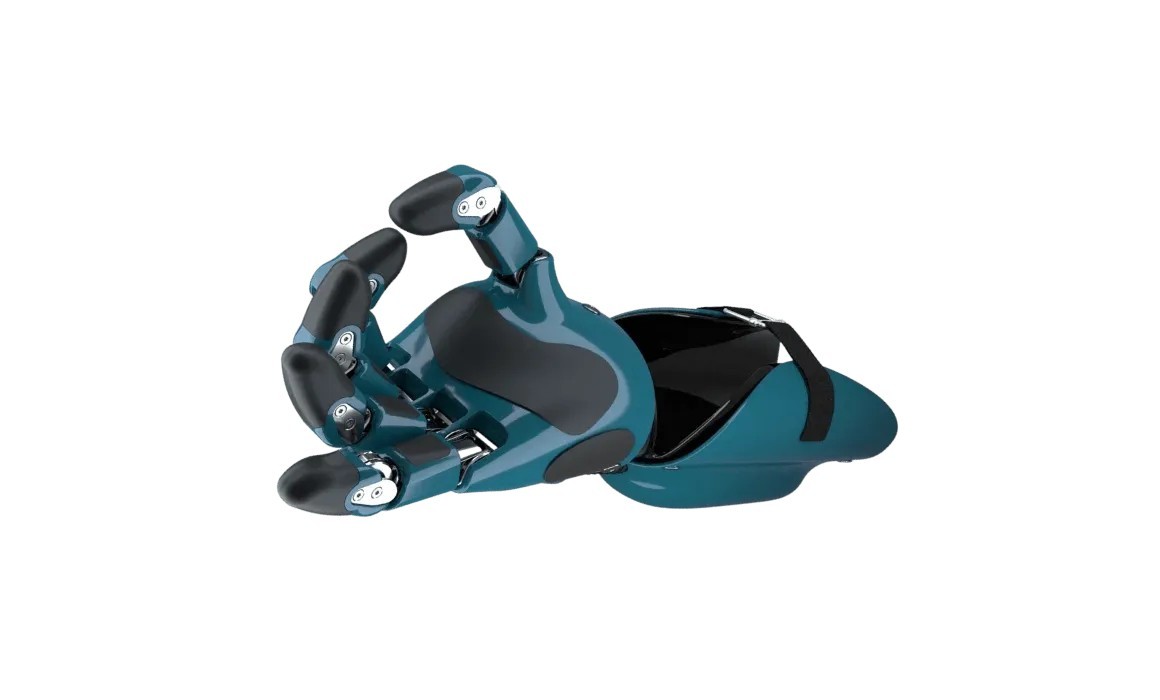

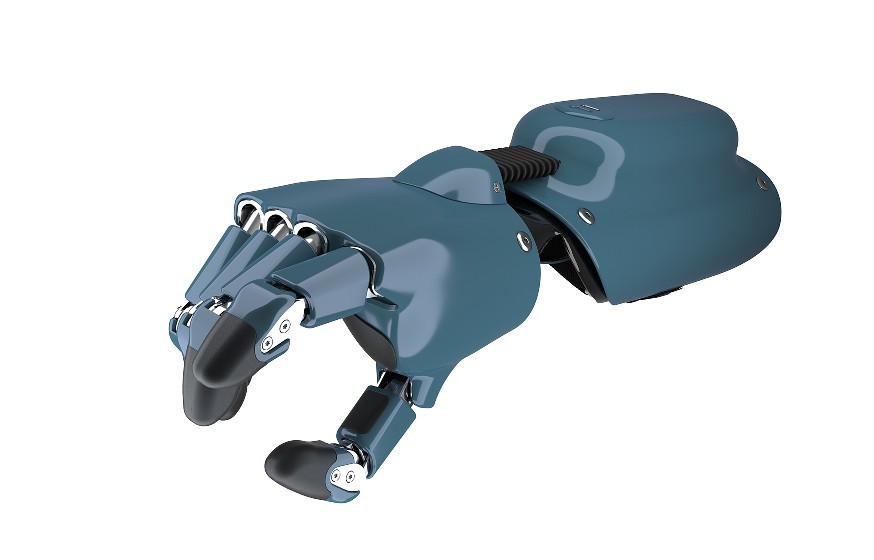

MANIFESTO Fingers is Motorica's bionic multi-grip prosthesis for partial hand loss, replacing three to five fingers of a hand. Surface EMG sensors read the activity of the user's muscles through the skin, and each prosthetic finger is driven independently, giving eight individual gestures; sensor sensitivity is adjusted in Motorica's mobile app, and fingertips can be made of a touchscreen-compatible material for using a smartphone. Each device is made individually for the user. It opens up to 152 mm, lets the wearer lift up to 20 kg, is protected to IP54, weighs from 700 g and runs from five hours - about 1,500 grips - per charge on a 7.4 V supply, recharging in four hours. It is intended for users aged 12 and over and works at +5 to +35 C.
FEATURES
- Bionic multi-grip prosthesis for partial hand (3-5 fingers)
- Surface EMG sensor control
- independent finger movement
- 8 individual gestures
- app-adjustable sensor sensitivity
- Hand opening up to 152 mm
- lifts up to 20 kg
- IP54 (key features: IP55)
- From 700 g
- from 5 h / ~1,500 grips per charge
- 7.4 V
- 4 h charging
- Touchscreen-compatible fingertips
- Ages 12+
- +5 to +35 C
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 0.7 kg |
|---|---|
| Payload | 20 kg |
| Mobility | |
| Movement Type | Other |
| Environment | Worn daily by upper-limb amputees |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | surface EMG sensors |
| Connectivity | Mobile app (sensor tuning) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 0.7 kg |
|---|---|
| Payload | 20 kg |
| Mobility | |
| Movement Type | Other |
| Environment | Worn daily by upper-limb amputees |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | surface EMG sensors |
| Connectivity | Mobile app (sensor tuning) |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the MANIFESTO Fingers?
MANIFESTO Fingers is Motorica's bionic multi-grip prosthesis for partial hand loss, replacing three to five fingers of a hand. Surface EMG sensors read the activity of the user's muscles through the skin, and each prosthetic finger is driven independently, giving eight individual gestures; sensor sensitivity is adjuste…
Who makes the MANIFESTO Fingers?
The MANIFESTO Fingers is made by Motorica, a robotics company based in Russia.
How much does the MANIFESTO Fingers cost?
Motorica has not publicly announced pricing for the MANIFESTO Fingers. You can enquire through RobotAIGeek for current pricing.
What is the MANIFESTO Fingers used for?
The MANIFESTO Fingers is designed for medical-assistance, rehabilitation, helping, and upper-limb prosthesis for activities of daily living. It is used in healthcare and homes settings.
What is the payload capacity of the MANIFESTO Fingers?
The MANIFESTO Fingers has a payload capacity of 20 kg.
How much does the MANIFESTO Fingers weigh?
The MANIFESTO Fingers weighs 0.7 kg.
What is the battery life of the MANIFESTO Fingers?
The MANIFESTO Fingers runs for about 300 minutes on a charge.
