Laser Inspection Robot

Bit Mapper

Industrial-Robot India

IndiaReleased

★Not rated yet

Compare

Sources:

bitmapper.com

Industries:

Defence Government

Uses:

Analysis Inspection Monitoring Scanning

Price:

Not announced

DESCRIPTION

Laser Inspection Robot is an Industrial-Robot from Bit Mapper. It is built for Analysis, Inspection, Monitoring. Key figures: 7 kg.

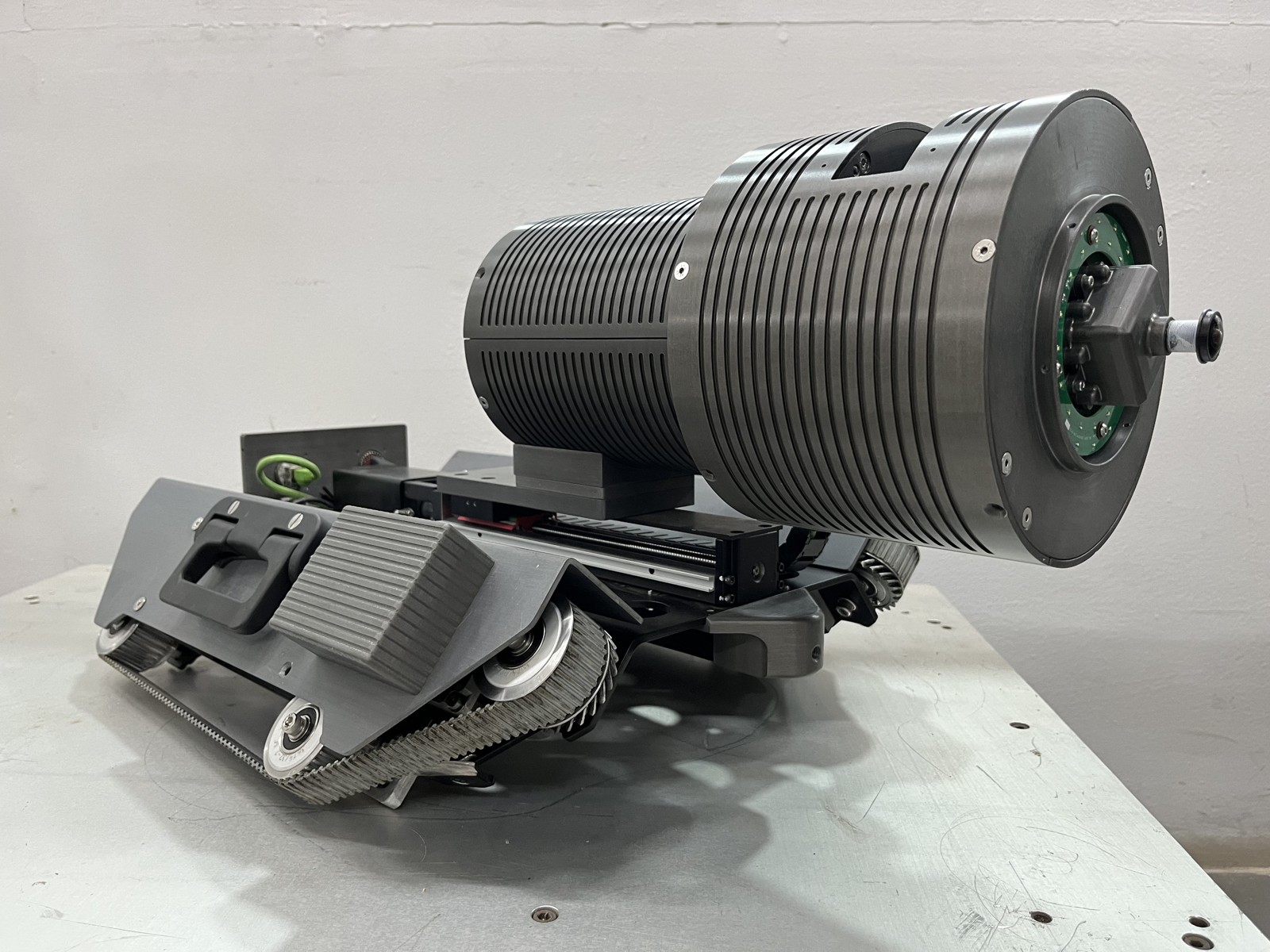

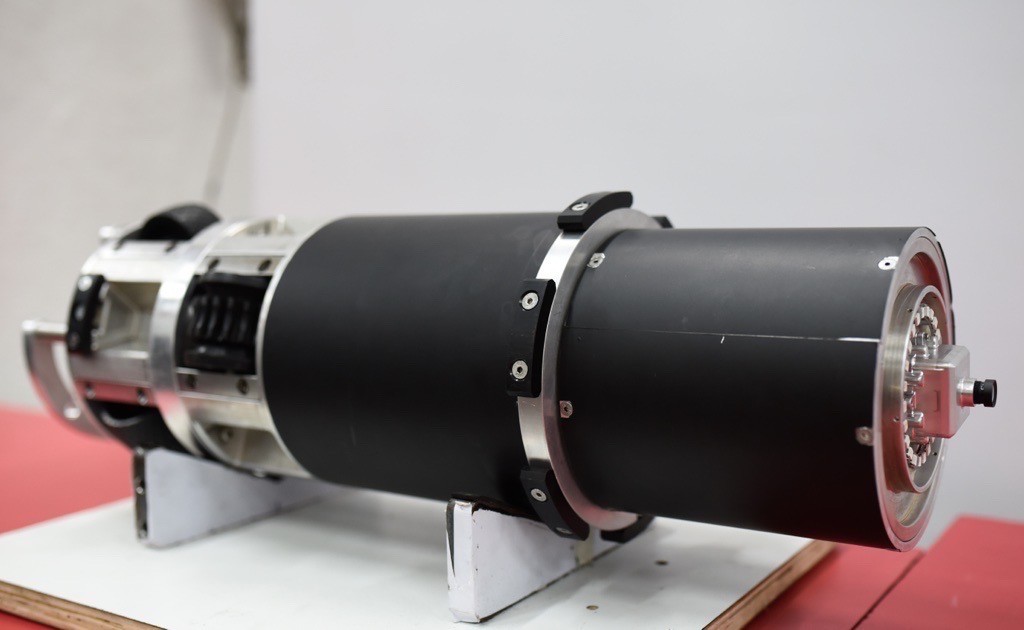

The Laser Inspection Robot is a crawler from Bit Mapper that travels inside armament bores to measure their condition, so that barrels do not have to be dismantled and checked by hand. It is built in three sizes: for 76 mm naval gun barrels (SRGM), 213 mm rocket-launcher tubes (IRL) and 536 mm submarine torpedo tubes. The robot carries a 2 MP CMOS camera for a live video stream and a laser profiler that maps the bore surface. It moves at 0.01 to 10 mm/s in manual or automatic mode, and analysis software turns the data into a report on wear, damage and serviceability with digital record keeping. A portable rugged controller with a 15-inch, 2,000-nit sunlight-readable display, joystick and sealed keypad runs the system. The 76 mm crawler is 76 x 1,000 mm and weighs 7 kg; the 213 mm and 536 mm versions weigh 20 kg. One person loads and one operates it. The product page carries an iDEX Challenge winner badge, and the iDEX procurement list records the AI-based barrel crawling bot inspection system for the Indian Navy under Bit Mapper.

FEATURES

Crawler robot that travels inside the bore

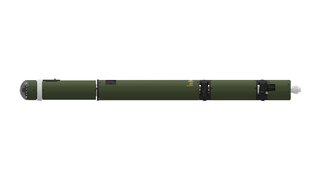

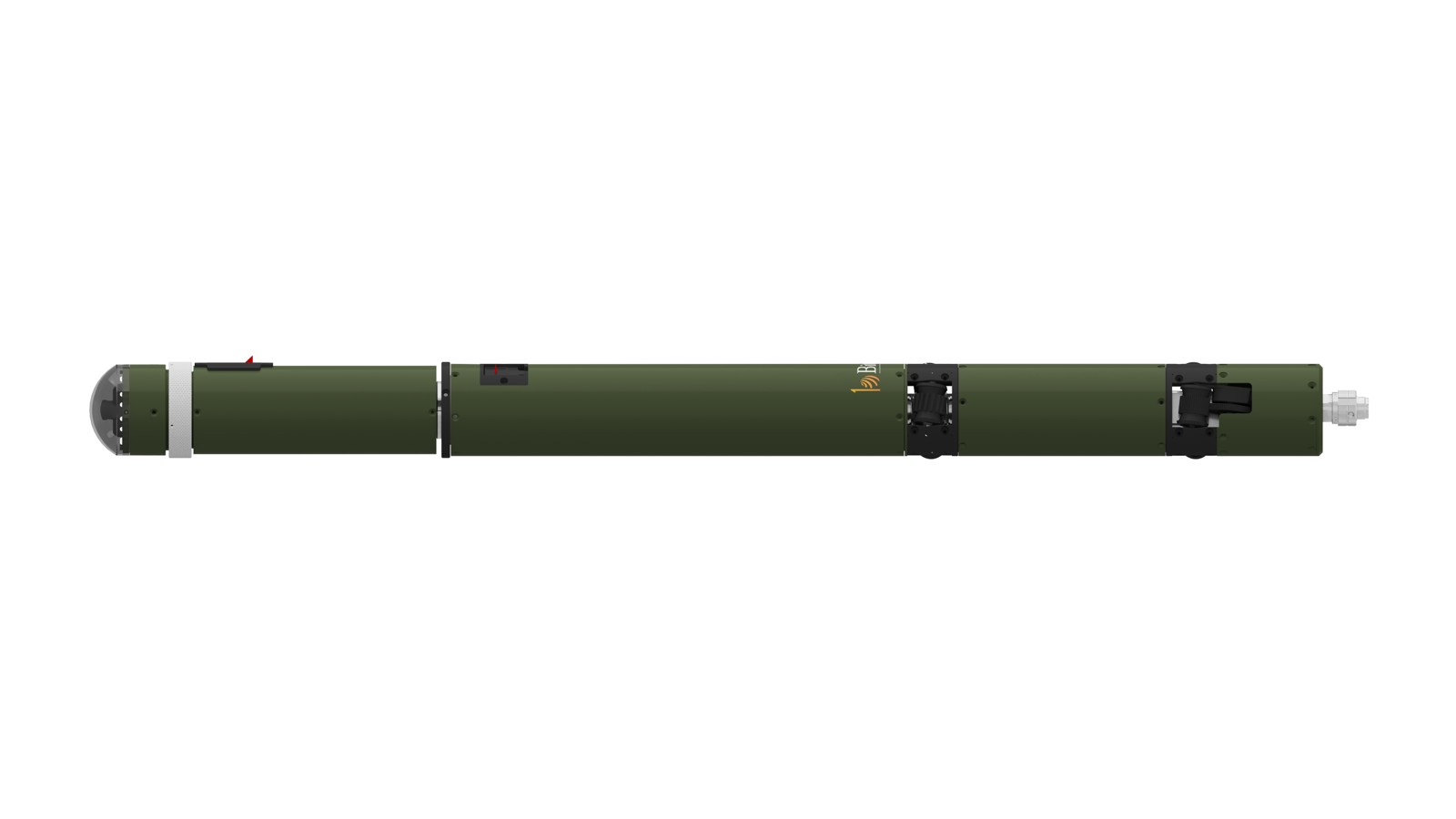

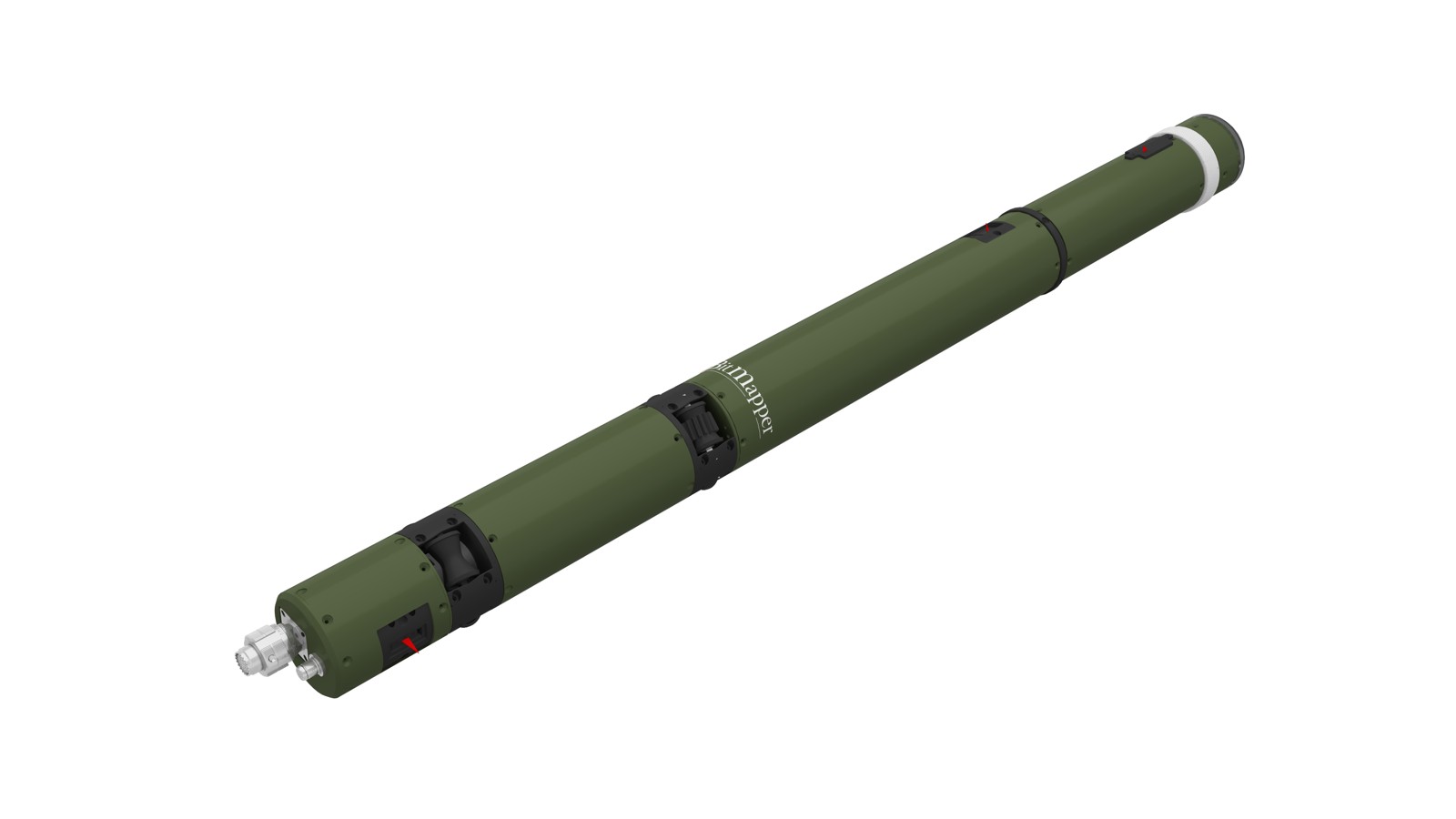

Variants: 76 mm x 1,000 mm (SRGM gun, 7 kg), 213 mm x 625 mm (IRL launcher, 20 kg), 536 mm x 750 mm (torpedo tube, 20 kg)
Visual inspection via live video stream from a 2 MP CMOS camera
Laser profiler for bore surface measurement
AI-powered inspection and analytical reports on barrel health and serviceability
Manual and automatic inspection modes
Travel speed 0.01-10 mm/s
One person for loading/unloading, one for operation
Portable ruggedised controller with in-built display, water- and dust-proof keypad and joystick
Controller CPU with 8 GB RAM, GPU and 2 TB solid-state storage
15-inch, 2,000-nit sunlight-readable anti-glare display, minimum 1024 x 786 resolution
Interfaces: 1x Gigabit Ethernet, 1x USB
Power: 24 V DC or 230 V AC via adapter
Operating temperature 0 to 50 C
storage -20 to 65 C
Automated digital record keeping
live monitoring
Indigenously designed, developed and manufactured in India (IDDM)

TECHNICAL SPECIFICATIONS

Physical
Weight	7 kg
Dimensions	L 1 m × W 76 mm
Mobility
Movement Type	Other
Environment	Inside 76 mm gun barrels, 213 mm rocket-launcher tubes and 536 mm torpedo tubes, 0°C to 50°C
Sensing & Compute
Sensors	2 MP CMOS camera, Laser profiler
Connectivity	Gigabit Ethernet, USB
