DESCRIPTION

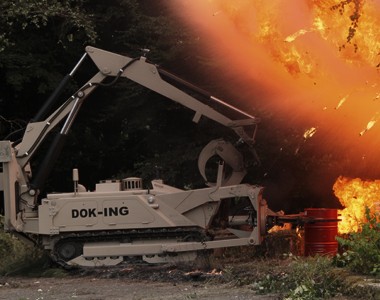

The MV-4 is DOK-ING's best-known machine and the one most mine-action programmes mean when they say 'the DOK-ING'. It weighs about 6,120 kg, measures 4,635 by 2,030 by 1,740 mm, and is driven by a 186 kW (250 HP) engine making 1,050 Nm at 1,400 rpm on 15 to 25 litres an hour. Its value is the tool set. A flail clears up to 1,800 mm wide and 300 mm deep; a tiller clears 1,800 mm wide and 350 mm deep. For deep interrogation there is an EOD arm that lifts 400 kg and reaches up to 5.4 m. A dozer blade pushes 4 tonnes, a rotational gripper lifts 1,500 kg and pushes 5.5 tonnes, and a segmented roller of twelve rollers verifies a 2,070 mm path. All of it runs by remote control with the operator outside the danger area, which is the entire point: the machine takes the blast.
FEATURES
- Remote-controlled demining and EOD vehicle, the maker's best-known machine
- Dimensions 4,635 x 2,030 x 1,740 mm
- Weight approx. 6,120 kg
- Engine power 186 kW / 250 HP
- torque 1,050 Nm at 1,400 rpm
- Fuel consumption 15 to 25 litres per hour
- Flail tool: clearance width up to 1,800 mm, depth up to 300 mm
- Tiller tool: clearance width 1,800 mm, depth up to 350 mm
- EOD arm: lifting capacity 400 kg, length up to 5.4 m
- Dozer blade: pushing capacity 4 t
- Rotational gripper: lifting capacity 1,500 kg, pushing capacity 5.5 t
- Segmented roller: 12 rollers, clearing width 2,070 mm
- Full body protection
- day and night operation
- area mapping
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 6120 kg |
|---|---|
| Dimensions | L 4.63 m × W 2.03 m × H 1.74 m |
| Payload | 400 kg |
| Reach | 5.4 m |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Minefields, disaster sites and contaminated ground; on and off-road, operator at a distance |
| Sensing & Compute | |
| Sensors | Cameras for day and night operation, Situational-awareness and mapping sensors |
| Software / AI | Remote control with area mapping and situational awareness |
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 6120 kg |
|---|---|
| Dimensions | L 4.63 m × W 2.03 m × H 1.74 m |
| Payload | 400 kg |
| Reach | 5.4 m |
| Mobility | |
| Movement Type | Wheeled |
| Environment | Minefields, disaster sites and contaminated ground; on and off-road, operator at a distance |
| Sensing & Compute | |
| Sensors | Cameras for day and night operation, Situational-awareness and mapping sensors |
| Software / AI | Remote control with area mapping and situational awareness |
Images
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the DOK-ING MV-4?
The MV-4 is DOK-ING's best-known machine and the one most mine-action programmes mean when they say 'the DOK-ING'. It weighs about 6,120 kg, measures 4,635 by 2,030 by 1,740 mm, and is driven by a 186 kW (250 HP) engine making 1,050 Nm at 1,400 rpm on 15 to 25 litres an hour. Its value is the tool set.
Who makes the DOK-ING MV-4?
The DOK-ING MV-4 is made by DOK-ING, a robotics company based in Croatia.
How much does the DOK-ING MV-4 cost?
DOK-ING has not publicly announced pricing for the DOK-ING MV-4. You can enquire through RobotAIGeek for current pricing.
What is the DOK-ING MV-4 used for?
The DOK-ING MV-4 is designed for reconnaissance, rescue, security, and inspection. It is used in defence, government, and construction settings.
What is the payload capacity of the DOK-ING MV-4?
The DOK-ING MV-4 has a payload capacity of 400 kg and a reach of 5.4 m.
How much does the DOK-ING MV-4 weigh?
The DOK-ING MV-4 weighs 6,120 kg.
