DESCRIPTION
L7 Twister is an Industrial-Robot from Sevnce Robotics. It is built for Inspection, Patrol, Explosion-proof inspection and emergency robotics. Key figures: 250 kg, 300 min runtime.

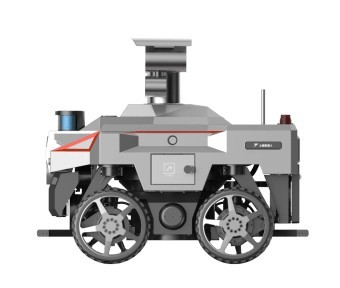

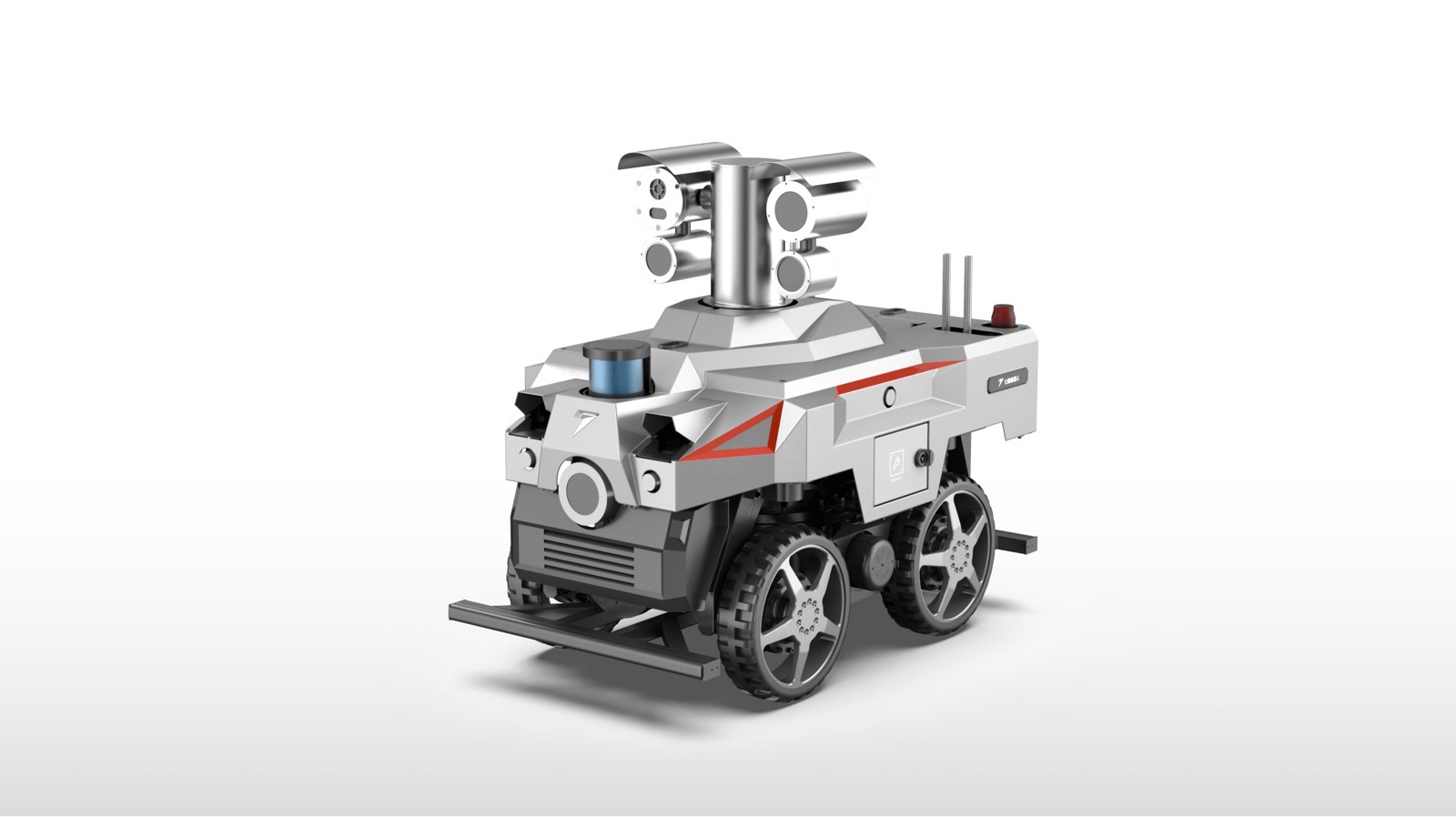

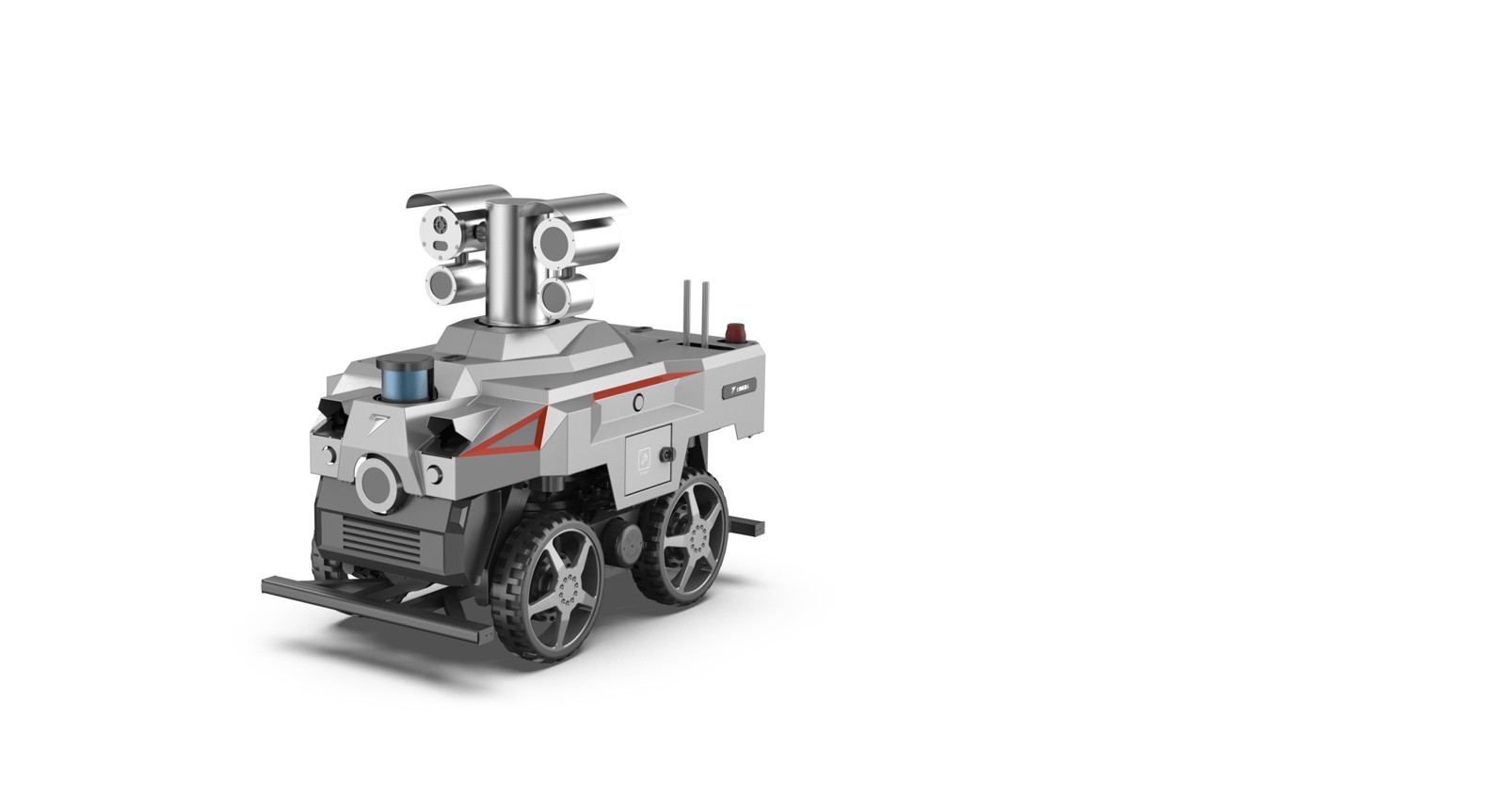

The L7 Twister is Sevnce's all-terrain explosion-proof wheeled inspection robot (Ex IIC T6 Gb, IP66). Four wheels with eight drive motors, steerable wheels and independent suspension - each wheel with its own power unit - give it off-road ability and manoeuvrability on rough, broken ground, and an AI industrial PC with up to 100 TOPS supports reliable offline inspection. It measures 1,060 x 620 x 1,020 mm and up to 250 kg, travels at up to 0.9 m/s, turns in a 1.3 m circle, climbs 15-degree slopes and 10 cm obstacles, navigates by laser to +/-3 cm and runs up to five hours with up to three-hour charging between -20 and 60 C. Standard functions include autonomous inspection, obstacle avoidance, remote control, video monitoring, offline inspection, sound-and-light alarm, auxiliary lighting, autonomous charging, two-way voice and one-key return, with options for laser gas telemetry, laser vibration measurement, optical and acoustic imaging, voiceprint and noise detection and flame detection, a lifting gimbal, BeiDou navigation and a robot arm.
FEATURES
- Explosion protection Ex IIC T6 Gb
- IP66
- Four-wheel eight-motor drive
- steerable wheels
- independent suspension
- AI industrial PC up to 100 TOPS
- offline inspection
- 1,060 x 620 x 1,020 mm
- up to 250 kg
- Speed up to 0.9 m/s
- braking 0.3 m
- turning diameter 130 cm
- Slopes up to 15 deg
- obstacles up to 10 cm
- Laser navigation
- accuracy +/-3 cm
- Runtime up to 5 h
- charging up to 3 h
- Options: laser telemetry and vibration, imaging, voiceprint, noise, flame detection, lifting gimbal, BeiDou, robot arm
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 250 kg |
|---|---|
| Dimensions | L 1.06 m × W 620 mm × H 1.02 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.24 km/h |
| Environment | Explosive and hazardous industrial sites (oil, chemical, gas, power), indoor and outdoor |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | 2D LiDAR (laser navigation), cameras |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 250 kg |
|---|---|
| Dimensions | L 1.06 m × W 620 mm × H 1.02 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.24 km/h |
| Environment | Explosive and hazardous industrial sites (oil, chemical, gas, power), indoor and outdoor |
| Power | |
| Battery Life | 300 min |
| Sensing & Compute | |
| Sensors | 2D LiDAR (laser navigation), cameras |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the L7 Twister?
The L7 Twister is Sevnce's all-terrain explosion-proof wheeled inspection robot (Ex IIC T6 Gb, IP66). Four wheels with eight drive motors, steerable wheels and independent suspension - each wheel with its own power unit - give it off-road ability and manoeuvrability on rough, broken ground, and an AI industrial PC with…
Who makes the L7 Twister?
The L7 Twister is made by Sevnce Robotics, a robotics company based in China.
How much does the L7 Twister cost?
Sevnce Robotics has not publicly announced pricing for the L7 Twister. You can enquire through RobotAIGeek for current pricing.
What is the L7 Twister used for?
The L7 Twister is designed for inspection, patrol, and explosion-proof inspection and emergency robotics. It is used in energy and manufacturing settings.
How much does the L7 Twister weigh?
The L7 Twister weighs 250 kg.
How fast is the L7 Twister?
The L7 Twister can move at speeds of up to 3.24 km/h.
What is the battery life of the L7 Twister?
The L7 Twister runs for about 300 minutes on a charge.
