DESCRIPTION

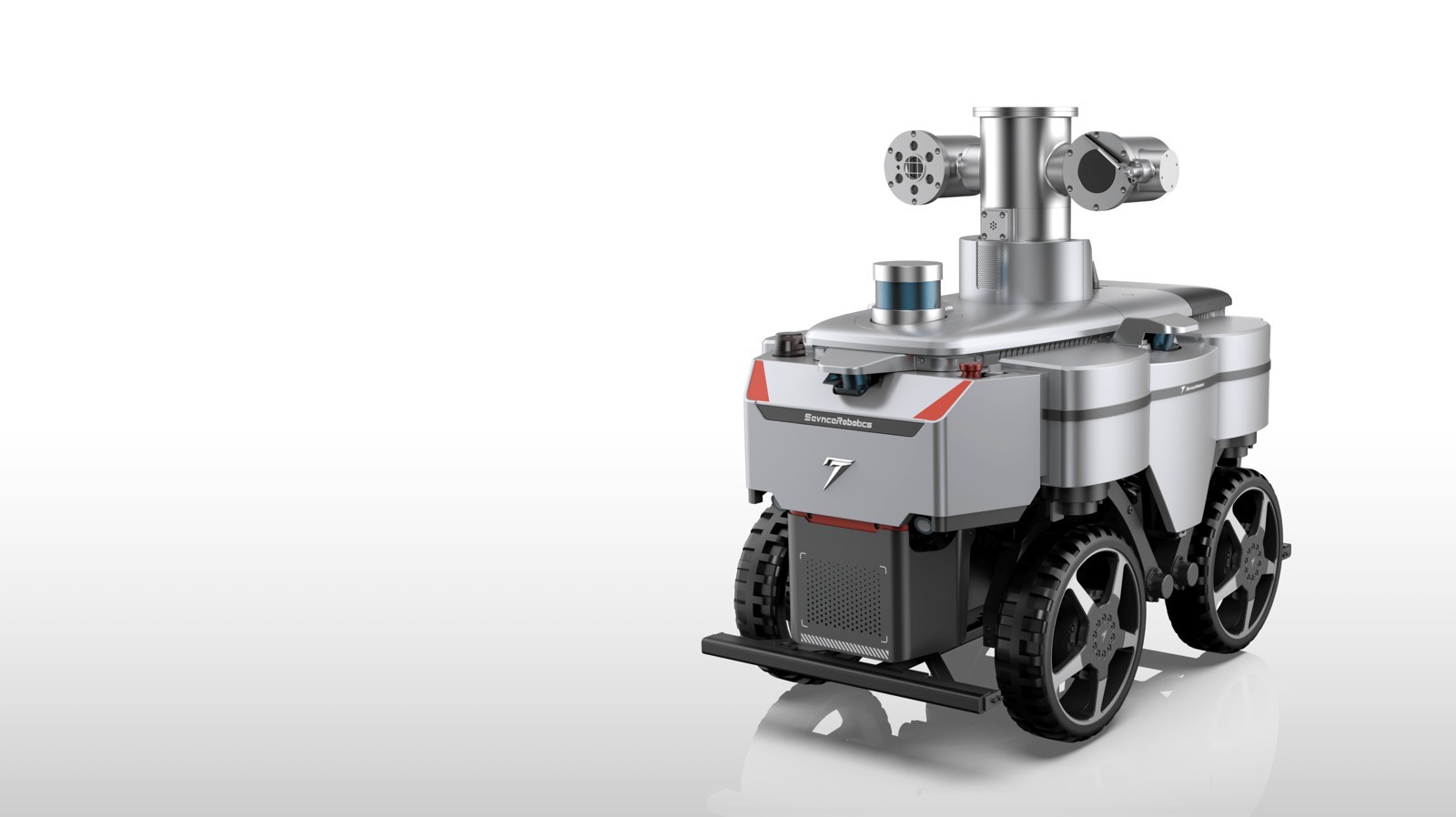

L3 is an Industrial-Robot from Sevnce Robotics. It is built for Inspection, Patrol, Explosion-proof inspection and emergency robotics. Key figures: 180 kg, 180 min runtime.
The L3 is Sevnce's new compact, lightweight explosion-proof wheeled inspection robot (Ex IIC T6 Gb, IP66) with a modular design: independently sealed compartments and quick-maintenance interfaces speed up servicing, and an integrated gimbal and spare interfaces let function modules be swapped or added so one robot serves several tasks. Four-wheel, eight-motor drive gives it strong traction on rough industrial ground. It measures up to 1,010 x 650 x 1,070 mm and 180 kg, travels at up to 1.0 m/s, turns in a 1.2 m circle, climbs 25-degree slopes and 9 cm obstacles, wades 9 cm of water, navigates by laser SLAM with IMU to +/-5 cm, and runs at least three hours with up to two-hour charging between -20 and 60 C. Standard functions include autonomous inspection, obstacle avoidance, remote control, video monitoring, offline inspection, sound-and-light alarm, auxiliary lighting, autonomous charging, two-way voice and one-key return, with options for laser gas telemetry, laser vibration measurement, optical and acoustic imaging, voiceprint and noise detection and flame detection, a lifting gimbal, BeiDou navigation and a robot arm.
FEATURES
- Explosion protection Ex IIC T6 Gb
- IP66
- Modular design: sealed compartments, quick-maintenance interfaces, integrated swappable gimbal
- Four-wheel eight-motor drive
- Up to 1,010 x 650 x 1,070 mm
- up to 180 kg
- Speed up to 1.0 m/s
- turning diameter 120 cm
- Slopes up to 25 deg
- obstacles up to 9 cm
- wading 9 cm
- Laser SLAM + IMU
- accuracy +/-5 cm
- Runtime at least 3 h
- charging up to 2 h
- Options: laser telemetry and vibration, optical/acoustic imaging, voiceprint, noise, flame detection, lifting gimbal, BeiDou, robot arm
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 180 kg |
|---|---|
| Dimensions | L 1.01 m × W 650 mm × H 1.07 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Explosive and hazardous industrial sites (oil, chemical, gas, power), indoor and outdoor |
| Power | |
| Battery Life | 180 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR (laser SLAM), IMU, cameras |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 180 kg |
|---|---|
| Dimensions | L 1.01 m × W 650 mm × H 1.07 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Explosive and hazardous industrial sites (oil, chemical, gas, power), indoor and outdoor |
| Power | |
| Battery Life | 180 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR (laser SLAM), IMU, cameras |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the L3?
The L3 is Sevnce's new compact, lightweight explosion-proof wheeled inspection robot (Ex IIC T6 Gb, IP66) with a modular design: independently sealed compartments and quick-maintenance interfaces speed up servicing, and an integrated gimbal and spare interfaces let function modules be swapped or added so one robot serv…
Who makes the L3?
The L3 is made by Sevnce Robotics, a robotics company based in China.
How much does the L3 cost?
Sevnce Robotics has not publicly announced pricing for the L3. You can enquire through RobotAIGeek for current pricing.
What is the L3 used for?
The L3 is designed for inspection, patrol, and explosion-proof inspection and emergency robotics. It is used in energy and manufacturing settings.
How much does the L3 weigh?
The L3 weighs 180 kg.
How fast is the L3?
The L3 can move at speeds of up to 3.6 km/h.
What is the battery life of the L3?
The L3 runs for about 180 minutes on a charge.
