DESCRIPTION
Kanatokhod Pauk is an Industrial-Robot from CableWalker. It is built for Cleaning, Monitoring, De-icing and coating of overhead power-line conductors and ground wires. Key figures: 20 kg, 28 min runtime, 9 kg payload.

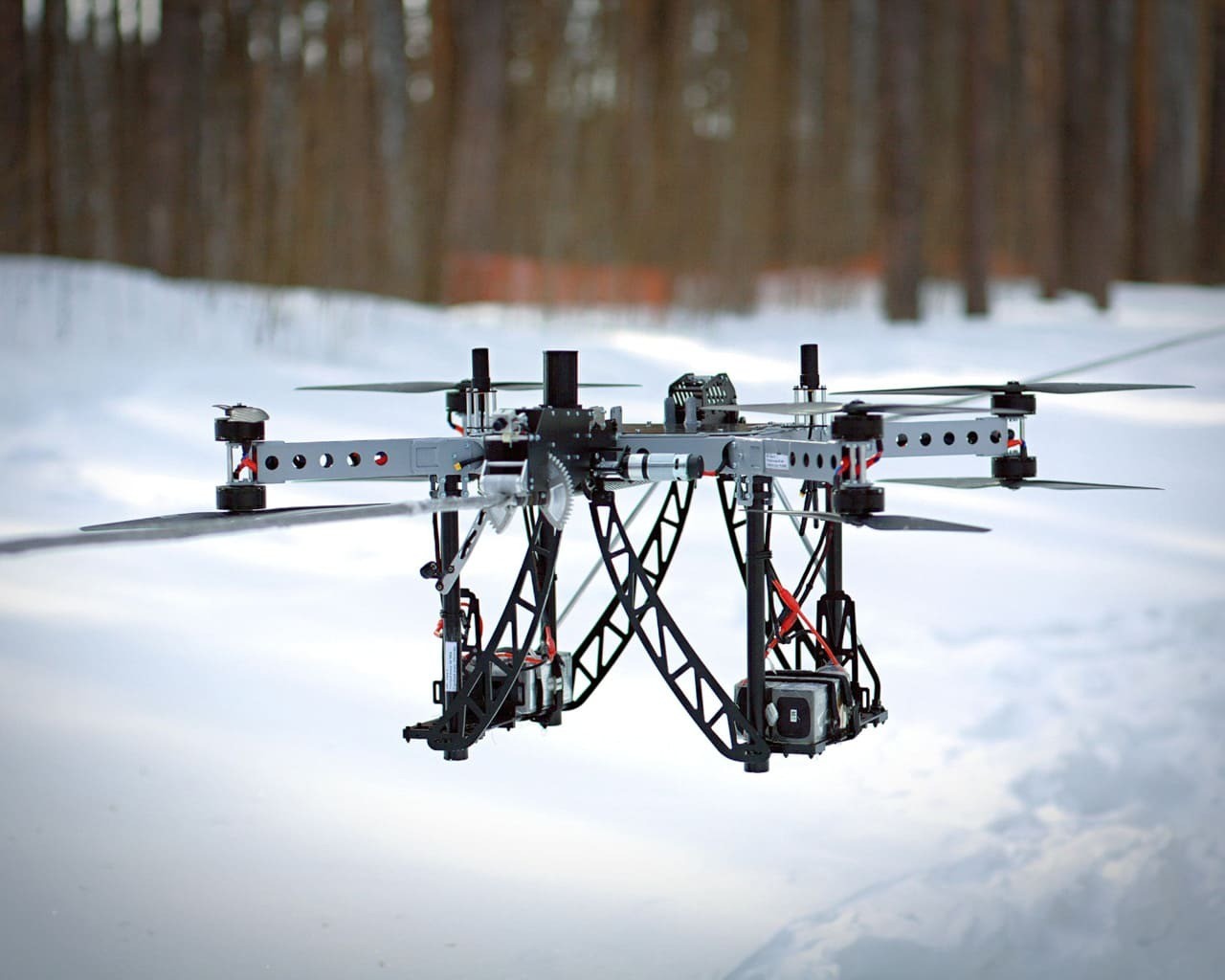

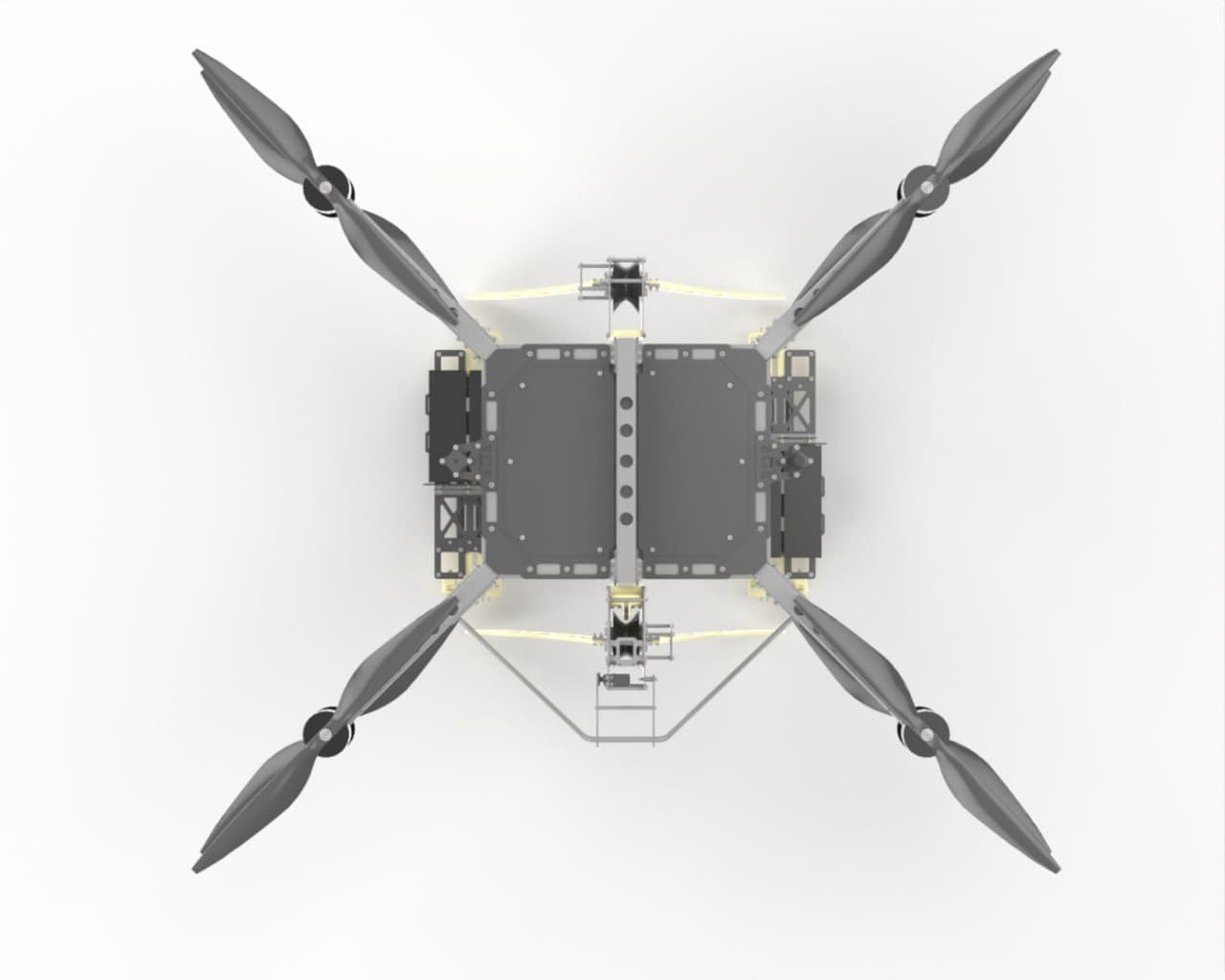

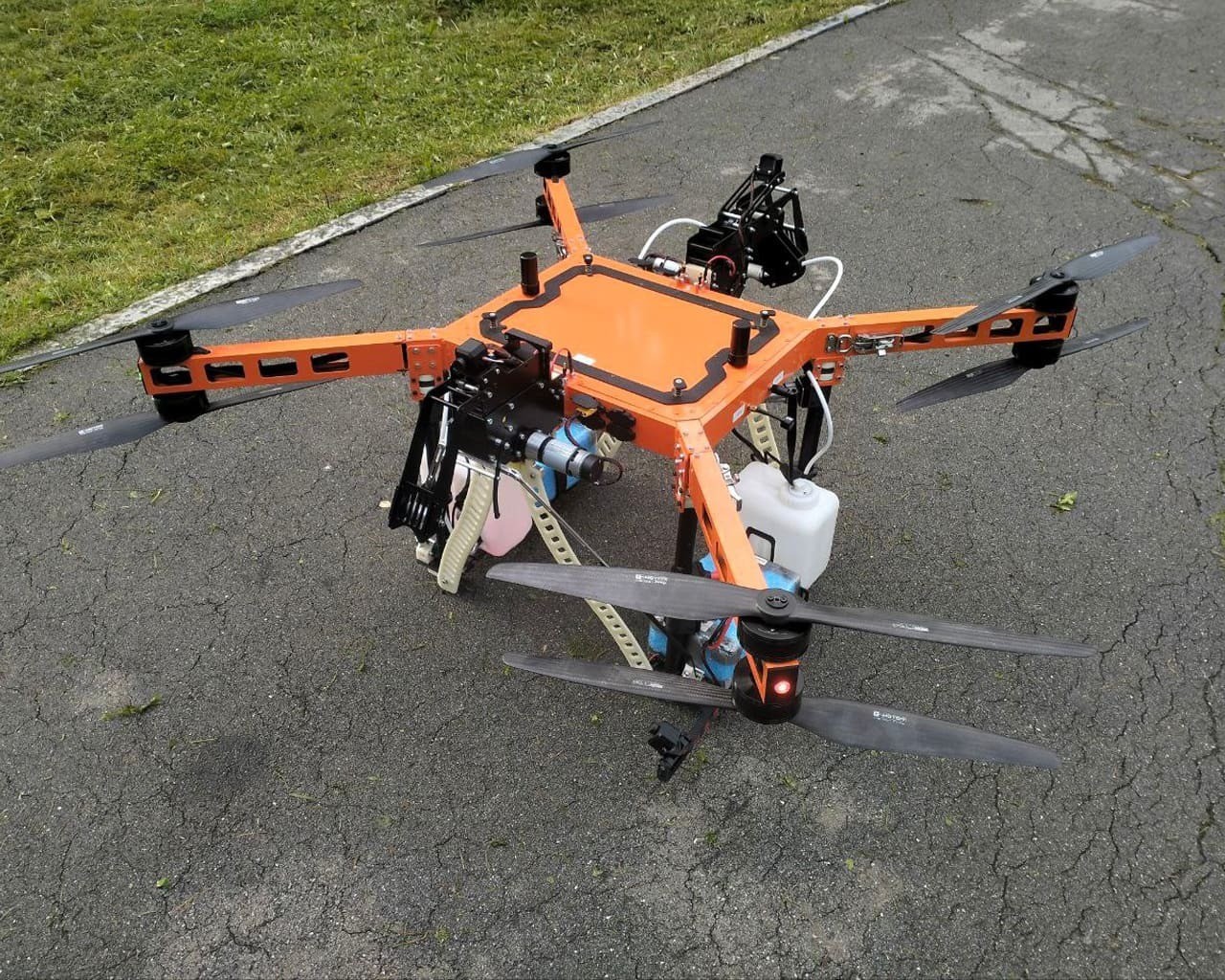

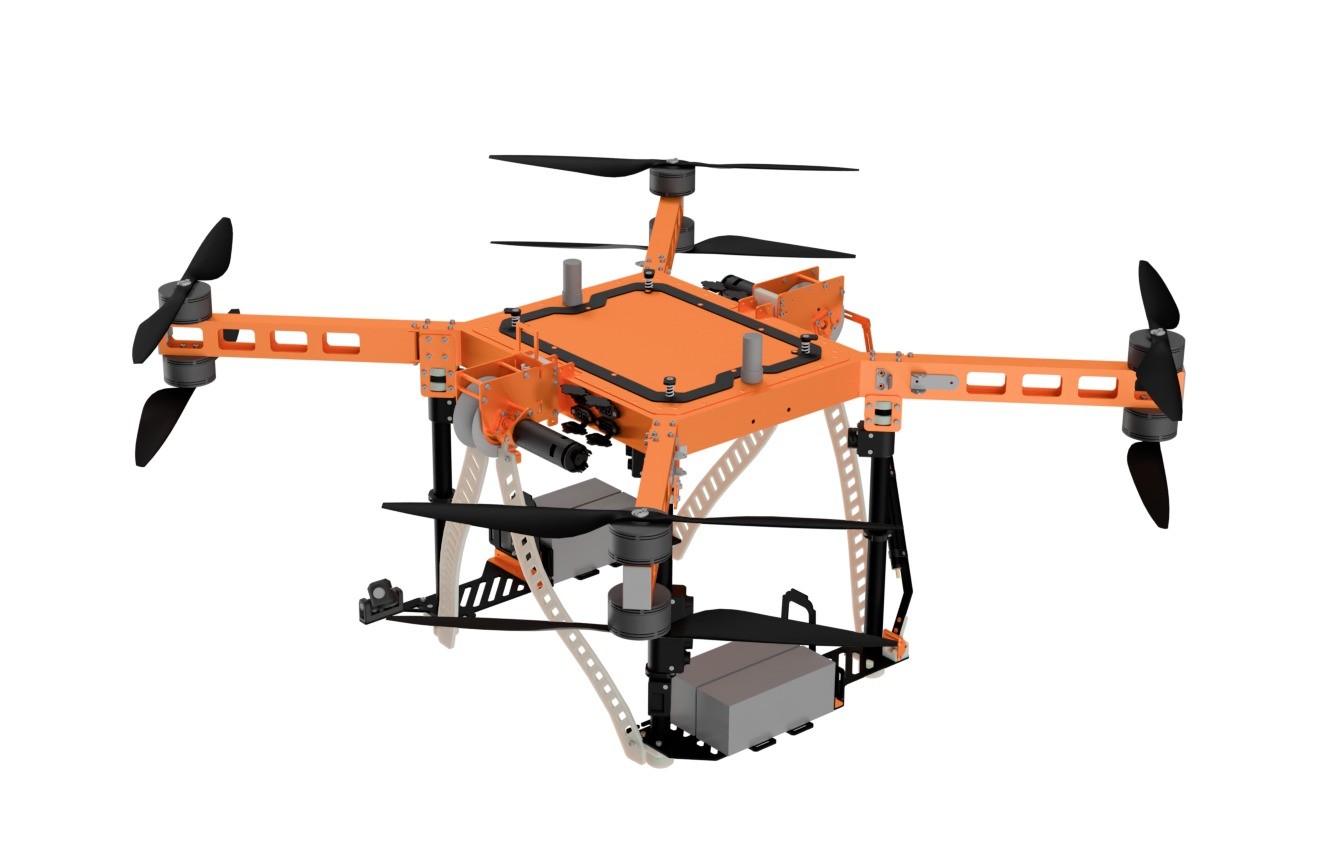

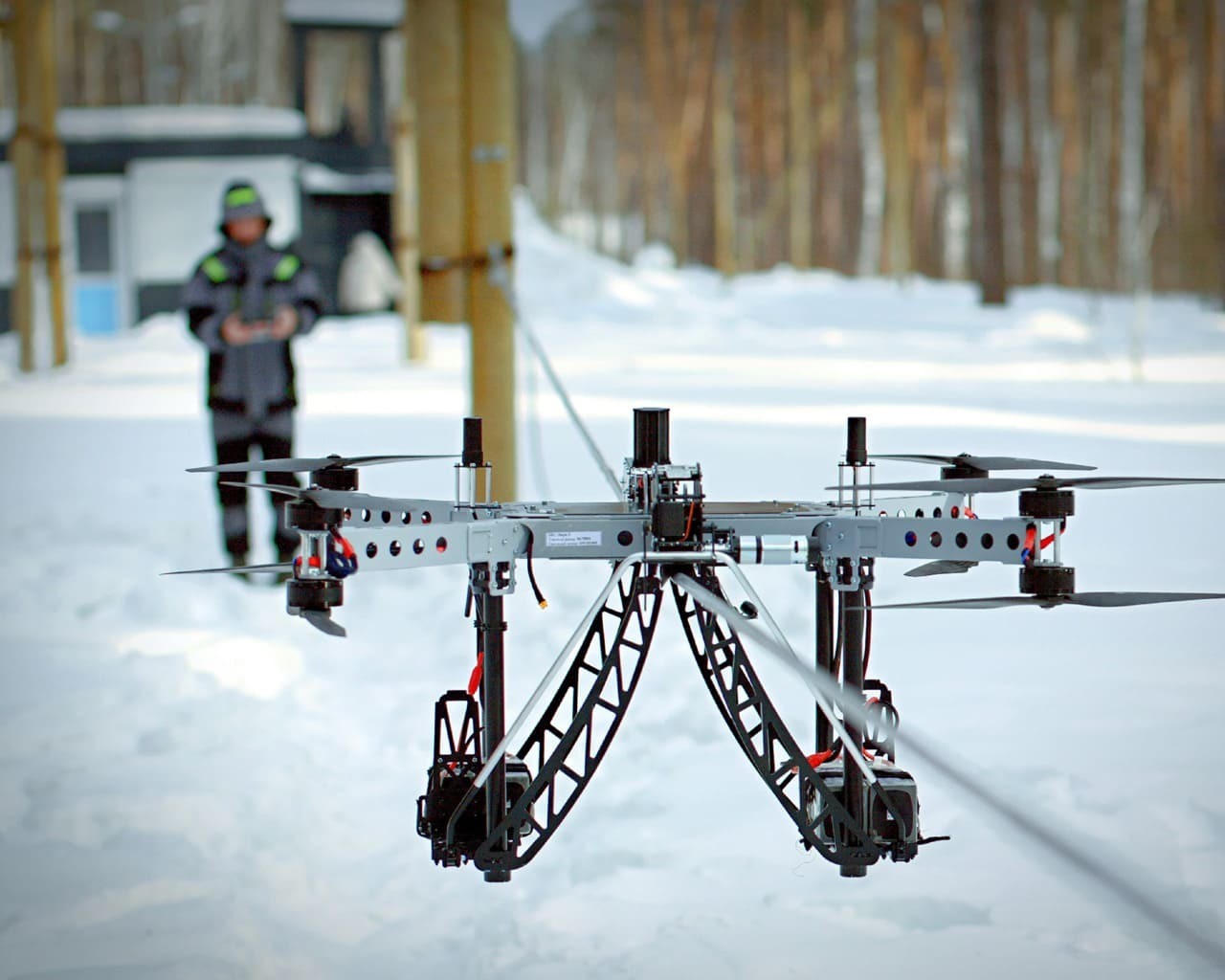

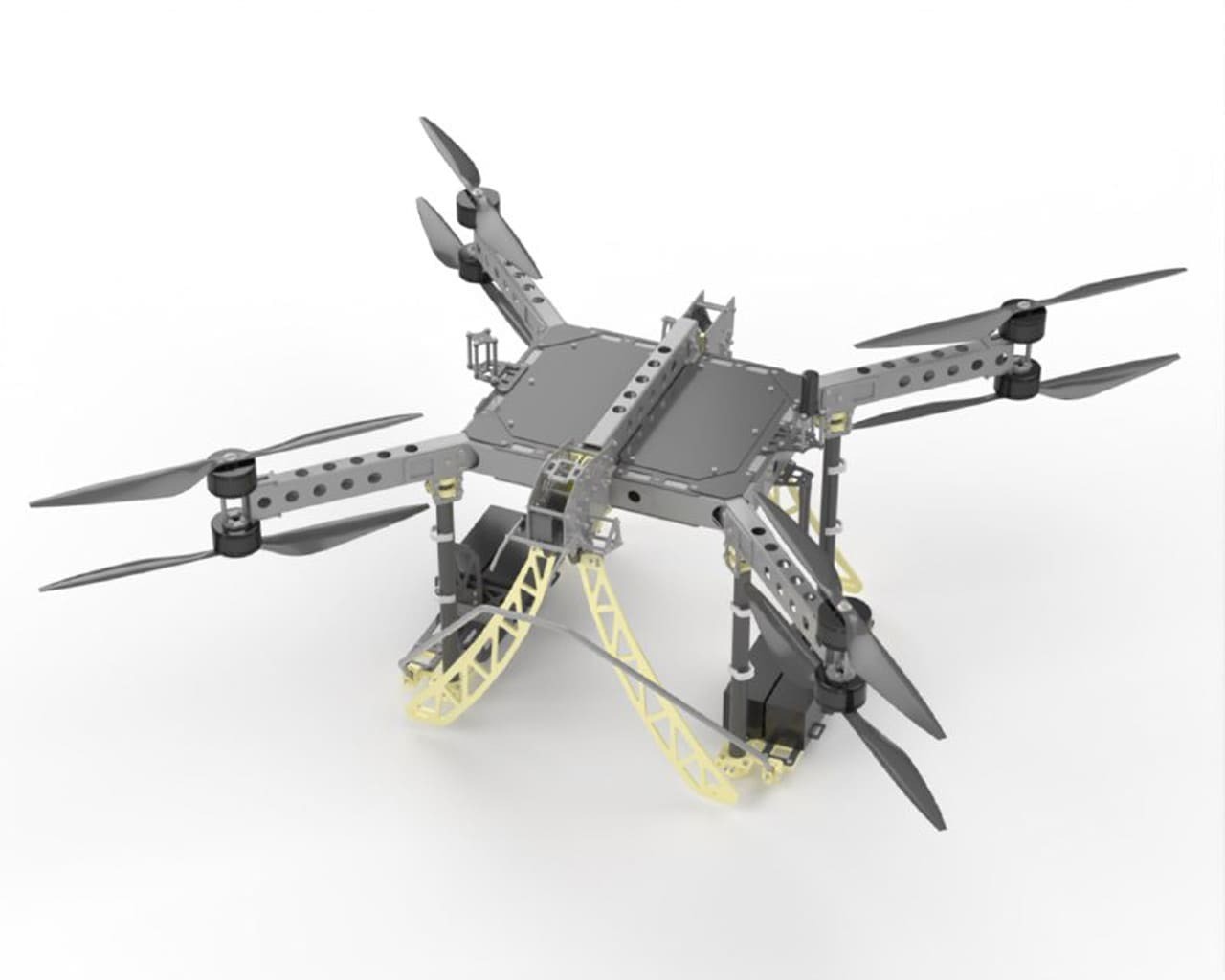

The Kanatokhod Pauk ('Spider') is CableWalker's line-crawling drone for contact cleaning of ice and rime from the conductors and ground wires of 35-500 kV overhead power lines, and for applying anti-icing and anti-corrosion compounds. It can also be fitted with manipulators to trim broken conductor strands and to install bird diverters and marker balls on the line. A coaxial octocopter, it weighs 12 kg without batteries and 20 kg with them, carries a 9 kg payload (maximum take-off mass 29 kg) on four 16,000 mAh 22.2 V batteries, and flies for 28 minutes empty or 16 minutes loaded. On the line it moves at up to 1 m/s and covers up to 2 km per charge; in the air it reaches 22 m/s, with an optimal working radius of 2 km (up to 5 km). It operates from -30 to +50 C in winds up to 10 m/s, is rated for live-line work on 35-220 kV conductors and 35-500 kV ground wires, and measures 1,490 x 1,410 x 610 mm including propellers.
FEATURES
- Clears ice and rime from 35-500 kV conductors and ground wires
- Applies anti-icing and anti-corrosion compounds
- Optional manipulators: trims broken strands, installs bird diverters and marker balls
- Coaxial octocopter: 20 kg with batteries, 9 kg payload, 29 kg MTOW
- Moves along the line at up to 1 m/s
- 2 km per charge
- 28 min flight empty / 16 min loaded
- 22 m/s
- 30 to +50 C
- live-line 35-220 kV conductors, 35-500 kV ground wires
- 1,490 x 1,410 x 610 mm with propellers
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 20 kg |
|---|---|
| Dimensions | L 1.49 m × W 1.41 m × H 610 mm |
| Payload | 9 kg |
| Mobility | |
| Movement Type | Aerial |
| Speed | 79.2 km/h |
| Environment | Overhead power lines 35-500 kV, outdoors -30 to +50 C |
| Power | |
| Battery Life | 28 min |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 20 kg |
|---|---|
| Dimensions | L 1.49 m × W 1.41 m × H 610 mm |
| Payload | 9 kg |
| Mobility | |
| Movement Type | Aerial |
| Speed | 79.2 km/h |
| Environment | Overhead power lines 35-500 kV, outdoors -30 to +50 C |
| Power | |
| Battery Life | 28 min |
Images
martti
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Kanatokhod Pauk?
The Kanatokhod Pauk ('Spider') is CableWalker's line-crawling drone for contact cleaning of ice and rime from the conductors and ground wires of 35-500 kV overhead power lines, and for applying anti-icing and anti-corrosion compounds.
Who makes the Kanatokhod Pauk?
The Kanatokhod Pauk is made by CableWalker, a robotics company based in Russia.
How much does the Kanatokhod Pauk cost?
CableWalker has not publicly announced pricing for the Kanatokhod Pauk. You can enquire through RobotAIGeek for current pricing.
What is the Kanatokhod Pauk used for?
The Kanatokhod Pauk is designed for cleaning, monitoring, and de-icing and coating of overhead power-line conductors and ground wires. It is used in energy settings.
What is the payload capacity of the Kanatokhod Pauk?
The Kanatokhod Pauk has a payload capacity of 9 kg.
How much does the Kanatokhod Pauk weigh?
The Kanatokhod Pauk weighs 20 kg.
How fast is the Kanatokhod Pauk?
The Kanatokhod Pauk can move at speeds of up to 79.2 km/h.
What is the battery life of the Kanatokhod Pauk?
The Kanatokhod Pauk runs for about 28 minutes on a charge.
