DESCRIPTION
Jaguar V2 is a Mobile-Robots from Dr Robot. It is built for Others, Security, Surveying. Key figures: 25 kg, 120 min runtime, 15 kg payload, price $14,500.

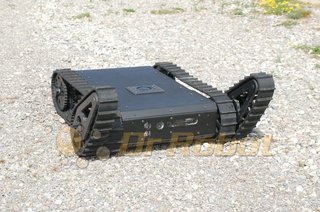

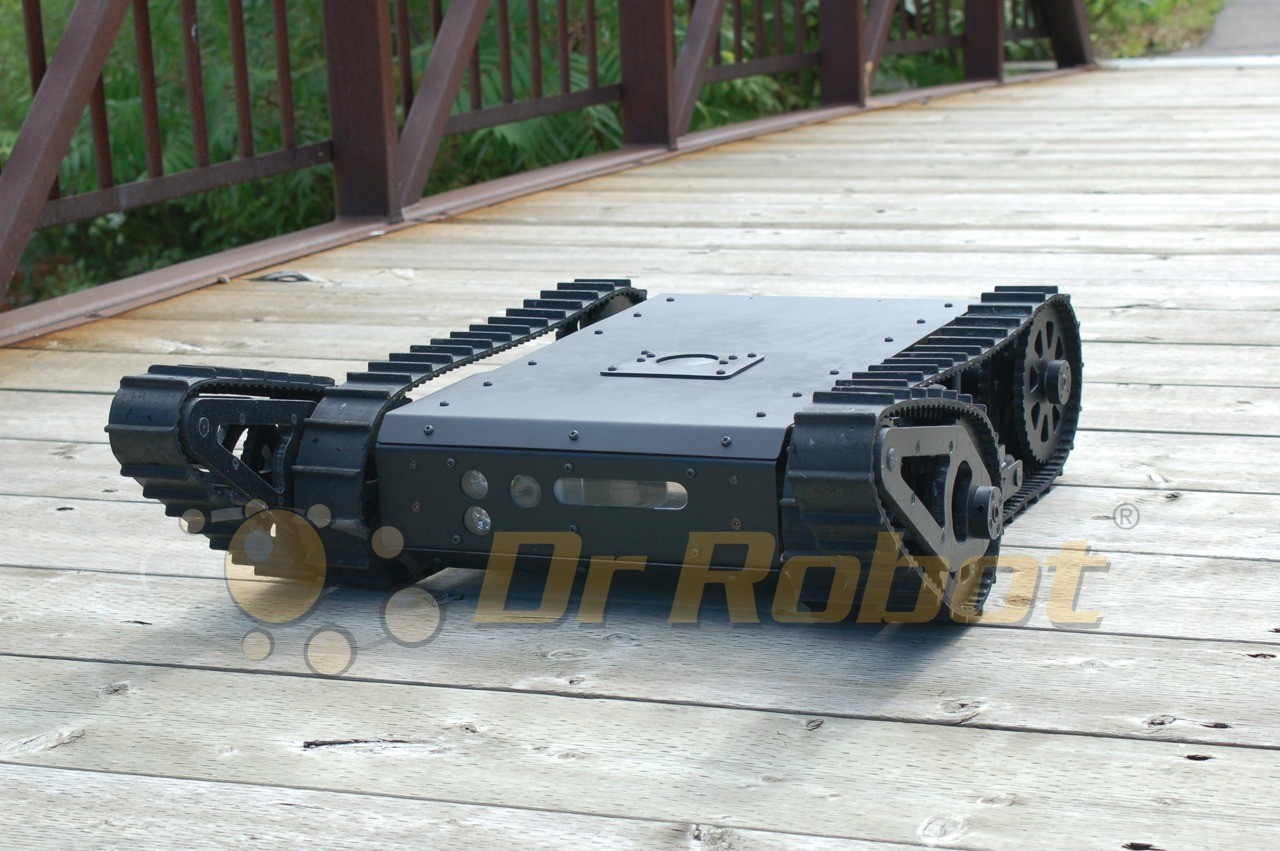

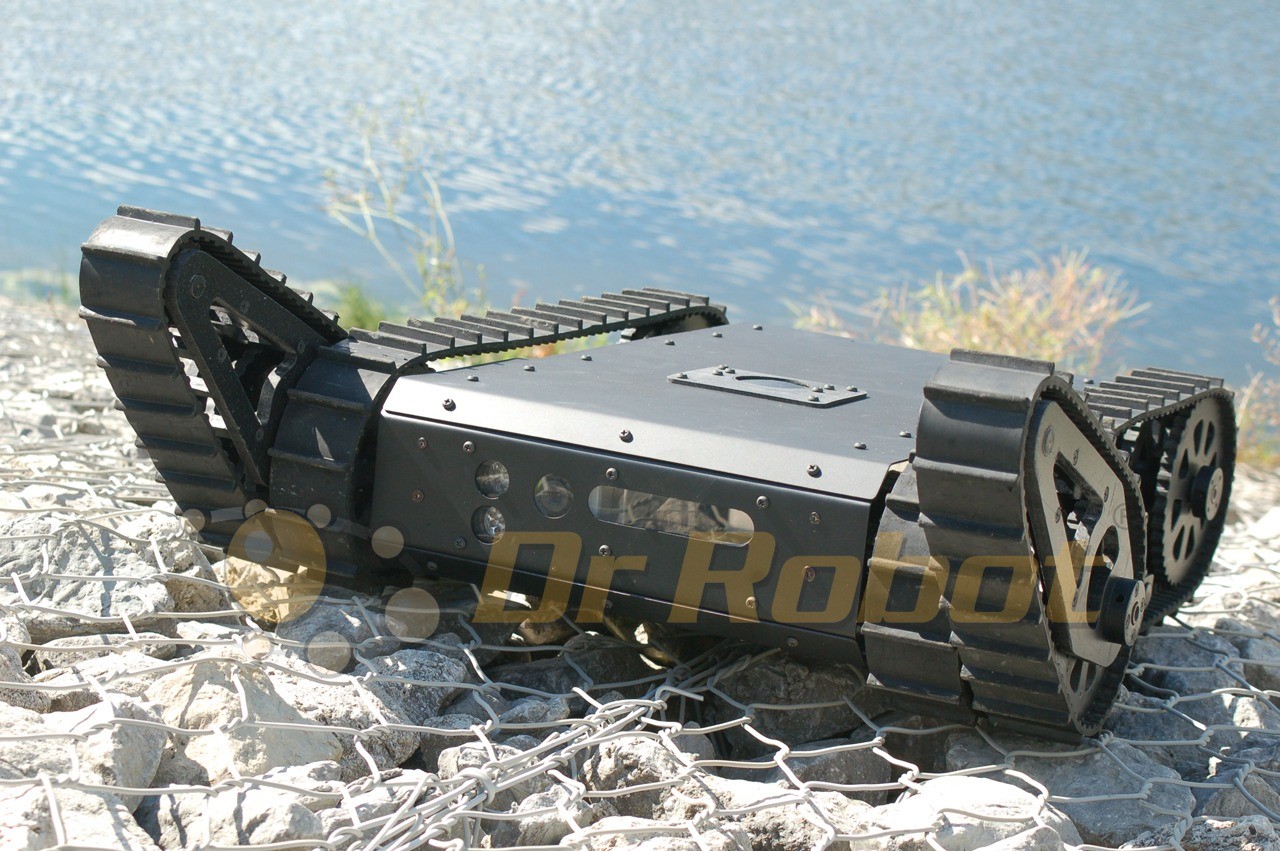

Jaguar V2 is Dr Robot's original rugged tracked platform for indoor and outdoor work that needs robust manoeuvrability. Two articulated track arms (synchronised as standard, optionally independent) help it climb slopes over 45 degrees, stairs and 200 mm steps, traverse 260 mm gaps and right itself after flipping over; its sealed, weather- and water-resistant, shock-resistant chassis survives a 900 mm drop onto concrete and works from -30 to +40 C at up to 5 km/h. It is fully 802.11n wireless, with a 5 Hz GPS and 9-DOF IMU for autonomous navigation, a 640 x 480 colour camera with audio, headlights and an optional laser scanner. A ready-to-use control and navigation application, gamepad control with an optional head-mounted display or NVIDIA Shield controller, and a full SDK with sample code for Microsoft Robotics Studio, Visual Studio, ROS, NI LabVIEW, MATLAB and Java are supplied. A 22.2 V 10 Ah LiPo battery gives 2 hours nominal (optional 4), and it carries 15 kg or drags 50 kg on flat ground.
FEATURES
- Two articulated track arms
- self-righting
- Slopes > 45 degrees

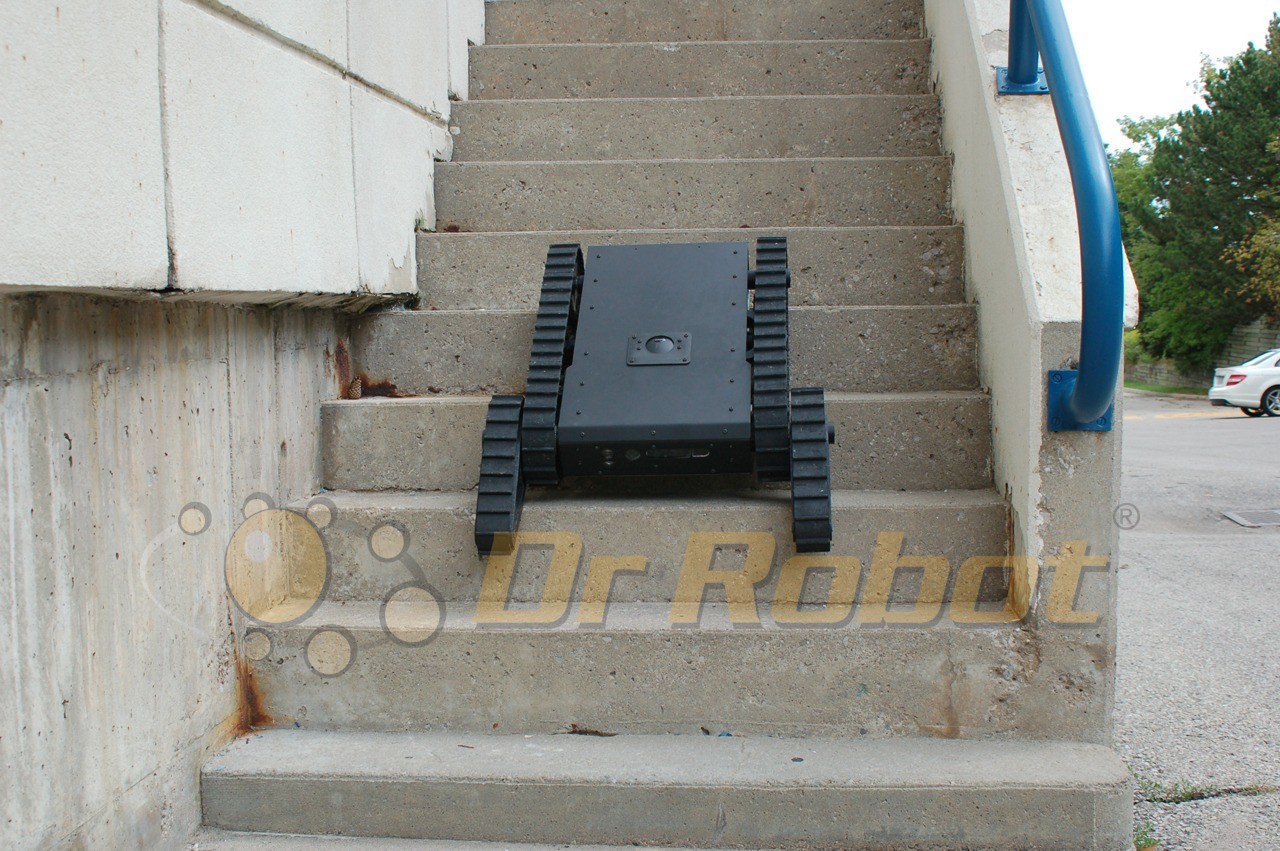

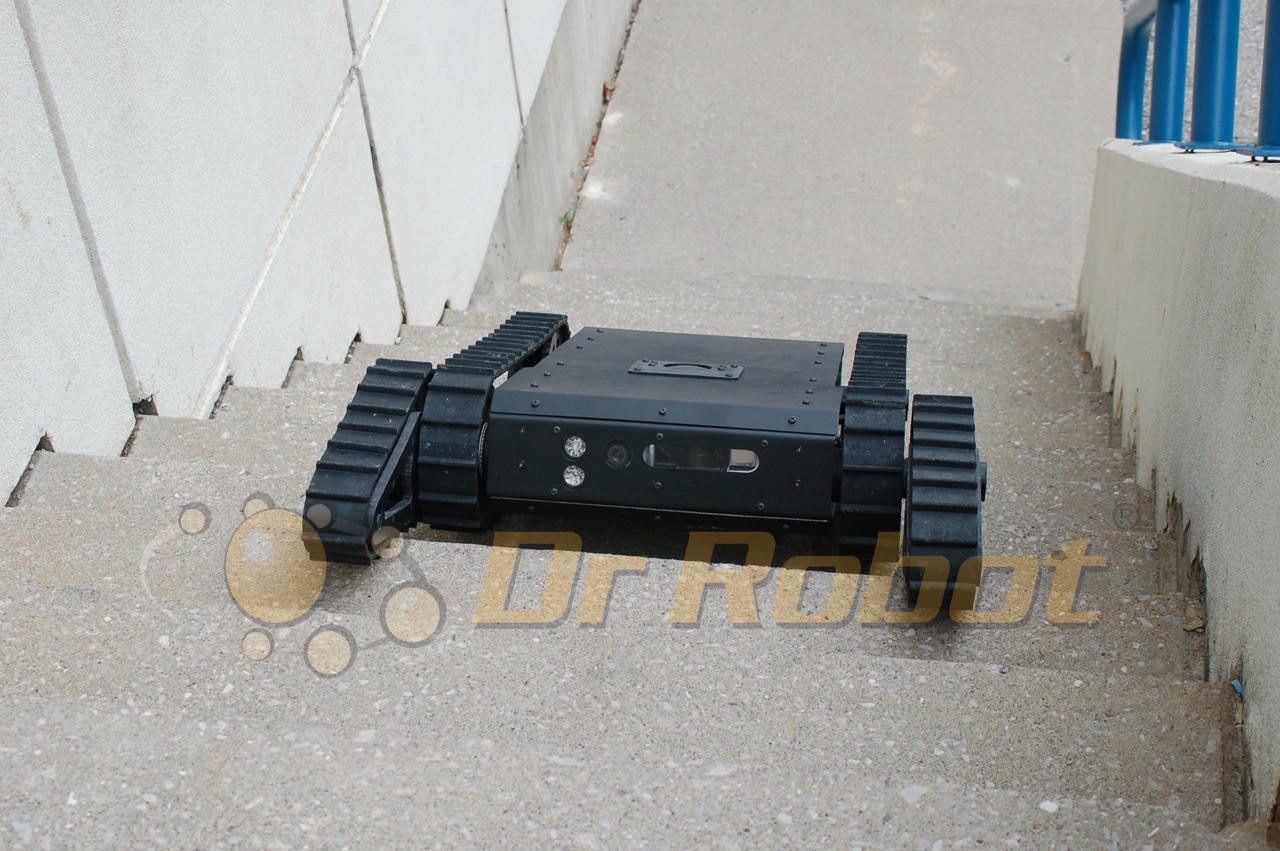

- 200 mm steps and stairs
- Weather- and water-resistant
- 900 mm drop rated
- GPS + 9-DOF IMU autonomous navigation
- optional laser scanner
- 640 x 480 camera with audio
- 802.11n
- Carries 15 kg, drags 50 kg
- 2 h runtime (optional 4 h)
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 25 kg |
|---|---|
| Dimensions | L 820 mm × W 700 mm × H 176 mm |
| Payload | 15 kg |
| Mobility | |
| Movement Type | Other |
| Speed | 5 km/h |
| Environment | Indoor and outdoor extreme terrain: sand, rock, gravel, grass, soil, wet or dry; -30 to 40 C |
| Power | |
| Battery Life | 120 min |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 25 kg |
|---|---|
| Dimensions | L 820 mm × W 700 mm × H 176 mm |
| Payload | 15 kg |
| Mobility | |
| Movement Type | Other |
| Speed | 5 km/h |
| Environment | Indoor and outdoor extreme terrain: sand, rock, gravel, grass, soil, wet or dry; -30 to 40 C |
| Power | |
| Battery Life | 120 min |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Jaguar V2?
Jaguar V2 is Dr Robot's original rugged tracked platform for indoor and outdoor work that needs robust manoeuvrability. Two articulated track arms (synchronised as standard, optionally independent) help it climb slopes over 45 degrees, stairs and 200 mm steps, traverse 260 mm gaps and right itself after flipping over;…
Who makes the Jaguar V2?
The Jaguar V2 is made by Dr Robot, a robotics company based in Canada.
How much does the Jaguar V2 cost?
The Jaguar V2 is priced at around $14,500.
What is the Jaguar V2 used for?
The Jaguar V2 is designed for others, security, surveying, and inspection. It is used in defence, research, and security & patrol settings.
What is the payload capacity of the Jaguar V2?
The Jaguar V2 has a payload capacity of 15 kg.
How much does the Jaguar V2 weigh?
The Jaguar V2 weighs 25 kg.
How fast is the Jaguar V2?
The Jaguar V2 can move at speeds of up to 5 km/h.
What is the battery life of the Jaguar V2?
The Jaguar V2 runs for about 120 minutes on a charge.
