DESCRIPTION

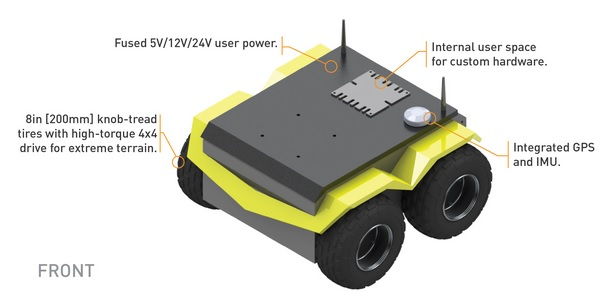

The Jackal is a small, fast, entry-level field-robotics research platform from Clearpath Robotics, built for outdoor autonomous navigation work. It is a four-wheel-drive unmanned ground vehicle on a sturdy aluminium chassis, measuring 508 x 430 x 250 mm and weighing 17 kg while carrying up to 20 kg of payload. A high-torque 4x4 drivetrain moves it at up to 2.0 m/s, and basic usage gives about 4 hours of run time. An onboard PC ships with integrated GPS and IMU and runs ROS 2 Jazzy out of the box, so research groups can start on autonomy rather than on bring-up. The 250 x 100 x 85 mm internal bay and regulated user power rails (5 V at 5 A, 12 V at 10 A, 24 V at 20 A) make it plug-and-play compatible with a wide range of sensors, cameras and manipulators. An IP62 weatherproof casing and a -20 C to +45 C operating range let it work outdoors in the field.
FEATURES
- 508 x 430 x 250 mm, 17 kg
- 20 kg maximum payload
- 2.0 m/s maximum speed
- About 4 hours run time in basic usage
- High-torque four-wheel-drive drivetrain
- Onboard PC with integrated GPS and IMU
- ROS 2 Jazzy integration
- User power rails: 5 V/5 A, 12 V/10 A, 24 V/20 A
- 250 x 100 x 85 mm internal payload bay
- IP62 weatherproof casing
- 20 C to +45 C operating temperature
- Bluetooth and WiFi connectivity
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 17 kg |
|---|---|
| Dimensions | H 50 mm |
| Payload | 17 kg |
| Materials | Aluminum chassis |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Power | |
| Battery Life | 4 hours |
| Charging Type | Removable battery |
| Charging Time | ~3 hours |
| Sensing & Compute | |
| Sensors | LiDAR, GPS, IMU |
| Connectivity | Wi-Fi, Ethernet |
| Software / AI | ROS / ROS 2 |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 17 kg |
|---|---|
| Dimensions | H 50 mm |
| Payload | 17 kg |
| Materials | Aluminum chassis |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Power | |
| Battery Life | 4 hours |
| Charging Type | Removable battery |
| Charging Time | ~3 hours |
| Sensing & Compute | |
| Sensors | LiDAR, GPS, IMU |
| Connectivity | Wi-Fi, Ethernet |
| Software / AI | ROS / ROS 2 |
Images
Image Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Jackal?
The Jackal is a small, fast, entry-level field-robotics research platform from Clearpath Robotics, built for outdoor autonomous navigation work. It is a four-wheel-drive unmanned ground vehicle on a sturdy aluminium chassis, measuring 508 x 430 x 250 mm and weighing 17 kg while carrying up to 20 kg of payload.
Who makes the Jackal?
The Jackal is made by Clearpath Robotics (Open Robotics), a robotics company based in Canada.
How much does the Jackal cost?
Pricing for the Jackal ranges from $20,000 to $30,000.
What is the Jackal used for?
The Jackal is designed for research and education. It is used in research and education settings.
What is the payload capacity of the Jackal?
The Jackal has a payload capacity of 17 kg.
How much does the Jackal weigh?
The Jackal weighs 17 kg.
How fast is the Jackal?
The Jackal can move at speeds of up to 7.2 km/h.
What is the battery life of the Jackal?
The Jackal runs for 4 hours on a charge. It takes ~3 hours to charge.
