DESCRIPTION
Intelligent Shore Power Robot is a Mobile-Robots from Keman Intelligent Technology. It is built for Others, Remote. Key figures: 45 kg payload, 2500 mm reach.

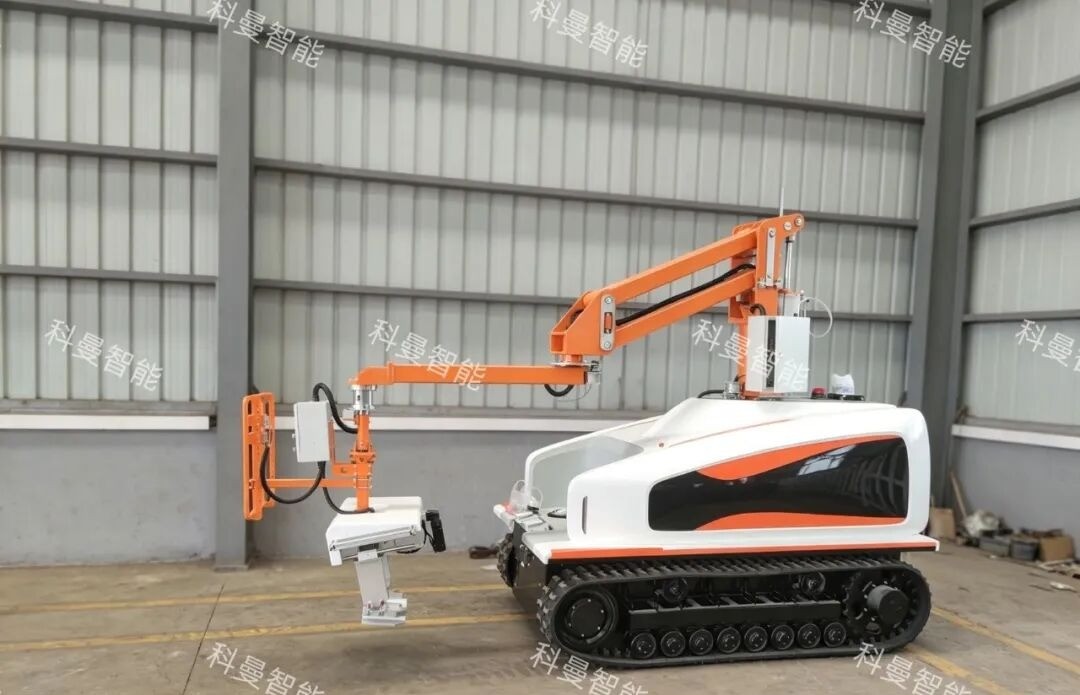

Keman's Intelligent Shore Power Robot automates the job of plugging a berthed ship into the port's electricity supply, so the vessel can switch off its own generators while in port. Port crews normally drag the heavy shore-power cables and connect them by hand; the robot instead drives itself to the berth, uses vision to recognise and locate the cable and plug lowered from the ship, and grips and connects them with its multi-axis arm, working with a winch that pays out the cable. The second-generation robot rides on a tracked platform for stability and load-carrying on the quayside, builds its own map with laser and vision sensors and plans global and local paths around obstacles, and streams live video to the operator for visualised control. It is built to work in the rain and in narrow quayside areas; the maker quotes an arm payload of at least 45 kg, an arm working range of at least 2.5 m, a chassis speed of at least 0.5 m/s, and the ability to climb 5-degree slopes, cross 8 cm obstacles and 25 cm trenches.
FEATURES
- Autonomous shore-power connection: drive to berth -> locate cable plug -> grasp -> connect
- Multi-axis arm: payload at least 45 kg
- working range at least 2.5 m
- Tracked mobile platform (second generation)
- chassis speed at least 0.5 m/s
- Climbs at least 5 degrees
- crosses obstacles of 8 cm and trenches of 25 cm
- Laser + vision mapping, localisation and global / local path planning with multi-level obstacle safety
- Vision recognition and positioning of the ship cable plug
- works with a cable winch
- Live video back to the operator for visualised control
- rain-capable
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 45 kg |
|---|---|
| Reach | 2.5 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 1.8 km/h |
| Environment | Port quaysides and ship berths (outdoor) |
| Sensing & Compute | |
| Sensors | lidar, vision cameras |
| Connectivity | Wireless video and control link to operator station |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 45 kg |
|---|---|
| Reach | 2.5 m |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 1.8 km/h |
| Environment | Port quaysides and ship berths (outdoor) |
| Sensing & Compute | |
| Sensors | lidar, vision cameras |
| Connectivity | Wireless video and control link to operator station |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Intelligent Shore Power Robot?
Keman's Intelligent Shore Power Robot automates the job of plugging a berthed ship into the port's electricity supply, so the vessel can switch off its own generators while in port.
Who makes the Intelligent Shore Power Robot?
The Intelligent Shore Power Robot is made by Keman Intelligent Technology, a robotics company based in China.
How much does the Intelligent Shore Power Robot cost?
Keman Intelligent Technology has not publicly announced pricing for the Intelligent Shore Power Robot. You can enquire through RobotAIGeek for current pricing.
What is the Intelligent Shore Power Robot used for?
The Intelligent Shore Power Robot is designed for others and remote. It is used in energy, others, and warehouse & logistics settings.
What is the payload capacity of the Intelligent Shore Power Robot?
The Intelligent Shore Power Robot has a payload capacity of 45 kg and a reach of 2.5 m.
How fast is the Intelligent Shore Power Robot?
The Intelligent Shore Power Robot can move at speeds of up to 1.8 km/h.
