GP-30 Collaborative Palletizing Robot Workstation
DESCRIPTION
GP-30 Collaborative Palletizing Robot Workstation is a Collaborative-Robot from Shandong Gojon Precision Technology. It is built for Material-Handling, palletizing. Key figures: 600 kg, 30 kg payload, 1680 mm reach.

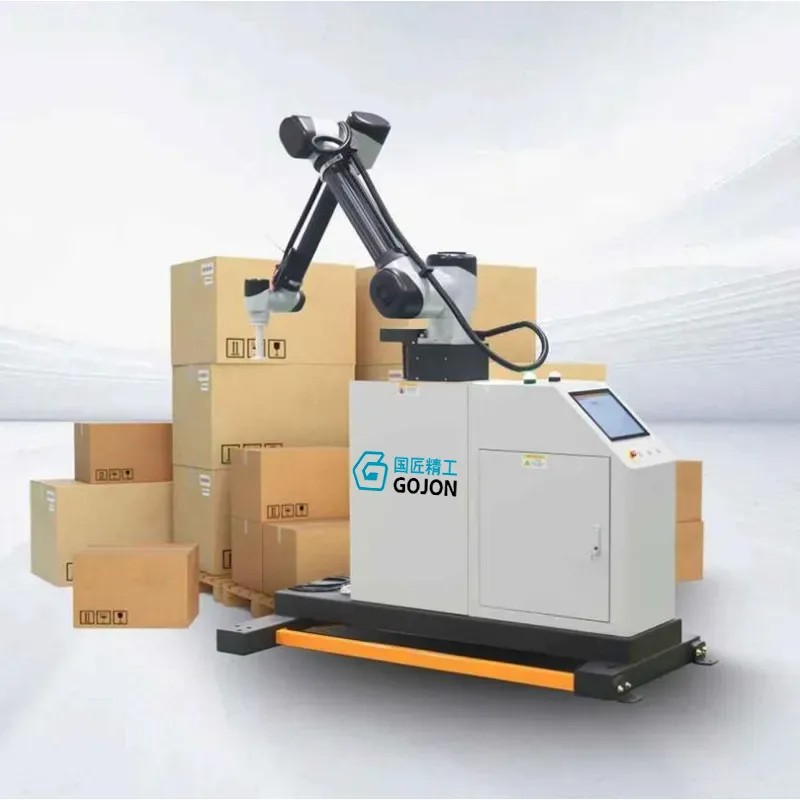

The GOJON GP-30 is a fence-free collaborative palletizing workstation: a six-servo collaborative robot arm mounted on a lifting column inside a compact cabinet, with a vacuum suction gripper that stacks cartons onto two pallets, one on each side. It handles up to 30 kg (25 kg at the standard 1680 mm arm span), palletizes 8-12 times per minute to a maximum height of 2350 mm on pallets up to 1200 x 1000 mm, and is set up through a graphical touchscreen interface that GOJON says operators learn in five minutes.
FEATURES
- Collaborative palletizing robot that works without safety fencing
- Maximum payload 30 kg, 25 kg at the standard 1680 mm arm span (longer booms carry less)
- Arm span options 1480, 1680, 1880 and 2080 mm
- Palletizing speed 8-12 cycles per minute depending on the product
- Lifting electric cylinder with 600 mm stroke for a maximum palletizing height of 2350 mm
- Dual-station layout: one pallet left and one right, two box types (A and B) at once
- Stores up to 60 palletizing recipes
- Graphical programming on a touchscreen, set up in about 5 minutes
- Maximum pallet size 1200 x 1000 mm, pallets placed manually

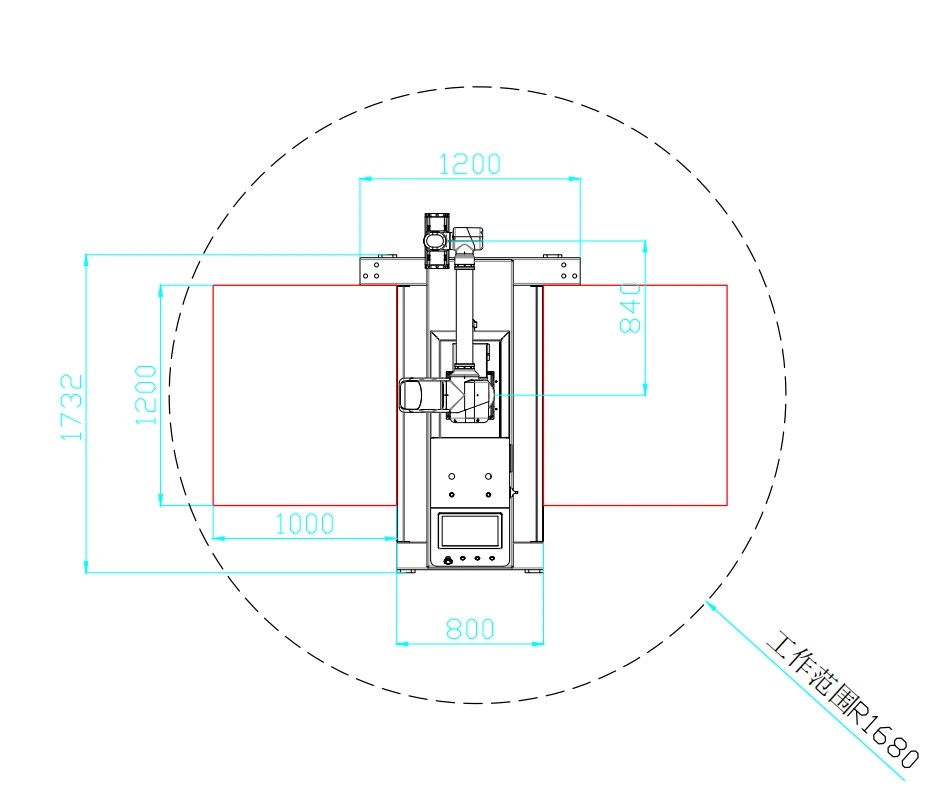

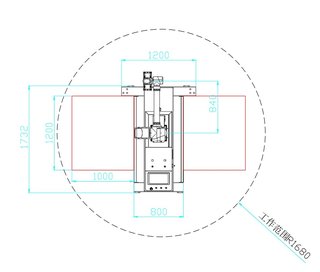

- Main unit 1732 x 1200 x 2490 mm, about 600 kg
- Power 3.5 kW, 220 V 50 Hz supply, 24 V DC control
- Compressed air 0.5-0.7 MPa, 240-460 L/min
- Noise below 80 dB
- KEBA robot controller, 6 Inovance servo motors, SICK photoelectric incoming-box detection, Soonture vacuum suction cup
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 600 kg |
|---|---|
| Dimensions | L 1.73 m × W 1.2 m × H 2.49 m |
| Payload | 30 kg |
| Reach | 1.68 m |
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line area; compressed air 0.5-0.7 MPa (240-460 L/min); noise below 80 dB |
| Actuators | Collaborative robot arm driven by 6 Inovance servo motors on a 600 mm-stroke lifting electric cylinder; pneumatic vacuum suction gripper |
| Sensing & Compute | |
| Sensors | SICK photoelectric switch for incoming-box detection |
| Software / AI | Graphical programming touchscreen interface; up to 60 palletizing recipes |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 600 kg |
|---|---|
| Dimensions | L 1.73 m × W 1.2 m × H 2.49 m |
| Payload | 30 kg |
| Reach | 1.68 m |
| Mobility | |
| Movement Type | Stationary |
| Environment | Indoor factory end-of-line area; compressed air 0.5-0.7 MPa (240-460 L/min); noise below 80 dB |
| Actuators | Collaborative robot arm driven by 6 Inovance servo motors on a 600 mm-stroke lifting electric cylinder; pneumatic vacuum suction gripper |
| Sensing & Compute | |
| Sensors | SICK photoelectric switch for incoming-box detection |
| Software / AI | Graphical programming touchscreen interface; up to 60 palletizing recipes |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the GP-30 Collaborative Palletizing Robot Workstation?
The GOJON GP-30 is a fence-free collaborative palletizing workstation: a six-servo collaborative robot arm mounted on a lifting column inside a compact cabinet, with a vacuum suction gripper that stacks cartons onto two pallets, one on each side.
Who makes the GP-30 Collaborative Palletizing Robot Workstation?
The GP-30 Collaborative Palletizing Robot Workstation is made by Shandong Gojon Precision Technology, a robotics company based in China.
How much does the GP-30 Collaborative Palletizing Robot Workstation cost?
Shandong Gojon Precision Technology has not publicly announced pricing for the GP-30 Collaborative Palletizing Robot Workstation. You can enquire through RobotAIGeek for current pricing.
What is the GP-30 Collaborative Palletizing Robot Workstation used for?
The GP-30 Collaborative Palletizing Robot Workstation is designed for material-handling and palletizing. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the GP-30 Collaborative Palletizing Robot Workstation?
The GP-30 Collaborative Palletizing Robot Workstation has a payload capacity of 30 kg and a reach of 1.68 m.
How much does the GP-30 Collaborative Palletizing Robot Workstation weigh?
The GP-30 Collaborative Palletizing Robot Workstation weighs 600 kg.
