DESCRIPTION
G7 Power is an Industrial-Robot from Sevnce Robotics. It is built for Inspection, Patrol, Explosion-proof inspection and emergency robotics. Key figures: 50 kg, 540 min runtime.

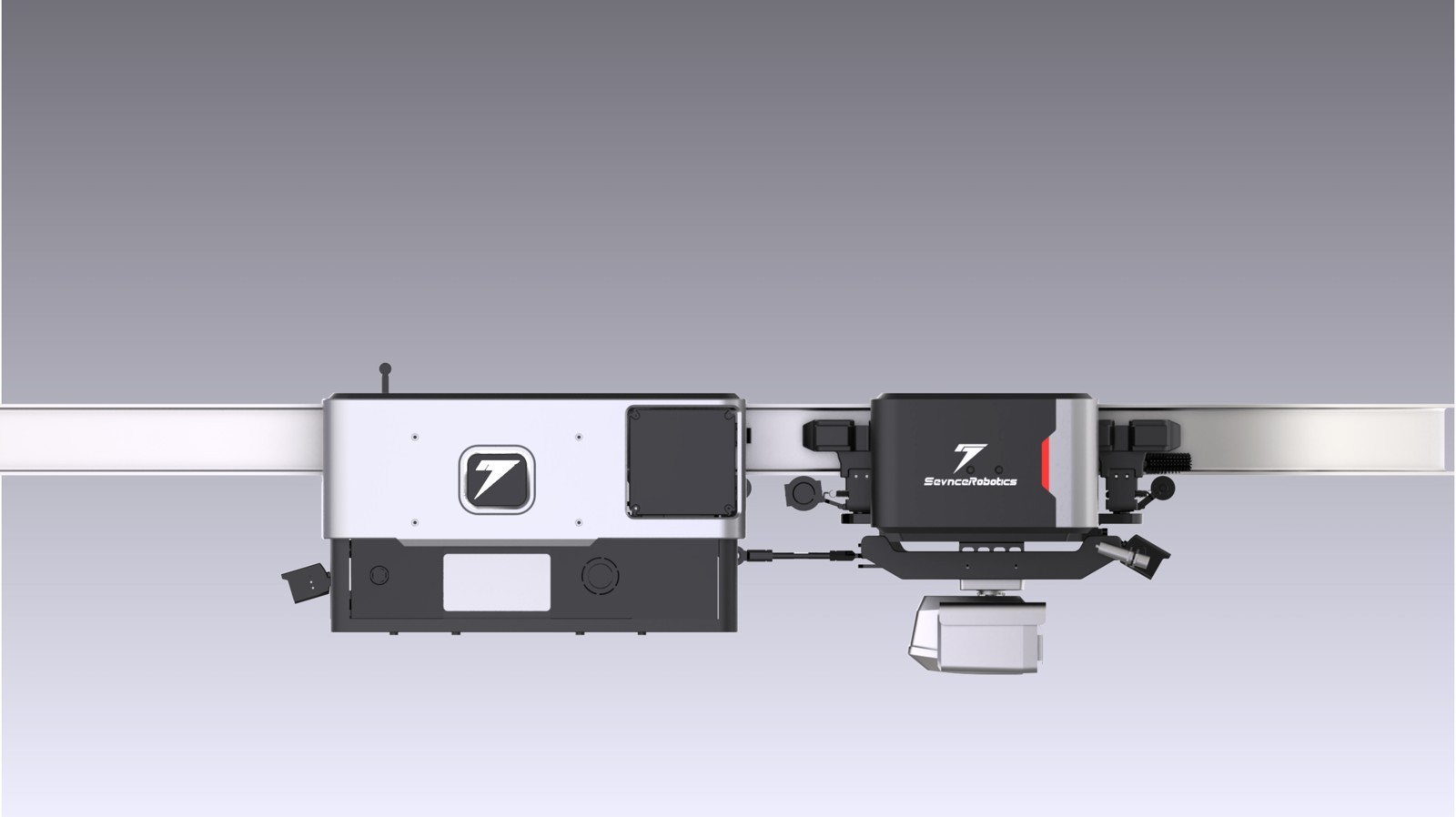

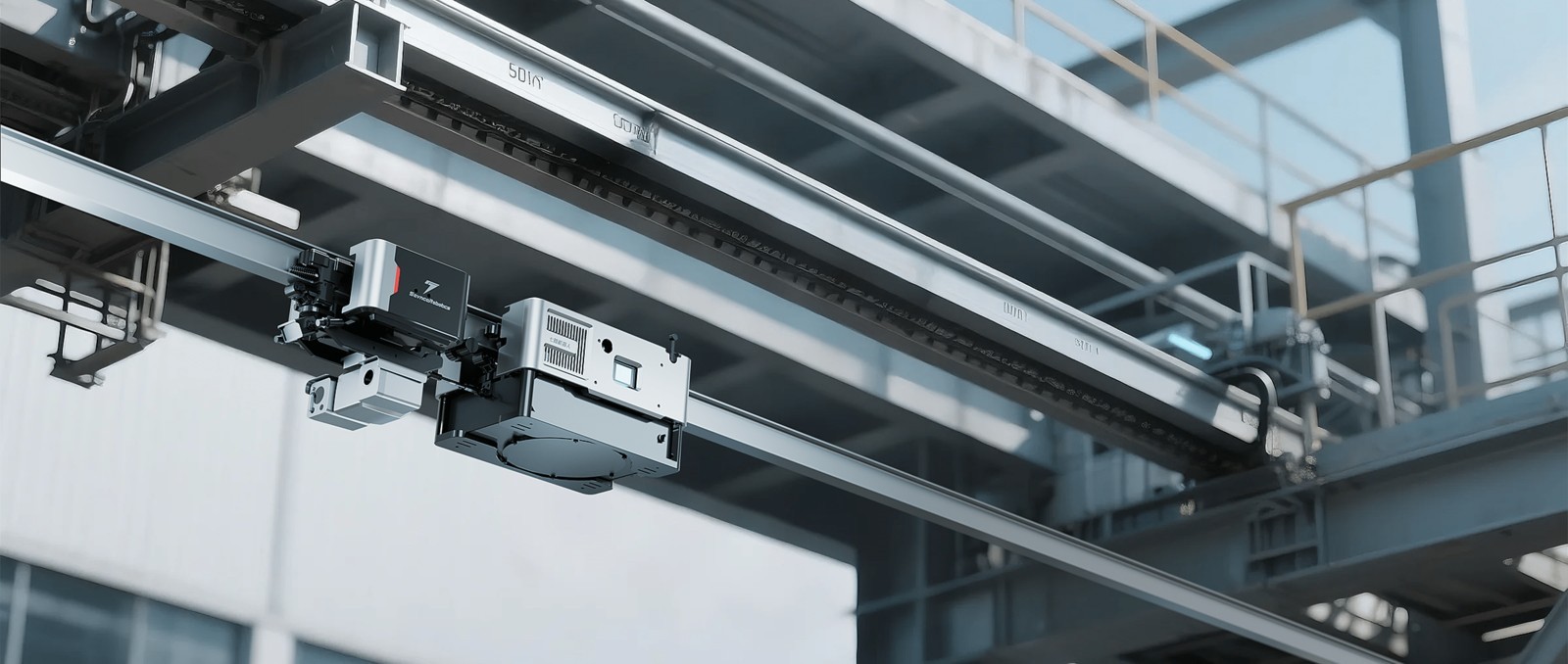

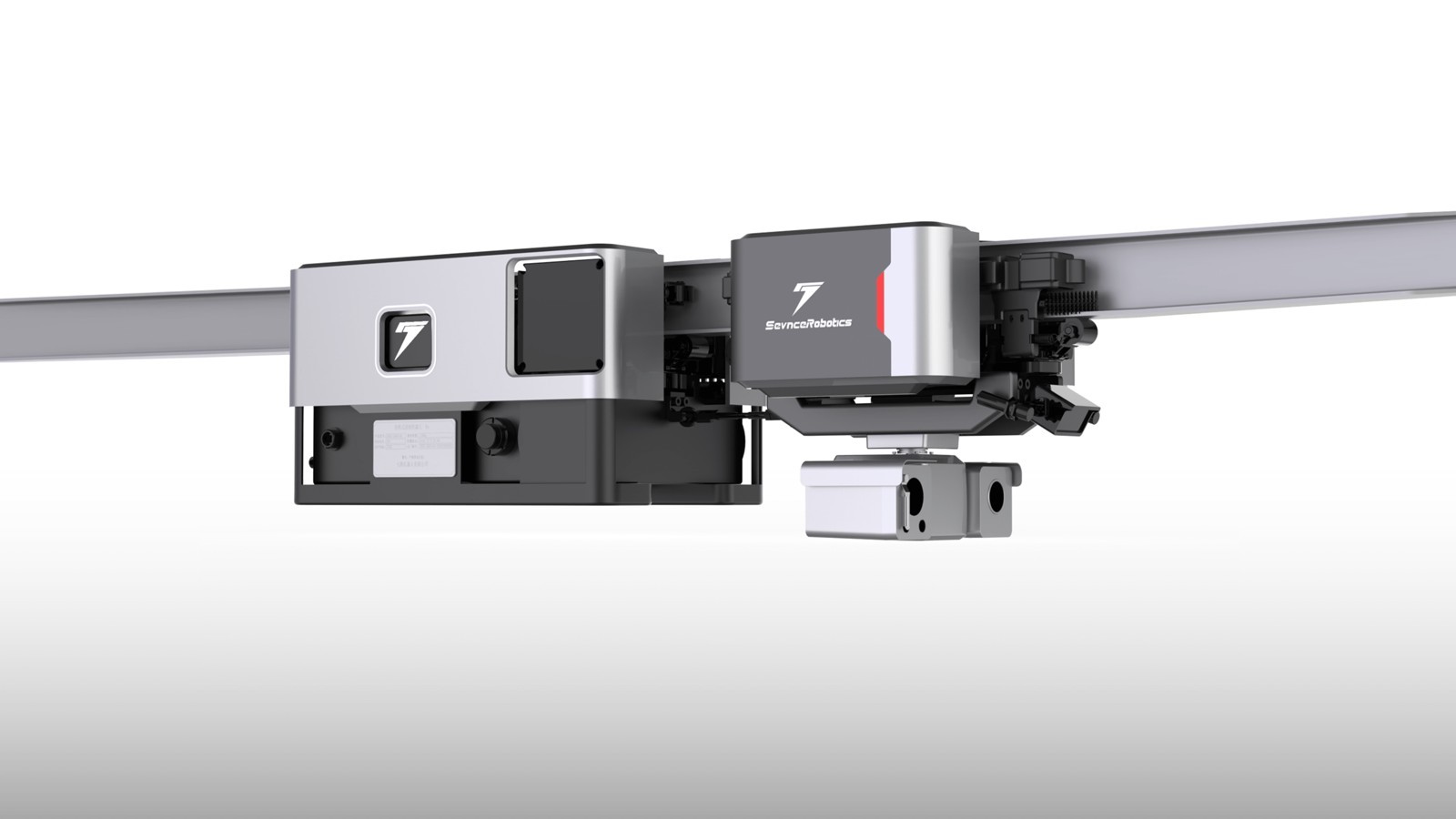

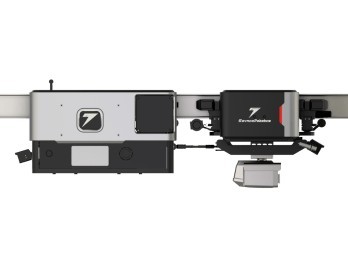

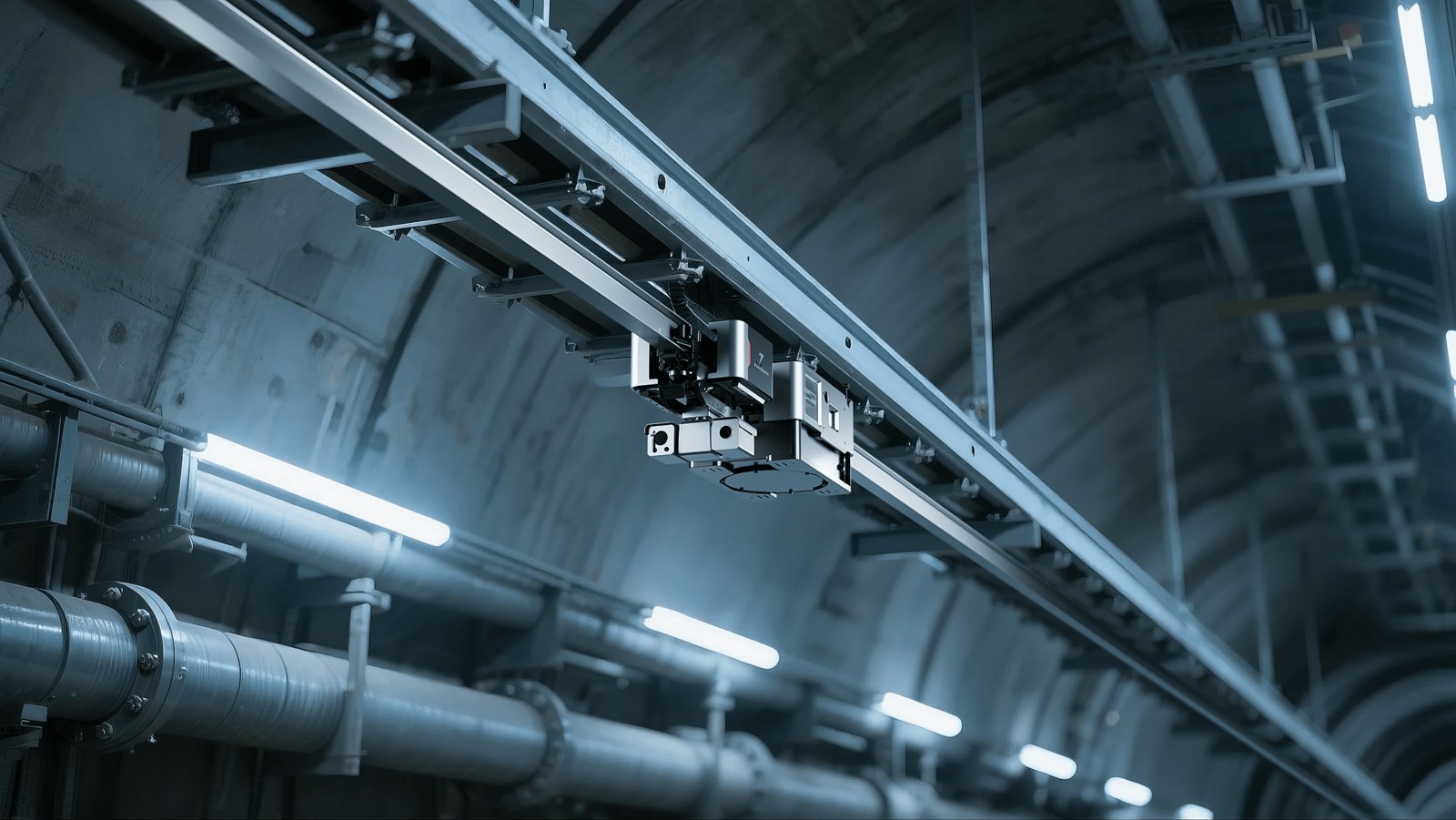

The G7 Power is Sevnce's explosion-proof rail-hung inspection robot for pipe galleries, tunnels and other track routes, certified for both gas (Ex IIC T6 Gb) and dust (Ex IIIC T80 C Db) atmospheres, IP66. A modular high-power explosion-proof drive lets it climb 45-degree rail grades, and a modular architecture and gimbal accept many sensor combinations, so one robot covers several inspection tasks. Two-wheel rail drive moves it at up to 1.0 m/s with 0.3 m braking and an 80 cm turning diameter; it positions to +/-1 cm with odometry, Hall sensors and RFID, runs up to nine hours with up to three-hour charging between -20 and 60 C, and measures up to 1,270 x 380 x 390 mm and 50 kg. Standard functions include autonomous inspection, obstacle avoidance, remote control, video monitoring, offline inspection, sound-and-light alarm, auxiliary lighting, autonomous charging, two-way voice and one-key return, with options for voiceprint, noise, laser gas, flame and acoustic-imaging sensors, body and rail cleaning, a lifting gimbal and optical imaging.
FEATURES
- Explosion protection Ex IIC T6 Gb / Ex IIIC T80 C Db
- IP66

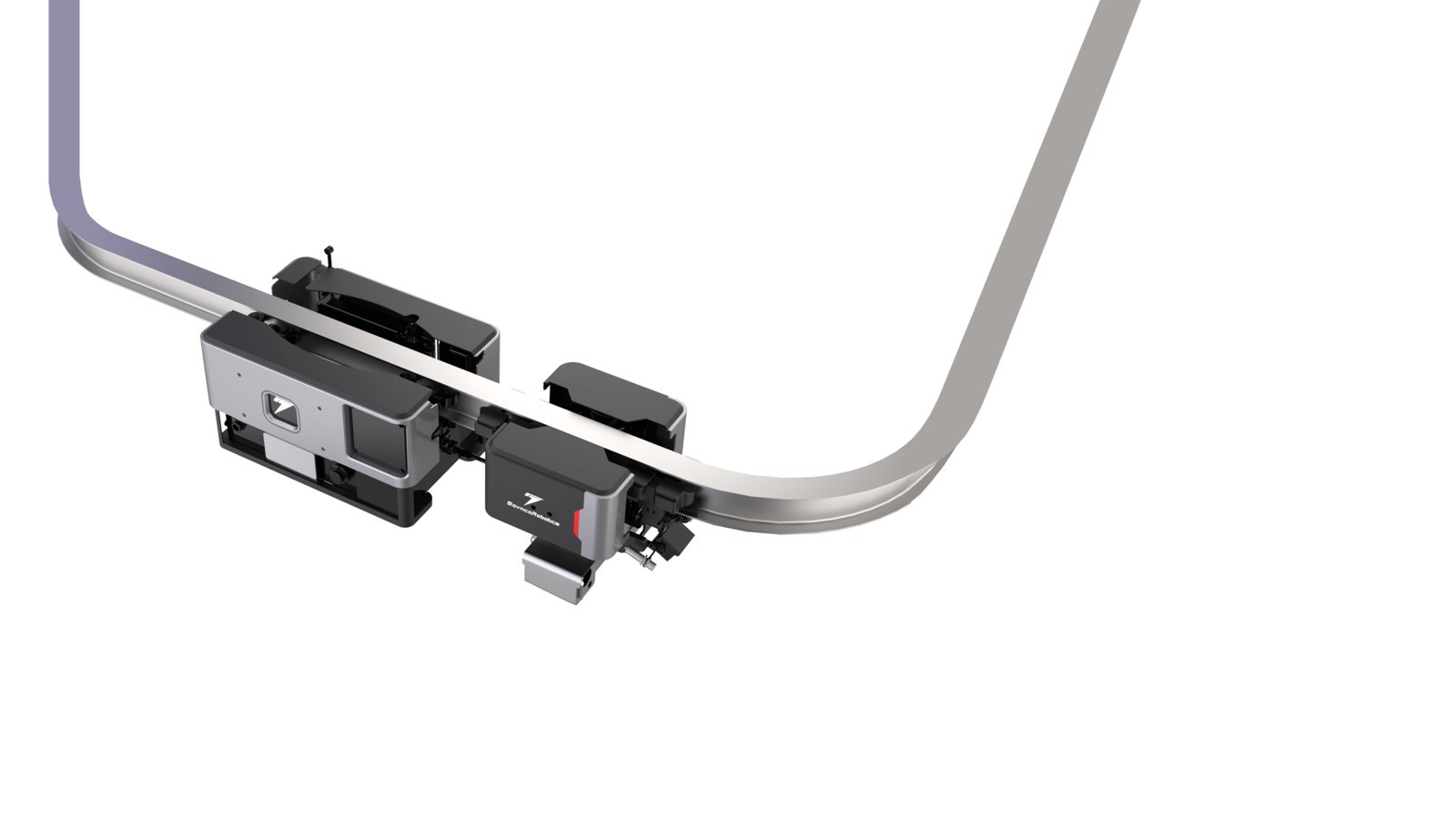

- Rail-hung, two-wheel rail drive
- climbs grades up to 45 deg
- Modular high-power drive and modular sensor gimbal
- Up to 1,270 x 380 x 390 mm
- up to 50 kg
- Speed up to 1.0 m/s
- braking 0.3 m
- turning diameter 80 cm
- Positioning: odometry + Hall sensors + RFID, +/-1 cm
- Runtime up to 9 h
- charging up to 3 h
- Options: voiceprint, noise, laser gas, flame, acoustic imaging, body and rail cleaning, lifting gimbal
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 50 kg |
|---|---|
| Dimensions | L 1.27 m × W 380 mm × H 390 mm |
| Mobility | |
| Movement Type | Other |
| Speed | 3.6 km/h |
| Environment | Pipe galleries, tunnels and plant rail routes in explosive gas and dust areas |
| Power | |
| Battery Life | 540 min |
| Sensing & Compute | |
| Sensors | odometer, Hall sensors, RFID reader, cameras |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 50 kg |
|---|---|
| Dimensions | L 1.27 m × W 380 mm × H 390 mm |
| Mobility | |
| Movement Type | Other |
| Speed | 3.6 km/h |
| Environment | Pipe galleries, tunnels and plant rail routes in explosive gas and dust areas |
| Power | |
| Battery Life | 540 min |
| Sensing & Compute | |
| Sensors | odometer, Hall sensors, RFID reader, cameras |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the G7 Power?
The G7 Power is Sevnce's explosion-proof rail-hung inspection robot for pipe galleries, tunnels and other track routes, certified for both gas (Ex IIC T6 Gb) and dust (Ex IIIC T80 C Db) atmospheres, IP66.
Who makes the G7 Power?
The G7 Power is made by Sevnce Robotics, a robotics company based in China.
How much does the G7 Power cost?
Sevnce Robotics has not publicly announced pricing for the G7 Power. You can enquire through RobotAIGeek for current pricing.
What is the G7 Power used for?
The G7 Power is designed for inspection, patrol, and explosion-proof inspection and emergency robotics. It is used in energy and manufacturing settings.
How much does the G7 Power weigh?
The G7 Power weighs 50 kg.
How fast is the G7 Power?
The G7 Power can move at speeds of up to 3.6 km/h.
What is the battery life of the G7 Power?
The G7 Power runs for about 540 minutes on a charge.
