DESCRIPTION
FX40 is an Industrial-Robot from MAXAGV. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 1500 kg payload.

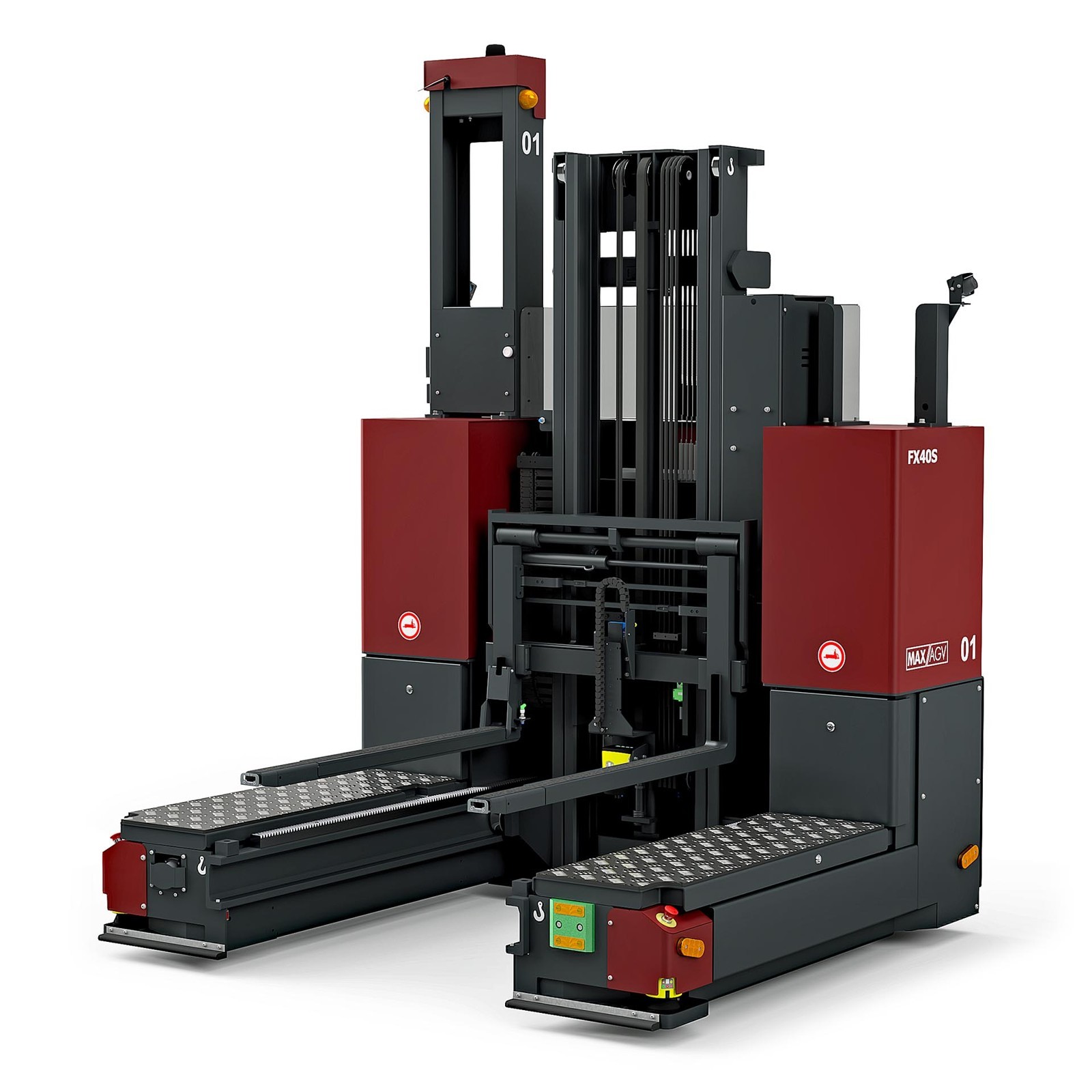

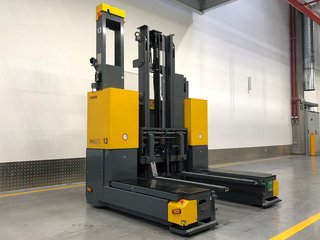

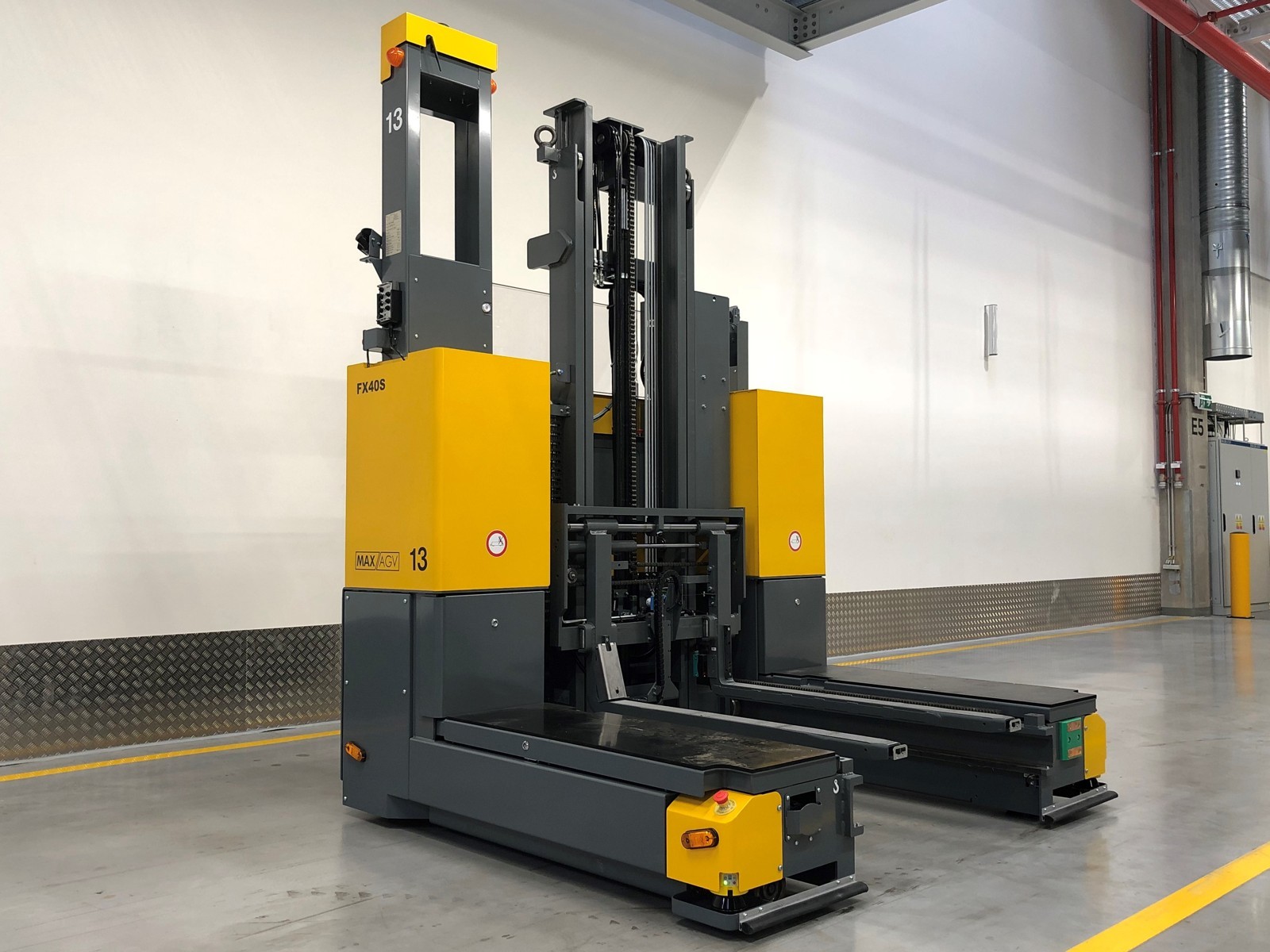

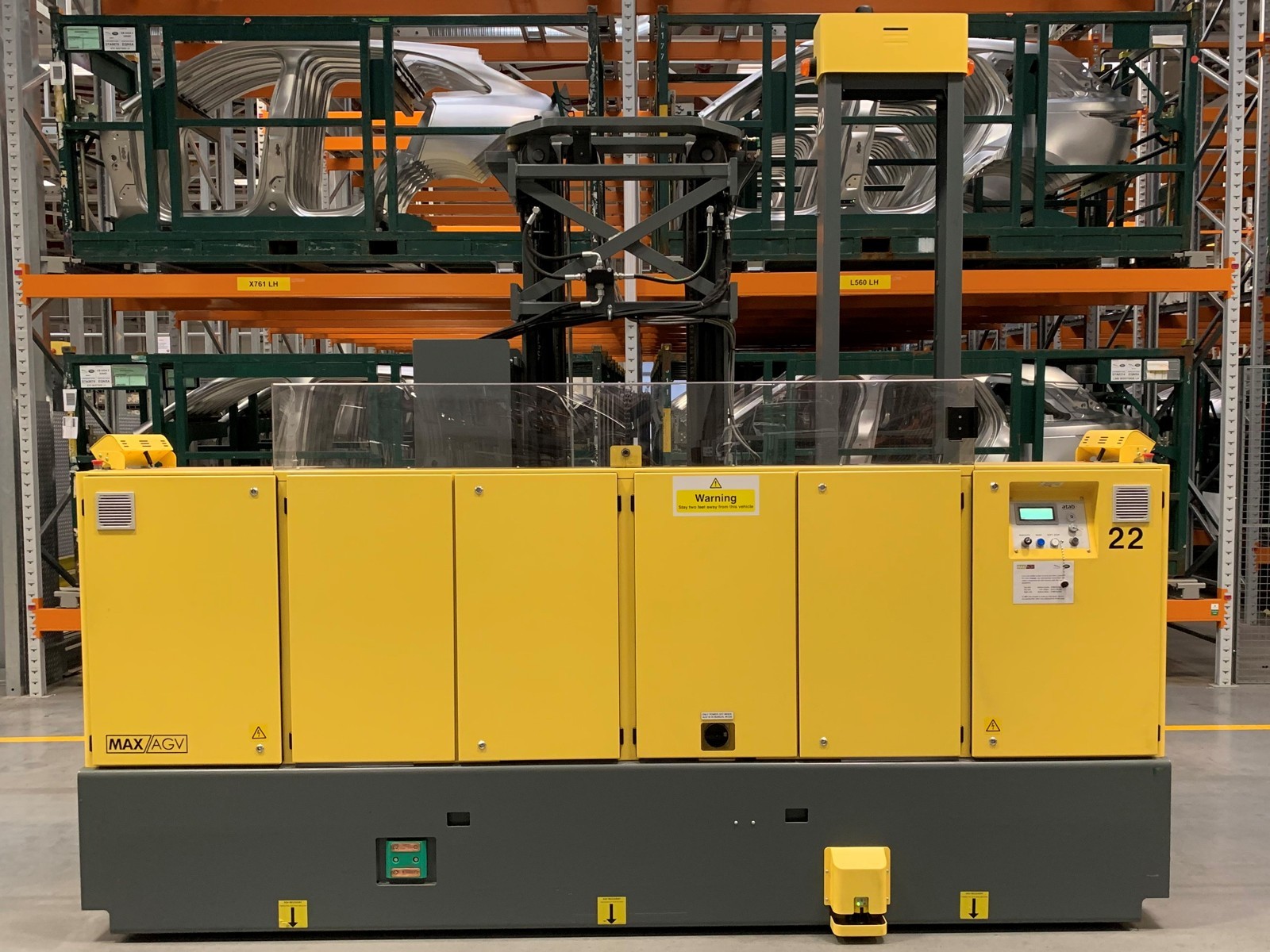

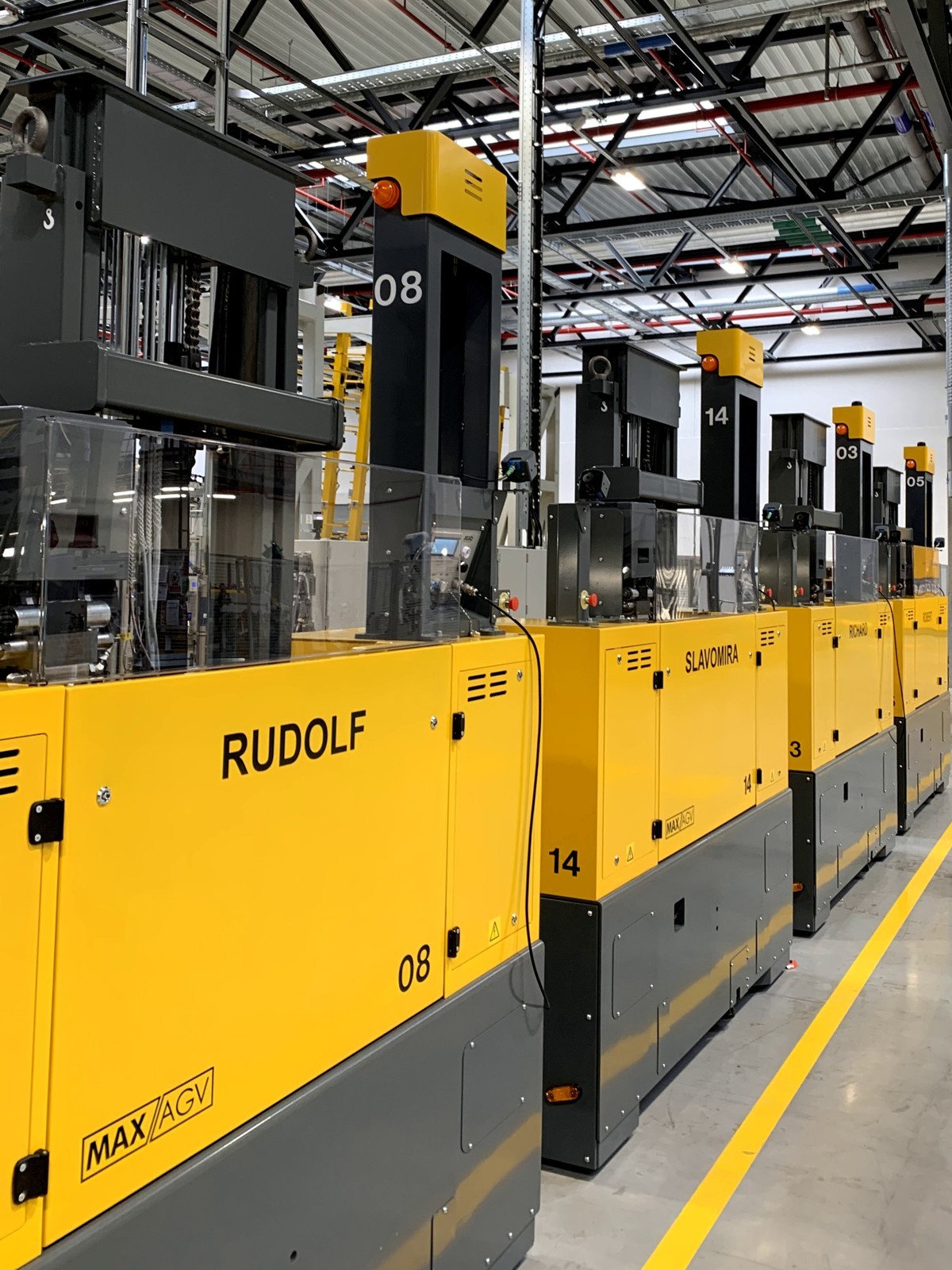

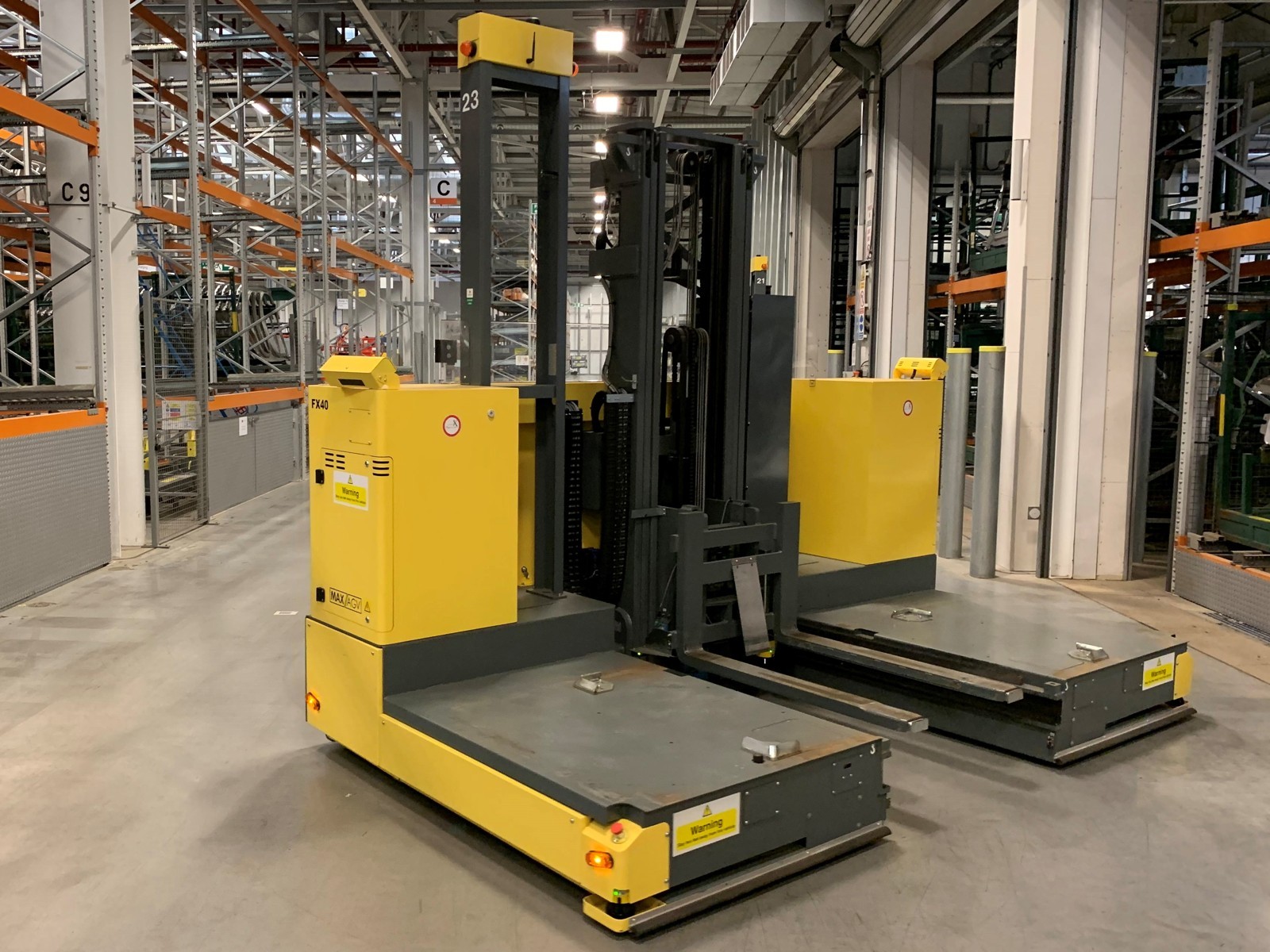

The FX40 Omni-directional Side Loader is MAXAGV's automotive-industry AGV for large or small body-side stillages. In transit the load rests on support legs built into the chassis, and dual drive, dual steering lets it travel in any direction - so two loaded FX40s can pass each other in a standard 5 m gangway.\nLike all MAXAGV vehicles it navigates mainly by laser, carries a personal-safety system of emergency stops, safety laser scanners, side edges and bumpers to ISO 3691-4:2020, and runs under the Max software platform with opportunity charging when idle. Options include barcode and RFID readers and MAXAGV's DeZone and Blue Point accessories.
FEATURES
- Side loading
- load rests on chassis support legs in transit
- Dual Drive-Dual Steering, travels in any direction
- Two loaded units pass in a standard 5 m gangway
- Unit load: Pallet - Container - Stillage
- Maximum weight: 1500 kg
- Transfer/lift height: 85 - 7000 mm
- Battery: Wet lead-acid, gel or lithium-ion
- Charging: Opportunity charging, fast charge or battery exchange
- Options: barcode scanner - RFID - DeZone - Blue Point
- Laser navigation as standard
- magnetic, optical or wire guidance where required
- Personal safety system: emergency stops, front/rear safety laser scanners, side edges and bumpers
- ISO 3691-4:2020
- Sonix on-board controller
- managed by the Max software platform
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 1500 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Payload | 1500 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
Images
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FX40?
The FX40 Omni-directional Side Loader is MAXAGV's automotive-industry AGV for large or small body-side stillages. In transit the load rests on support legs built into the chassis, and dual drive, dual steering lets it travel in any direction - so two loaded FX40s can pass each other in a standard 5 m gangway.\nLike all…
Who makes the FX40?
The FX40 is made by MAXAGV, a robotics company based in Sweden.
How much does the FX40 cost?
MAXAGV has not publicly announced pricing for the FX40. You can enquire through RobotAIGeek for current pricing.
What is the FX40 used for?
The FX40 is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the FX40?
The FX40 has a payload capacity of 1,500 kg.
