DESCRIPTION
FP150 is an Industrial-Robot from Zhejiang HuaRay Technology. It is built for Heavy-Load-Transportation, Intralogistics, Lifting. Key figures: 2700 kg, 480 min runtime, 1500 kg payload.

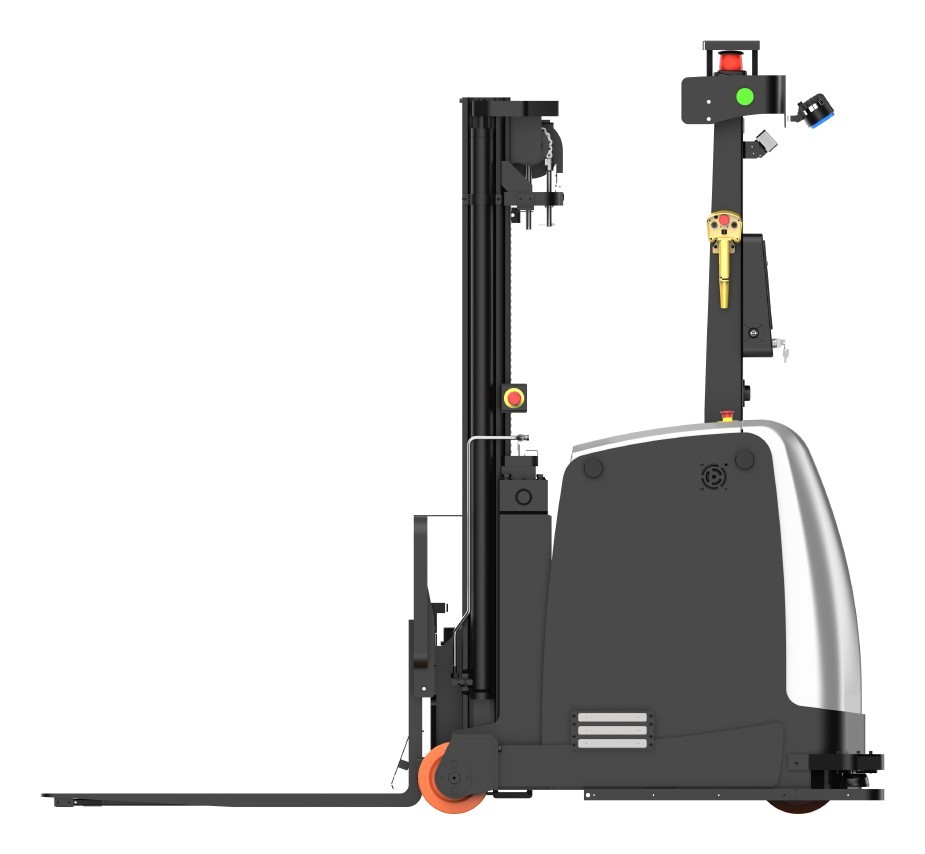

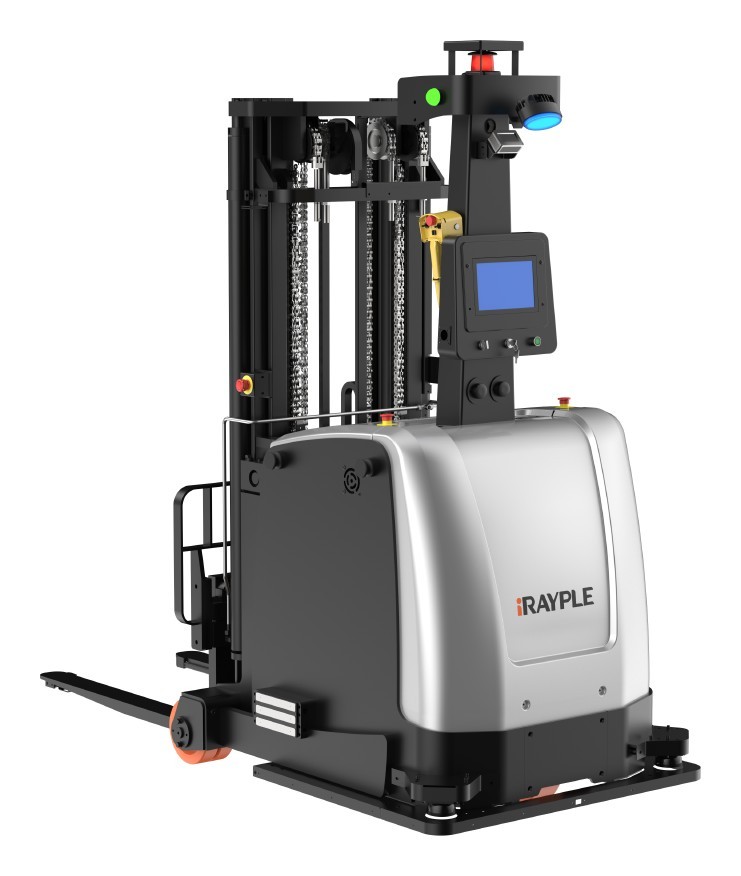

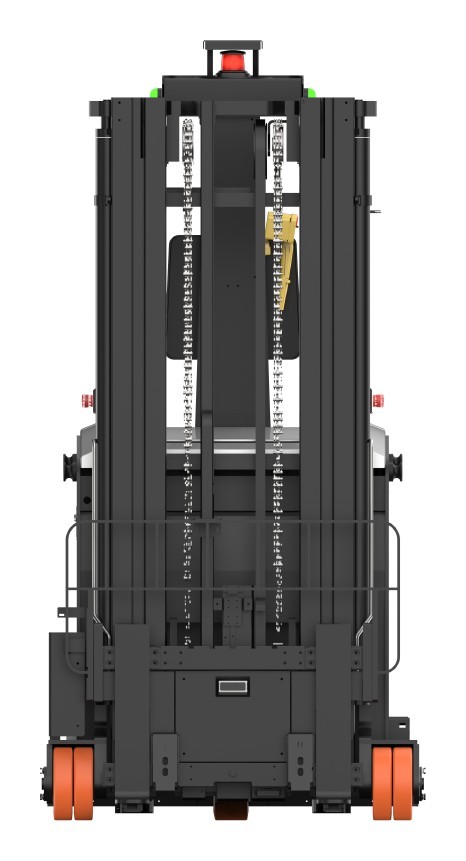

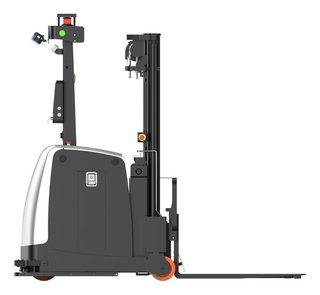

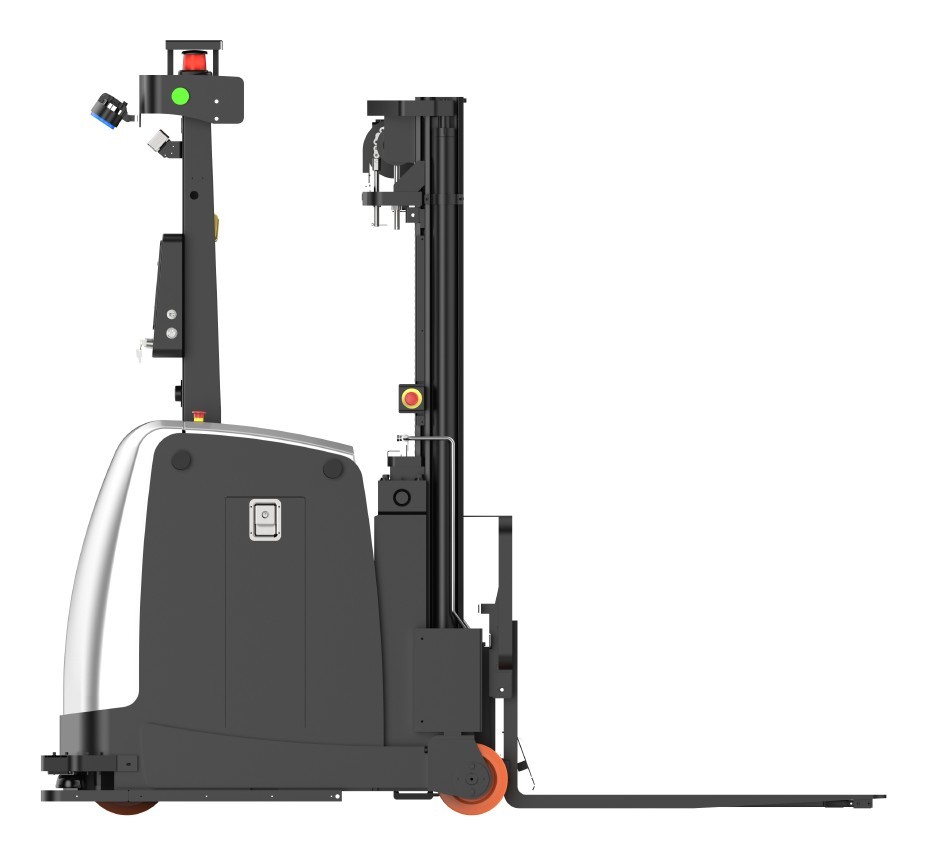

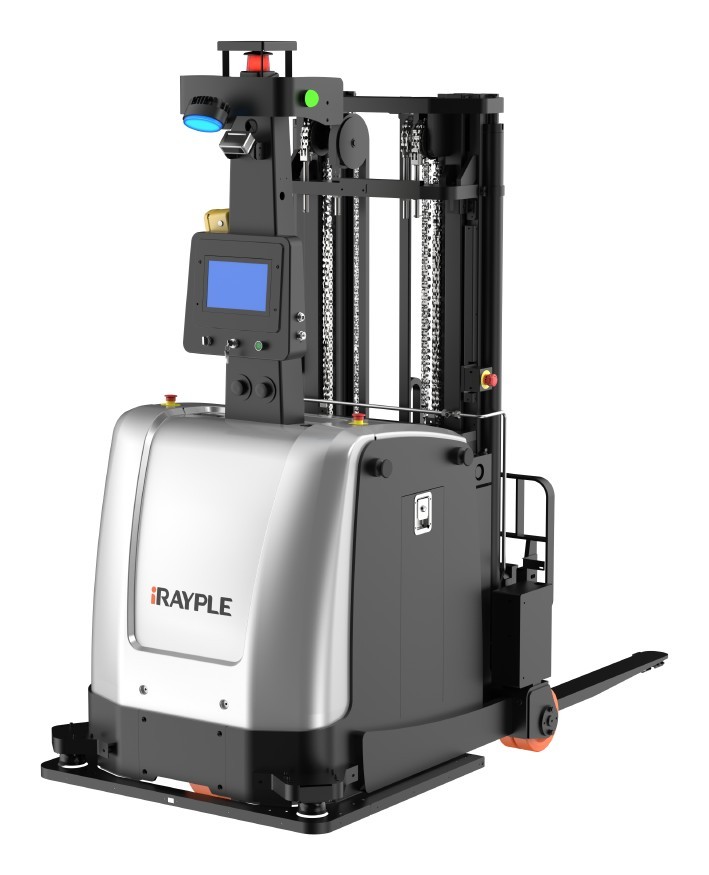

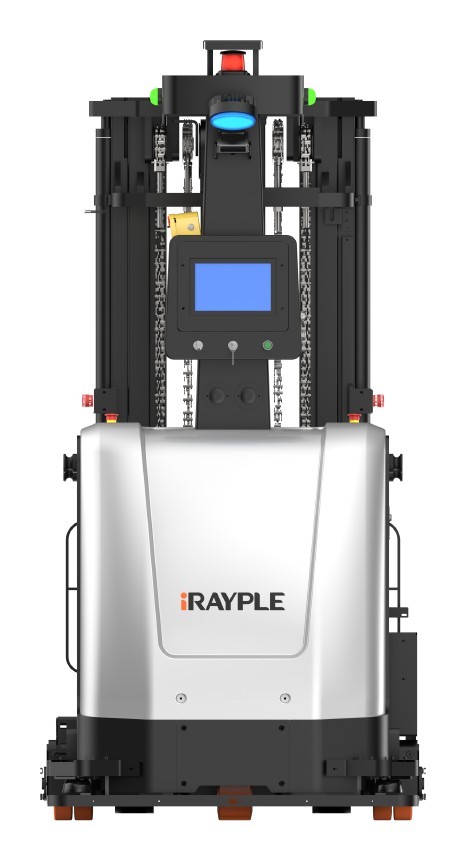

FP150 is iRAYPLE's heavy 1.5-tonne stacking forklift AMR: a 2.7-tonne truck that lifts pallets to 3 m with a 500 mm load centre, recognises pallets on its own and works in a 3.1 m pick-up aisle. It navigates by Laser, reaches 1.5 m/s empty and 1.0 m/s loaded, stops within ±10 mm and runs 6-8 h per charge (charging: manual/auto). It talks to iRAYPLE's robot control and scheduling system over WiFi / 5G (optional).
FEATURES
- Rated load 1500 kg
- machine weight 2700 kg
- 2472 mm×1112 mm×2259 mm
- Max. speed 1.5 m/s empty, 1.0 m/s loaded
- Navigation: Laser
- drive: Single steering wheel drive
- Height of Rear Fork above Ground after Lifting: 3000mm
- Load Center Distance: 500mm
- Minimum Pickup Channel: 3100mm
- Fork Size: 1070mm×100mm×40mm
- Turning Radius: 1312 mm
- Stopping accuracy (no load): ±10 mm
- Climbing Ability: 3° (5%)
- Autonomous pallet recognition
- Charging Mode: Manual/Auto
- Communication Mode: WiFi / 5G (optional)
- Operating time 6-8h
- charging 2 h
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2700 kg |
|---|---|
| Dimensions | L 2.47 m × W 1.11 m × H 2.26 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/Auto |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, vision obstacle avoidance, collision bumpers, pallet presence sensors |
| Connectivity | WiFi / 5G (optional) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2700 kg |
|---|---|
| Dimensions | L 2.47 m × W 1.11 m × H 2.26 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/Auto |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, vision obstacle avoidance, collision bumpers, pallet presence sensors |
| Connectivity | WiFi / 5G (optional) |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FP150?
FP150 is iRAYPLE's heavy 1.5-tonne stacking forklift AMR: a 2.7-tonne truck that lifts pallets to 3 m with a 500 mm load centre, recognises pallets on its own and works in a 3.1 m pick-up aisle.
Who makes the FP150?
The FP150 is made by Zhejiang HuaRay Technology, a robotics company based in China.
How much does the FP150 cost?
Zhejiang HuaRay Technology has not publicly announced pricing for the FP150. You can enquire through RobotAIGeek for current pricing.
What is the FP150 used for?
The FP150 is designed for heavy-load-transportation, intralogistics, lifting, and loading. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the FP150?
The FP150 has a payload capacity of 1,500 kg.
How much does the FP150 weigh?
The FP150 weighs 2,700 kg.
How fast is the FP150?
The FP150 can move at speeds of up to 5.4 km/h.
What is the battery life of the FP150?
The FP150 runs for about 480 minutes on a charge.
