DESCRIPTION
FP 27 is an Industrial-Robot from AFORMIC. It is built for Heavy-Load-Transportation, Intralogistics, Material-Handling. Key figures: 4000 kg, 6000 kg payload.

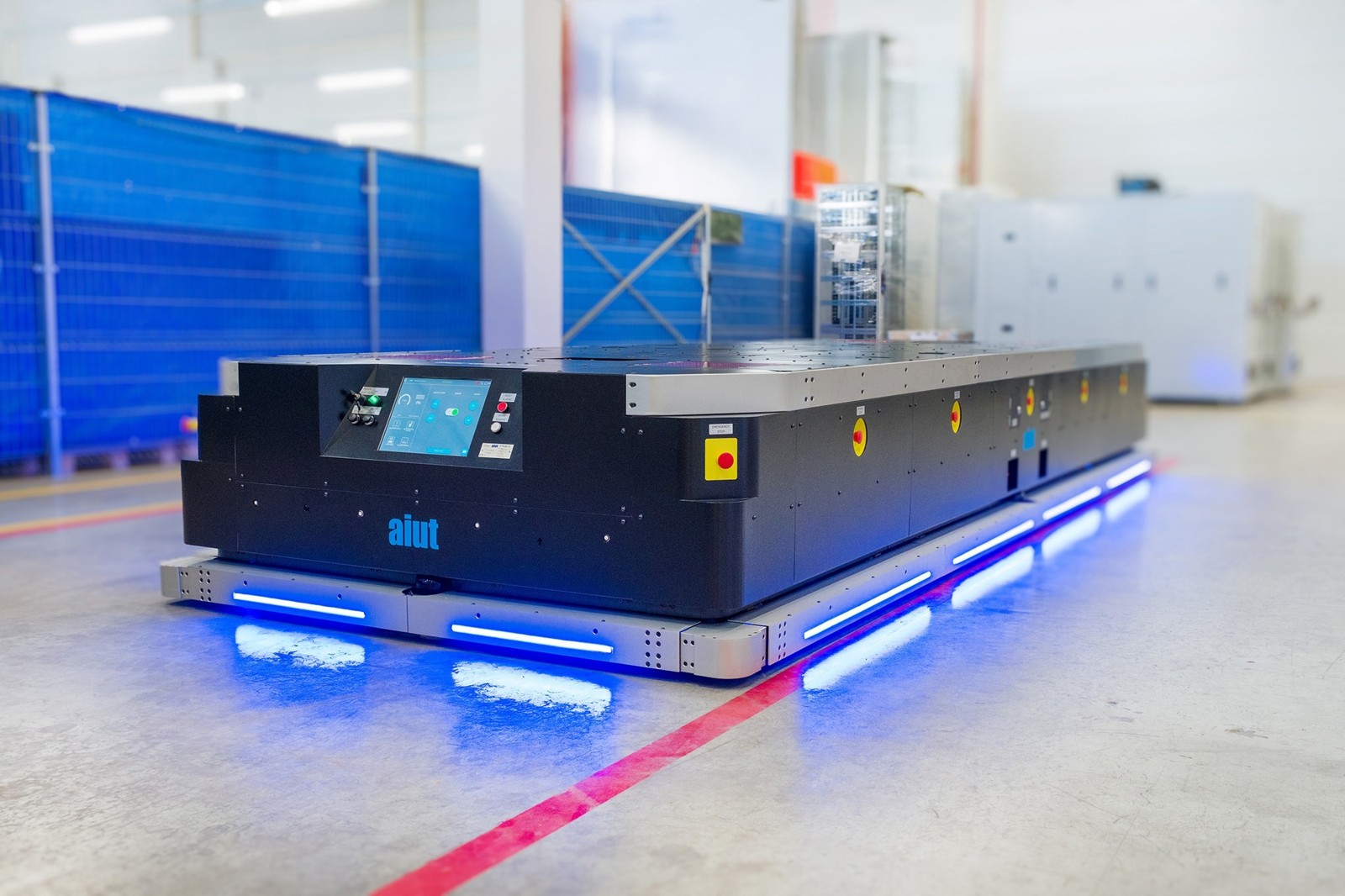

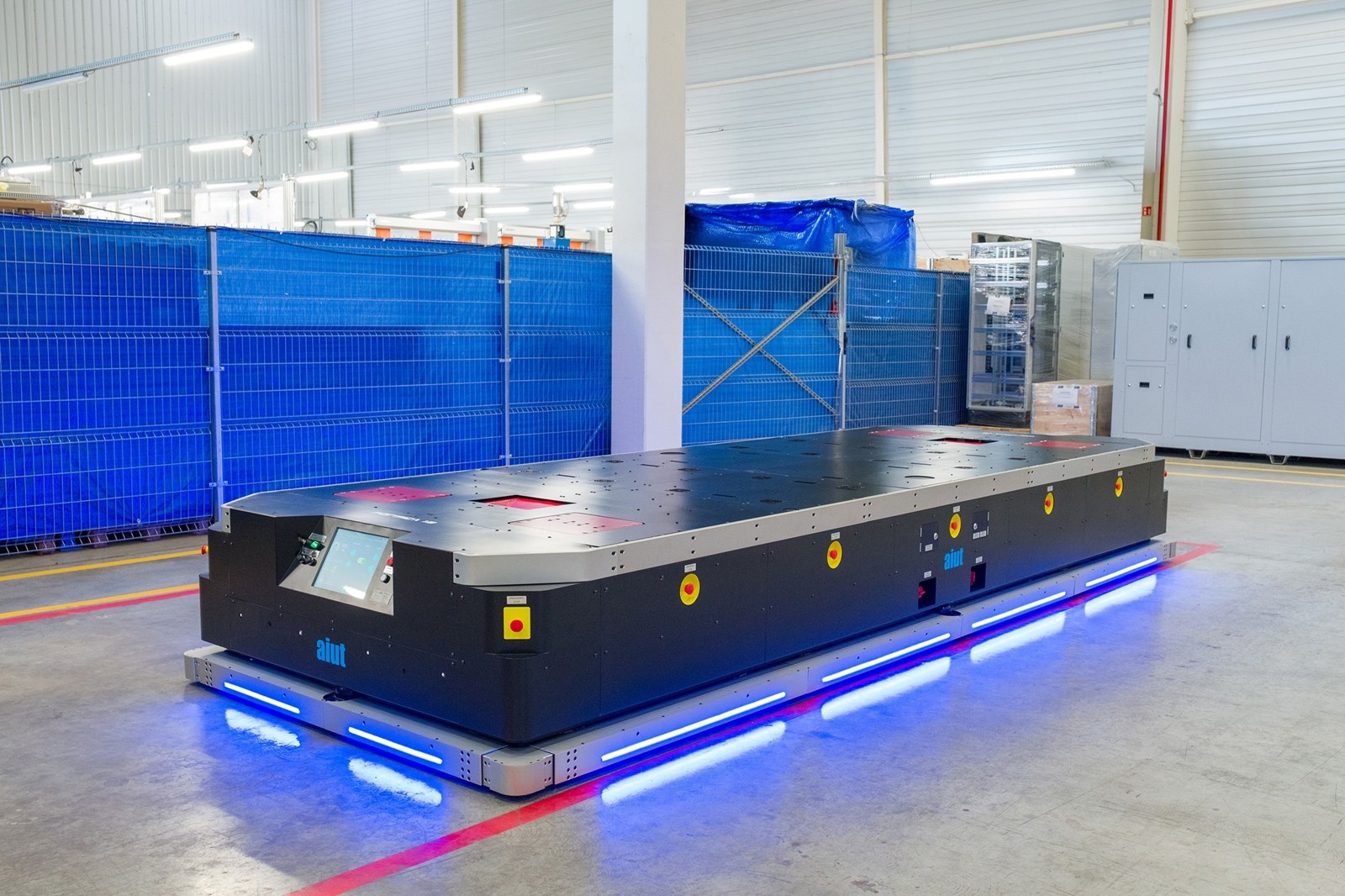

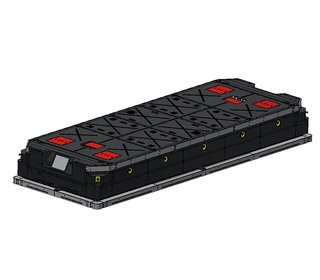

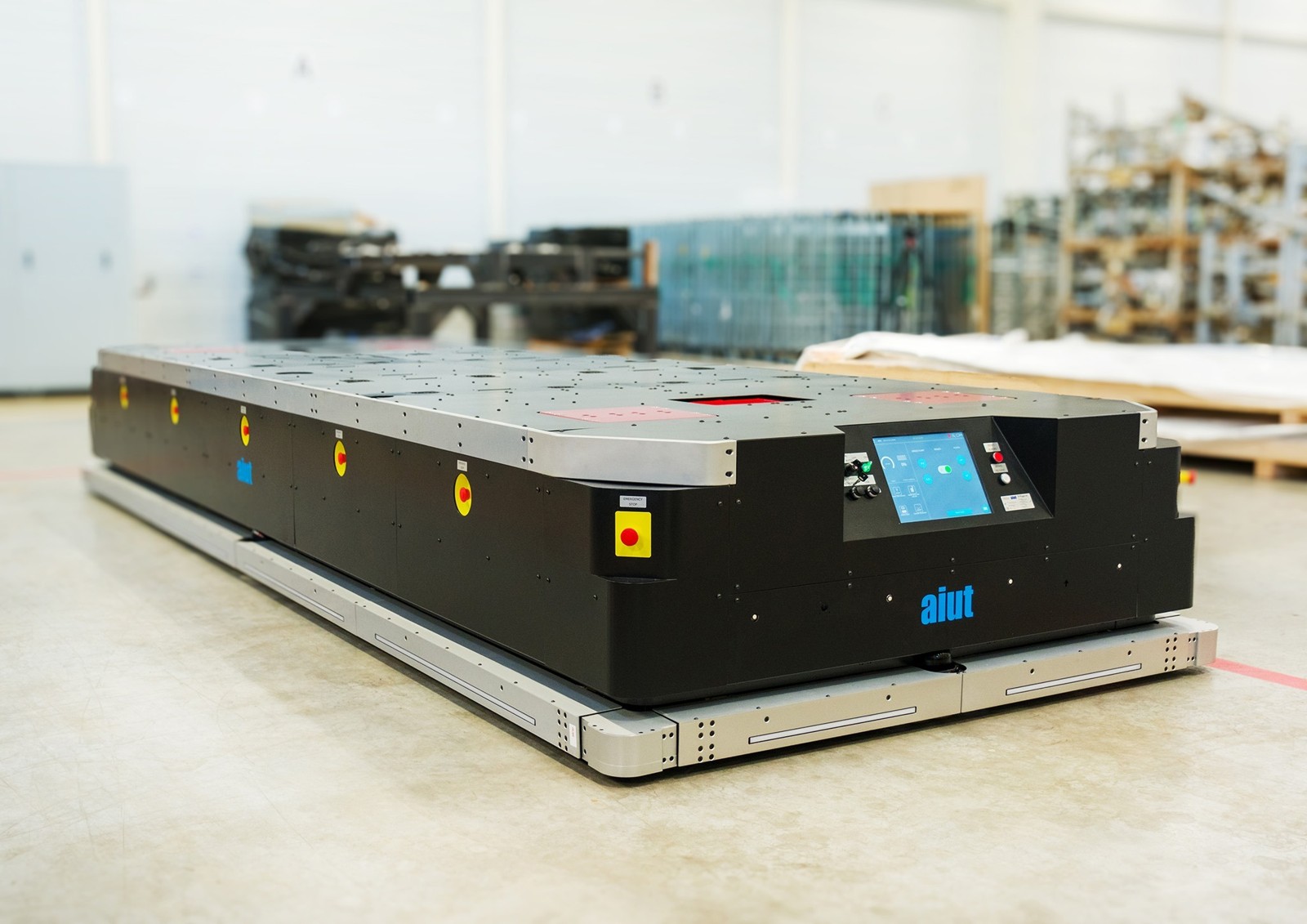

FP 27 is AFORMIC's largest underride AMR, engineered for loads of up to 6 t. Four omnidirectional drives move its 5.5 m platform in any direction, with 14 emergency stops and bumpers on every side. It measures 5500 x 2000 x 750 mm, weighs 4000 kg, carries 6000 kg, lifts 60 mm and travels at up to 1.5 m/s with +/-10 mm positioning accuracy. Drive: omnidirectional (4 x 2.5 kW). It navigates by lidar SLAM using safety laser scanners with a 360-degree field of view, and is managed by AFORMIC's QURSOR fleet platform, which handles task allocation, path planning, traffic and KANBAN workflows. Power comes from a Li-Ion 560 Ah, 48 V battery.
FEATURES
- Payload: 6000 kg (13,200 lb)
- Dimensions (LxWxH): 5500 x 2000 x 750 mm (216.5 × 78.7 × 29.5 in)
- Lifting height: 60 mm (2.4 in)
- Weight: 4000 kg (8,800 lb)
- Max speed: 1.5 m/s (4.9 ft/s)
- Drive: omnidirectional
- drive power 4 x 2.5 kW
- Positioning accuracy +/- 1.0 cm (0.4 in)
- Safety: Laser scanner field of view: 360° Sick Micro Scanners: 4 units Emergency push buttons: 14 units Blue spot lamp: 2 units Four bumpers, one on each side of the vehicle
- Battery: Li-Ion 560 Ah, 48 V
- Lidar SLAM navigation
- no floor tape, wires or markers
- Managed by the QURSOR fleet management platform
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 4000 kg |
|---|---|
| Dimensions | L 5.5 m × W 2 m × H 750 mm |
| Payload | 6000 kg |
| Repeatability | ±10 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Actuators | omnidirectional (4 x 2.5 kW) |
| Power | |
| Battery Life | Li-Ion 560 Ah, 48 V |
| Sensing & Compute | |
| Sensors | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| Connectivity | Wireless link to QURSOR fleet manager |
| Software / AI | AFORMIC QURSOR fleet management |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
| Physical | |
| Weight | 4000 kg |
|---|---|
| Dimensions | L 5.5 m × W 2 m × H 750 mm |
| Payload | 6000 kg |
| Repeatability | ±10 mm |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Actuators | omnidirectional (4 x 2.5 kW) |
| Power | |
| Battery Life | Li-Ion 560 Ah, 48 V |
| Sensing & Compute | |
| Sensors | SICK safety laser scanners (360-degree field), lidar SLAM navigation, safety bumpers |
| Connectivity | Wireless link to QURSOR fleet manager |
| Software / AI | AFORMIC QURSOR fleet management |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FP 27?
FP 27 is AFORMIC's largest underride AMR, engineered for loads of up to 6 t. Four omnidirectional drives move its 5.5 m platform in any direction, with 14 emergency stops and bumpers on every side.
Who makes the FP 27?
The FP 27 is made by AFORMIC, a robotics company based in Poland.
How much does the FP 27 cost?
AFORMIC has not publicly announced pricing for the FP 27. You can enquire through RobotAIGeek for current pricing.
What is the FP 27 used for?
The FP 27 is designed for heavy-load-transportation, intralogistics, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the FP 27?
The FP 27 has a payload capacity of 6,000 kg.
How much does the FP 27 weigh?
The FP 27 weighs 4,000 kg.
How fast is the FP 27?
The FP 27 can move at speeds of up to 5.4 km/h.
