DESCRIPTION
FD150B is an Industrial-Robot from Zhejiang HuaRay Technology. It is built for Heavy-Load-Transportation, Intralogistics, Lifting. Key figures: 780 kg, 480 min runtime, 1500 kg payload.
FD150B is iRAYPLE's 1.5-tonne stacking forklift AMR: laser-navigated, with autonomous pallet recognition, a 2 m lift and a 2.2 m minimum pick-up aisle. It navigates by Laser, reaches 1.5 m/s empty and 1.0 m/s loaded, stops within ±10 mm and runs 6-8 h per charge (charging: manual/auto). It talks to iRAYPLE's robot control and scheduling system over WiFi / 5G (optional).
FEATURES
- Rated load 1500 kg
- machine weight 780 kg
- 1735 mm×979 mm×1930 mm
- Max. speed 1.5 m/s empty, 1.0 m/s loaded
- Navigation: Laser
- drive: Single Steering Wheel Drive
- Height of Rear Fork above Ground after Lifting: 2000mm
- Load Center Distance: 600 mm
- Minimum Pickup Channel: 2200mm
- Fork Size: 60mm/182mm/1150mm
- Turning Radius: 1206mm
- Stopping accuracy (no load): ±10 mm
- Climbing Ability: 3° (5%)
- Autonomous pallet recognition
- Charging Mode: Manual/Auto
- Communication Mode: WiFi / 5G (optional)
- Operating time 6-8h
- charging 1.0 h
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 780 kg |
|---|---|
| Dimensions | L 1.74 m × W 979 mm × H 1.93 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/Auto |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, vision obstacle avoidance, collision bumpers, pallet presence sensors |
| Connectivity | WiFi / 5G (optional) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 780 kg |
|---|---|
| Dimensions | L 1.74 m × W 979 mm × H 1.93 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/Auto |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, vision obstacle avoidance, collision bumpers, pallet presence sensors |
| Connectivity | WiFi / 5G (optional) |

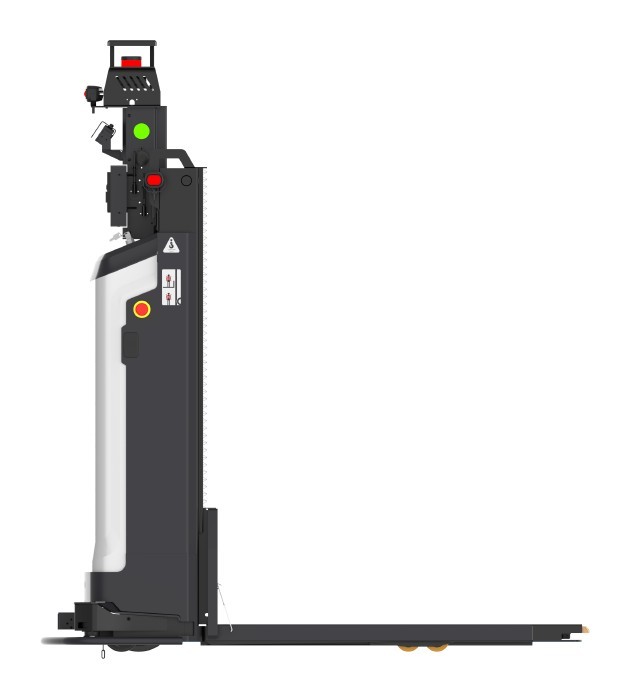

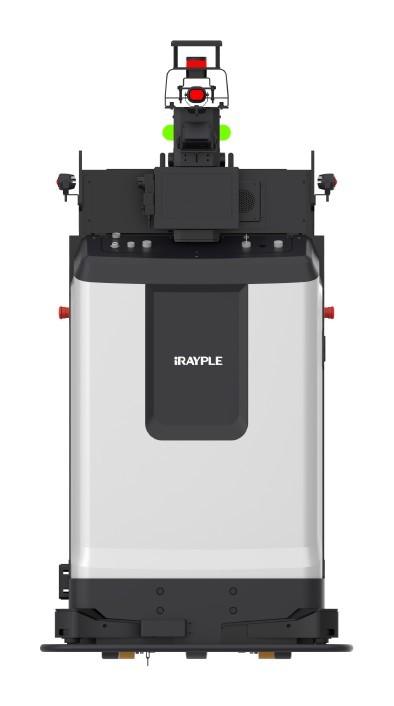

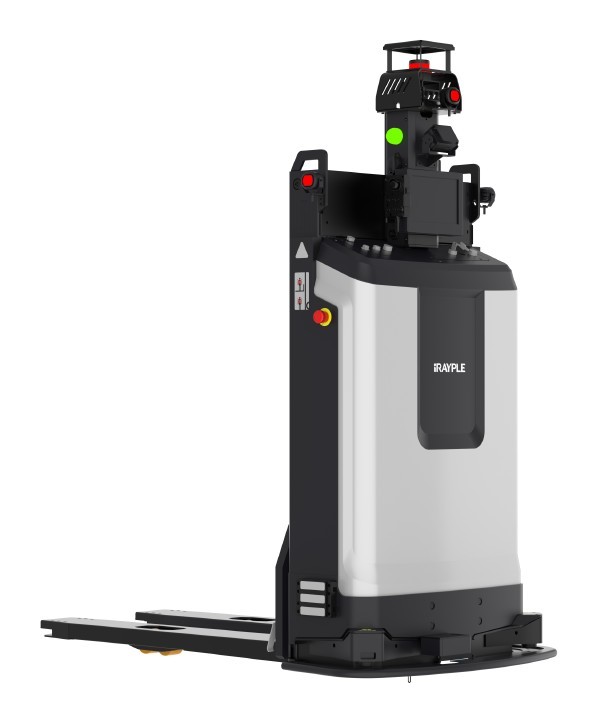

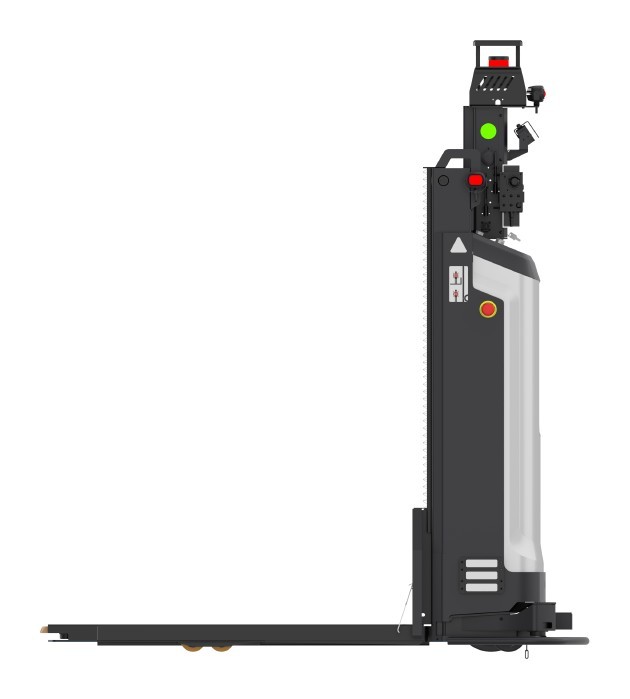

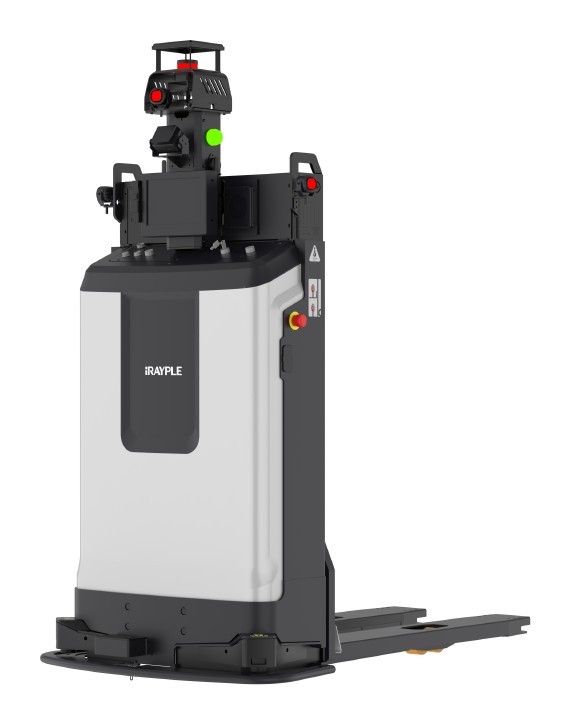

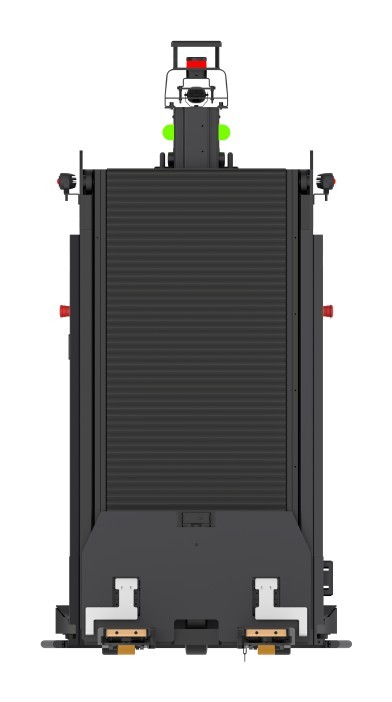

Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FD150B?
FD150B is iRAYPLE's 1.5-tonne stacking forklift AMR: laser-navigated, with autonomous pallet recognition, a 2 m lift and a 2.2 m minimum pick-up aisle. It navigates by Laser, reaches 1.5 m/s empty and 1.0 m/s loaded, stops within ±10 mm and runs 6-8 h per charge (charging: manual/auto).
Who makes the FD150B?
The FD150B is made by Zhejiang HuaRay Technology, a robotics company based in China.
How much does the FD150B cost?
Zhejiang HuaRay Technology has not publicly announced pricing for the FD150B. You can enquire through RobotAIGeek for current pricing.
What is the FD150B used for?
The FD150B is designed for heavy-load-transportation, intralogistics, lifting, and loading. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the FD150B?
The FD150B has a payload capacity of 1,500 kg.
How much does the FD150B weigh?
The FD150B weighs 780 kg.
How fast is the FD150B?
The FD150B can move at speeds of up to 5.4 km/h.
What is the battery life of the FD150B?
The FD150B runs for about 480 minutes on a charge.
