DESCRIPTION
FC 100 is an Industrial-Robot from IBG Automation. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 600 kg, 960 min runtime, 2000 kg payload.

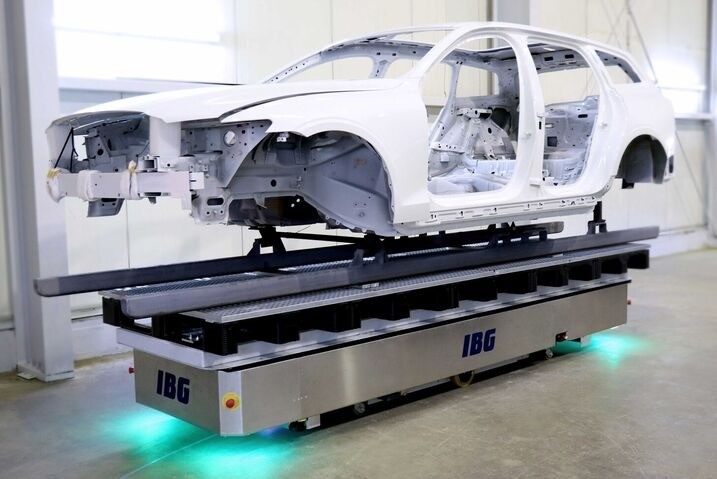

FC 100 is IBG's large Factory Cruiser AGV for big, heavy goods. A 4,000 x 1,000 mm vehicle only 560 mm high, it drives under load carriers and raises them with an integrated lifting system - 100 mm of stroke at 5-10 mm/s - carrying a rated payload of 2,000 kg at up to 0.8 m/s.\nIt follows magnetic tracks with magnetic-track scanners, reads its driving commands from RFID tags and watches its surroundings with safety scanners. The 600 kg vehicle runs 16 hours on a lead-crystal battery that recharges in four hours.
FEATURES
- Integrated lifting system: 100 mm stroke at 5-10 mm/s
- Rated payload 2,000 kg
- 4,000 x 1,000 x 560 mm
- 600 kg own weight
- Magnetic-track navigation
- RFID tags for driving commands
- safety scanners
- 16 h operating time
- 4 h charging
- lead-crystal battery
- Up to 0.8 m/s
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 600 kg |
|---|---|
| Dimensions | L 4 m × W 1 m × H 560 mm |
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.88 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 960 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, magnetic track scanner, RFID reader |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 600 kg |
|---|---|
| Dimensions | L 4 m × W 1 m × H 560 mm |
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 2.88 km/h |
| Environment | Factory production and warehouse floors (indoor) |
| Power | |
| Battery Life | 960 min |
| Sensing & Compute | |
| Sensors | safety laser scanner, magnetic track scanner, RFID reader |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the FC 100?
FC 100 is IBG's large Factory Cruiser AGV for big, heavy goods. A 4,000 x 1,000 mm vehicle only 560 mm high, it drives under load carriers and raises them with an integrated lifting system - 100 mm of stroke at 5-10 mm/s - carrying a rated payload of 2,000 kg at up to 0.8 m/s.\nIt follows magnetic tracks with magnetic-…
Who makes the FC 100?
The FC 100 is made by IBG Automation, a robotics company based in Germany.
How much does the FC 100 cost?
IBG Automation has not publicly announced pricing for the FC 100. You can enquire through RobotAIGeek for current pricing.
What is the FC 100 used for?
The FC 100 is designed for intralogistics, lifting, material-handling, and transport. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the FC 100?
The FC 100 has a payload capacity of 2,000 kg.
How much does the FC 100 weigh?
The FC 100 weighs 600 kg.
How fast is the FC 100?
The FC 100 can move at speeds of up to 2.88 km/h.
What is the battery life of the FC 100?
The FC 100 runs for about 960 minutes on a charge.
