DESCRIPTION
Factory Shuttle FS400 is an Industrial-Robot from Neumaier Industry. It is built for Intralogistics, Material-Handling, Transport. Key figures: 3000 kg payload.
The Factory Shuttle FS400 is Neumaier Industry's compact under-ride transport AGV, built on a standardised modular principle so it can be configured to each customer's processes and load carriers. It has a two-way drive/steering system, reaches 1.2 m/s, and its electric lifting gear raises loads 100 mm, with forks or conveyor superstructures as alternative load-handling devices. Payload versions range from 400 kg to 3,000 kg. It navigates by geo/contour navigation (other or hybrid navigation possible), runs on a LiFePO4 battery with automatic (optionally inductive) charging, and carries a PL-d laser scanner in the main direction of travel plus a bumper for reversing. Grammer uses five FS400s in three shifts to supply production lines in Zwickau, called up by operators from touch displays.
FEATURES
- Payload versions 400 kg to 3,000 kg
- Max speed 1.2 m/s
- Electric lifting gear, 100 mm lift, overload protection
- 2-way drive/steering
- manual joystick mode
- LiFePO4 battery, automatic charging
- optional inductive charging
- Geo/contour navigation (other/hybrid possible)
- PL-d laser scanner forward, bumper reversing
- BlueSpot lighting option
- WiFi, touch displays, management software with API

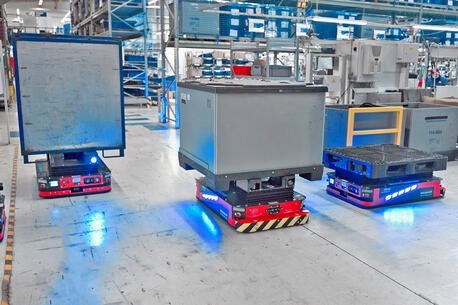

- Reference: 5 units at Grammer, Zwickau
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 3000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor production and warehouses |
| Sensing & Compute | |
| Sensors | PL-d safety laser scanners, cameras |
| Connectivity | WiFi; Neumaier management software with API |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 3000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 4.32 km/h |
| Environment | Indoor production and warehouses |
| Sensing & Compute | |
| Sensors | PL-d safety laser scanners, cameras |
| Connectivity | WiFi; Neumaier management software with API |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Factory Shuttle FS400?
The Factory Shuttle FS400 is Neumaier Industry's compact under-ride transport AGV, built on a standardised modular principle so it can be configured to each customer's processes and load carriers.
Who makes the Factory Shuttle FS400?
The Factory Shuttle FS400 is made by Neumaier Industry, a robotics company based in Germany.
How much does the Factory Shuttle FS400 cost?
Neumaier Industry has not publicly announced pricing for the Factory Shuttle FS400. You can enquire through RobotAIGeek for current pricing.
What is the Factory Shuttle FS400 used for?
The Factory Shuttle FS400 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Factory Shuttle FS400?
The Factory Shuttle FS400 has a payload capacity of 3,000 kg.
How fast is the Factory Shuttle FS400?
The Factory Shuttle FS400 can move at speeds of up to 4.32 km/h.
