DESCRIPTION
F140 is an Industrial-Robot from Zhejiang HuaRay Technology. It is built for Heavy-Load-Transportation, Intralogistics, Lifting. Key figures: 850 kg, 480 min runtime, 1500 kg payload.

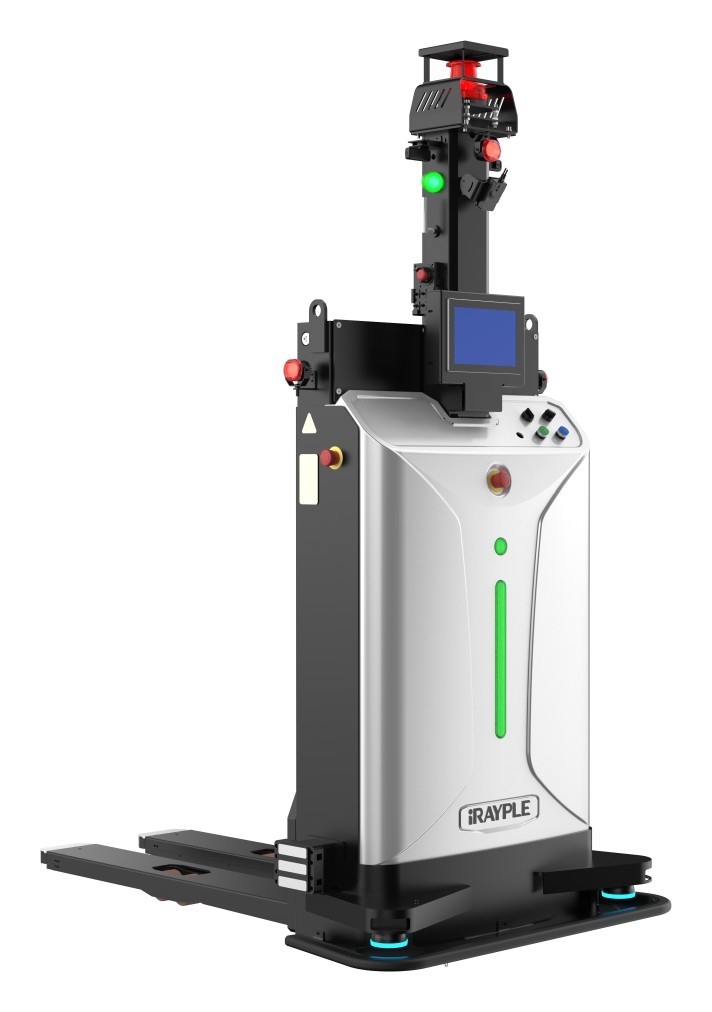

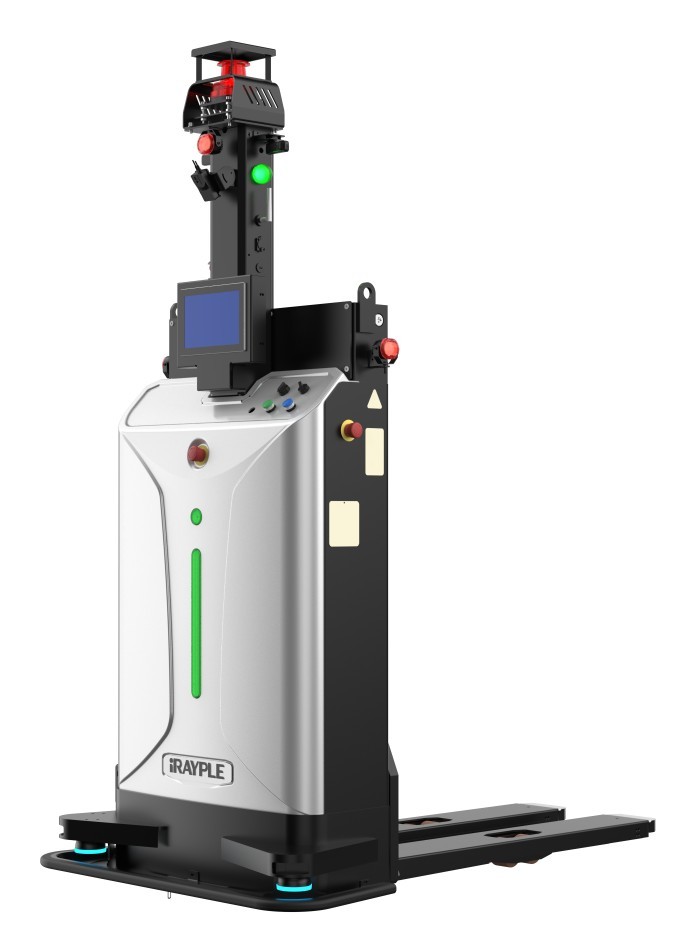

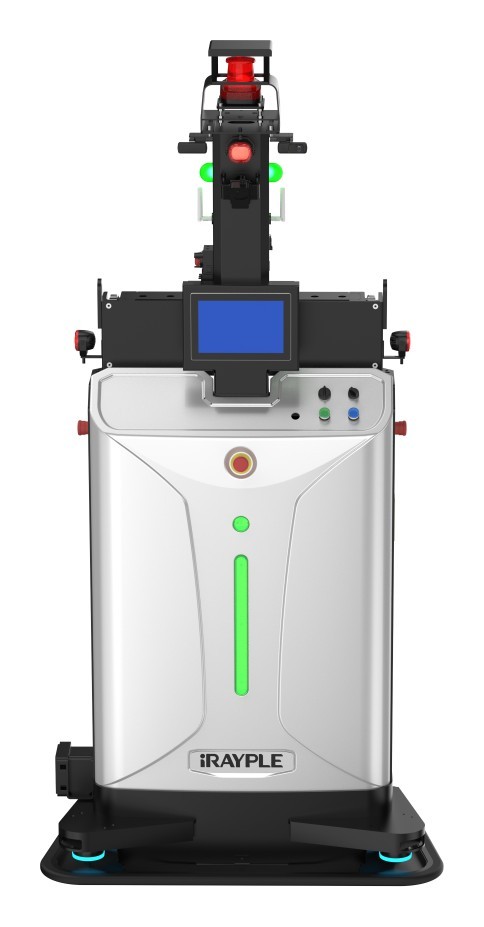

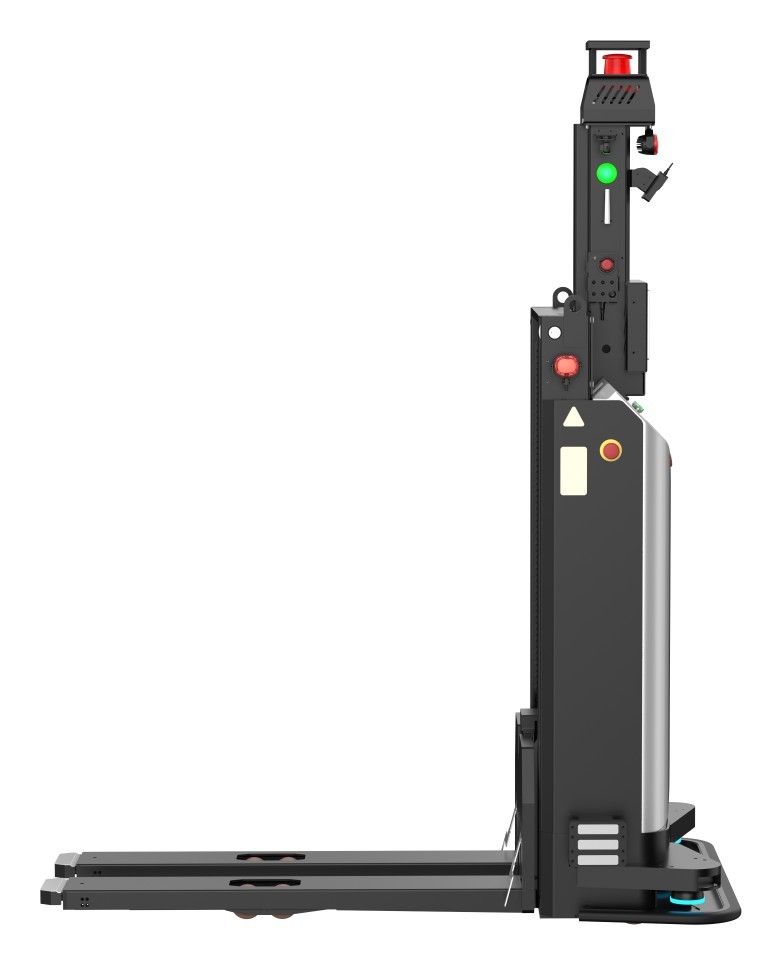

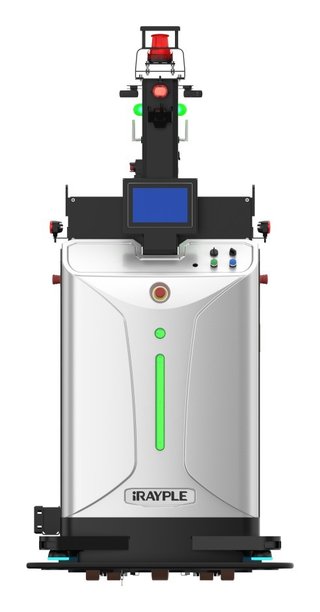

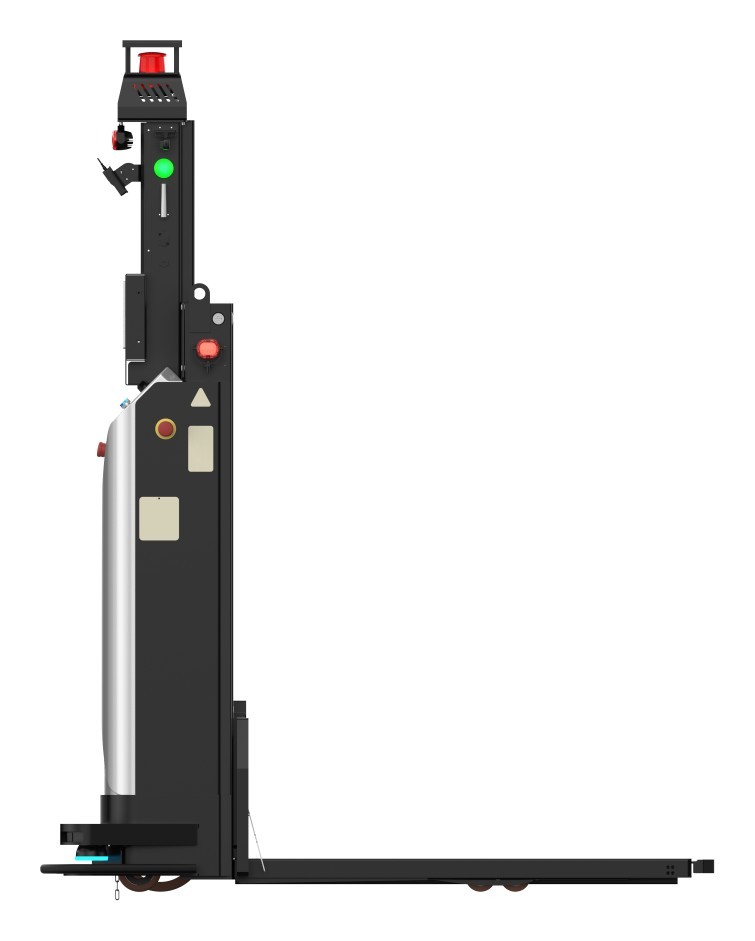

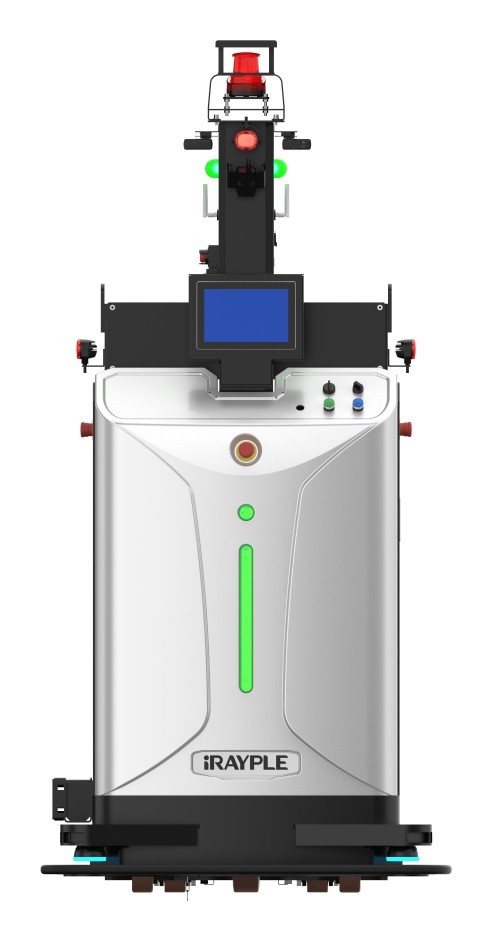

F140 is iRAYPLE's CE-certified stacking forklift AMR: it recognises pallets on its own, works in a 2.2 m pick-up aisle and lifts 1,500 kg pallets to 2 m (1 m and 2 m versions are offered). It navigates by 3D Laser, reaches 1.5 m/s empty and 1.5 m/s loaded, stops within ±10 mm and runs 8.0 h per charge (charging: manual/auto). It talks to iRAYPLE's robot control and scheduling system over WiFi / 5G (optional).
FEATURES
- Rated load 1500 kg
- machine weight 850kg
- 1751mm×1067mm×2210mm
- Max. speed 1.5 m/s empty, 1.5 m/s loaded
- Navigation: 3D Laser
- drive: Single Steering Wheel Drive
- Height of Rear Fork above Ground after Lifting: 2000 mm
- Load Center Distance: 600 mm
- Minimum Pickup Channel: 2200 mm
- Fork Size: 1150 mmx180 mmx60 mm
- Turning Radius: 1265 mm
- Stopping accuracy (no load): ±10 mm
- Climbing Ability: 3° (5%)
- Autonomous pallet recognition
- Charging Mode: Manual/Auto
- Communication Mode: WiFi / 5G (optional)
- Certifications: CE
- Operating time 8.0 h
- charging 2 h
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 850 kg |
|---|---|
| Dimensions | L 1.75 m × W 1.07 m × H 2.21 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/Auto |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, vision obstacle avoidance, collision bumpers, pallet presence sensors |
| Connectivity | WiFi / 5G (optional) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 850 kg |
|---|---|
| Dimensions | L 1.75 m × W 1.07 m × H 2.21 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 480 min |
| Charging Type | Manual/Auto |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, vision obstacle avoidance, collision bumpers, pallet presence sensors |
| Connectivity | WiFi / 5G (optional) |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the F140?
F140 is iRAYPLE's CE-certified stacking forklift AMR: it recognises pallets on its own, works in a 2.2 m pick-up aisle and lifts 1,500 kg pallets to 2 m (1 m and 2 m versions are offered).
Who makes the F140?
The F140 is made by Zhejiang HuaRay Technology, a robotics company based in China.
How much does the F140 cost?
Zhejiang HuaRay Technology has not publicly announced pricing for the F140. You can enquire through RobotAIGeek for current pricing.
What is the F140 used for?
The F140 is designed for heavy-load-transportation, intralogistics, lifting, and loading. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the F140?
The F140 has a payload capacity of 1,500 kg.
How much does the F140 weigh?
The F140 weighs 850 kg.
How fast is the F140?
The F140 can move at speeds of up to 5.4 km/h.
What is the battery life of the F140?
The F140 runs for about 480 minutes on a charge.
