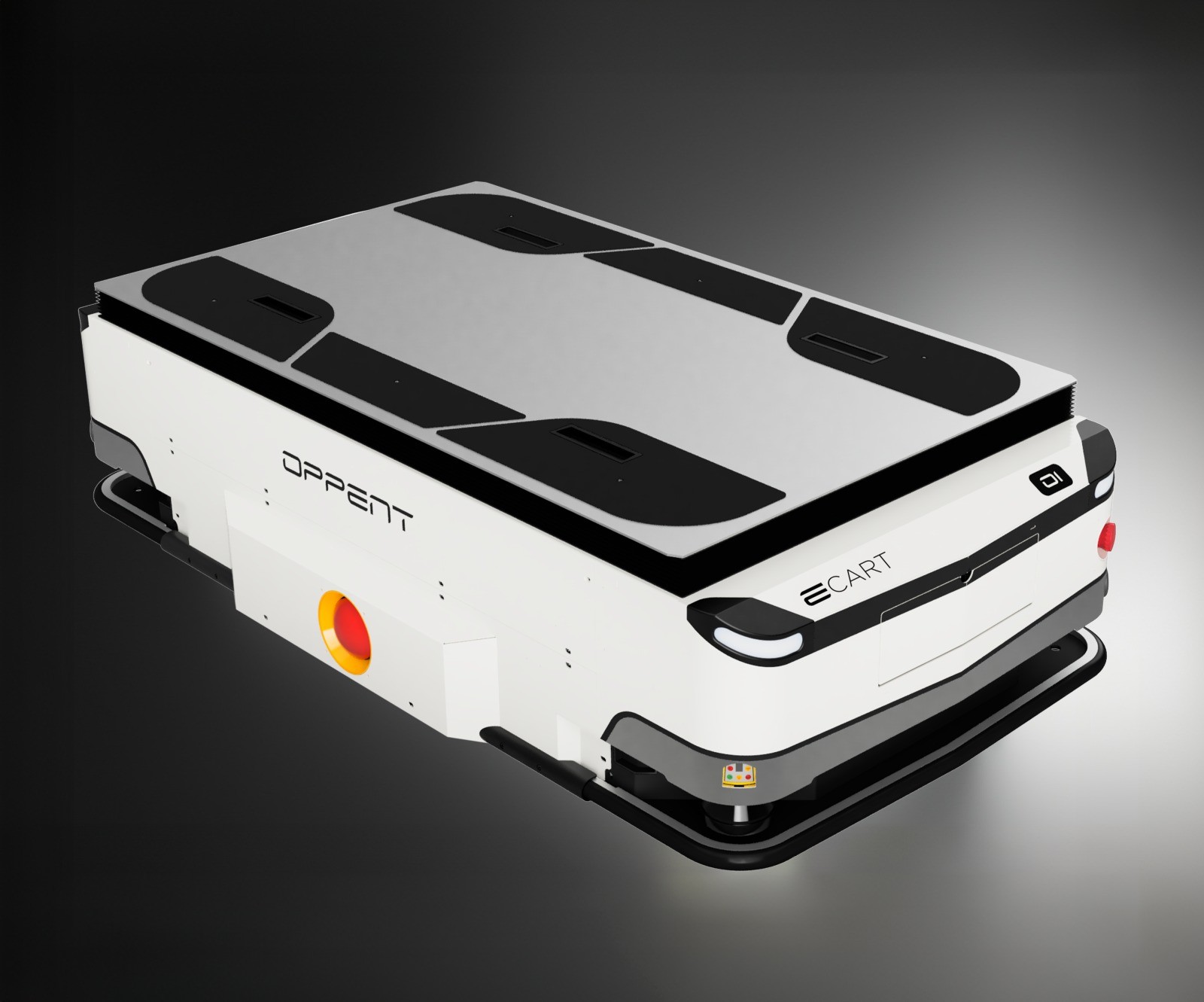

ECART 4

Oppent

Industrial-Robot Italy

ItalyReleased

★Not rated yet

Compare

Sources:

oppent.com

Industries:

Warehouse & Logistics Manufacturing

Uses:

Intralogistics Material-Handling TransportIntralogistics

Price:

Not announced

Model:

Oppent ECART 4 autonomous mobile robot

DESCRIPTION

ECART 4 is an Industrial-Robot from Oppent. It is built for Intralogistics, Material-Handling, Transport. Key figures: 400 kg, 420 min runtime, 1200 kg payload.

ECART 4 is a model in Oppent's ECART family of autonomous mobile robots, built in Italy. The heavy-duty ECART, it carries 1,200 kg (1,500 kg maximum) at up to 1.8 m/s and recharges its 100 Ah battery in about an hour.\nPer its datasheet it measures 1,450 x 820 x 350 mm, weighs 400 kg without batteries and carries 1,200 kg nominal (1,500 kg maximum) on lift platform sized to the payload. It uses differential, bidirectional drive (2 x 1,500 W), travels at up to 1.8 m/s and climbs 3% slopes. It navigates naturally by laser scanner, positions to +/-10 mm and +/-1 deg and turns on its own axis, and runs about 7 hours on a LiFePO4 24 V 100 Ah battery with 1 h recharge. Safety comes from 2 Sick S300 laser scanners, front/rear sensitive edges, 2 e-stops, Sick Flexi safety controller (Performance Level d), and the vehicle conforms to ISO 3691-4:2020 for driverless industrial trucks.

FEATURES

Nominal payload 1,200 kg
maximum 1,500 kg
Equipment: lift platform sized to the payload
Size 1,450 x 820 x 350 mm
400 kg without batteries
Drive: differential, bidirectional drive (2 x 1,500 W)
max speed 1.8 m/s
slopes up to 3%
Battery: LiFePO4 24 V 100 Ah
about 7 h autonomy, 1 h recharge
Safety: 2 Sick S300 laser scanners, front/rear sensitive edges, 2 e-stops, Sick Flexi safety controller (Performance Level d)
Polyurethane and Vulkollan wheels
Natural navigation by laser scanner (odometric closed loop)
map acquired automatically by the robot
Positioning accuracy +/-10 mm and +/-1 deg
turns on its own axis
Wi-Fi 802.11a/b/g/n (2.4/5 GHz)
Indoor use +5 to 35 C, 30-80% RH
IP degree 13 (datasheet)
Stainless steel (AISI 304) chassis
complies with Machinery Directive and ISO 3691-4:2020

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	400 kg
Dimensions	L 1.45 m × W 820 mm × H 350 mm
Payload	1200 kg
Mobility
Movement Type	Wheeled
Speed	6.48 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	420 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	400 kg
Dimensions	L 1.45 m × W 820 mm × H 350 mm
Payload	1200 kg
Mobility
Movement Type	Wheeled
Speed	6.48 km/h
Environment	Indoor factories and warehouses (+5 to 35 C)
Power
Battery Life	420 min
Sensing & Compute
Sensors	Sick laser scanners (navigation and safety), sensitive safety edges
Connectivity	Wi-Fi 802.11a/b/g/n (2.4/5 GHz)

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the ECART 4?

Who makes the ECART 4?

The ECART 4 is made by Oppent, a robotics company based in Italy.

How much does the ECART 4 cost?

Oppent has not publicly announced pricing for the ECART 4. You can enquire through RobotAIGeek for current pricing.

What is the ECART 4 used for?

The ECART 4 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
