DESCRIPTION

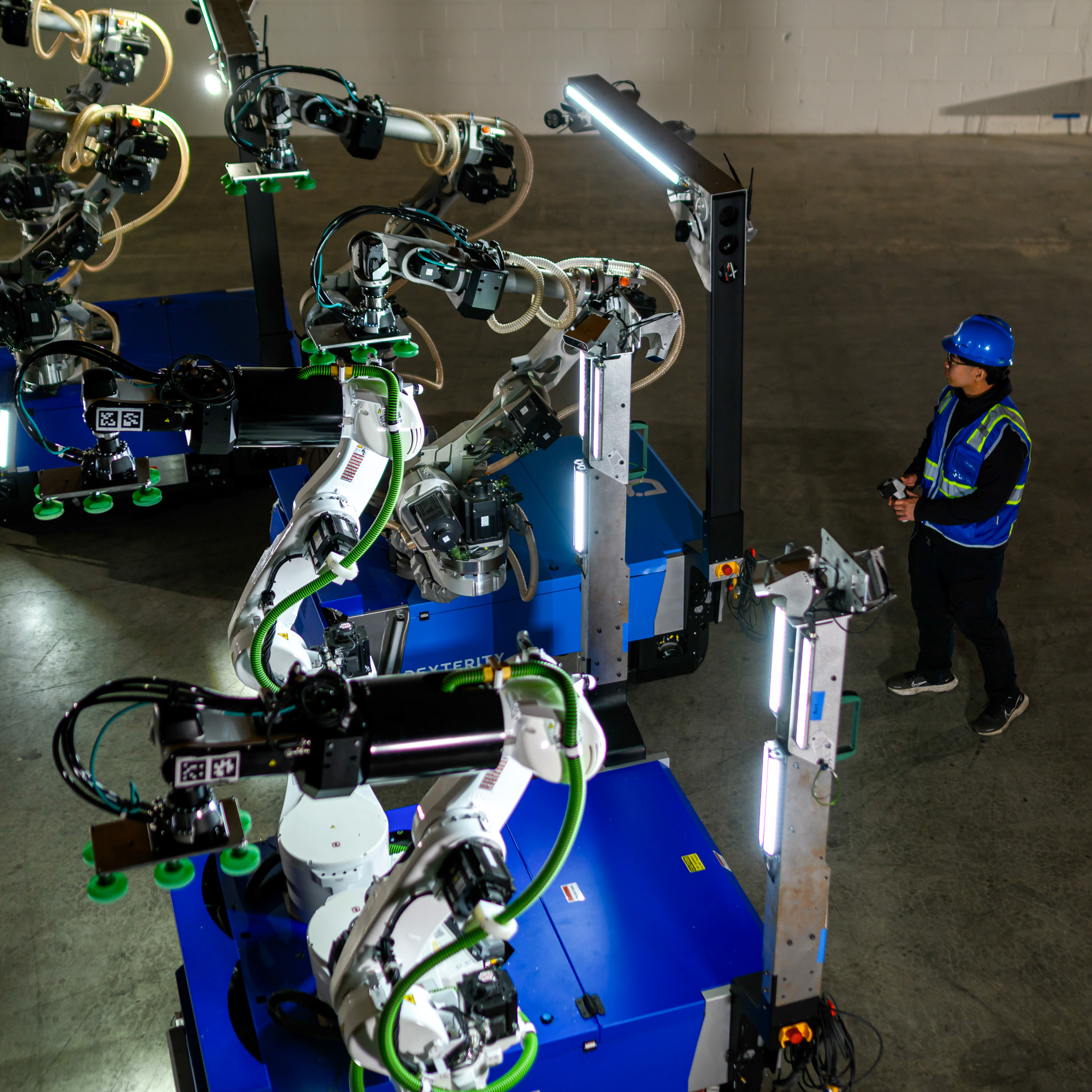

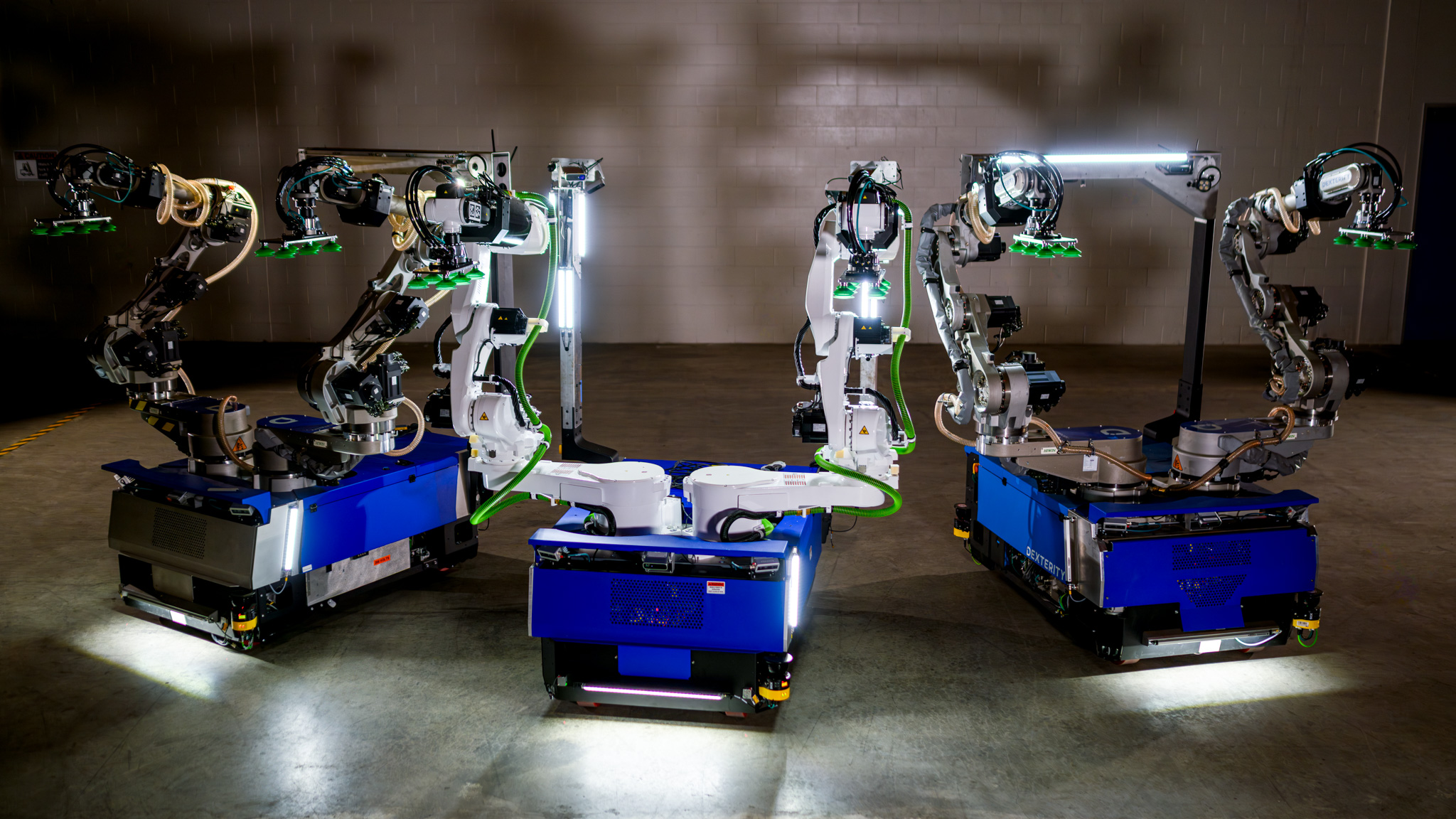

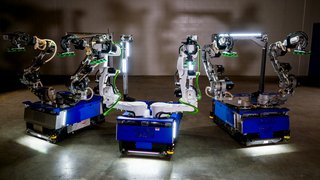

Mech is Dexterity's flagship industrial superhumanoid - explicitly not a humanoid attempting everything, but a machine purpose-built for logistics and manufacturing work: trailer loading and unloading, palletising and depalletising, aircraft loading and unloading, and singulation. Its two arms give a 5.4 m armspan and lift 60 kg combined, 30 kg each, over a vertical reach beyond 2.4 m. A patented shoulder and a second elbow provide the extra degrees of freedom that ordinary humanoid geometry lacks. Mech has an AI-driven sense of touch and pressure which, combined with 4 kHz torque control in the arms, lets it handle boxes, parcels and polybags gently and pack them into tight spaces. The rover base moves, spins, strafes and climbs ramps on four independently steerable wheels, and packs dual vacuum pumps, an onboard supercomputer, a battery pack and up to sixteen cameras. The arms are manufactured by Kawasaki with precision motion components from HiWin, giving arm mean time between failures beyond ten years, in 0-50°C, up to 1,500 m altitude and up to 90% humidity. Mech is designed, developed and assembled in Redwood City, California, and first deployed at a Fortune 500 site for autonomous truck loading in 2022.
FEATURES
- 5.4 m armspan across two arms
- 60 kg combined payload, 30 kg per arm.
- Vertical reach beyond 2.4 m.
- Patented shoulder and a second elbow for degrees of freedom humanoids lack.

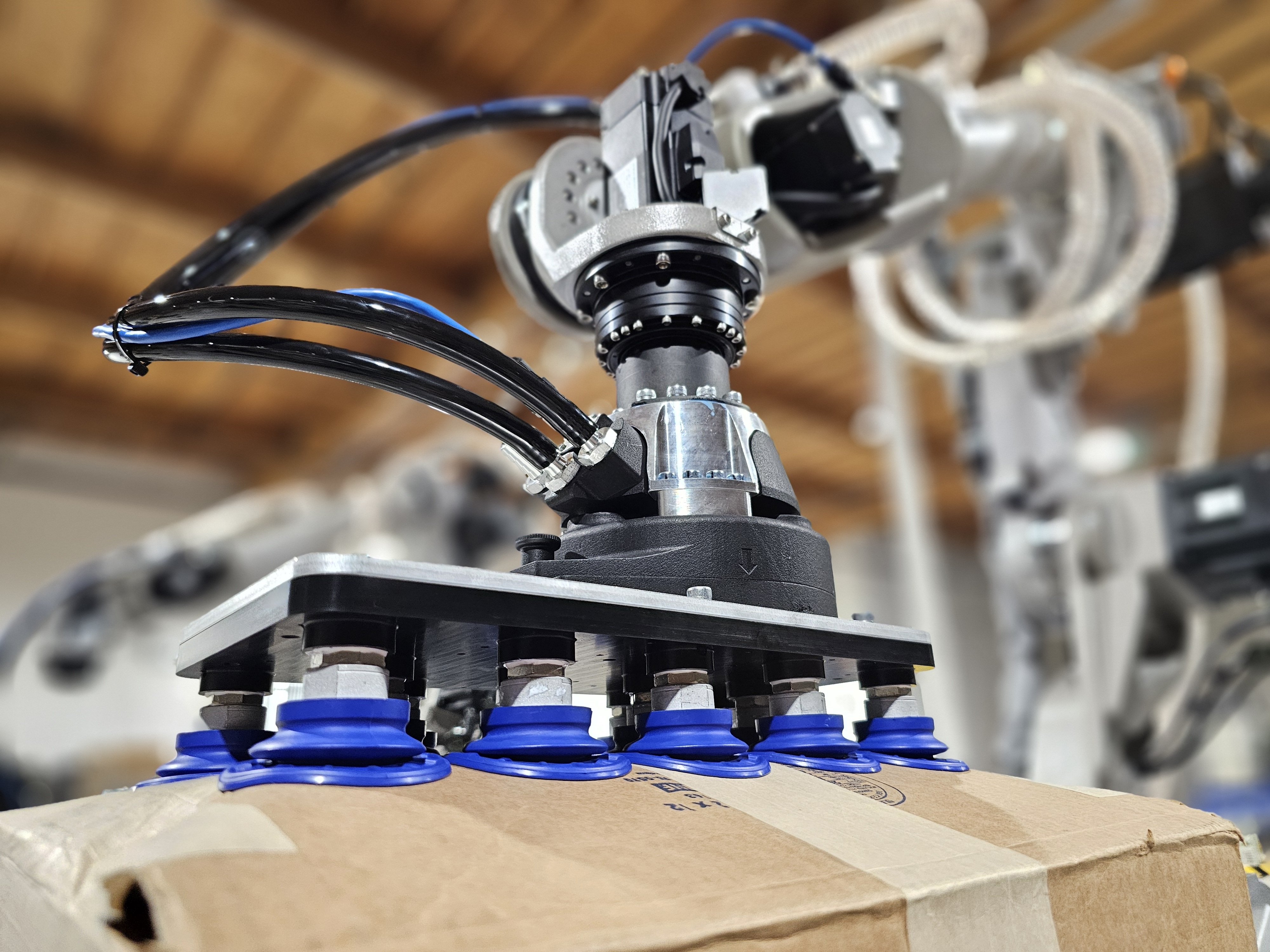

- AI-driven sense of touch and pressure with 4 kHz torque control.
- Rover base moves, spins, strafes and climbs ramps on four steerable wheels.
- Dual vacuum pumps, onboard supercomputer, battery pack and up to sixteen cameras.
- Arms built by Kawasaki
- precision motion components from HiWin.
- Arm MTBF beyond 10 years
- rated 0-50°C, to 1,500 m altitude and 90% humidity.
- Designed, developed and assembled in Redwood City, California.
- Applications: trailer loading and unloading, palletising, depalletising, aircraft loading and unloading, singulation.
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 60 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 60 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
Images
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Dexterity Mech?
Mech is Dexterity's flagship industrial superhumanoid - explicitly not a humanoid attempting everything, but a machine purpose-built for logistics and manufacturing work: trailer loading and unloading, palletising and depalletising, aircraft loading and unloading, and singulation.
Who makes the Dexterity Mech?
The Dexterity Mech is made by Dexterity, a robotics company based in United States.
How much does the Dexterity Mech cost?
Dexterity has not publicly announced pricing for the Dexterity Mech. You can enquire through RobotAIGeek for current pricing.
What is the Dexterity Mech used for?
The Dexterity Mech is designed for intralogistics, loading, sorting, and unloading. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the Dexterity Mech?
The Dexterity Mech has a payload capacity of 60 kg.
When was the Dexterity Mech released?
The Dexterity Mech was released in 2022.
