DESCRIPTION
D150D is an Industrial-Robot from Zhejiang HuaRay Technology. It is built for Heavy-Load-Transportation, Intralogistics, Lifting. Key figures: 500 kg, 360 min runtime, 1500 kg payload.

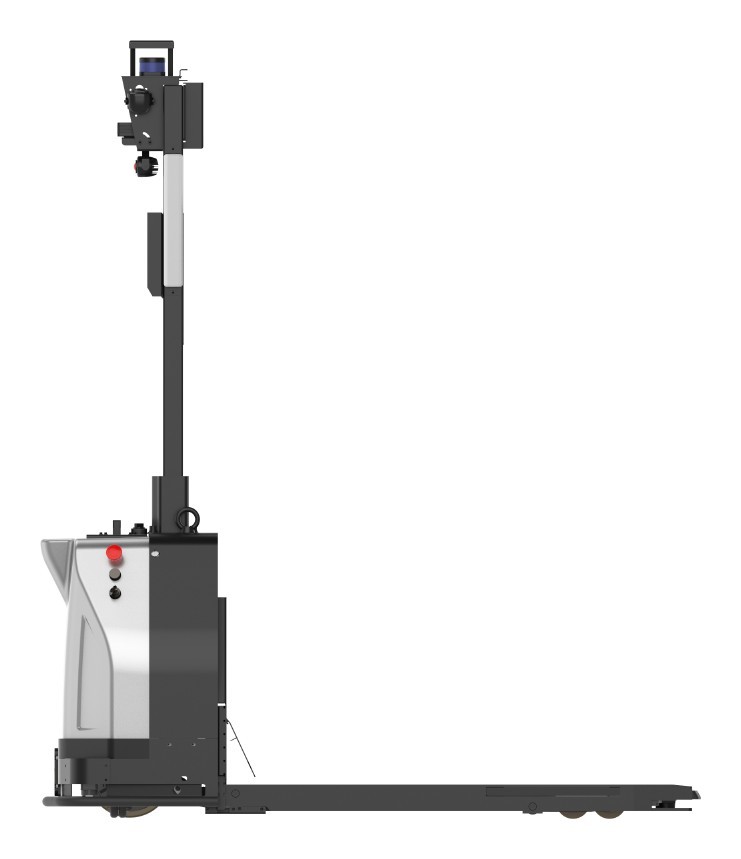

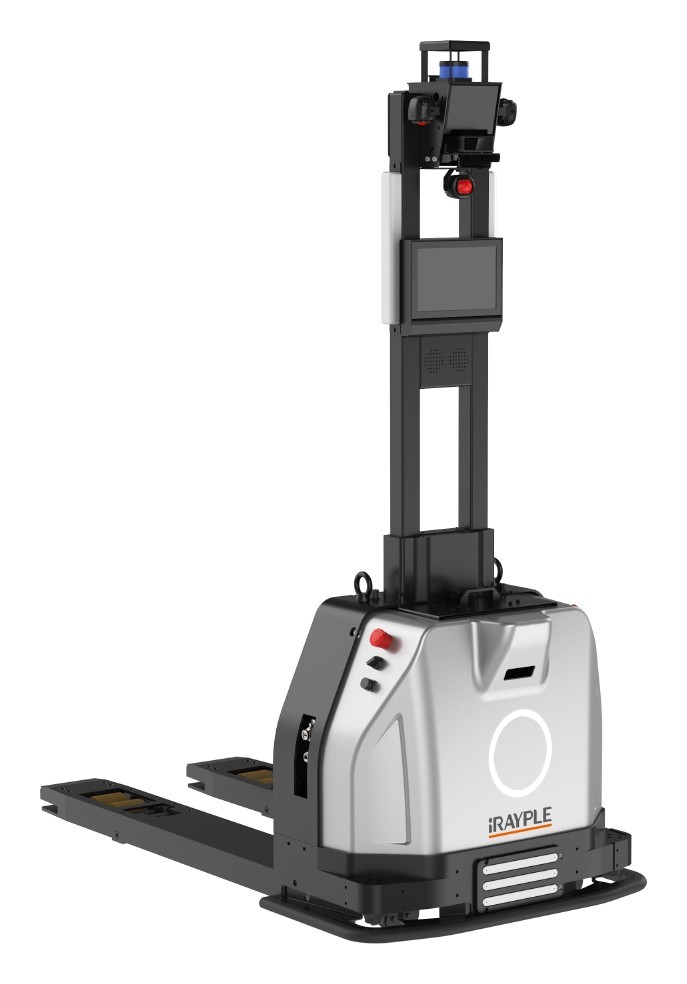

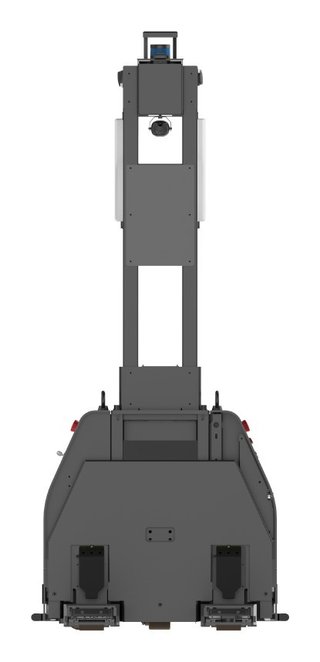

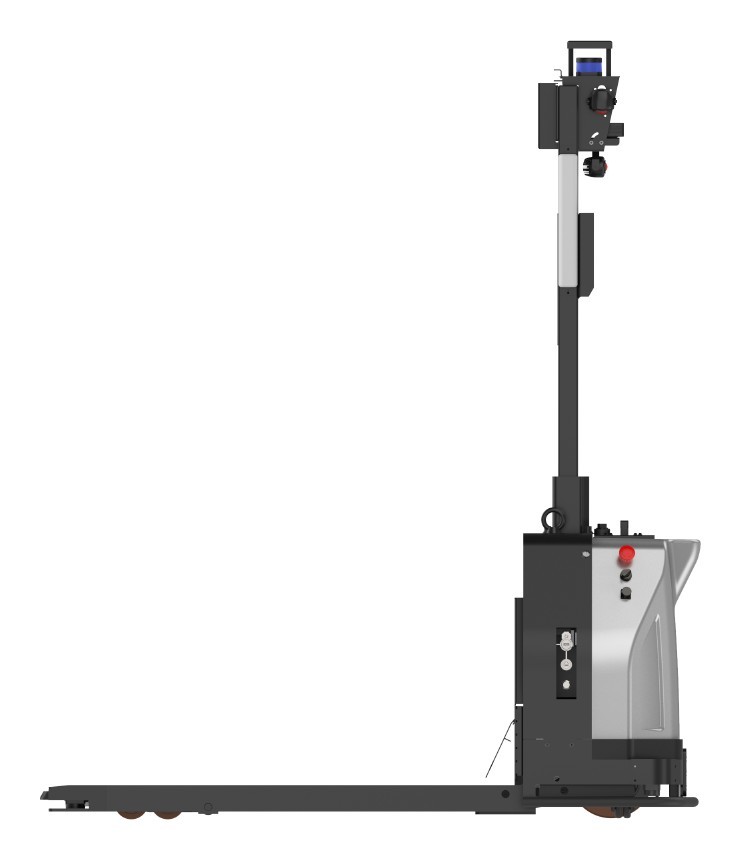

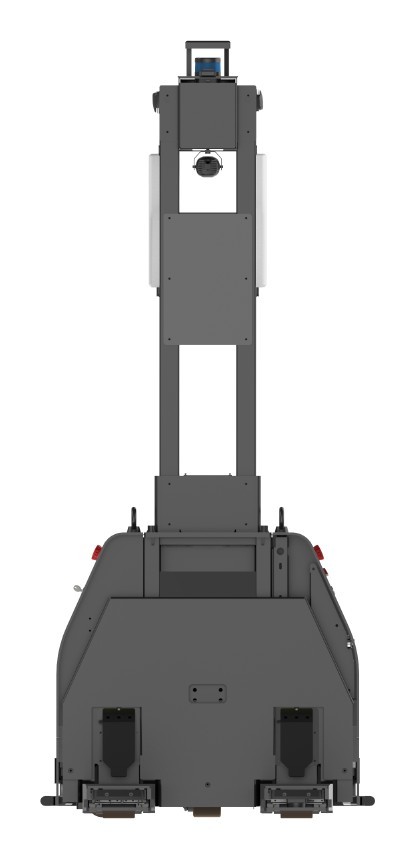

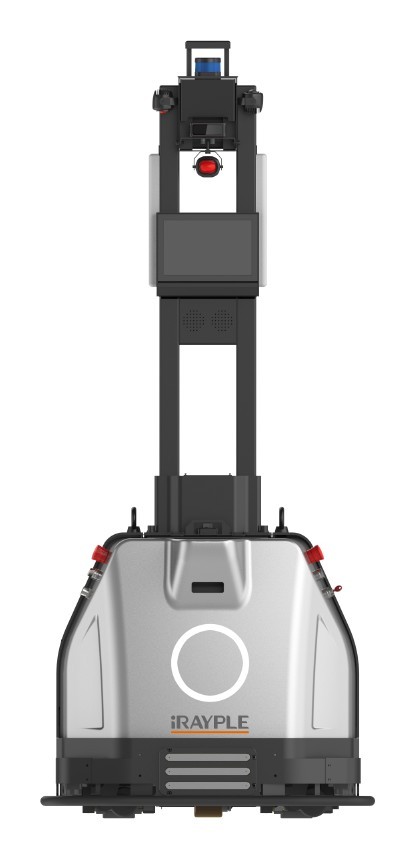

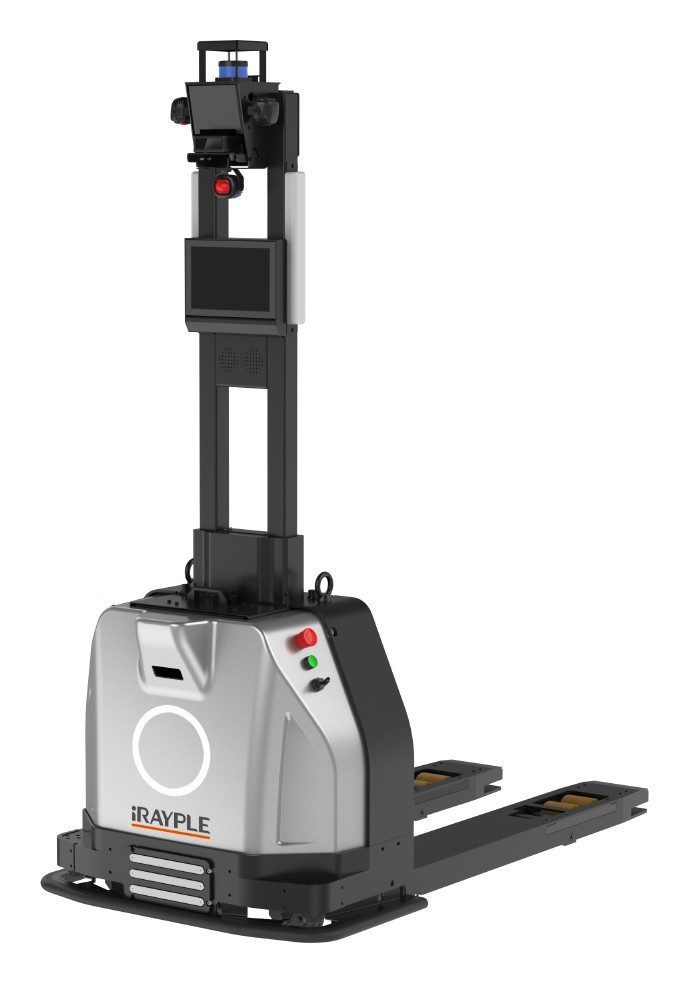

D150D is iRAYPLE's autonomous pallet-jack (forklift) AMR: it finds and picks up pallets on its own, carries 1,500 kg and moves them horizontally across the floor. It navigates by Laser, reaches 1.5 m/s empty and 1.0 m/s loaded, stops within ±10 mm and runs 6.0 h per charge (charging: manual/auto. manual quick battery swap). It talks to iRAYPLE's robot control and scheduling system over WiFi / 5G (optional).
FEATURES
- Rated load 1500 kg
- machine weight 500 kg
- 1630 mm×830 mm×1930 mm
- Max. speed 1.5 m/s empty, 1.0 m/s loaded
- Navigation: Laser
- drive: Single Steering Wheel Drive
- Height of Rear Fork above Ground after Lifting: 120 mm
- Load Center Distance: 600 mm
- Minimum Pickup Channel: 2166 mm
- Fork Size: 1150 mm×620 mm×83 mm
- Turning Radius: 1380 mm
- Stopping accuracy (no load): ±10 mm
- Climbing Ability: 3° (5%)
- Autonomous pallet recognition
- Charging Mode: Manual/Auto. Manual Quick Battery Swap
- Communication Mode: WiFi / 5G (optional)
- Operating time 6.0 h
- charging 1.5 h
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 500 kg |
|---|---|
| Dimensions | L 1.63 m × W 830 mm × H 1.93 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 360 min |
| Charging Type | Manual/Auto. Manual Quick Battery Swap |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, vision obstacle avoidance, collision bumpers, pallet presence sensors |
| Connectivity | WiFi / 5G (optional) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 500 kg |
|---|---|
| Dimensions | L 1.63 m × W 830 mm × H 1.93 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Factories and warehouses (indoor, 0-40 C) |
| Power | |
| Battery Life | 360 min |
| Charging Type | Manual/Auto. Manual Quick Battery Swap |
| Sensing & Compute | |
| Sensors | laser navigation/obstacle-avoidance scanners, vision obstacle avoidance, collision bumpers, pallet presence sensors |
| Connectivity | WiFi / 5G (optional) |
Images
martti
martti
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the D150D?
D150D is iRAYPLE's autonomous pallet-jack (forklift) AMR: it finds and picks up pallets on its own, carries 1,500 kg and moves them horizontally across the floor. It navigates by Laser, reaches 1.5 m/s empty and 1.0 m/s loaded, stops within ±10 mm and runs 6.0 h per charge (charging: manual/auto.
Who makes the D150D?
The D150D is made by Zhejiang HuaRay Technology, a robotics company based in China.
How much does the D150D cost?
Zhejiang HuaRay Technology has not publicly announced pricing for the D150D. You can enquire through RobotAIGeek for current pricing.
What is the D150D used for?
The D150D is designed for heavy-load-transportation, intralogistics, lifting, and loading. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the D150D?
The D150D has a payload capacity of 1,500 kg.
How much does the D150D weigh?
The D150D weighs 500 kg.
How fast is the D150D?
The D150D can move at speeds of up to 5.4 km/h.
What is the battery life of the D150D?
The D150D runs for about 360 minutes on a charge.
