DESCRIPTION

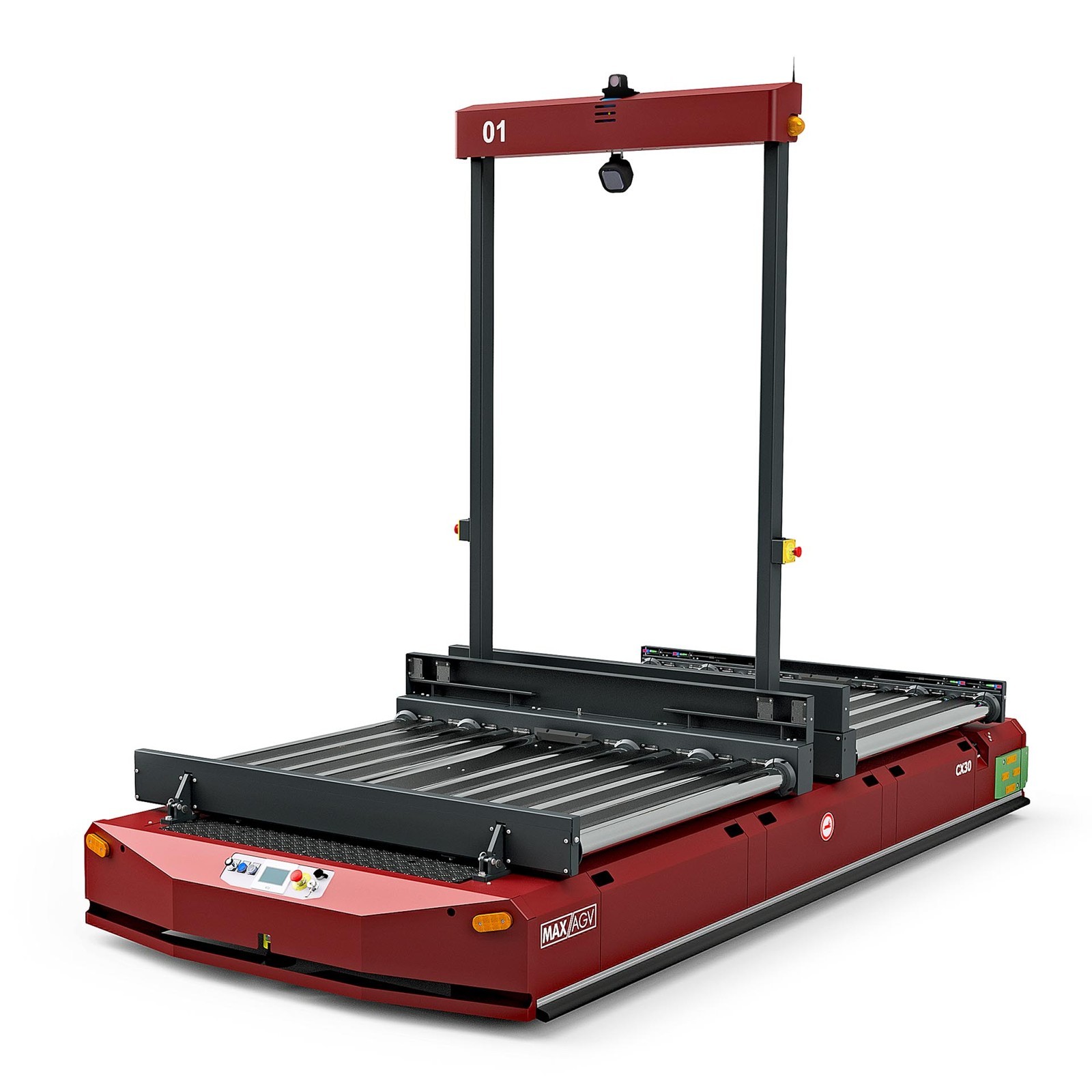

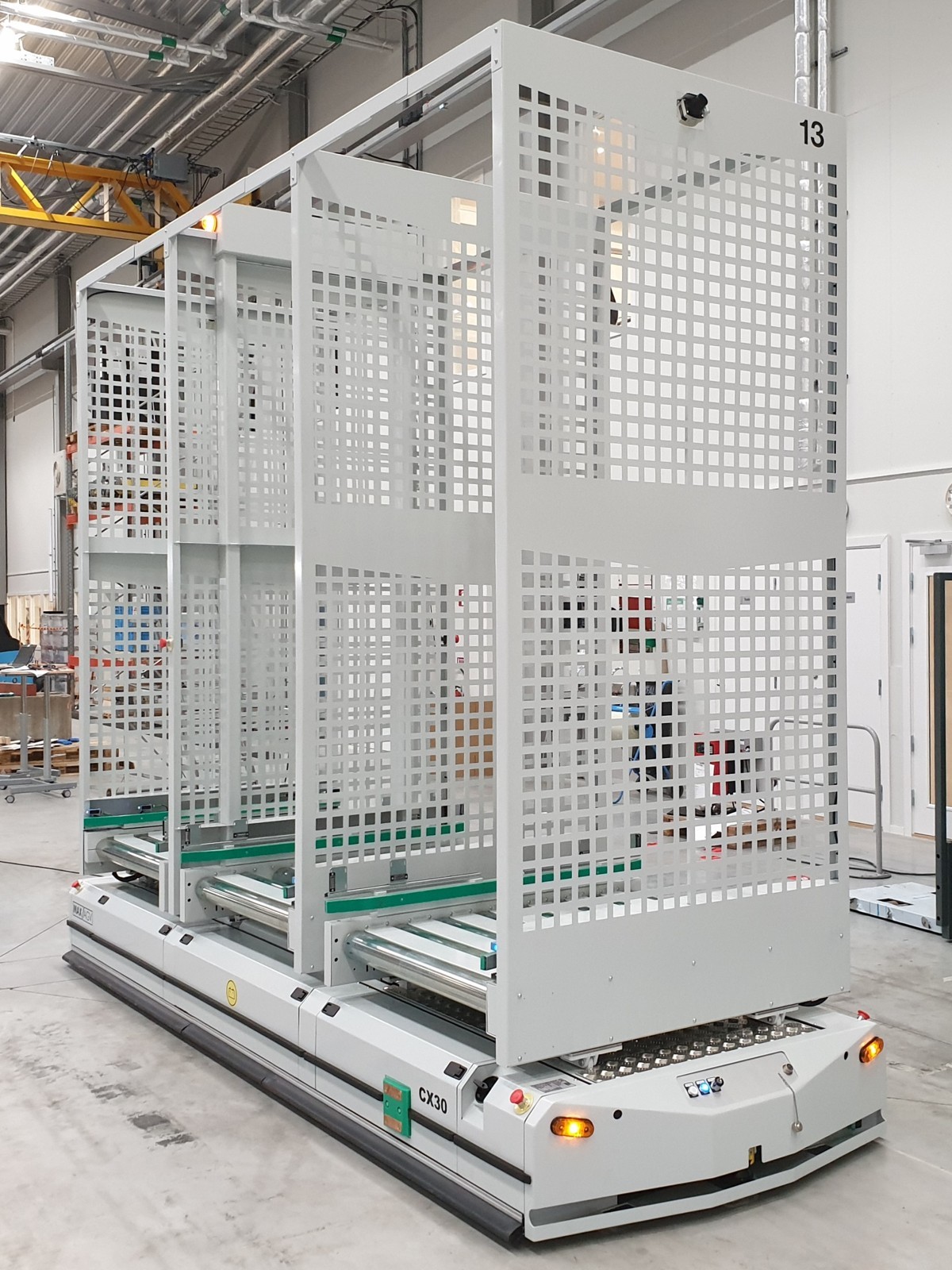

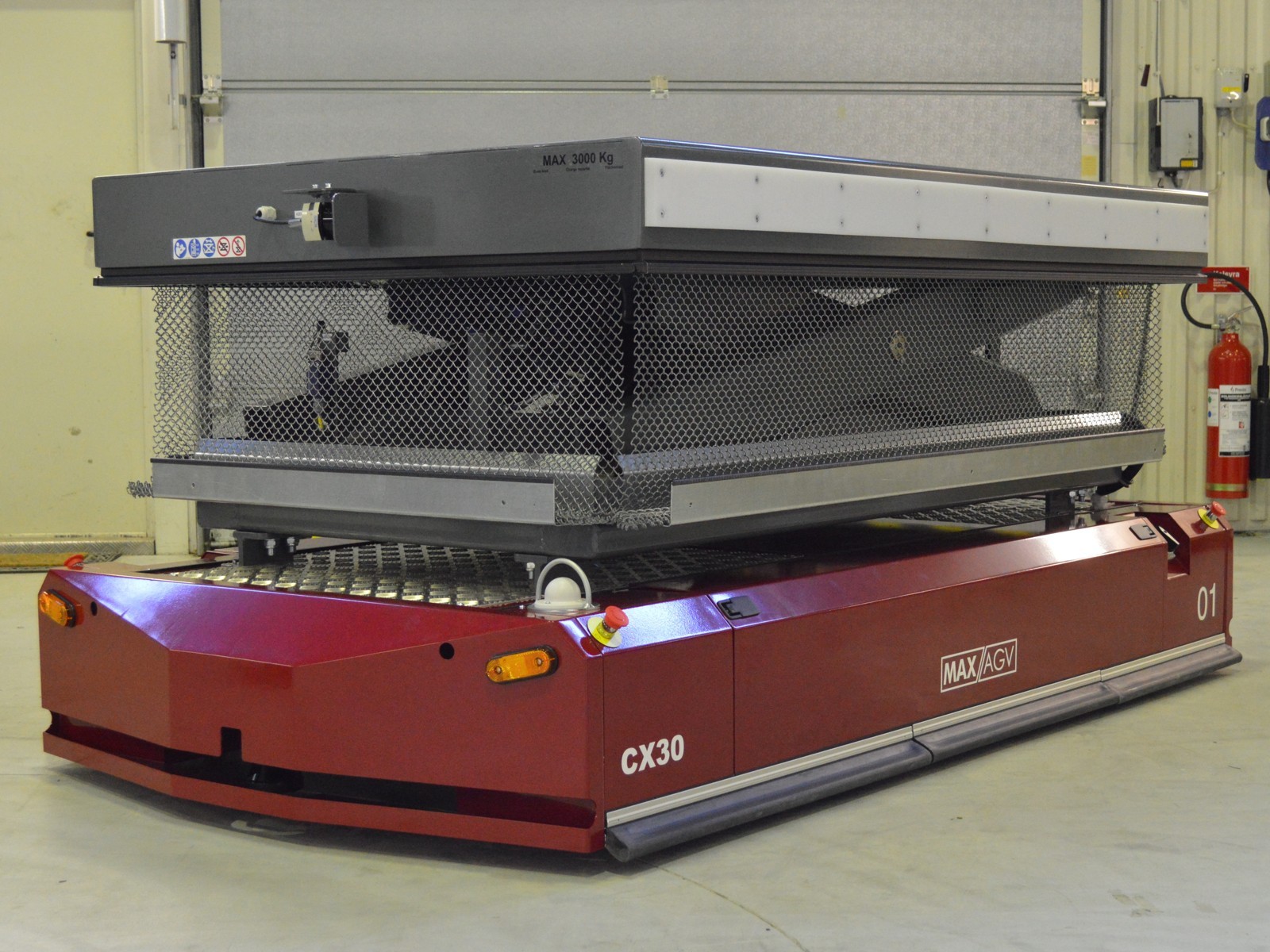

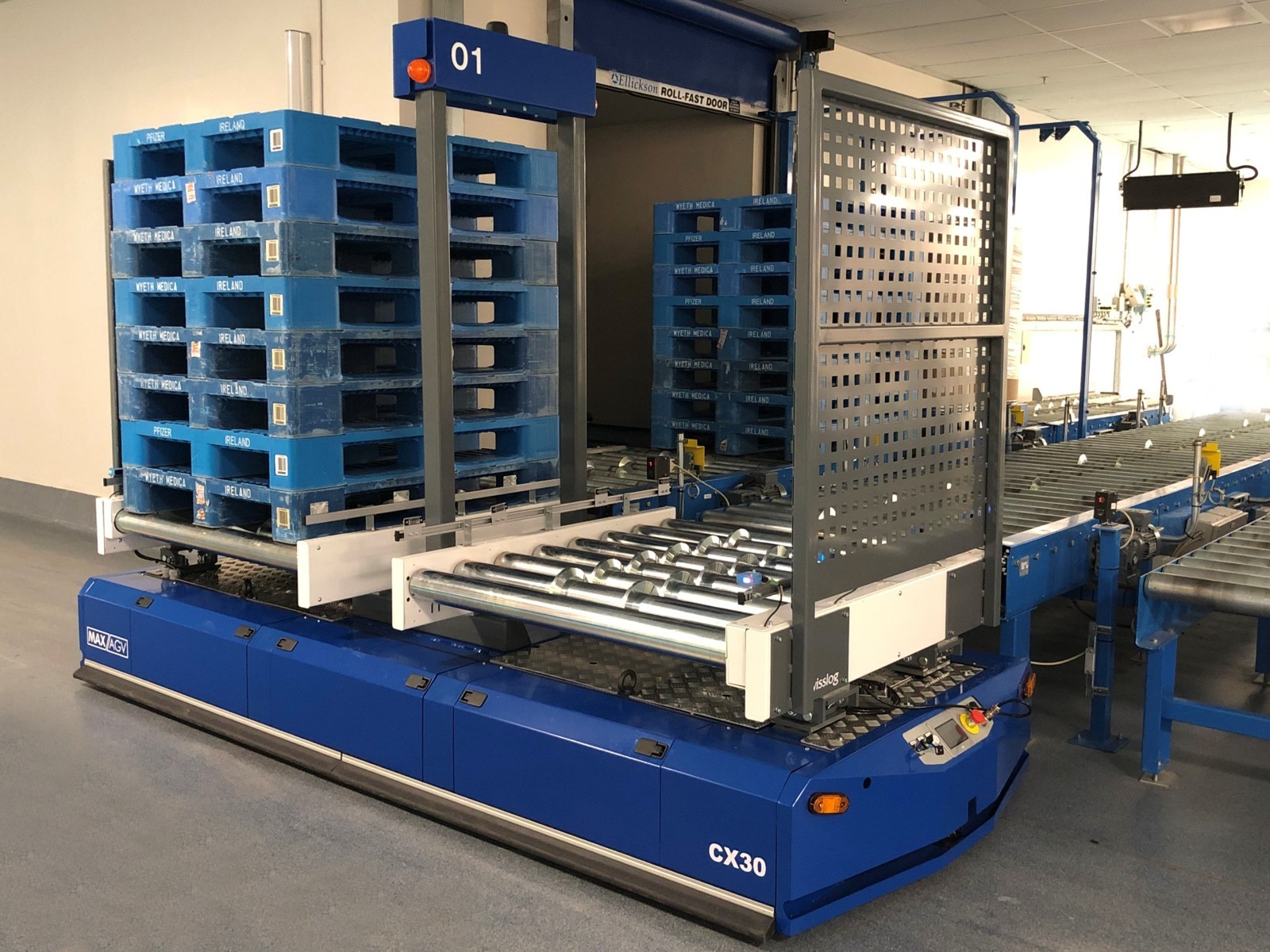

CX30 is an Industrial-Robot from MAXAGV. It is built for Intralogistics, Material-Handling, Transport. Key figures: 3000 kg payload.
The CX30 is MAXAGV's multi-load pallet carrier. Twin synchronised conveyors position and unload loads accurately from both directions, and it can carry two pallet stacks at once - up to 1,500 kg each - delivering one to one location and the second to another.\nLike all MAXAGV vehicles it navigates mainly by laser, carries a personal-safety system of emergency stops, safety laser scanners, side edges and bumpers to ISO 3691-4:2020, and runs under the Max software platform with opportunity charging when idle. Options include barcode and RFID readers and MAXAGV's DeZone and Blue Point accessories.
FEATURES
- Twin synchronised conveyors, unloading from both directions
- Two pallet stacks per trip, delivered to separate stations
- Unit load: EUR - CHEP - GKN pallets, containers, stillages
- Maximum weight: 2 x 1500 kg
- Transfer/lift height: 400 - 900 mm
- Battery: Wet lead-acid, gel or lithium-ion
- Charging: Opportunity charging, fast charge or battery exchange
- Options: barcode scanner - RFID - DeZone - Blue Point
- Laser navigation as standard
- magnetic, optical or wire guidance where required
- Personal safety system: emergency stops, front/rear safety laser scanners, side edges and bumpers
- ISO 3691-4:2020
- Sonix on-board controller
- managed by the Max software platform
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 3000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 3000 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Indoor production, warehouses and distribution centres |
| Sensing & Compute | |
| Sensors | safety laser scanners, navigation laser, bumpers and safety edges |
| Connectivity | Max software platform (fleet control) |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CX30?
The CX30 is MAXAGV's multi-load pallet carrier. Twin synchronised conveyors position and unload loads accurately from both directions, and it can carry two pallet stacks at once - up to 1,500 kg each - delivering one to one location and the second to another.\nLike all MAXAGV vehicles it navigates mainly by laser, carr…
Who makes the CX30?
The CX30 is made by MAXAGV, a robotics company based in Sweden.
How much does the CX30 cost?
MAXAGV has not publicly announced pricing for the CX30. You can enquire through RobotAIGeek for current pricing.
What is the CX30 used for?
The CX30 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the CX30?
The CX30 has a payload capacity of 3,000 kg.
