DESCRIPTION
CUVIS-joint is a Medical-Robots from CUREXO. It is built for Medical-Assistance, Surgery. Key figures: 6 degrees of freedom.

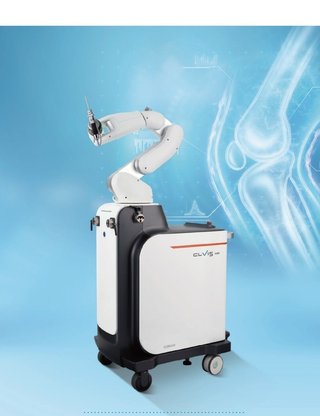

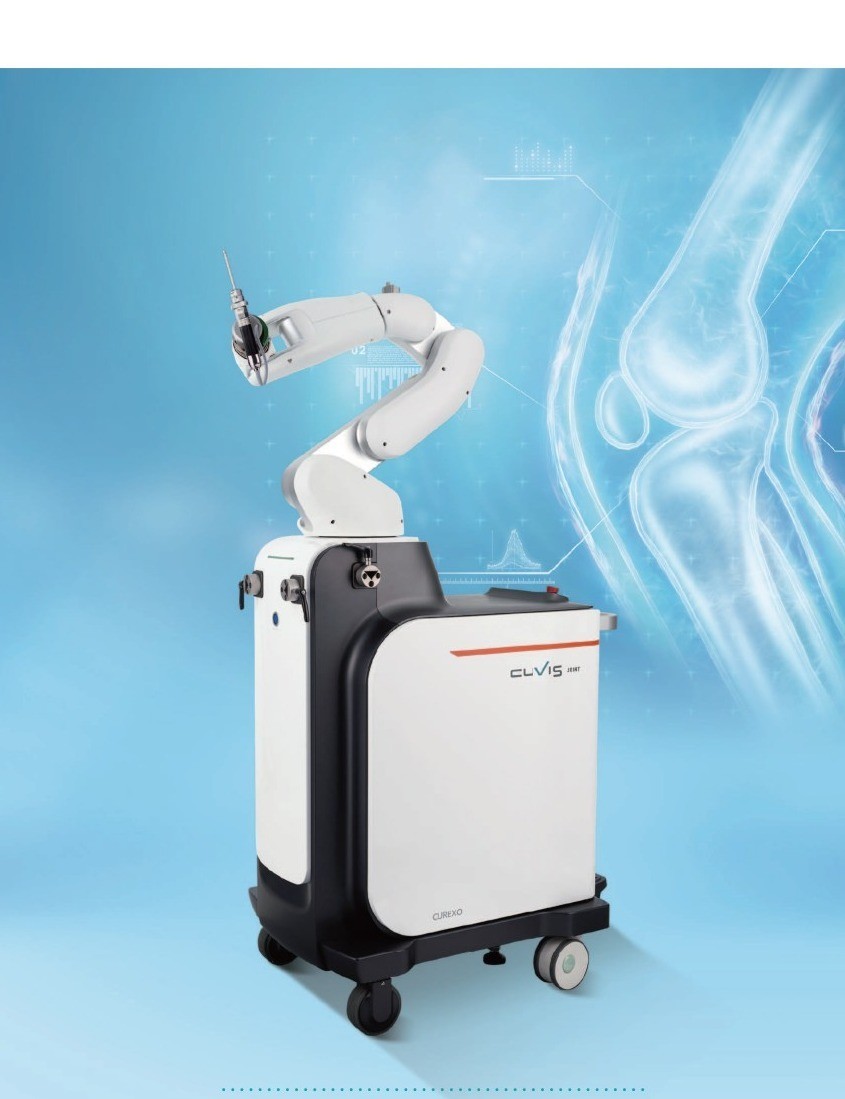

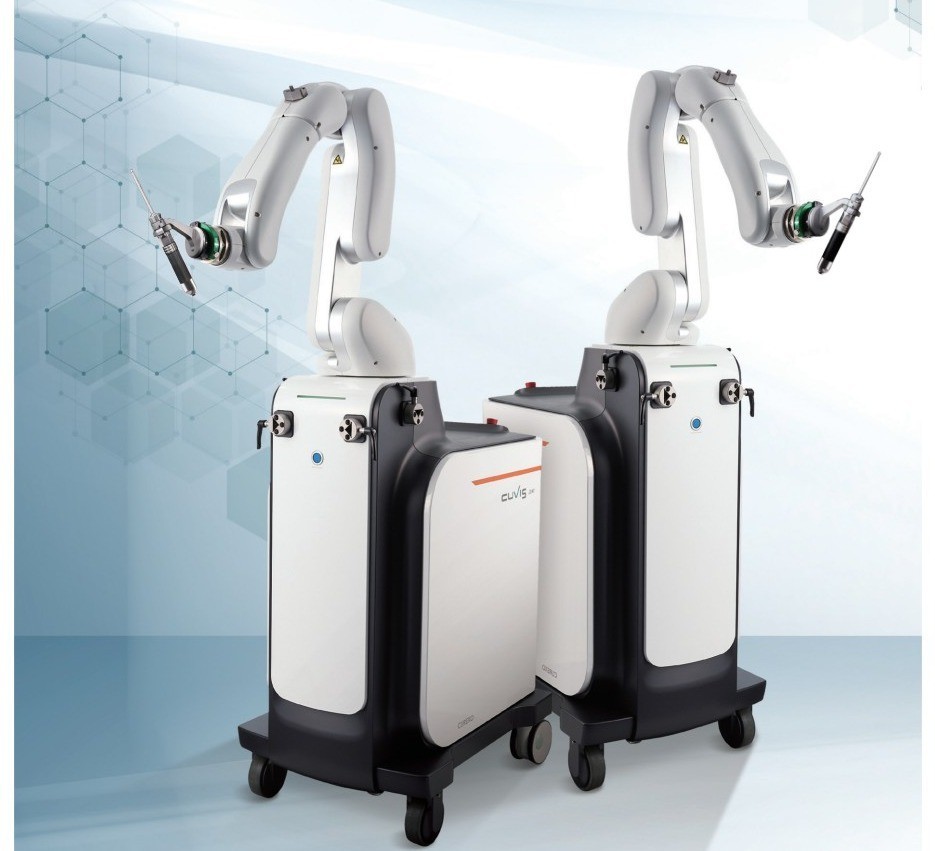

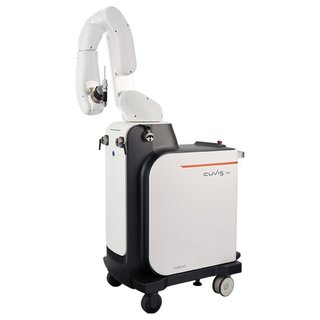

CUVIS-joint is CUREXO's surgical robot for total knee arthroplasty. Before surgery its own planning software segments the patient's pre-operative CT scan into a 3D bone model, so the surgeon can choose implant size, position and alignment; CUREXO reports that the planning predicts femoral implant size correctly in 98.9% and tibial size in 100% of cases. As an open platform it supports a range of implant brands. In the operating room an optical tracking sensor registers the bone, and a 6-axis vertical articulated robotic arm with a burr cuts the planned surfaces automatically, including narrow peg holes and boxes, within a 1 mm error margin in 98% of cases and with cutting angle error below 1 degree. Surgeons can choose full-surface or extension-surface resection, check the medial and lateral gap balance in real time and change the plan during surgery. A bone-movement monitor stops cutting when the path deviates, and a restoration marker recovers the robot's position data if its marker moves.
FEATURES
- Pre-operative 3D CT planning with in-house software
- implant size prediction femur 98.9% / tibia 100%
- 6-axis vertical articulated robotic arm with burr
- fully automatic bone milling
- Bone resection within 1 mm error margin (98% of cases)
- cutting angle error (RMS) below 1 degree
- Optical tracking sensor for registration and real-time tracking
- Full Surface Resection or Extension Surface Resection strategies
- Real-time gap check and intra-operative plan changes
- functional alignment
- Bone Movement Monitoring stops cutting on path deviation
- robot marker restoration
- Open platform - supports various implants
- Clinical claims: average joint-line change 1.65 mm
- 0 major complications in a 500-case single-centre study
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Stationary |
|---|---|
| Degrees of Freedom | 6 |
| Environment | Hospital operating rooms (orthopedic knee replacement surgery) |
| Sensing & Compute | |
| Sensors | optical tracking sensor (OTS), bone movement monitoring |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Stationary |
|---|---|
| Degrees of Freedom | 6 |
| Environment | Hospital operating rooms (orthopedic knee replacement surgery) |
| Sensing & Compute | |
| Sensors | optical tracking sensor (OTS), bone movement monitoring |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CUVIS-joint?
CUVIS-joint is CUREXO's surgical robot for total knee arthroplasty. Before surgery its own planning software segments the patient's pre-operative CT scan into a 3D bone model, so the surgeon can choose implant size, position and alignment; CUREXO reports that the planning predicts femoral implant size correctly in 98.9…
Who makes the CUVIS-joint?
The CUVIS-joint is made by CUREXO, a robotics company based in South Korea.
How much does the CUVIS-joint cost?
CUREXO has not publicly announced pricing for the CUVIS-joint. You can enquire through RobotAIGeek for current pricing.
What is the CUVIS-joint used for?
The CUVIS-joint is designed for medical-assistance and surgery. It is used in healthcare settings.
How many degrees of freedom does the CUVIS-joint have?
The CUVIS-joint has 6 degrees of freedom.
