DESCRIPTION

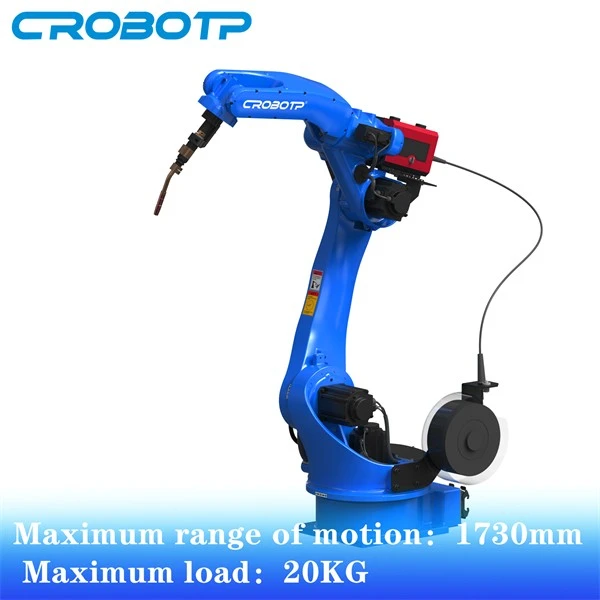

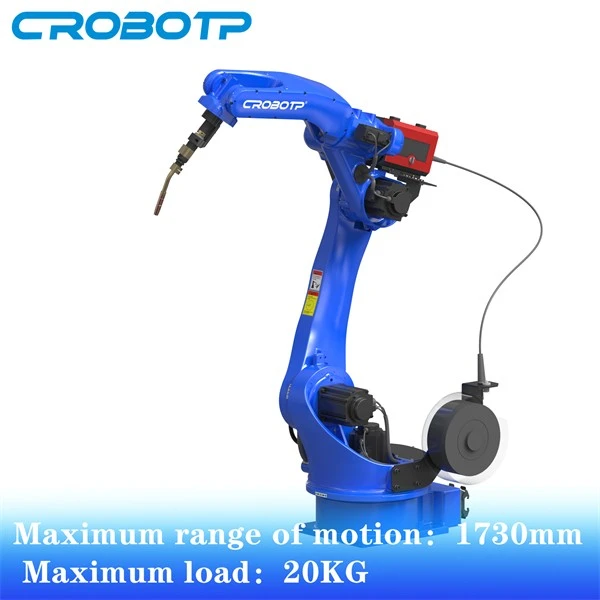

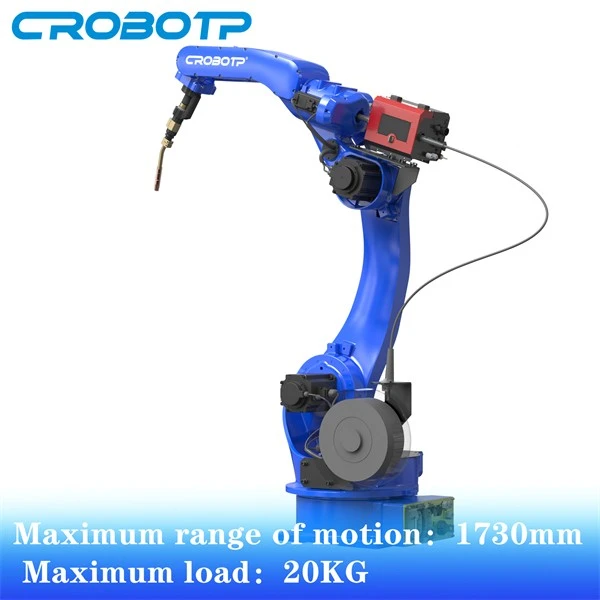

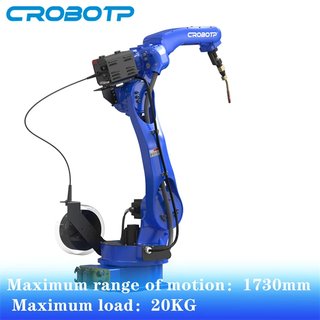

The CRP-RH18-20-W is a six-axis vertically articulated welding robot from Chengdu CRP Robot Technology, built for arc welding in general fabrication, automotive, electronics and new-energy production. It carries a 20 kg payload to a maximum reach of 1730 mm and repeats to +/-0.08 mm, with a 285 kg body that mounts either on the ground or inverted from a frame. The arm is built around welding rather than adapted to it: the J4 and J6 axes are hollow so a hollow welding gun can pass through them, the user signal line, gas pipe and welding cable are routed inside the casting for a smooth snag-free body, and the first two axes carry dust covers with a fully surrounded torch. CRP rates it Body IP54, wrist IP67 and specifies an operating range of 0~45°C. The robot ships with CRP's own controller cabinet and is sold alongside the company's positioners for coordinated multi-axis welding cells.
FEATURES
- The arm span is nearly 1.8 meters. The design is highly compact and can be flexibly installed on the ground or upside down
- With large working space, fast running speed and high repeated positioning accuracy, it is suitable for wide range of welding applications
- The safety emergency stop board independent of the control system is equipped with, and the safety relay circuit is adopted to provide double-circuit emergency stop to ensure the reliability of emergency stop
- The robot body adopts highly flexible special cable
- Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively improve the performance of EMC and EMI
- The robot body is with dual-circuit gas pipe to meet the welding demand
- The inner diameter of 6-axis middle hole is 44mm, it can meet the installation requirements of water-cooling torch and bellows torch
- Highly flexible welding cable is built-in
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 285 kg |
|---|---|
| Payload | 20 kg |
| Reach | 1.73 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Body IP54, wrist IP67 protection, operating temperature 0~45°C, relative humidity 20-80% non-condensing, vibration under 0.5 G |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 285 kg |
|---|---|
| Payload | 20 kg |
| Reach | 1.73 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Body IP54, wrist IP67 protection, operating temperature 0~45°C, relative humidity 20-80% non-condensing, vibration under 0.5 G |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRP-RH18-20-W?
The CRP-RH18-20-W is a six-axis vertically articulated welding robot from Chengdu CRP Robot Technology, built for arc welding in general fabrication, automotive, electronics and new-energy production.
Who makes the CRP-RH18-20-W?
The CRP-RH18-20-W is made by Chengdu CRP Robot Technology, a robotics company based in China.
How much does the CRP-RH18-20-W cost?
Chengdu CRP Robot Technology has not publicly announced pricing for the CRP-RH18-20-W. You can enquire through RobotAIGeek for current pricing.
What is the CRP-RH18-20-W used for?
The CRP-RH18-20-W is designed for assembly, general-automation, material-handling, and welding. It is used in automotive, electronics, energy, and manufacturing settings.
What is the payload capacity of the CRP-RH18-20-W?
The CRP-RH18-20-W has a payload capacity of 20 kg and a reach of 1.73 m.
How much does the CRP-RH18-20-W weigh?
The CRP-RH18-20-W weighs 285 kg.
How many degrees of freedom does the CRP-RH18-20-W have?
The CRP-RH18-20-W has 6 degrees of freedom.
