DESCRIPTION
6 Axis SZGH-T1500-C-6 General Robot Arm is an Industrial-Robot from SZGH Automation. It is built for Assembly, Dispensing, Grinding. Key figures: 150 kg, 1500 mm reach, 6 degrees of freedom.

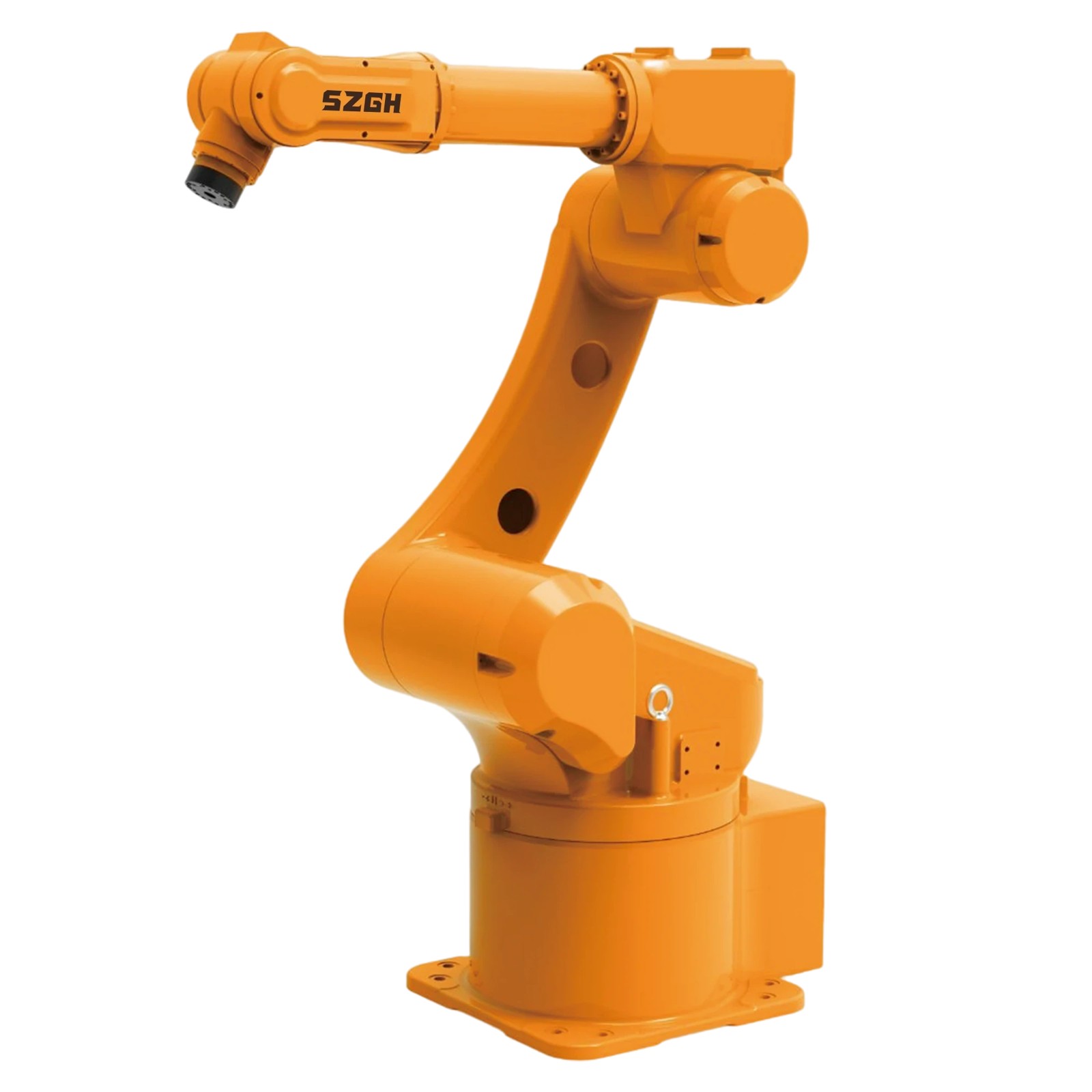

The SZGH-T1500-C-6 is a six-axis articulated general-purpose industrial robot arm from ShenZhen GuanHong Automation (SZGH). It has a 1500 mm reach with ±0.05 mm repeatability, weighs about 150 kg, and mounts on the floor, a bracket or the ceiling. SZGH lists it for material handling, parts transfer, machine tending and loading/unloading, stacking and packaging, arc welding, testing, deburring, grinding, gluing and assembly.
FEATURES
- Six-axis articulated general-purpose arm
- Reach 1500 mm
- Repeatability ±0.05 mm
- Axis ranges: J1 ±165°, J2 +135°/-70°, J3 +85°/-85°, J4 ±150°, J5 +30°/-240°, J6 ±360°
- Max axis speeds: J1-J3 148°/s, J4-J6 222°/s
- Weight about 150 kg
- Floor, bracket or ceiling mounting
- Ambient temperature 5°C to 45°C
- Applications: material handling, parts transfer, welding, machine tending, stacking, packaging, testing, deburring, grinding, gluing, assembly
- Controller display in Chinese, English, Russian, Vietnamese and Korean
- 2-year warranty and lifelong technical support

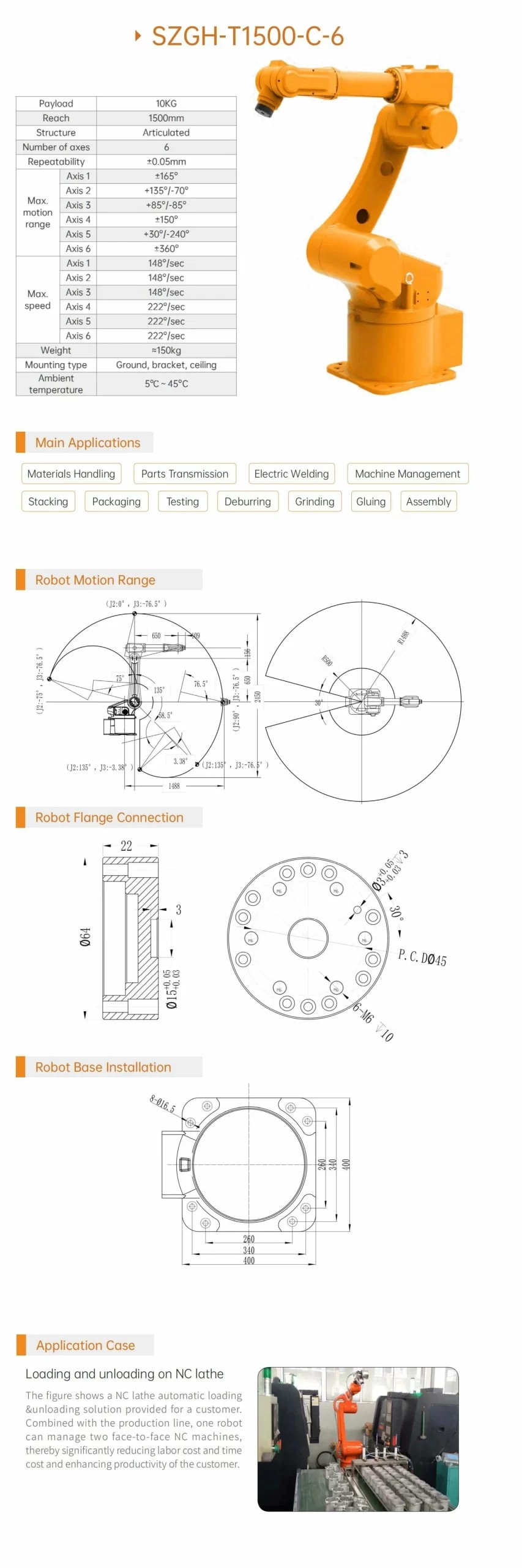

TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 150 kg |
|---|---|
| Reach | 1.5 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 5°C to 45°C |
| Actuators | Six-axis articulated arm, servo-driven |
| Sensing & Compute | |
| Software / AI | Robot controller with multilingual display (Chinese, English, Russian, Vietnamese, Korean) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 150 kg |
|---|---|
| Reach | 1.5 m |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 5°C to 45°C |
| Actuators | Six-axis articulated arm, servo-driven |
| Sensing & Compute | |
| Software / AI | Robot controller with multilingual display (Chinese, English, Russian, Vietnamese, Korean) |
Images
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 6 Axis SZGH-T1500-C-6 General Robot Arm?
The SZGH-T1500-C-6 is a six-axis articulated general-purpose industrial robot arm from ShenZhen GuanHong Automation (SZGH). It has a 1500 mm reach with ±0.05 mm repeatability, weighs about 150 kg, and mounts on the floor, a bracket or the ceiling.
Who makes the 6 Axis SZGH-T1500-C-6 General Robot Arm?
The 6 Axis SZGH-T1500-C-6 General Robot Arm is made by SZGH Automation, a robotics company based in China.
How much does the 6 Axis SZGH-T1500-C-6 General Robot Arm cost?
SZGH Automation has not publicly announced pricing for the 6 Axis SZGH-T1500-C-6 General Robot Arm. You can enquire through RobotAIGeek for current pricing.
What is the 6 Axis SZGH-T1500-C-6 General Robot Arm used for?
The 6 Axis SZGH-T1500-C-6 General Robot Arm is designed for assembly, dispensing, grinding, and machine-tending. It is used in manufacturing settings.
How much does the 6 Axis SZGH-T1500-C-6 General Robot Arm weigh?
The 6 Axis SZGH-T1500-C-6 General Robot Arm weighs 150 kg.
How many degrees of freedom does the 6 Axis SZGH-T1500-C-6 General Robot Arm have?
The 6 Axis SZGH-T1500-C-6 General Robot Arm has 6 degrees of freedom.
