DESCRIPTION

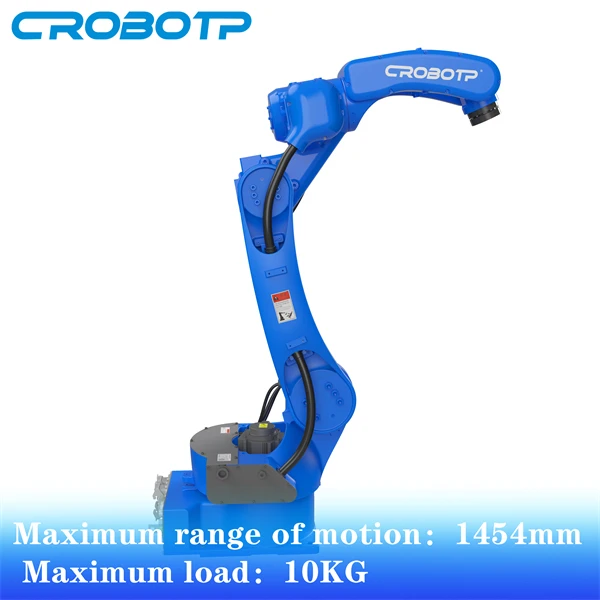

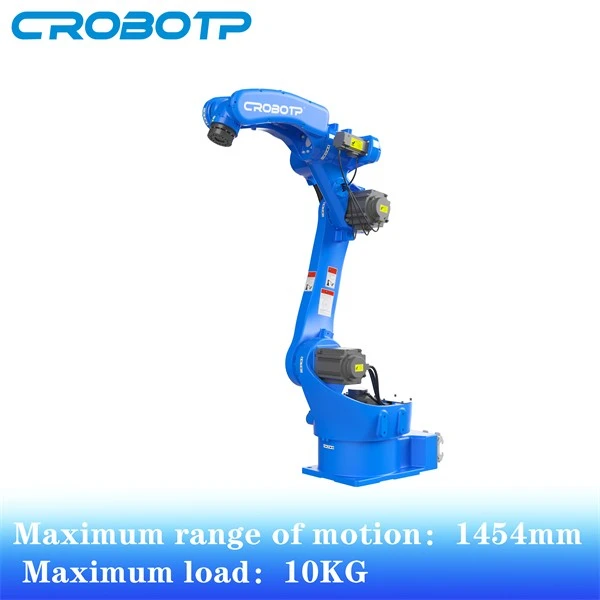

The CRP-RH14-10 is a articulated industrial robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 10 kg payload to a maximum reach of 1454 mm, with a 170 kg body and 0.08 mm repeatability. CRP builds the arm for continuous duty on a factory floor: the body is rated Body IP54, wrist IP67, with an operating range of 0~45°C, and mounts ground, upside down mounting, wall mounting. It shares CRP's controller platform with the company's welding line, so the same teaching and I/O conventions apply across a mixed cell.
FEATURES
- The safety emergency stop board independent of the control system is equipped with, and imported forced disconnection relay is adopted to provide double circuit emergency stop to ensure the reliability of emergency stop
- Built-in three-phase transformer makes 380V and 220V isolated to help the power supply more stable. Built-in three-phase filter can effectively isolate external interference and prevent internal interference output
- The robot body adopts highly flexible special cable
- The robot body is with dual-circuit gas pipe to meet the handling demand
- For handling applications, the robot body structure has been optimized and the rigidity is stronger
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 170 kg |
|---|---|
| Payload | 10 kg |
| Reach | 1.45 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Body IP54, wrist IP67, operating temperature 0~45°C |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 170 kg |
|---|---|
| Payload | 10 kg |
| Reach | 1.45 m |
| Repeatability | ±0.08 mm |
| Materials | Cast aluminium alloy |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Body IP54, wrist IP67, operating temperature 0~45°C |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRP-RH14-10?
The CRP-RH14-10 is a articulated industrial robot from Chengdu CRP Robot Technology, built for material handling, machine tending and palletizing on production lines. It carries a 10 kg payload to a maximum reach of 1454 mm, with a 170 kg body and 0.08 mm repeatability.
Who makes the CRP-RH14-10?
The CRP-RH14-10 is made by Chengdu CRP Robot Technology, a robotics company based in China.
How much does the CRP-RH14-10 cost?
Chengdu CRP Robot Technology has not publicly announced pricing for the CRP-RH14-10. You can enquire through RobotAIGeek for current pricing.
What is the CRP-RH14-10 used for?
The CRP-RH14-10 is designed for assembly, general-automation, machine-tending, and material-handling. It is used in automotive, electronics, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the CRP-RH14-10?
The CRP-RH14-10 has a payload capacity of 10 kg and a reach of 1.45 m.
How much does the CRP-RH14-10 weigh?
The CRP-RH14-10 weighs 170 kg.
How many degrees of freedom does the CRP-RH14-10 have?
The CRP-RH14-10 has 6 degrees of freedom.
