DESCRIPTION
6 Axis SZGH-T750-B-6 General Robot is an Industrial-Robot from SZGH Automation. It is built for Assembly, Dispensing, Machine-Tending. Key figures: 85 kg, 6 kg payload, 750 mm reach, 6 degrees of freedom.

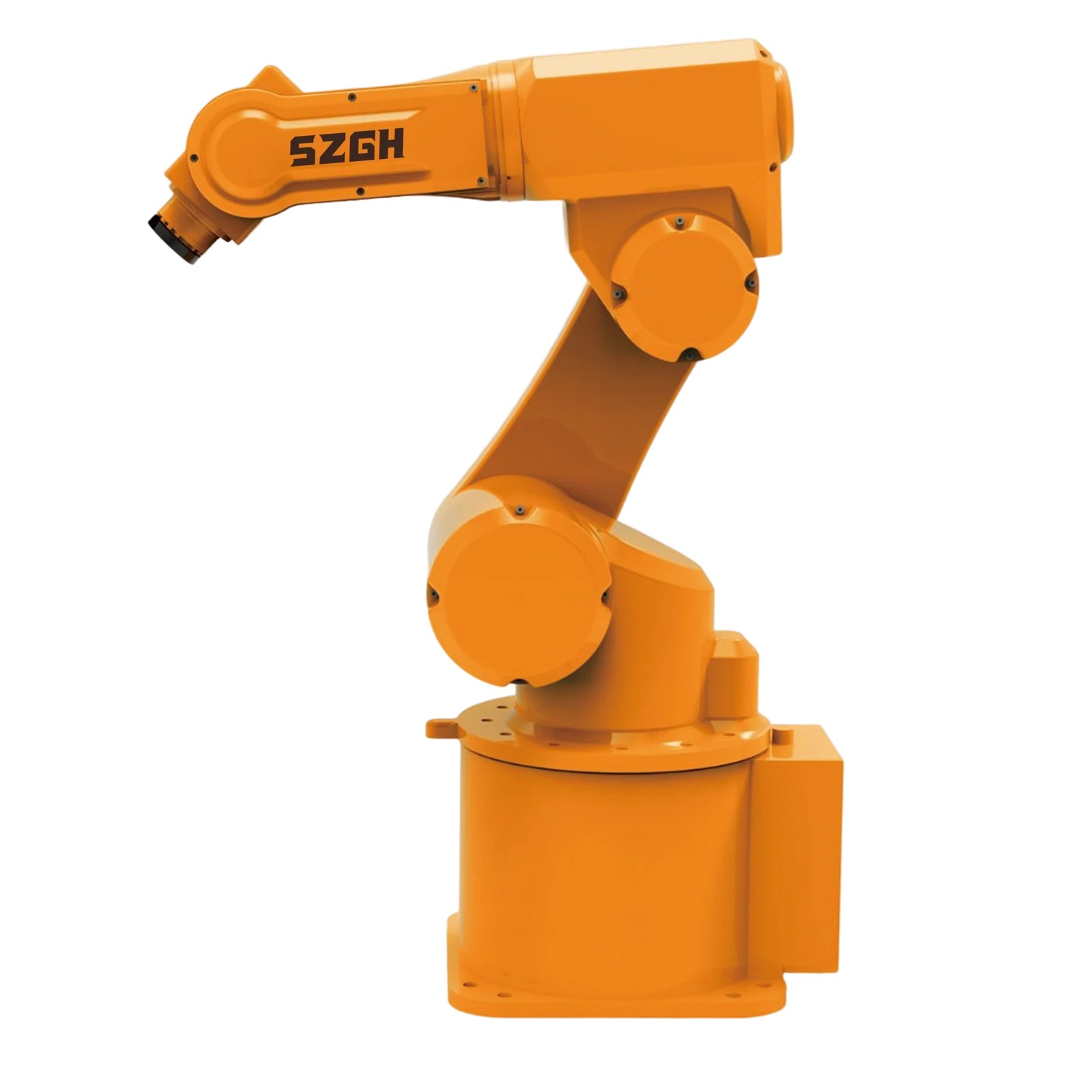

The SZGH-T750-B-6 is a compact six-axis articulated general-purpose robot arm from ShenZhen GuanHong Automation (SZGH). It carries 6 kg over a 750 mm reach with ±0.05 mm repeatability, weighs about 85 kg, and mounts on the floor, a bracket or the ceiling. SZGH lists it for material handling, parts transfer, machine tending, testing, gluing and assembly.
FEATURES
- Compact six-axis articulated general-purpose arm
- Payload 6 kg
- Reach 750 mm
- Repeatability ±0.05 mm
- Axis ranges: J1 ±165°, J2 +135°/-70°, J3 +85°/-85°, J4 ±150°, J5 +30°/-240°, J6 ±360°
- Max axis speeds: J1-J2 148°/s, J3-J5 222°/s, J6 360°/s
- Weight about 85 kg
- Floor, bracket or ceiling mounting
- Ambient temperature 5°C to 45°C
- Applications: material handling, parts transfer, machine tending, testing, gluing, assembly
- Controller display in Chinese, English, Russian, Vietnamese and Korean
- 2-year warranty and lifelong technical support
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 85 kg |
|---|---|
| Payload | 6 kg |
| Reach | 750 mm |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 5°C to 45°C |
| Actuators | Six-axis articulated arm, servo-driven |
| Sensing & Compute | |
| Software / AI | Robot controller with multilingual display (Chinese, English, Russian, Vietnamese, Korean) |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 85 kg |
|---|---|
| Payload | 6 kg |
| Reach | 750 mm |
| Repeatability | ±0.05 mm |
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Ambient temperature 5°C to 45°C |
| Actuators | Six-axis articulated arm, servo-driven |
| Sensing & Compute | |
| Software / AI | Robot controller with multilingual display (Chinese, English, Russian, Vietnamese, Korean) |
Images
martti
marttiImage Contributions
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the 6 Axis SZGH-T750-B-6 General Robot?
The SZGH-T750-B-6 is a compact six-axis articulated general-purpose robot arm from ShenZhen GuanHong Automation (SZGH). It carries 6 kg over a 750 mm reach with ±0.05 mm repeatability, weighs about 85 kg, and mounts on the floor, a bracket or the ceiling.
Who makes the 6 Axis SZGH-T750-B-6 General Robot?
The 6 Axis SZGH-T750-B-6 General Robot is made by SZGH Automation, a robotics company based in China.
How much does the 6 Axis SZGH-T750-B-6 General Robot cost?
SZGH Automation has not publicly announced pricing for the 6 Axis SZGH-T750-B-6 General Robot. You can enquire through RobotAIGeek for current pricing.
What is the 6 Axis SZGH-T750-B-6 General Robot used for?
The 6 Axis SZGH-T750-B-6 General Robot is designed for assembly, dispensing, machine-tending, and material-handling. It is used in manufacturing settings.
What is the payload capacity of the 6 Axis SZGH-T750-B-6 General Robot?
The 6 Axis SZGH-T750-B-6 General Robot has a payload capacity of 6 kg and a reach of 750 mm.
How much does the 6 Axis SZGH-T750-B-6 General Robot weigh?
The 6 Axis SZGH-T750-B-6 General Robot weighs 85 kg.
How many degrees of freedom does the 6 Axis SZGH-T750-B-6 General Robot have?
The 6 Axis SZGH-T750-B-6 General Robot has 6 degrees of freedom.
