DESCRIPTION
CRAB 600 is an Industrial-Robot from OKAGV. It is built for Intralogistics, Material-Handling, Transport. Key figures: 600 kg payload.

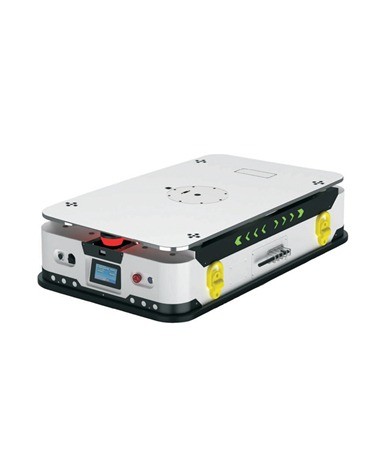

The CRAB 600 is OKAGV's CRAB-series steering-wheel autonomous mobile robot, a low lifting platform that drives underneath trolleys, pallets, racks, boxes and trays, raises them (0-60 mm lift) and carries up to 600 kg through factories and warehouses. It measures 1036 x 686 x 295 mm, travels at up to 50 m/min, uses steering-wheel drive, and navigates by SLAM, QR code or laser, with +/-10 mm guidance and stopping accuracy. Its steering-wheel drive lets it move sideways as well as turn and rotate in place, for tight spaces.\nLike the rest of OKAGV's range it runs 24 hours on a lithium battery (DC 48 V lithium) rated for at least 2,000 cycles with automatic charging, climbs gradients up to 4 degrees, and is protected by a laser obstacle sensor with an adjustable 0-180 degree, 0-3 m field, front and rear bumpers and emergency stops; it is designed for indoor use at 0-40 C and a 10-year lifespan.
FEATURES
- Payload 600 kg
- lifting stroke 0-60 mm
- Size 1036 x 686 x 295 mm
- Max speed 50 m/min
- Drive: steering-wheel drive
- Navigation: SLAM, QR code or laser
- Guidance and stop accuracy +/-10 mm
- Battery: DC 48 V lithium, >= 2,000 cycles
- automatic charging
- Gradeability <= 4 deg
- 24 h operation
- Safety: laser obstacle sensor (0-180 deg, 0-3 m), front/rear bumpers, e-stops
- Indoor 0-40 C, 40-80% RH
- designed lifespan 10 years
- Lateral (sideways) movement
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.04 m × W 686 mm × H 295 mm |
|---|---|
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3 km/h |
| Environment | Indoor factories and warehouses (0-40 C) |
| Power | |
| Battery Life | DC 48 V lithium |
| Sensing & Compute | |
| Sensors | laser obstacle sensor, bumpers, SLAM LiDAR, QR code camera |
| Connectivity | Wireless communication |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.04 m × W 686 mm × H 295 mm |
|---|---|
| Payload | 600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3 km/h |
| Environment | Indoor factories and warehouses (0-40 C) |
| Power | |
| Battery Life | DC 48 V lithium |
| Sensing & Compute | |
| Sensors | laser obstacle sensor, bumpers, SLAM LiDAR, QR code camera |
| Connectivity | Wireless communication |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the CRAB 600?
The CRAB 600 is OKAGV's CRAB-series steering-wheel autonomous mobile robot, a low lifting platform that drives underneath trolleys, pallets, racks, boxes and trays, raises them (0-60 mm lift) and carries up to 600 kg through factories and warehouses.
Who makes the CRAB 600?
The CRAB 600 is made by OKAGV, a robotics company based in China.
How much does the CRAB 600 cost?
OKAGV has not publicly announced pricing for the CRAB 600. You can enquire through RobotAIGeek for current pricing.
What is the CRAB 600 used for?
The CRAB 600 is designed for intralogistics, material-handling, transport, and intralogistics. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the CRAB 600?
The CRAB 600 has a payload capacity of 600 kg.
How fast is the CRAB 600?
The CRAB 600 can move at speeds of up to 3 km/h.
