DESCRIPTION

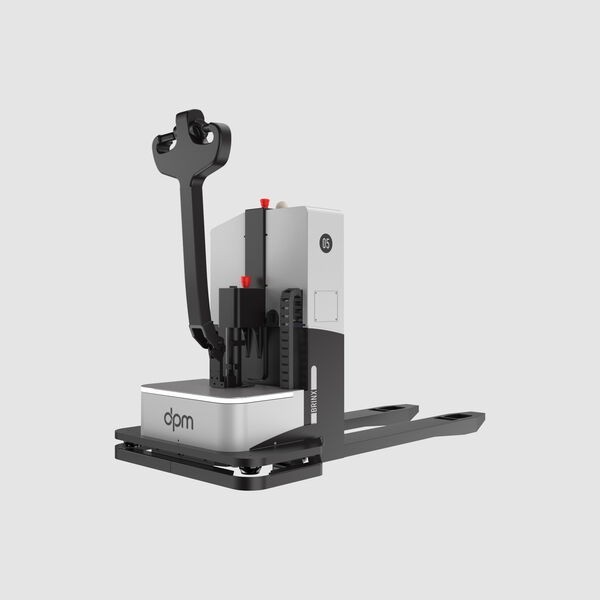

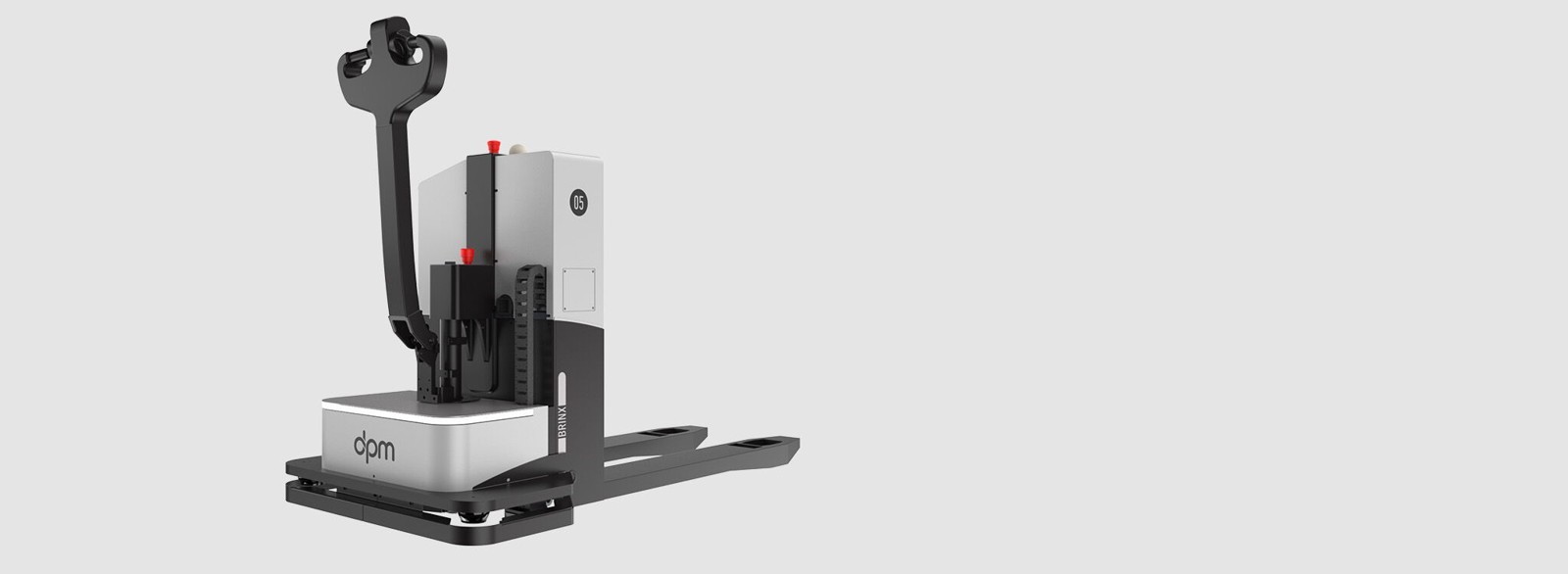

BRINX is an Industrial-Robot from Daum und Partner Maschinenbau (dpm). It is built for Material-Handling, Pallet-Transportation. Key figures: 1000 kg payload.
BRINX is dpm's self-driving pallet truck, an automated guided vehicle designed to move pallets and similarly sized load carriers between production and storage. It lifts up to 1 tonne, measures 1,794 x 860 x 1,049 mm and drives at up to 60 m per minute on battery power, with optical navigation and a laser scanner for safety. dpm positions it as an entry-level model for automating material handling: it installs quickly, is controlled by a Siemens S7 and communicates over Wi-Fi, and an app shows and manages all operating data, so staff can call, load and send it. The basic semi-automatic version can be upgraded to fully automatic operation with a few changes, and options include a Sick laser scanner and automatic lowering.
FEATURES
- Automated pallet transport
- payload up to 1 t
- 1,794 x 860 x 1,049 mm (L x W x H)
- Speed up to 60 m/min (3.6 km/h)
- battery powered
- Optical navigation (brochure: optical / free)
- laser scanner for safety
- Siemens S7 control
- Wi-Fi communication
- App control (DriveLink) with operating data monitoring
- Semi-automatic base version upgradable to fully automatic
- options: Sick laser scanner, auto-lowering
- Quick installation and simple operation
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.79 m × W 860 mm × H 1.05 m |
|---|---|
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Production, warehouse and logistics areas (indoor) |
| Sensing & Compute | |
| Sensors | laser scanner (safety), optical navigation sensor |
| Connectivity | Wi-Fi; DriveLink app |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 1.79 m × W 860 mm × H 1.05 m |
|---|---|
| Payload | 1000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Production, warehouse and logistics areas (indoor) |
| Sensing & Compute | |
| Sensors | laser scanner (safety), optical navigation sensor |
| Connectivity | Wi-Fi; DriveLink app |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the BRINX?
BRINX is dpm's self-driving pallet truck, an automated guided vehicle designed to move pallets and similarly sized load carriers between production and storage.
Who makes the BRINX?
The BRINX is made by Daum und Partner Maschinenbau (dpm), a robotics company based in Germany.
How much does the BRINX cost?
Daum und Partner Maschinenbau (dpm) has not publicly announced pricing for the BRINX. You can enquire through RobotAIGeek for current pricing.
What is the BRINX used for?
The BRINX is designed for material-handling and pallet-transportation. It is used in automotive, warehouse & logistics, and manufacturing settings.
What is the payload capacity of the BRINX?
The BRINX has a payload capacity of 1,000 kg.
How fast is the BRINX?
The BRINX can move at speeds of up to 3.6 km/h.
