DESCRIPTION
BIONICLI is an End-Effectors from lifeandlimb.ai. It is built for Material-Handling, Rehabilitation, Helping. Key figures: 480 min runtime, 6 degrees of freedom.

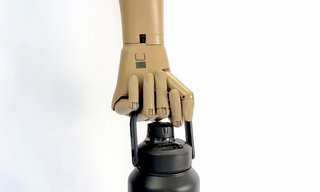

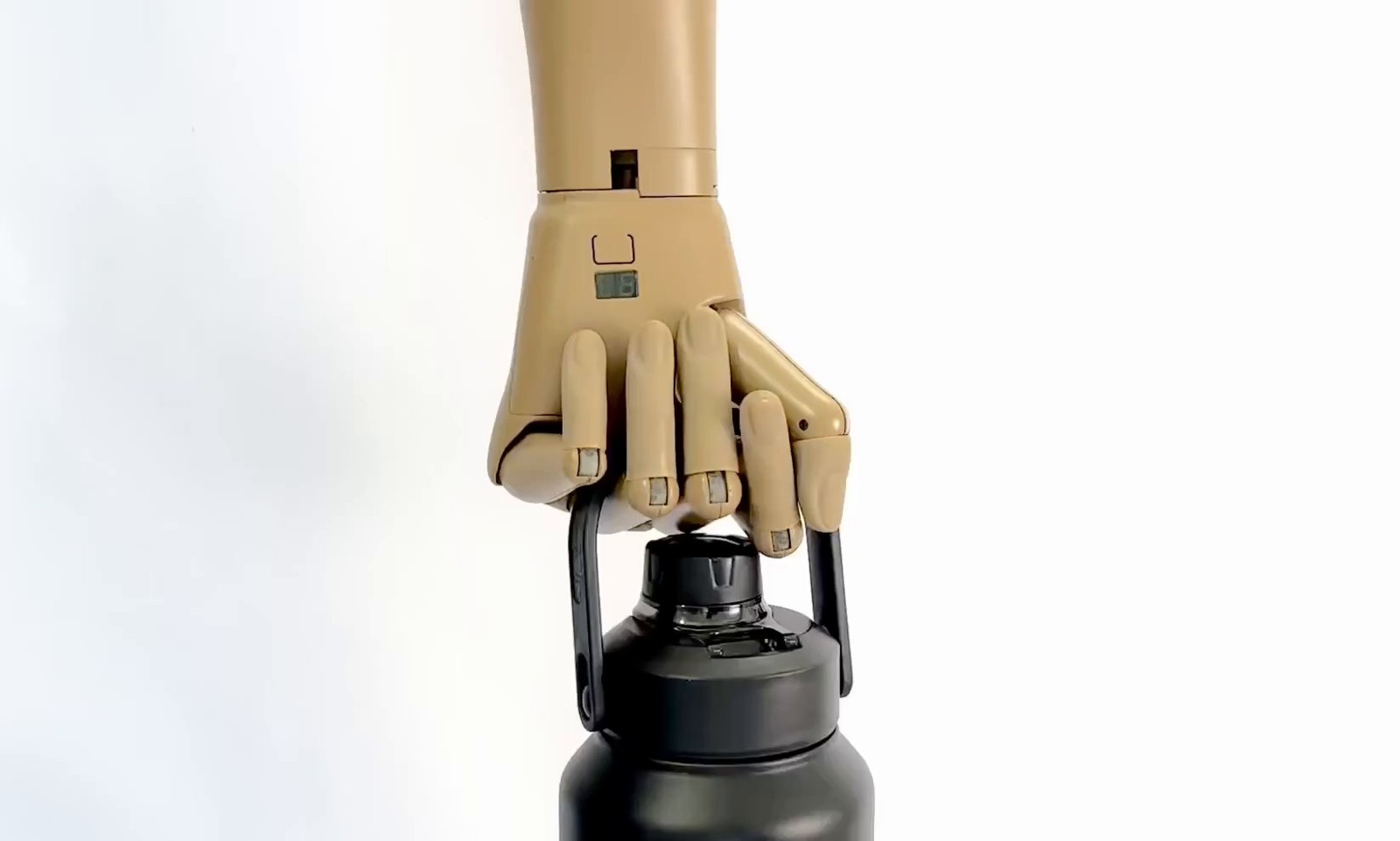

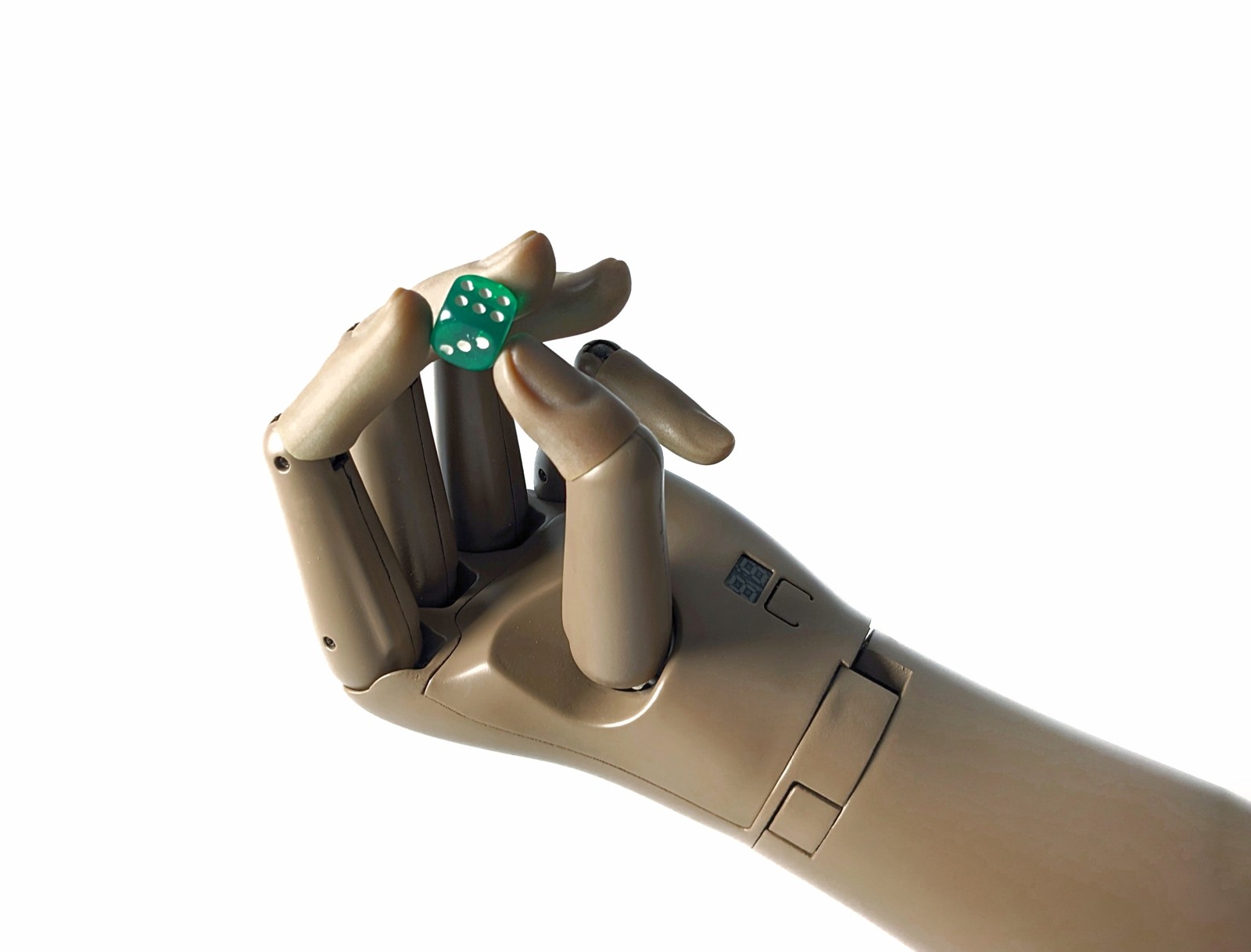

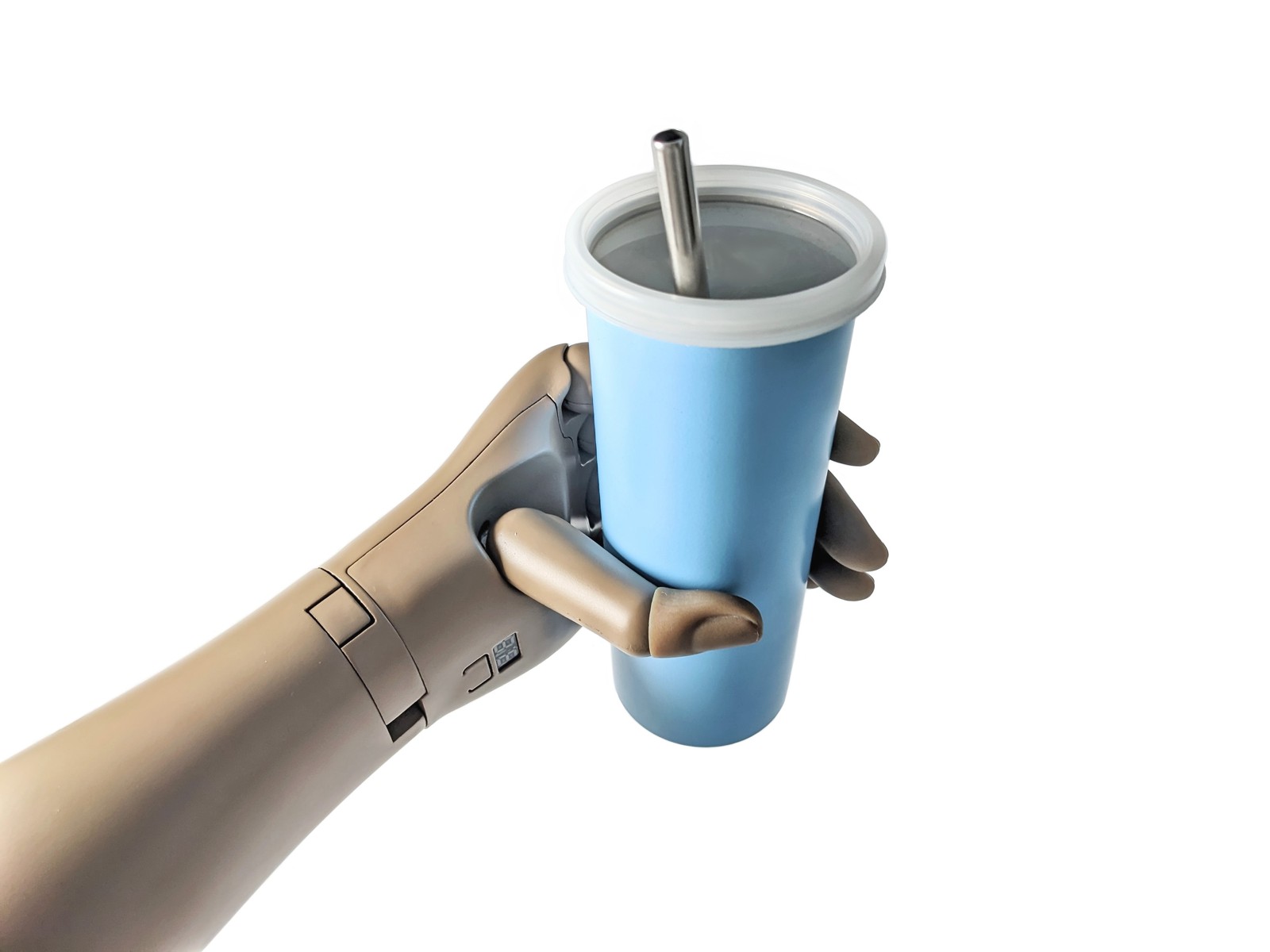

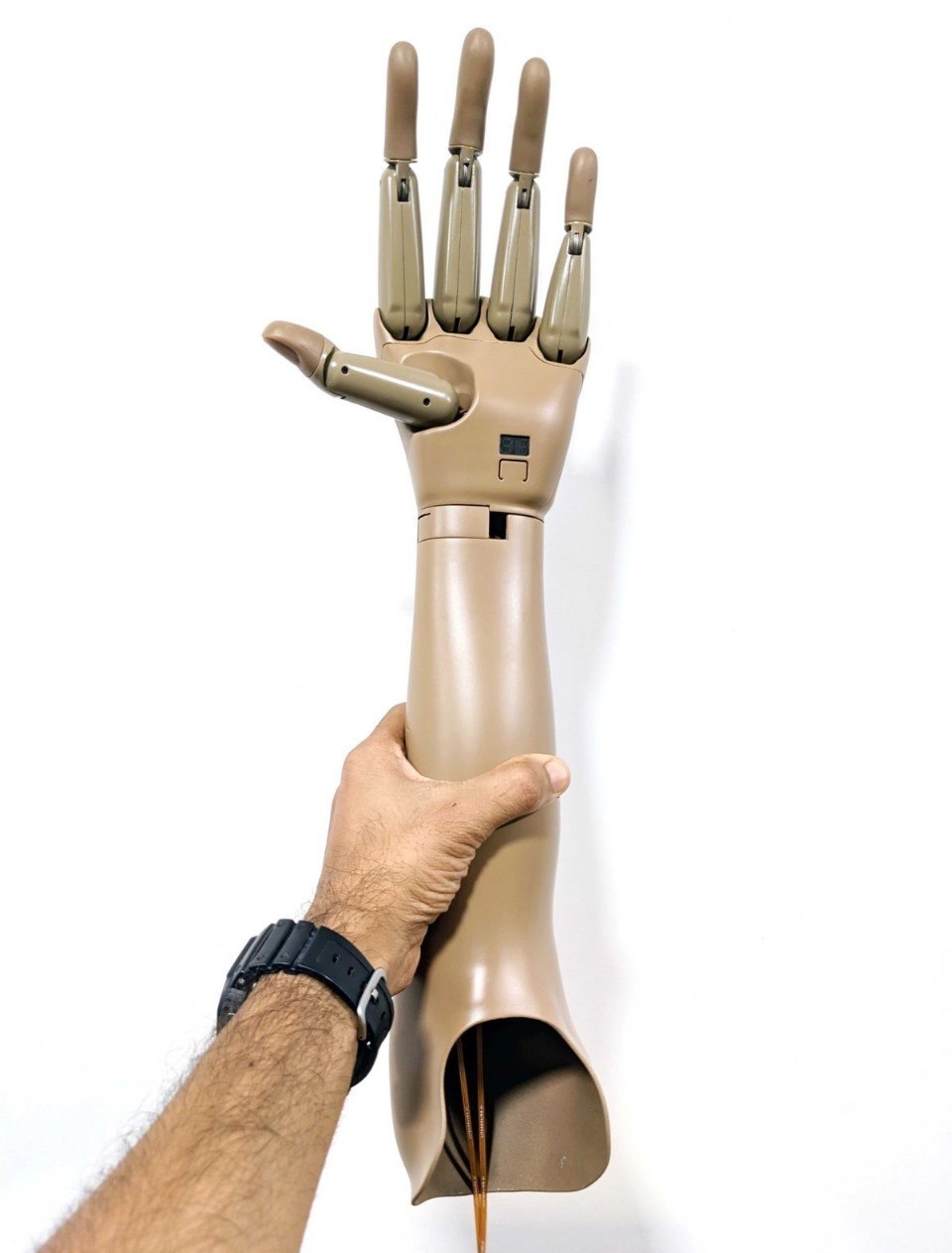

BIONICLI is a myoelectric bionic prosthetic hand from lifeandlimb.ai for people with upper-limb amputation. Electromyography (EMG) sensors on the residual limb pick up muscle signals, and a dedicated on-board control circuit uses a current-thresholding technique to drive the motors inside the hand, so individual fingers can open and close and the thumb can both flex/extend and abduct/adduct. The control electronics manage six actuators, a display and a separate battery pack. Power comes from BIS-certified 18650 lithium-ion cells with a combined 5,600 mAh capacity, which the company says gives about eight hours of continuous use; a seven-segment display shows the charge level, and the hand can only be charged when it is detached from the socket. The wrist joint is non-circular and shaped to match the user's other limb. Each hand is customised: the other limb is 3D-scanned, modified in CAD, and the plastic parts are printed by Multi-Jet Fusion in skin-tone colours. Variants listed on the site include Digit, Lite, Myo Plus, Pro, AE for above-elbow users and Sainik. The company is running a clinical pilot programme with 25 hands.
FEATURES
- Myoelectric, multi-articulated prosthetic hand
- Individually motorised fingers
- Thumb with powered flexion-extension and abduction-adduction
- In-house EMG (myo) sensors and dedicated control circuit
- Current-thresholding control of the hand actuators
- Control circuit drives six actuators, a display and a battery pack
- BIS-certified 18650 Li-ion batteries, 5,600 mAh total
- About 8 hours of continuous use per charge (company figure)
- Seven-segment battery display
- Charging only possible with the hand detached from the residual-limb socket
- Non-circular integrated wrist joint shaped to the user's other limb
- Customised from a 3D scan of the user's other limb
- Plastic parts made by Multi-Jet Fusion (MJF) in colour-matched options
- Optional prosthetic gloves
- Variants: Digit, Lite, Myo Plus, Pro, AE (above elbow), Sainik
- Designed to ISO/IEC compliance from the design phase
- Clinical pilot programme with 25 units
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Materials | Multi-Jet Fusion printed plastic |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Daily wear by upper-limb amputees |
| Actuators | Electric motors in the fingers and thumb |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | EMG (myoelectric) sensors |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Materials | Multi-Jet Fusion printed plastic |
|---|---|
| Mobility | |
| Movement Type | Stationary |
| Degrees of Freedom | 6 |
| Environment | Daily wear by upper-limb amputees |
| Actuators | Electric motors in the fingers and thumb |
| Power | |
| Battery Life | 480 min |
| Sensing & Compute | |
| Sensors | EMG (myoelectric) sensors |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the BIONICLI?
BIONICLI is a myoelectric bionic prosthetic hand from lifeandlimb.ai for people with upper-limb amputation. Electromyography (EMG) sensors on the residual limb pick up muscle signals, and a dedicated on-board control circuit uses a current-thresholding technique to drive the motors inside the hand, so individual finger…
Who makes the BIONICLI?
The BIONICLI is made by lifeandlimb.ai, a robotics company based in India.
How much does the BIONICLI cost?
lifeandlimb.ai has not publicly announced pricing for the BIONICLI. You can enquire through RobotAIGeek for current pricing.
What is the BIONICLI used for?
The BIONICLI is designed for material-handling, rehabilitation, and helping. It is used in consumer and healthcare settings.
What is the battery life of the BIONICLI?
The BIONICLI runs for about 480 minutes on a charge.
How many degrees of freedom does the BIONICLI have?
The BIONICLI has 6 degrees of freedom.
