aunav.CID Light

EM&E Group

Military

SpainReleased

★Not rated yet

Compare

Sources:

eme-es.com

Industries:

Defence Government Security & Patrol

Uses:

Security Inspection Remote

Price:

Not announced

Model:

aunav.CID Light (CID L) vehicle-mounted route-clearance interrogation arm

DESCRIPTION

aunav.CID Light is a Military from EM&E Group. It is built for Security, Inspection, Remote. Key figures: 400 kg payload, 8500 mm reach, 8 degrees of freedom.

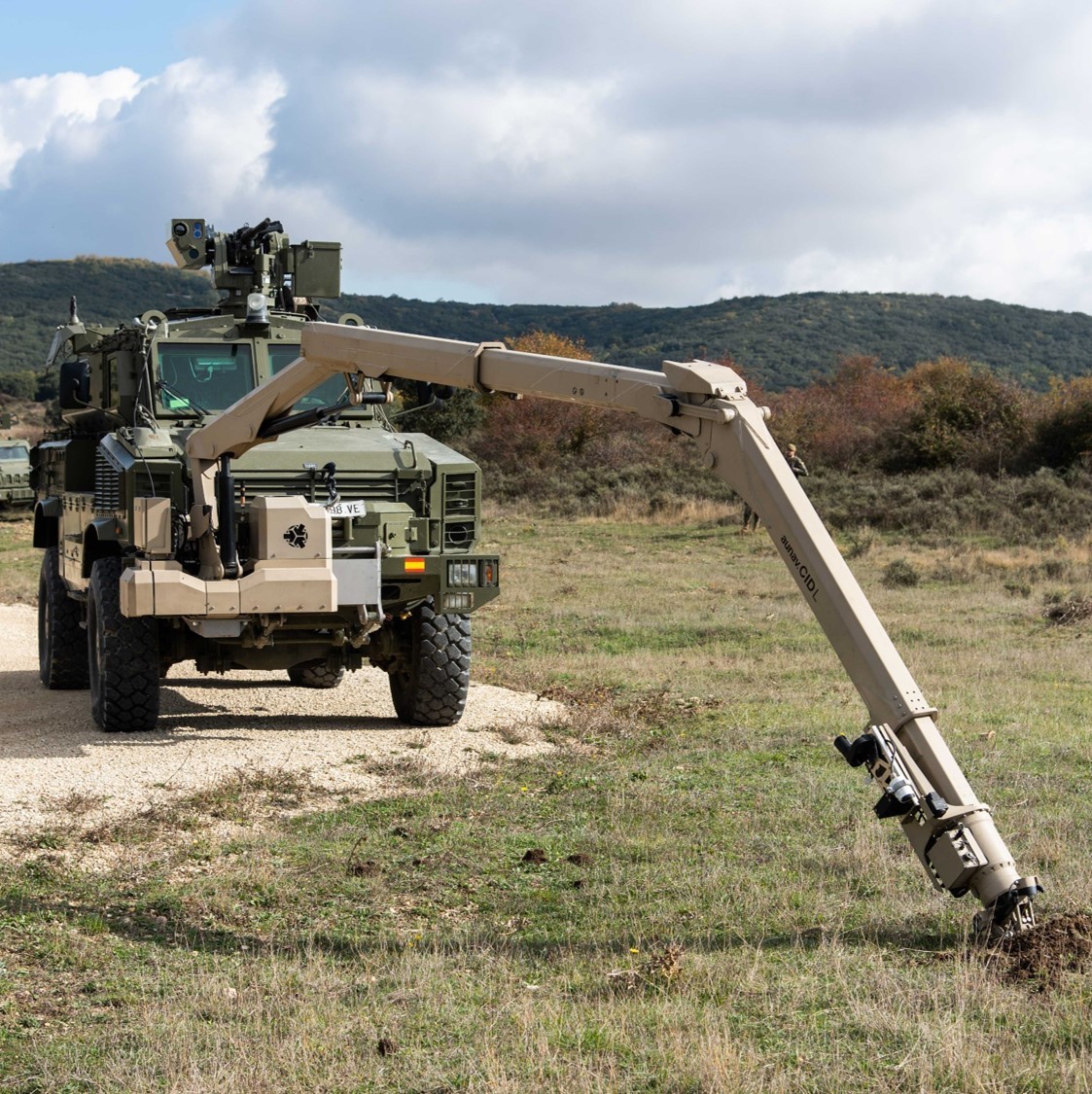

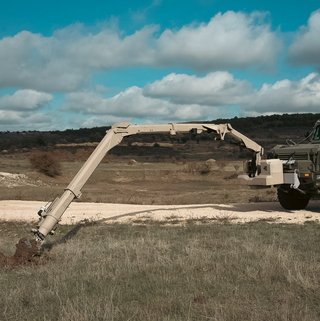

The aunav.CID Light (CID L) is a teleoperated robotic interrogation arm for route-clearance missions, mounted on light armoured vehicles so engineer units can recognise, identify, lift, move and neutralise explosive threats while staying at a safe distance. Its modular plug-and-play design adapts to different armoured vehicles and can be fitted only when the mission requires it. An articulated, extensible hydraulic arm with two telescopic segments and 8 degrees of freedom lifts up to 400 kg and reaches 8.5 m horizontally and 9 m vertically, with 360-degree rotation and endless gripper rotation. It can carry a metal detector, ground-penetrating radar or CBRN sensors, plus disruptors, an air blower and grippers, demining and ripping claws or a lifting shovel, and preset positions speed up deployment and folding. Up to four cameras, including a PTZ and a thermal camera, feed a rugged 10.1-inch tablet with a game-style controller, used from inside the vehicle or up to 1 km away. Folded it measures 2,320 x 715 x 1,010 mm and is rated IP65.

FEATURES

Articulated, extensible hydraulic arm with 2 telescopic segments
8 DoF
Lift capacity 400 kg
reach 8.5 m horizontal, 9 m vertical
360-degree rotation
endless 360-degree gripper rotation
preset and custom positions
Plug-and-play modular mount for light armoured vehicles
Detection: metal detector, ground-penetrating radar (GPR), CBRN sensors, radiological container
Up to 4 cameras incl. PTZ IR and thermal
LED lighting
Tools: disruptors with rangefinder and laser, drill, angle grinder (up to three at once), blower, shotgun
Manipulators: parallel and angled grippers with pressure sensing, barrel gripper, BATS tools, lifting shovel, demining and ripping claws
OCU: rugged 10.1-inch touch tablet with PS4-style controller
from inside the vehicle or up to 1 km
Ethernet, COFDM, Wi-Fi, fibre optic
Folded 2,320 x 715 x 1,010 mm
IP65
aeronautical aluminium and high-strength steel

TECHNICAL SPECIFICATIONS

Verified

Physical
Dimensions	L 715 mm × W 2.32 m × H 1.01 m
Payload	400 kg
Reach	8.5 m
Mobility
Movement Type	Stationary
Degrees of Freedom	8
Environment	Mounted on light armoured vehicles for route and sensitive-point clearance by engineer units, IP65
Sensing & Compute
Sensors	PTZ IR camera, IR cameras (gripper, arm), thermal camera, optional metal detector, optional GPR, optional CBRN sensors
Connectivity	Ethernet, COFDM radio, Wi-Fi, fibre optic

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.
