DESCRIPTION
AspinaAMR300 is an Industrial-Robot from ASPINA (Shinano Kenshi). It is built for Intralogistics, Material-Handling, Transport. Key figures: 110 kg, 600 min runtime, 300 kg payload.

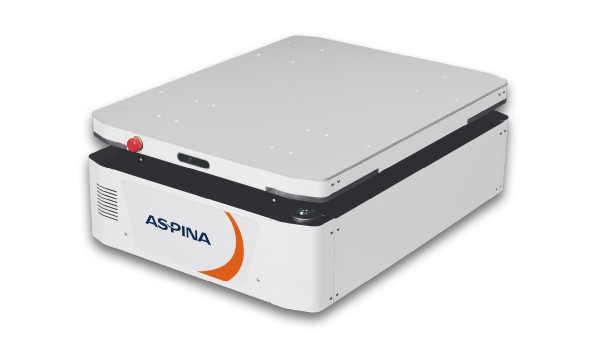

The AspinaAMR300 is ASPINA's 300 kg AMR: the same 600 mm-wide body as the 100 kg model, lengthened to 800 mm, so it still runs in 800 mm aisles while carrying three times the load on a 600 x 761 mm fixed deck. It measures 600 x 800 x 296 mm and weighs up to 110 kg. It uses SLAM navigation with two 3D LiDARs and a front 3D camera for obstacle detection, and LED lamps on each side. Its LiFePO4 battery gives about 10 hours of running with a 2.5-hour charge. Mapping, programmed routes, QR-code dispatch, PLC/API control, elevator and automatic-door integration and the optional fleet management are shared with the rest of the AspinaAMR range.
FEATURES
- SLAM factory AMR with fixed deck
- up to 300 kg
- 600 x 761 mm deck
- 600 x 800 x 296 mm
- up to 110 kg (115 kg with auto-charging)
- Obstacle detection: 3D LiDAR front-left and rear-right, front 3D camera
- About 10 h runtime
- charges in 2.5 h
- LiFePO4 battery
- 8-ch I/O
- Max 3.6 km/h
- 3 deg max slope
- 800 mm minimum aisle (body only)
- stop accuracy +/-50 mm (+/-10 mm with guide option)
- LiFePO4 battery
- 0-40 C indoor only
- 2.4/5 GHz Wi-Fi
- Windows 11 operating app
- PLC/API control
- QR-code dispatch
- elevator and automatic-door integration
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 110 kg |
|---|---|
| Dimensions | L 800 mm × W 600 mm × H 296 mm |
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor factories and production sites (0-40 C, 5-85% RH non-condensing, narrow aisles from 800 mm) |
| Actuators | In-wheel BLDC motors |
| Power | |
| Battery Life | 600 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR x2, 3D camera |
| Connectivity | Wi-Fi 2.4/5 GHz; USB-A; 8-ch I/O; PLC/API |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 110 kg |
|---|---|
| Dimensions | L 800 mm × W 600 mm × H 296 mm |
| Payload | 300 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 3.6 km/h |
| Environment | Indoor factories and production sites (0-40 C, 5-85% RH non-condensing, narrow aisles from 800 mm) |
| Actuators | In-wheel BLDC motors |
| Power | |
| Battery Life | 600 min |
| Sensing & Compute | |
| Sensors | 3D LiDAR x2, 3D camera |
| Connectivity | Wi-Fi 2.4/5 GHz; USB-A; 8-ch I/O; PLC/API |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the AspinaAMR300?
The AspinaAMR300 is ASPINA's 300 kg AMR: the same 600 mm-wide body as the 100 kg model, lengthened to 800 mm, so it still runs in 800 mm aisles while carrying three times the load on a 600 x 761 mm fixed deck. It measures 600 x 800 x 296 mm and weighs up to 110 kg.
Who makes the AspinaAMR300?
The AspinaAMR300 is made by ASPINA (Shinano Kenshi), a robotics company based in Japan.
How much does the AspinaAMR300 cost?
ASPINA (Shinano Kenshi) has not publicly announced pricing for the AspinaAMR300. You can enquire through RobotAIGeek for current pricing.
What is the AspinaAMR300 used for?
The AspinaAMR300 is designed for intralogistics, material-handling, transport, and heavier point-to-point material transport in factories. It is used in warehouse & logistics and manufacturing settings.
What is the payload capacity of the AspinaAMR300?
The AspinaAMR300 has a payload capacity of 300 kg.
How much does the AspinaAMR300 weigh?
The AspinaAMR300 weighs 110 kg.
How fast is the AspinaAMR300?
The AspinaAMR300 can move at speeds of up to 3.6 km/h.
What is the battery life of the AspinaAMR300?
The AspinaAMR300 runs for about 600 minutes on a charge.
