DESCRIPTION
APP-HLC-UV-01 is a Cleaning-Robots from DF Automation. It is built for Sanitizing. Key figures: 90 min runtime.

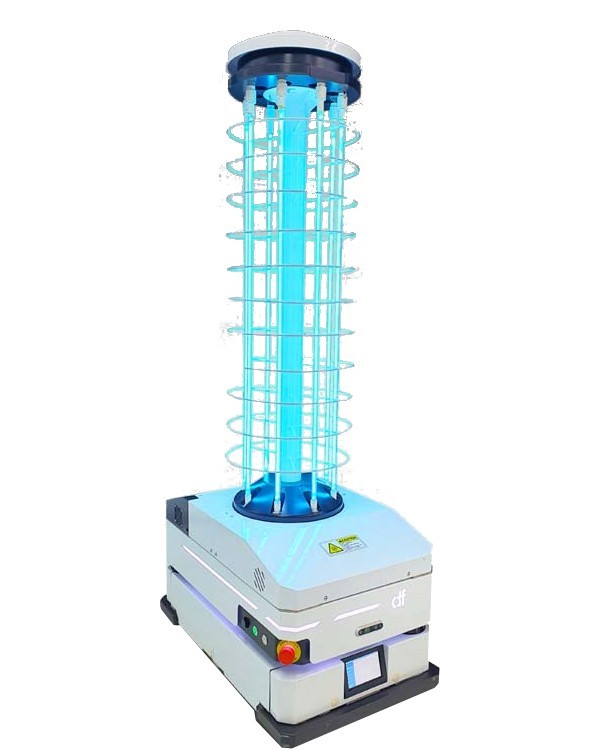

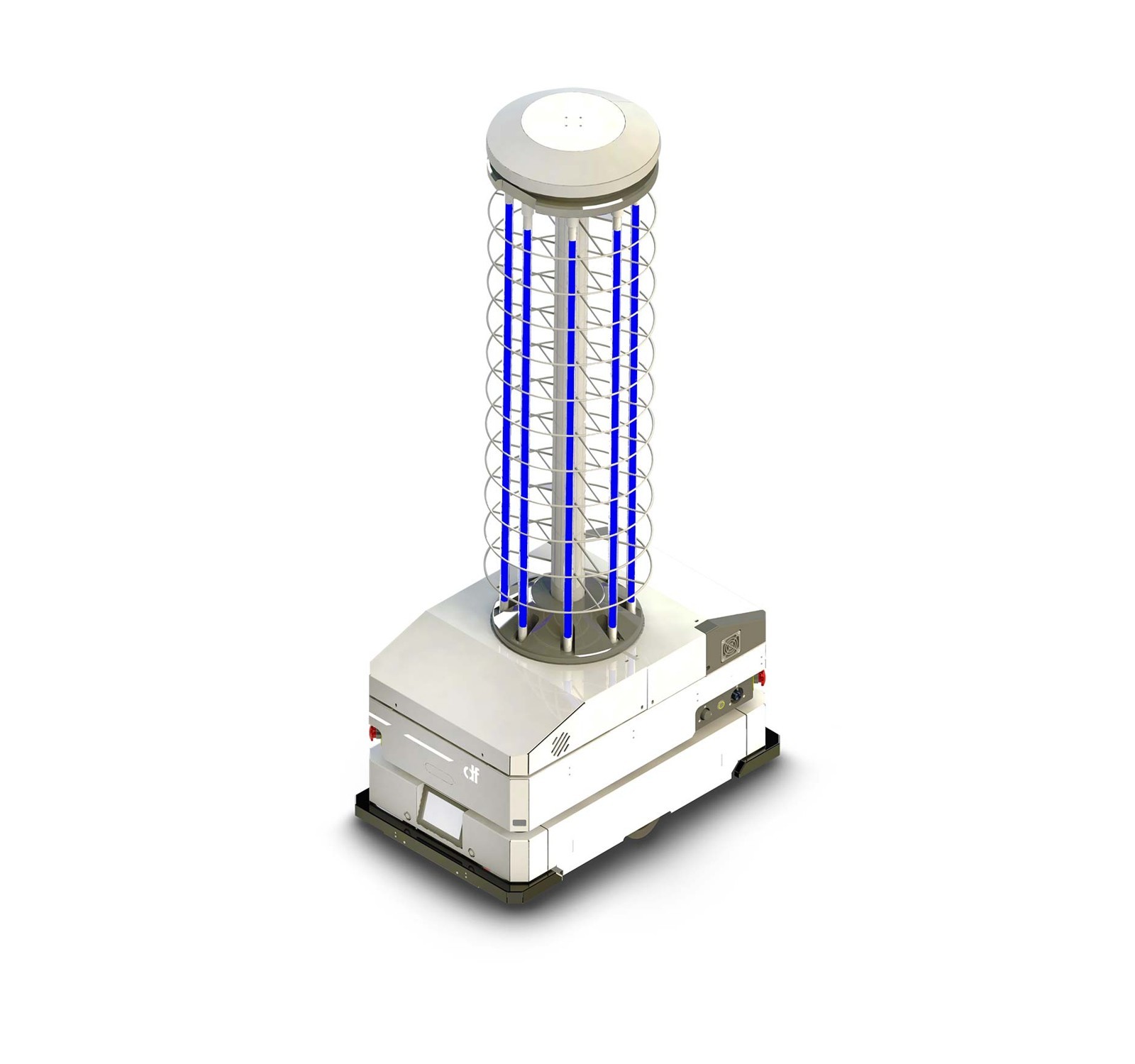

APP-HLC-UV-01 is DF Automation & Robotics' UV disinfection robot, a tower of eight UV-C lamps mounted on its Qube mobile base, developed during the COVID-19 pandemic to disinfect rooms without exposing staff. The lamps emit 254 nm UV-C with 440 W input and 168 W radiated output over 360 degrees, giving about 1,500 µW/cm² at 0.5 m and 850 µW/cm² at 1 m, so a 3-log (99.9%) inactivation takes about 3 minutes at 0.5 m and 6 minutes at 1 m. For safety a 3D depth camera with about 10 m range shuts the lamps off and sounds an alarm when it detects motion, 360-degree RGB LED lighting signals status, and the lamps can be switched remotely by RF switch or Wi-Fi. The robot measures 800 x 500 x 1,460 mm, and a 25.6 V, 40 Ah LiFePO4 battery powers the lamps at full power for about 1.5 hours and recharges in about 2 hours, by cable or dock.
FEATURES
- 8 UV-C lamps, 254 nm
- 440 W input, 168 W UV-C output
- 360 deg coverage
- lamp life 10,000 h
- Irradiance 1,500 uW/cm2 at 0.5 m, 850 uW/cm2 at 1 m
- 3-log reduction in ~3 min (0.5 m) / ~6 min (1 m)
- 3D depth camera motion detection (~10 m) shuts lamps off
- alarm speakers
- Remote lamp on/off via RF switch or Wi-Fi
- 360 deg RGB LED indicator
- Mounted on DF Qube mobile base
- 800 x 500 x 1,460 mm
- LiFePO4 25.6 V 40 Ah
- ~1.5 h at full lamp power
- ~2 h charge
- auto dock or cable
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 800 mm × W 500 mm × H 1.46 m |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Hospital rooms, wards and public indoor spaces (unoccupied) |
| Power | |
| Battery Life | 90 min |
| Sensing & Compute | |
| Sensors | 3D depth camera, RGB camera |
| Connectivity | Wi-Fi; RF remote switch |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Dimensions | L 800 mm × W 500 mm × H 1.46 m |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Environment | Hospital rooms, wards and public indoor spaces (unoccupied) |
| Power | |
| Battery Life | 90 min |
| Sensing & Compute | |
| Sensors | 3D depth camera, RGB camera |
| Connectivity | Wi-Fi; RF remote switch |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the APP-HLC-UV-01?
APP-HLC-UV-01 is DF Automation & Robotics' UV disinfection robot, a tower of eight UV-C lamps mounted on its Qube mobile base, developed during the COVID-19 pandemic to disinfect rooms without exposing staff.
Who makes the APP-HLC-UV-01?
The APP-HLC-UV-01 is made by DF Automation, a robotics company based in Malaysia.
How much does the APP-HLC-UV-01 cost?
DF Automation has not publicly announced pricing for the APP-HLC-UV-01. You can enquire through RobotAIGeek for current pricing.
What is the APP-HLC-UV-01 used for?
The APP-HLC-UV-01 is designed for sanitizing. It is used in healthcare settings.
What is the battery life of the APP-HLC-UV-01?
The APP-HLC-UV-01 runs for about 90 minutes on a charge.
