DESCRIPTION
Z.Robo-5 is an Educational-Robots from Zarnitza. It is built for Research, Education, Robotics education. Key figures: price 83,500 RUB.

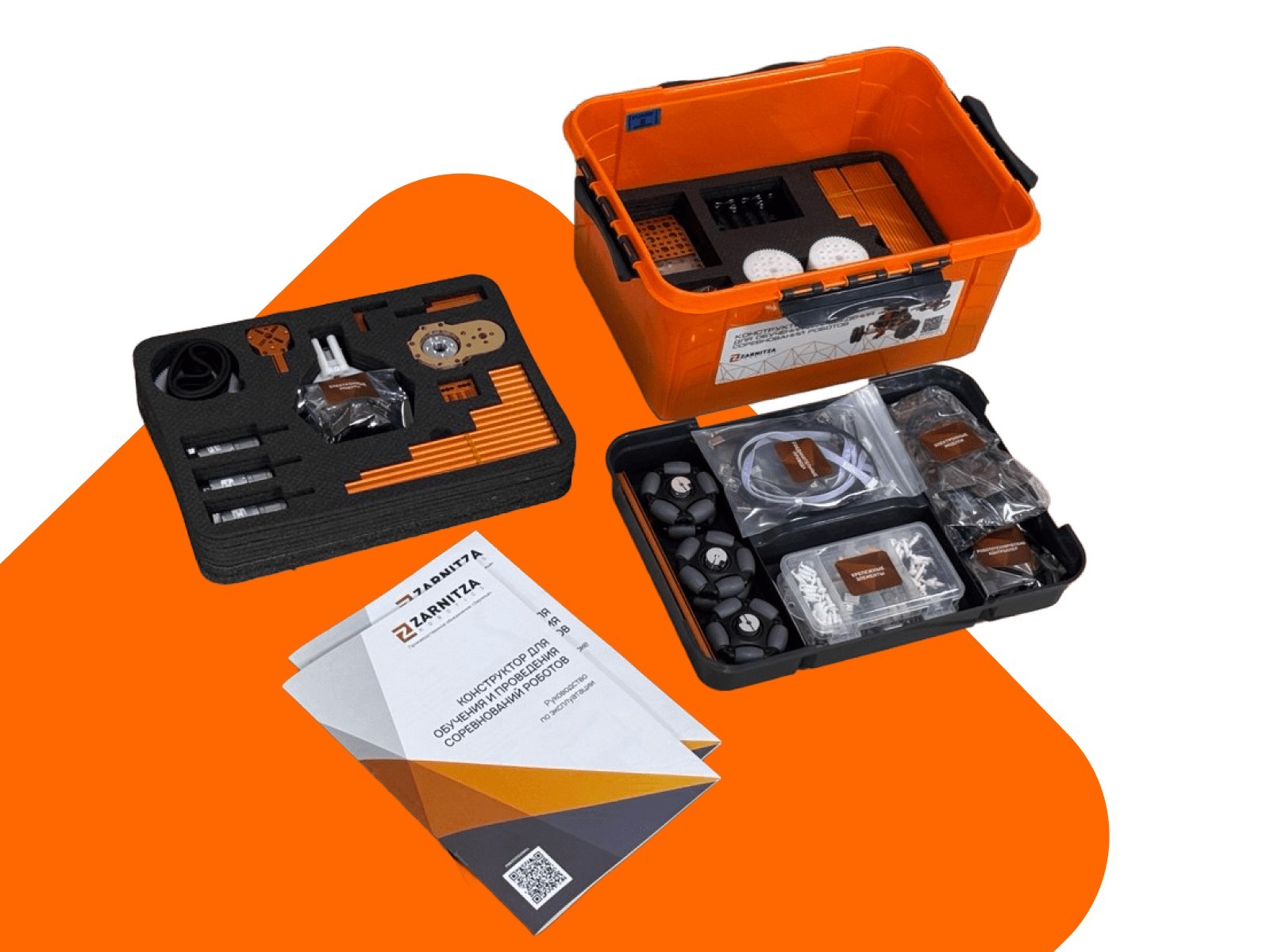

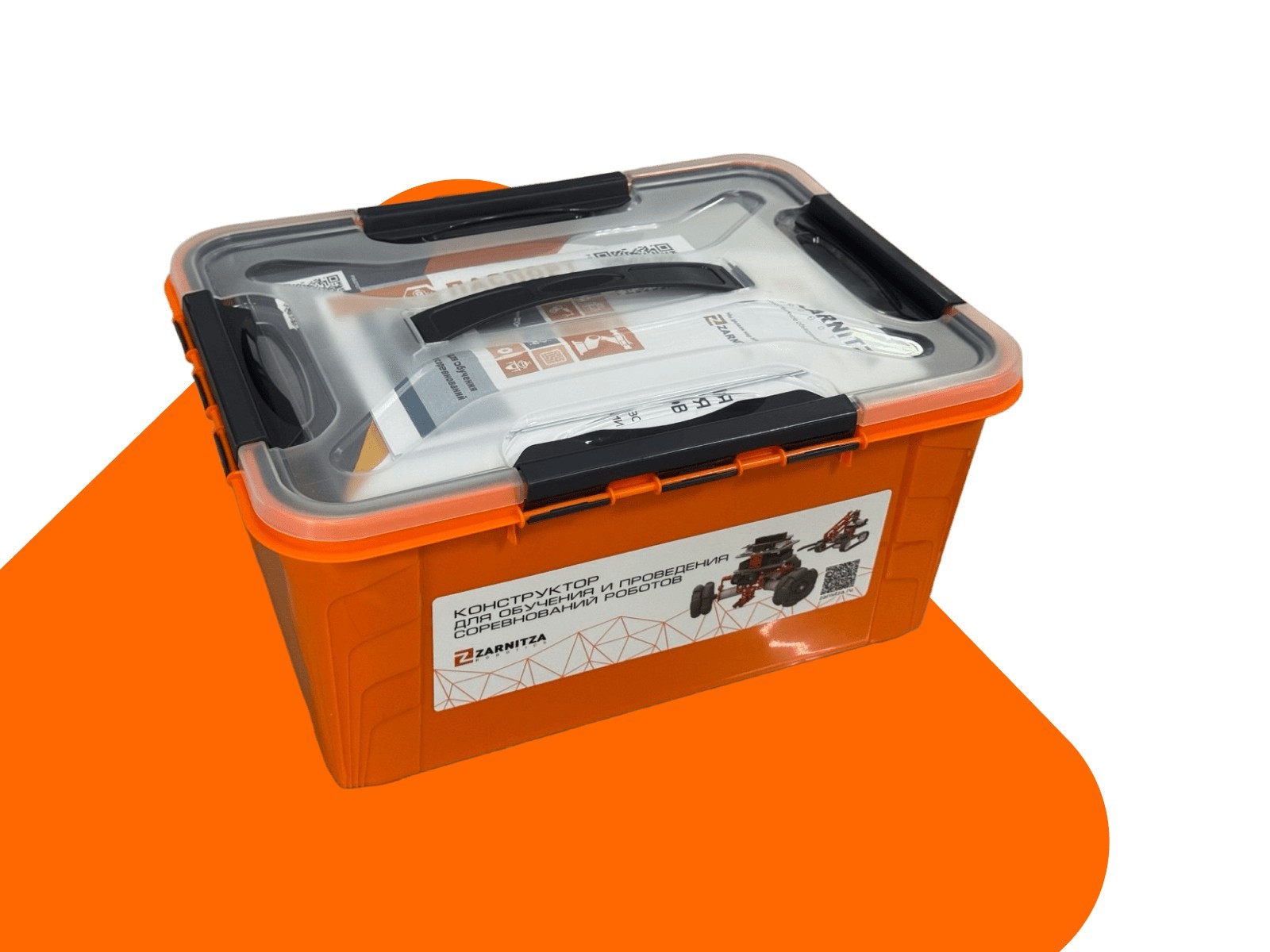

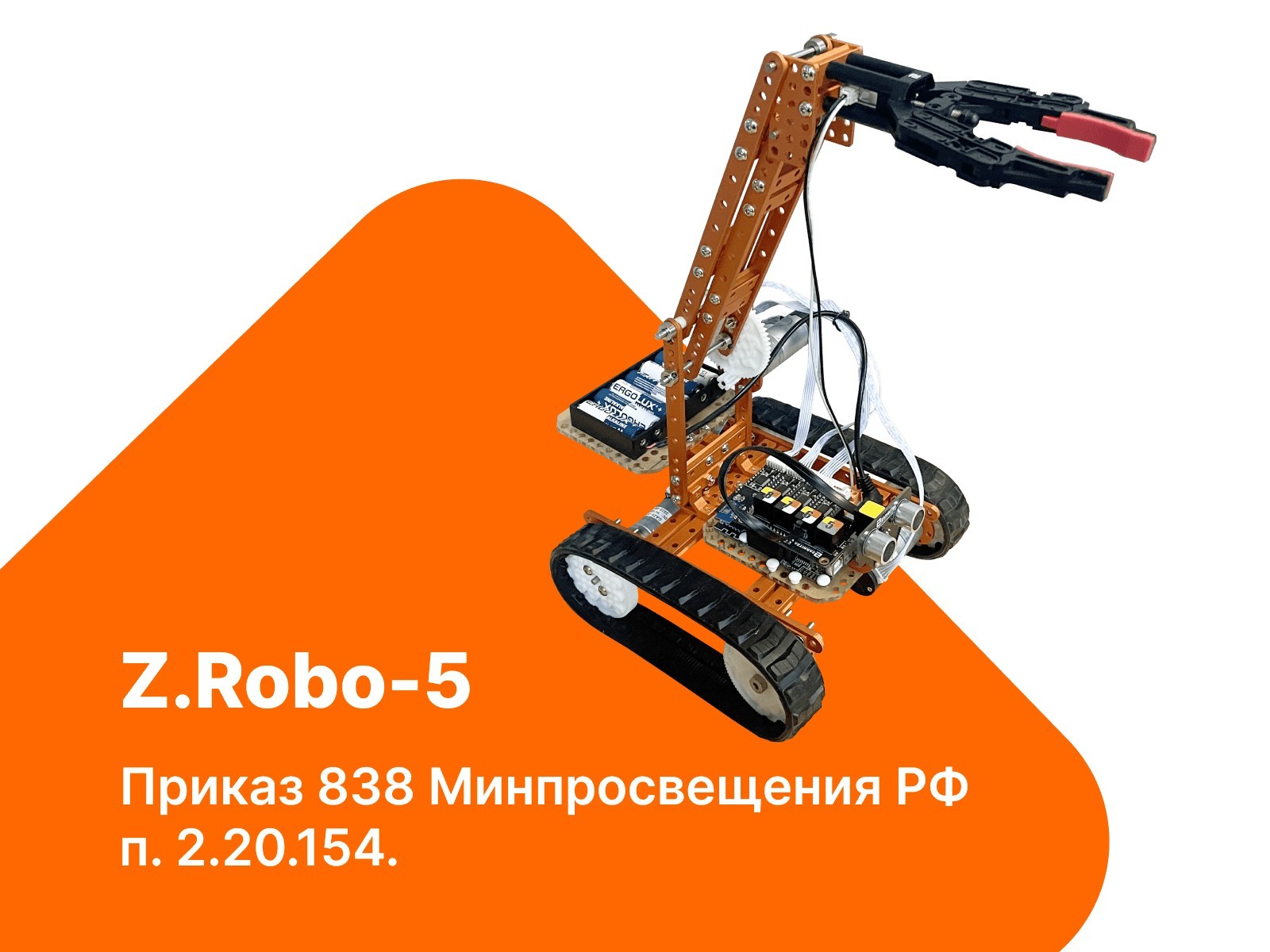

Z.Robo-5 is Zarnitza's construction kit for teaching robotics and running robot competitions. It is built around an Arduino IDE-programmable controller with 256 KB flash, 8 KB SRAM and 4 KB EEPROM at 16 MHz, 43 I/O pins, three serial ports, I2C, SPI and 15 analog inputs, with an expansion board offering four RJ-25 ports for external modules, plus rectangular, square-U and flat beams in several sizes for building robots.
FEATURES
- Arduino IDE-programmable controller: 256 KB flash, 8 KB SRAM, 4 KB EEPROM, 16 MHz
- 43 I/O pins, 3 serial ports, I2C, SPI, 15 analog inputs
- Expansion board with 4 RJ-25 module ports
- Beams: rectangular 8 x 24 mm (7 sizes, 16-224 mm), U-profile 8 x 8 mm, flat 12 x 4 mm (5 sizes)
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Schools, colleges and university labs |
| Sensing & Compute | |
| Sensors | RJ-25 sensor modules |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Environment | Schools, colleges and university labs |
| Sensing & Compute | |
| Sensors | RJ-25 sensor modules |
Images
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Z.Robo-5?
Z.Robo-5 is Zarnitza's construction kit for teaching robotics and running robot competitions. It is built around an Arduino IDE-programmable controller with 256 KB flash, 8 KB SRAM and 4 KB EEPROM at 16 MHz, 43 I/O pins, three serial ports, I2C, SPI and 15 analog inputs, with an expansion board offering four RJ-25 port…
Who makes the Z.Robo-5?
The Z.Robo-5 is made by Zarnitza, a robotics company based in Russia.
How much does the Z.Robo-5 cost?
The Z.Robo-5 is priced at around 83,500 RUB.
What is the Z.Robo-5 used for?
The Z.Robo-5 is designed for research, education, and robotics education. It is used in research and education settings.
