DESCRIPTION

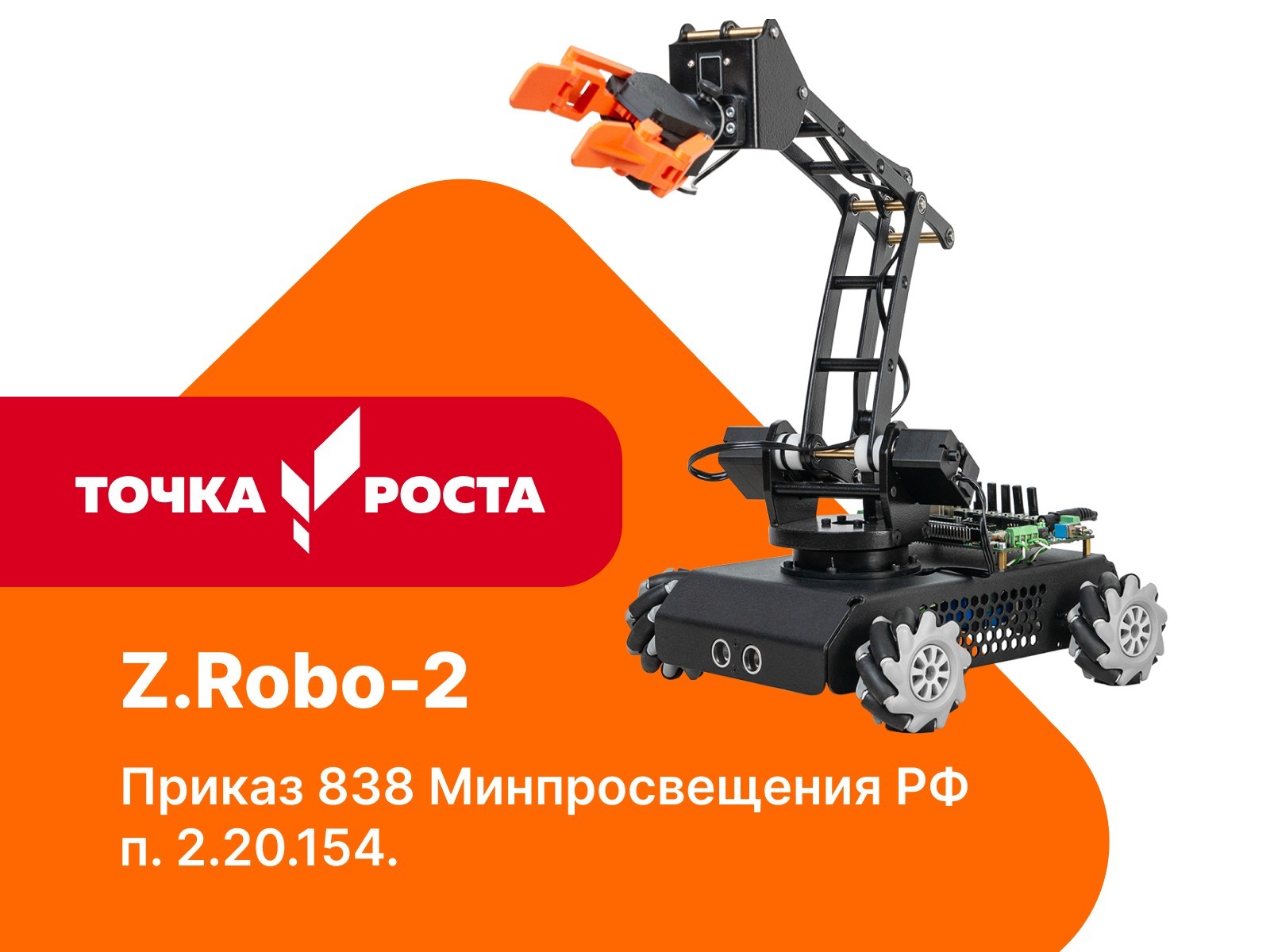

Z.Robo-2 is an Educational-Robots from Zarnitza. It is built for Research, Education, Robotics education. Key figures: 4 degrees of freedom, price 110,000 RUB.

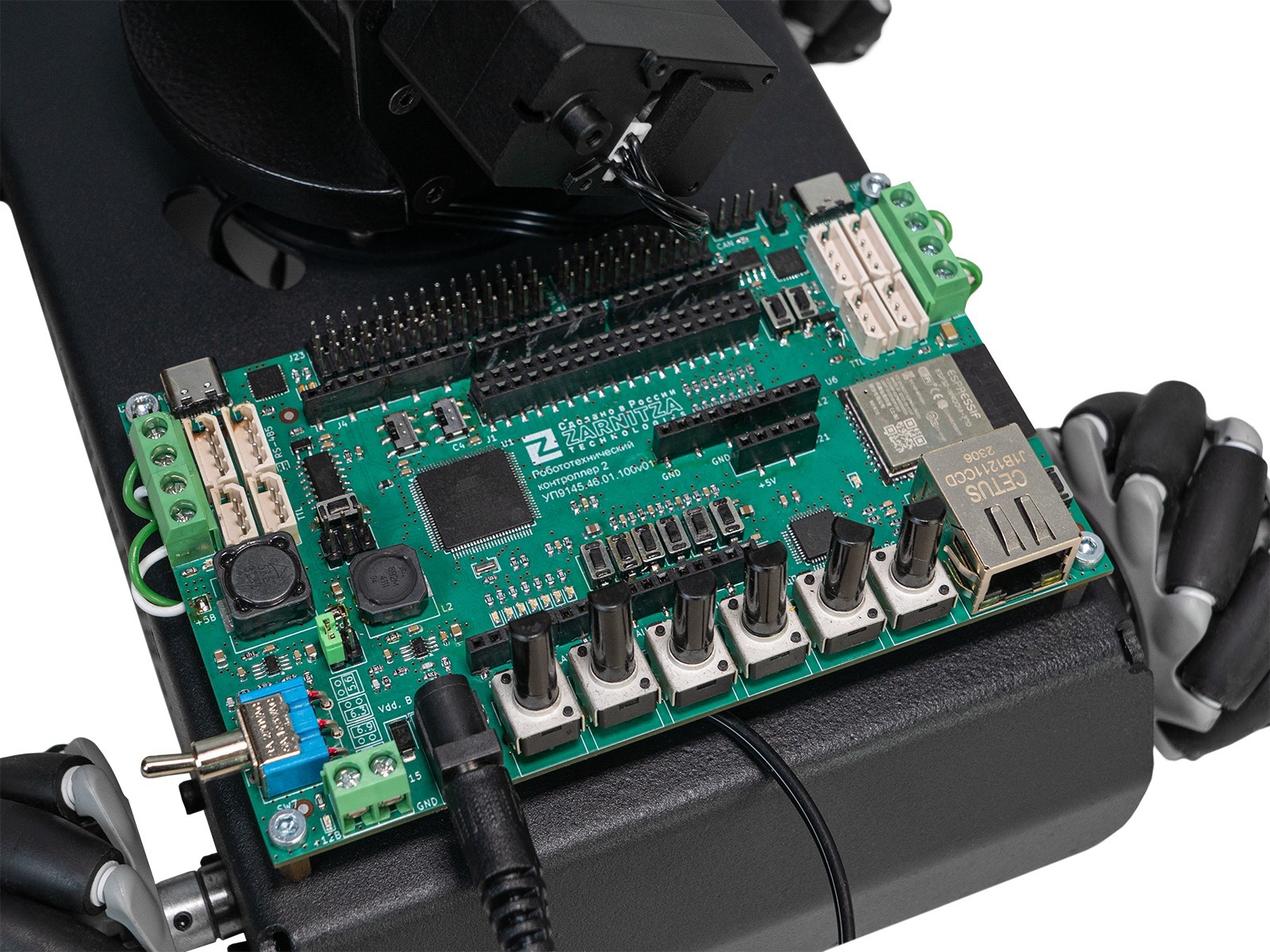

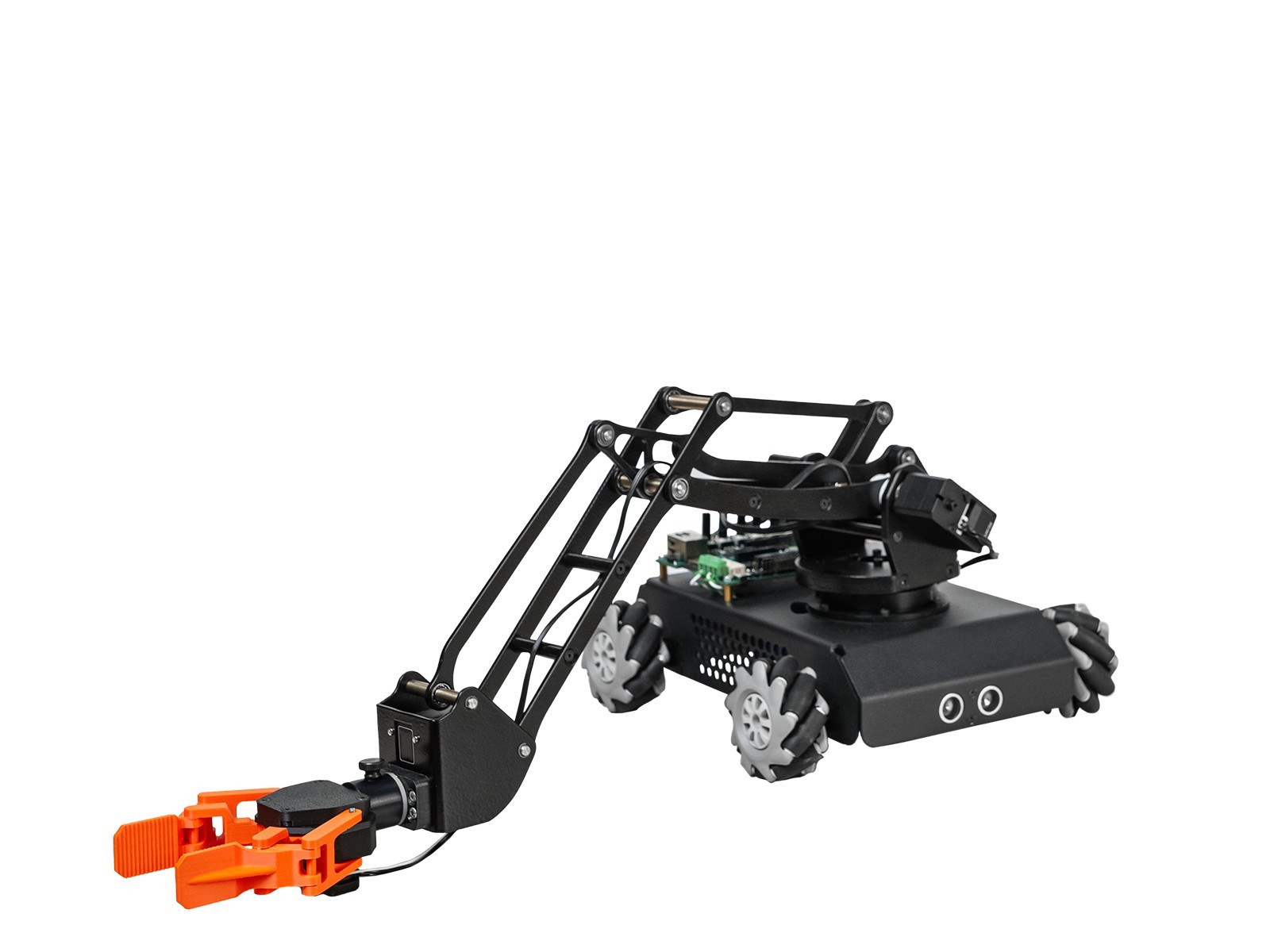

Z.Robo-2 is Zarnitza's basic metal robotics kit for studying electronics, microprocessors and robotic systems. It builds a mobile platform on four Mecanum wheels driven by geared DC motors and a parallel-link manipulator with four degrees of freedom, using four smart servos with absolute digital encoders and feedback, an electromechanical gripper, an ultrasonic rangefinder, an infrared sensor with remote, a machine-vision module and a robotics controller. It runs on an 8 V, 8,000 mAh battery or a 12 V mains adapter and comes with Grade 6 and 7 workbooks and teacher guides.
FEATURES

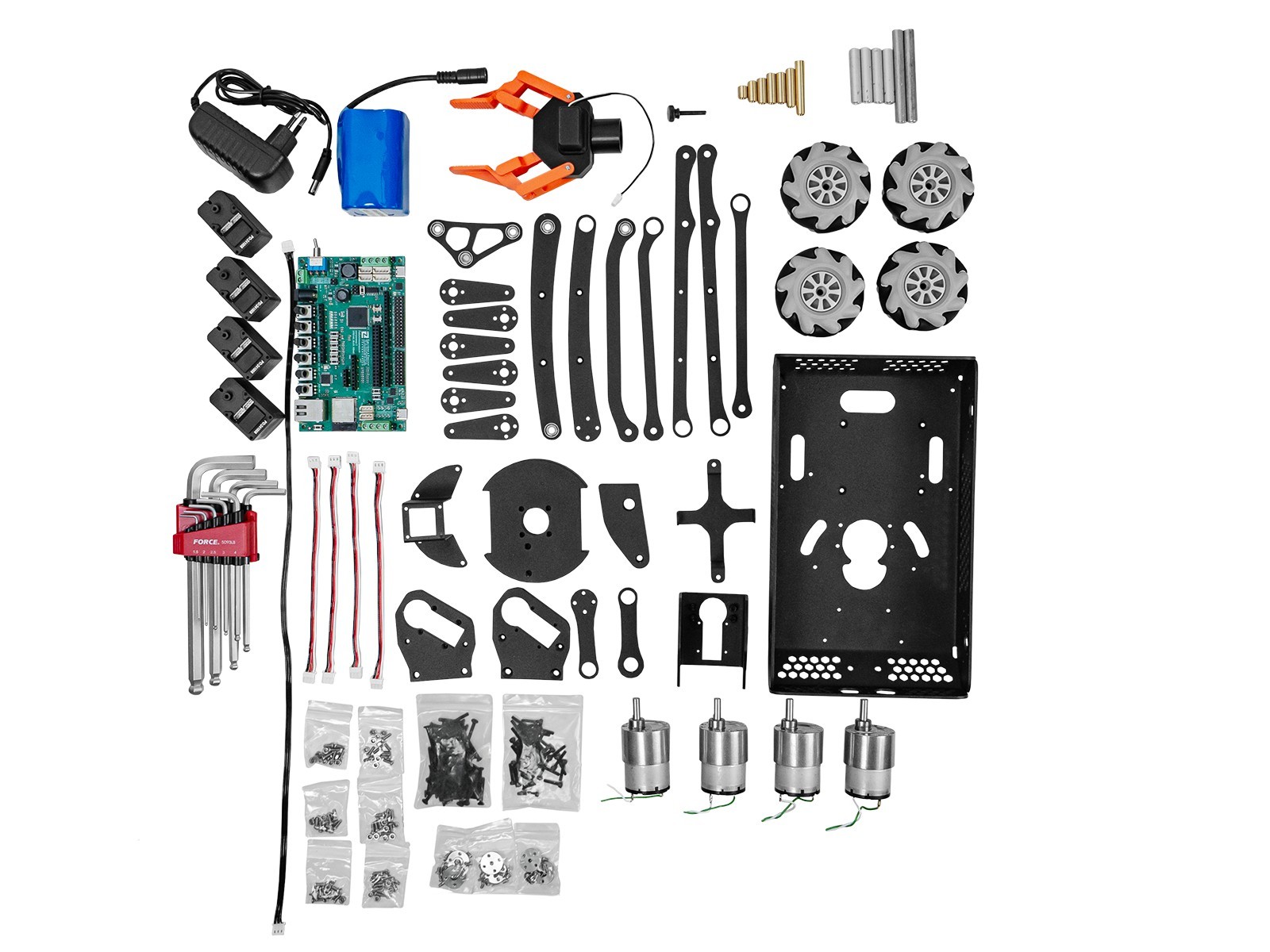

- Metal parts for a Mecanum-wheel mobile platform (4 geared DC motors)
- 4-DOF parallel-link manipulator
- 4 smart servos with absolute encoders
- Electromechanical gripper
- machine-vision module
- Ultrasonic rangefinder
- IR sensor with remote
- 8 V 8,000 mAh battery or 12 V adapter
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Degrees of Freedom | 4 |
| Environment | Schools, colleges and university labs |
| Power | |
| Battery Life | 8 V 8000 mAh |
| Sensing & Compute | |
| Sensors | ultrasonic rangefinder, IR sensor, machine-vision module, servo encoders |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Mobility | |
| Movement Type | Wheeled |
|---|---|
| Degrees of Freedom | 4 |
| Environment | Schools, colleges and university labs |
| Power | |
| Battery Life | 8 V 8000 mAh |
| Sensing & Compute | |
| Sensors | ultrasonic rangefinder, IR sensor, machine-vision module, servo encoders |
Images
martti
martti
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Z.Robo-2?
Z.Robo-2 is Zarnitza's basic metal robotics kit for studying electronics, microprocessors and robotic systems. It builds a mobile platform on four Mecanum wheels driven by geared DC motors and a parallel-link manipulator with four degrees of freedom, using four smart servos with absolute digital encoders and feedback,…
Who makes the Z.Robo-2?
The Z.Robo-2 is made by Zarnitza, a robotics company based in Russia.
How much does the Z.Robo-2 cost?
The Z.Robo-2 is priced at around 110,000 RUB.
What is the Z.Robo-2 used for?
The Z.Robo-2 is designed for research, education, and robotics education. It is used in research and education settings.
How many degrees of freedom does the Z.Robo-2 have?
The Z.Robo-2 has 4 degrees of freedom.
