DESCRIPTION

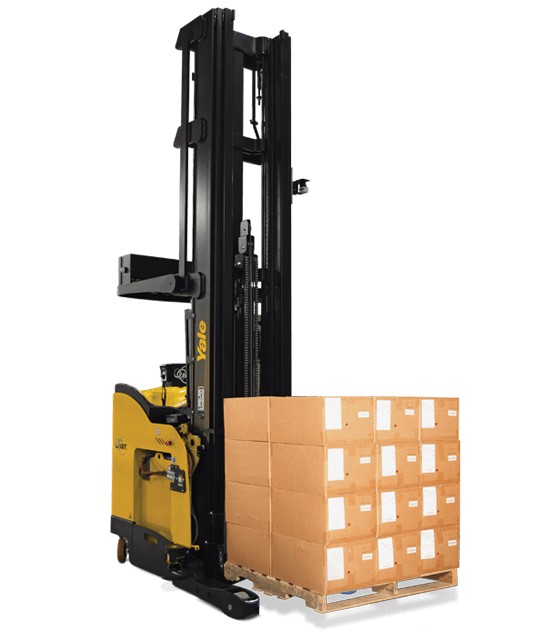

Yale NDR035EB Robotic Reach Truck is an Industrial-Robot from Hyster-Yale. It is built for Intralogistics, Loading, Material-Handling. Key figures: 1588 kg payload.
The Yale NDR035EB robotic reach truck is a dual-mode, pantograph reach truck that stores and retrieves pallets on its own from rack locations just over 400 inches high. Yale calls it the first of its kind and pitches it at distribution centres facing inventory growth and a shortage of skilled operators. It finds its way by mapping structural features of the building, so it needs no laser reflectors, guide wires or magnets. It can run with no, partial or full WMS integration, and at the touch of a button it switches to manual mode for a side-stance operator. It handles single- and double-deep storage, charges autonomously and works across a wide temperature range. The truck is rated for 3,500 lb with a maximum lift of 401 inches on standard three-stage full-free-lift masts, runs at 36 V on lead-acid, lithium-ion or hydrogen fuel-cell power, and travels at 4.5 mph in robotic mode or 7.4 mph manually.
FEATURES
- Rated capacity 3,500 lb (about 1,590 kg)
- single- or double-deep pantograph reach
- Max lift height 401 in (about 10.2 m)
- standard 3-stage full-free-lift masts
- Dual mode: autonomous or manual (side-stance operator) at the touch of a button
- Infrastructure-free navigation from mapped building features
- Travel 4.5 mph robotic / 7.4 mph manual (empty)
- ramps under 3%
- 36 V
- lead-acid, lithium-ion or hydrogen fuel cell
- autonomous charging available
- Zero, partial or full WMS integration
- serviced by Yale dealers
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1588 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Environment | Indoor warehouses, distribution centres and manufacturing plants (mixed traffic) |
| Power | |
| Charging Type | Auto charge (available for certain power sources) |
| Sensing & Compute | |
| Connectivity | WMS integration (optional) |
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Payload | 1588 kg |
|---|---|
| Mobility | |
| Movement Type | Wheeled |
| Speed | 7.2 km/h |
| Environment | Indoor warehouses, distribution centres and manufacturing plants (mixed traffic) |
| Power | |
| Charging Type | Auto charge (available for certain power sources) |
| Sensing & Compute | |
| Connectivity | WMS integration (optional) |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the Yale NDR035EB Robotic Reach Truck?
The Yale NDR035EB robotic reach truck is a dual-mode, pantograph reach truck that stores and retrieves pallets on its own from rack locations just over 400 inches high. Yale calls it the first of its kind and pitches it at distribution centres facing inventory growth and a shortage of skilled operators.
Who makes the Yale NDR035EB Robotic Reach Truck?
The Yale NDR035EB Robotic Reach Truck is made by Hyster-Yale, a robotics company based in United States.
How much does the Yale NDR035EB Robotic Reach Truck cost?
Hyster-Yale has not publicly announced pricing for the Yale NDR035EB Robotic Reach Truck. You can enquire through RobotAIGeek for current pricing.
What is the Yale NDR035EB Robotic Reach Truck used for?
The Yale NDR035EB Robotic Reach Truck is designed for intralogistics, loading, material-handling, and pallet-transportation. It is used in warehouse & logistics, manufacturing, and retail settings.
What is the payload capacity of the Yale NDR035EB Robotic Reach Truck?
The Yale NDR035EB Robotic Reach Truck has a payload capacity of 1,588 kg.
How fast is the Yale NDR035EB Robotic Reach Truck?
The Yale NDR035EB Robotic Reach Truck can move at speeds of up to 7.2 km/h.
