DESCRIPTION
VTB20M is an Industrial-Robot from i-Cow. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 750 kg, 2000 kg payload.

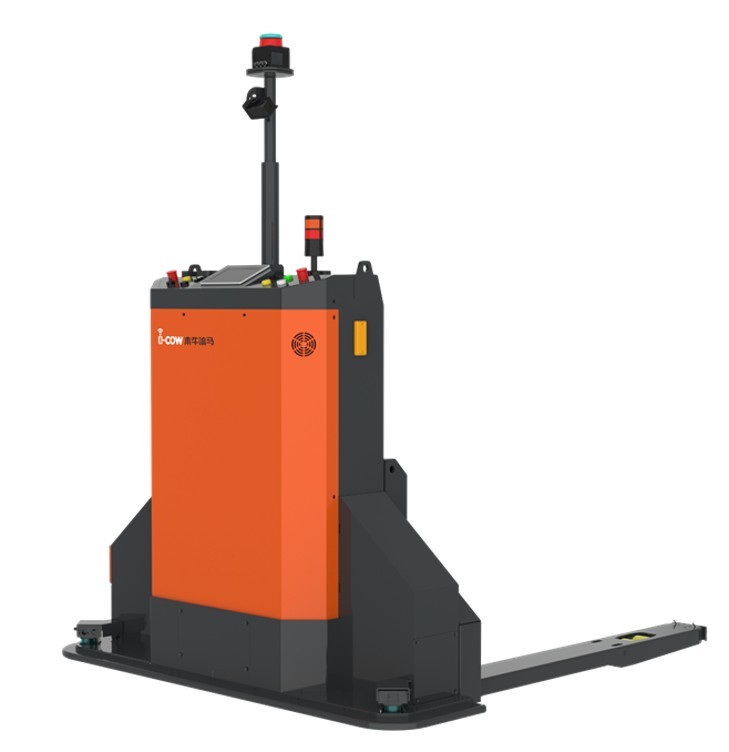

The VTB20M is a mini wide-leg pallet-transport mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that picks up and carries pallets along floor-level routes between production lines, docks and storage. It is rated for 2,000 kg at a 600 mm load centre, lifts to 210 mm, weighs 750 kg and measures 1,706 x 1,730 x 2,200 mm. Its forks measure 75 x 160 x 1150 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1361 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 2,000 kg at 600 mm load centre
- Lift height 210 mm
- Overall dimensions 1706 x 1730 x 2200 mm (L x W x H)
- Service weight 750 kg

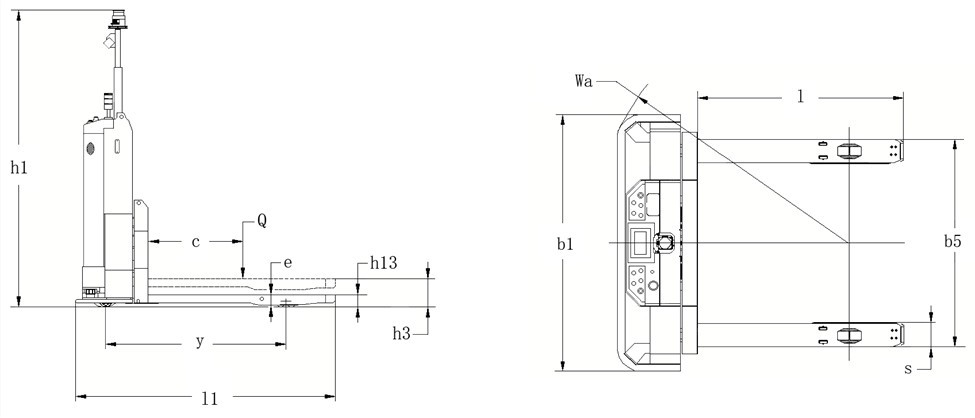

- Forks 75/160/1150 mm (e/s/l)
- Turning radius 1361 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 750 kg |
|---|---|
| Dimensions | L 1.71 m × W 1.73 m × H 2.2 m |
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 750 kg |
|---|---|
| Dimensions | L 1.71 m × W 1.73 m × H 2.2 m |
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VTB20M?
The VTB20M is a mini wide-leg pallet-transport mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that picks up and carries pallets along floor-level routes between production lines, docks and storage.
Who makes the VTB20M?
The VTB20M is made by i-Cow, a robotics company based in China.
How much does the VTB20M cost?
i-Cow has not publicly announced pricing for the VTB20M. You can enquire through RobotAIGeek for current pricing.
What is the VTB20M used for?
The VTB20M is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VTB20M?
The VTB20M has a payload capacity of 2,000 kg.
How much does the VTB20M weigh?
The VTB20M weighs 750 kg.
How fast is the VTB20M?
The VTB20M can move at speeds of up to 5.4 km/h.
