DESCRIPTION
VTB20 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Material-Handling, Pallet-Transportation. Key figures: 1147 kg, 2000 kg payload.

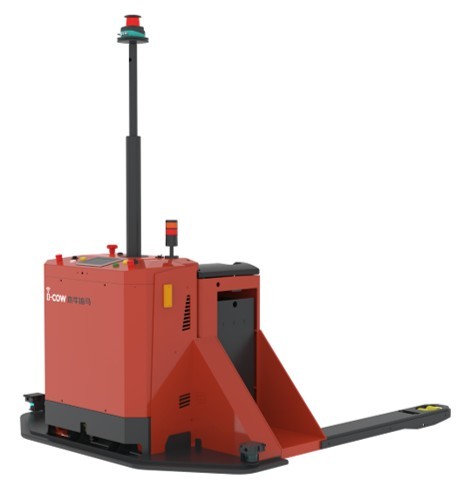

The VTB20 is a pallet-transport mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that picks up and carries pallets along floor-level routes between production lines, docks and storage. It is rated for 2,000 kg at a 600 mm load centre, lifts to 210 mm, weighs 1,147 kg and measures 2,014 x 1,800 x 2,230 mm. Its forks measure 55 x 180 x 1150 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1935 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 2,000 kg at 600 mm load centre
- Lift height 210 mm

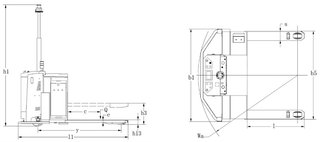

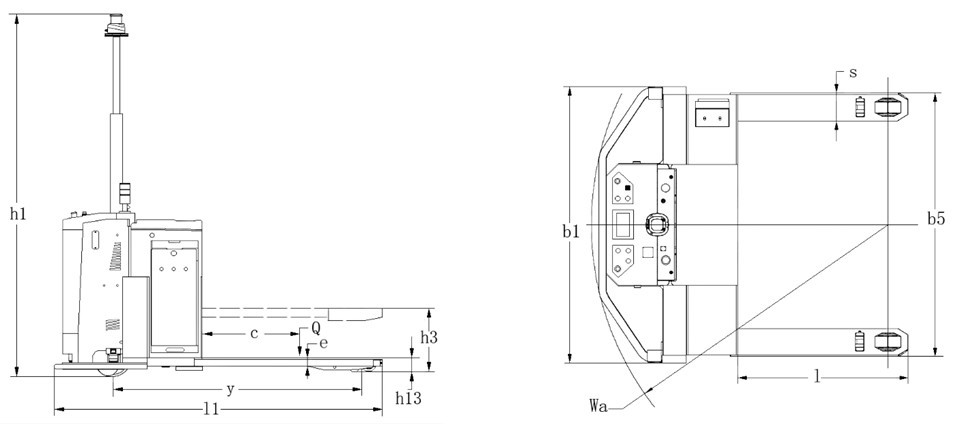

- Overall dimensions 2014 x 1800 x 2230 mm (L x W x H)
- Service weight 1,147 kg
- Forks 55/180/1150 mm (e/s/l)
- Turning radius 1935 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1147 kg |
|---|---|
| Dimensions | L 2.01 m × W 1.8 m × H 2.23 m |
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 1147 kg |
|---|---|
| Dimensions | L 2.01 m × W 1.8 m × H 2.23 m |
| Payload | 2000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VTB20?
The VTB20 is a pallet-transport mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that picks up and carries pallets along floor-level routes between production lines, docks and storage. It is rated for 2,000 kg at a 600 mm load centre, lifts to 210 mm, weighs 1,147 kg and measures 2,014 x 1,800 x 2,230 mm.
Who makes the VTB20?
The VTB20 is made by i-Cow, a robotics company based in China.
How much does the VTB20 cost?
i-Cow has not publicly announced pricing for the VTB20. You can enquire through RobotAIGeek for current pricing.
What is the VTB20 used for?
The VTB20 is designed for intralogistics, material-handling, pallet-transportation, and transport. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VTB20?
The VTB20 has a payload capacity of 2,000 kg.
How much does the VTB20 weigh?
The VTB20 weighs 1,147 kg.
How fast is the VTB20?
The VTB20 can move at speeds of up to 5.4 km/h.
