DESCRIPTION
VLR14/16/20 is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 2940 kg, 1400 kg payload.

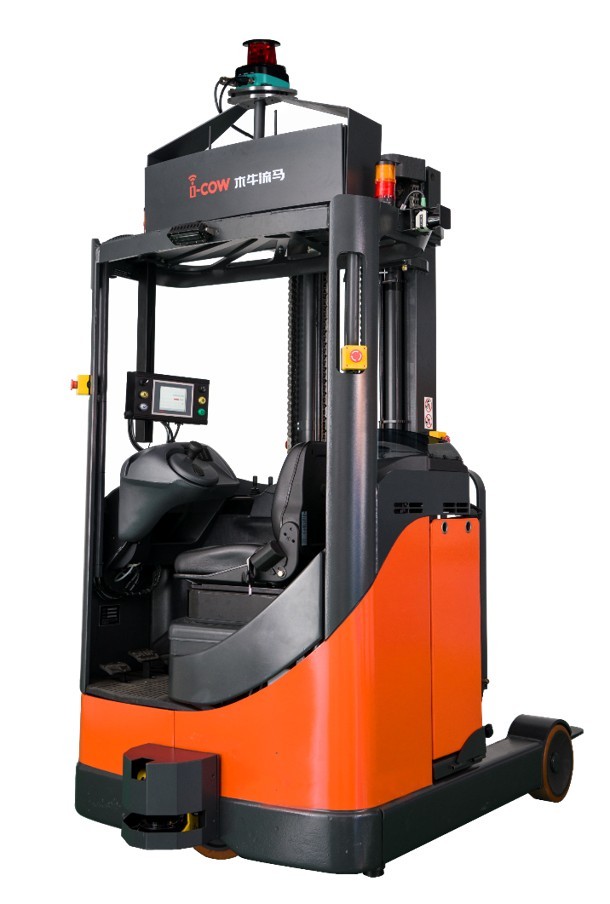

The VLR14/16/20 is a sit-on reach mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that extends its mast forward to place and retrieve pallets in high racking within narrower aisles. It is rated for 1,400 kg at a 600 mm load centre, lifts to 5755 mm, weighs 2,940 kg and measures 2,565 x 1,394 x 2,730 mm. Its forks measure 45 x 110 x 1200 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1795 mm, runs on a 48 V, 315 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface. The figures above are for the VLR14; the same page lists VLR16, VLR20 variants with different capacities.
FEATURES
- Rated load 1,400 kg at 600 mm load centre
- Lift height 5755 mm
- Overall dimensions 2565 x 1394 x 2730 mm (L x W x H)
- Service weight 2,940 kg
- Forks 45/110/1200 mm (e/s/l)
- Turning radius 1795 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 48 V / 315 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
- Variants on page: VLR14, VLR16, VLR20
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2940 kg |
|---|---|
| Dimensions | L 2.56 m × W 1.39 m × H 2.73 m |
| Payload | 1400 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2940 kg |
|---|---|
| Dimensions | L 2.56 m × W 1.39 m × H 2.73 m |
| Payload | 1400 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLR14/16/20?
The VLR14/16/20 is a sit-on reach mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that extends its mast forward to place and retrieve pallets in high racking within narrower aisles. It is rated for 1,400 kg at a 600 mm load centre, lifts to 5755 mm, weighs 2,940 kg and measures 2,565 x 1,394 x 2,730 mm.
Who makes the VLR14/16/20?
The VLR14/16/20 is made by i-Cow, a robotics company based in China.
How much does the VLR14/16/20 cost?
i-Cow has not publicly announced pricing for the VLR14/16/20. You can enquire through RobotAIGeek for current pricing.
What is the VLR14/16/20 used for?
The VLR14/16/20 is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLR14/16/20?
The VLR14/16/20 has a payload capacity of 1,400 kg.
How much does the VLR14/16/20 weigh?
The VLR14/16/20 weighs 2,940 kg.
How fast is the VLR14/16/20?
The VLR14/16/20 can move at speeds of up to 5.4 km/h.
