VLR14/16/18S

i-Cow

Industrial-Robot China

ChinaReleased

★Not rated yet

Compare

Sources:

i-cow.cn

Industries:

Automotive Electronics Energy Warehouse & Logistics Manufacturing

Uses:

Intralogistics Lifting Material-Handling Pallet-Transportation TransportAutonomous pallet and material handling

Price:

Not announced

Model:

i-Cow VLR14/16/18S stand-on reach mobile robot

DESCRIPTION

VLR14/16/18S is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 2370 kg, 1400 kg payload.

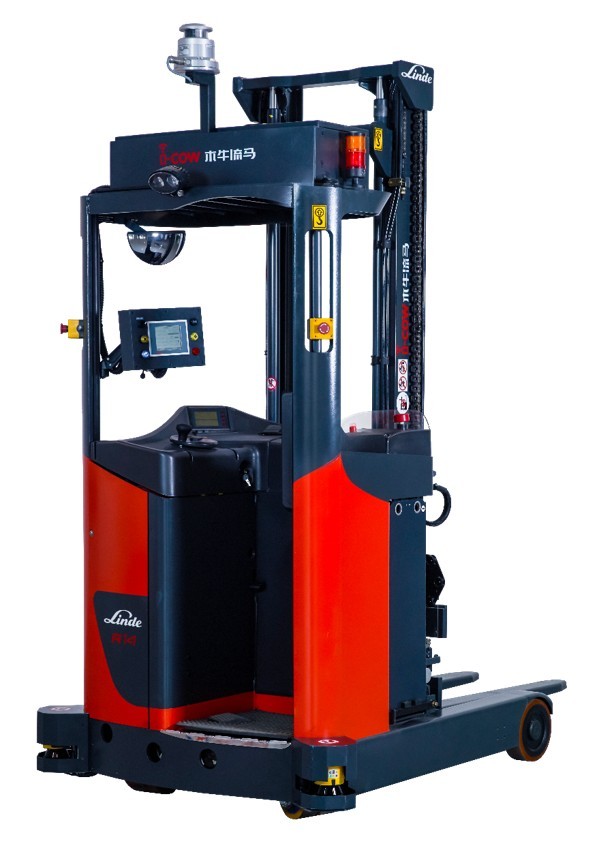

The VLR14/16/18S is a stand-on reach mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that extends its mast forward to place and retrieve pallets in high racking within narrower aisles. It is rated for 1,400 kg at a 500 mm load centre, lifts to 4470 mm, weighs 2,370 kg and measures 2,310 x 1,270 x 2,603 mm. Its forks measure 45 x 110 x 1000 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1693 mm, runs on a 48 V, 315 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface. The figures above are for the VLR14S; the same page lists VLR16S, VLR18S variants with different capacities.

FEATURES

Rated load 1,400 kg at 500 mm load centre
Lift height 4470 mm

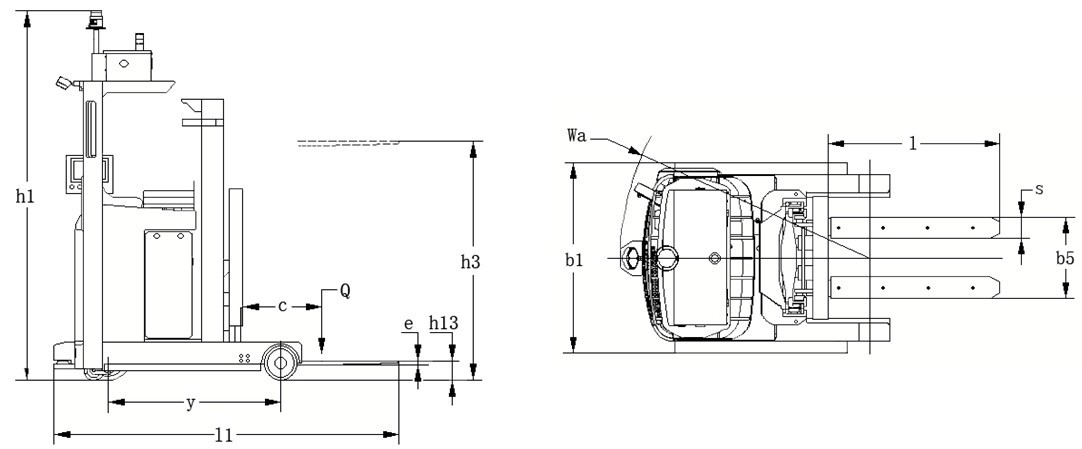

Overall dimensions 2310 x 1270 x 2603 mm (L x W x H)
Service weight 2,370 kg
Forks 45/110/1000 mm (e/s/l)
Turning radius 1693 mm
Travel speed 0-1.5 m/s
positioning accuracy ±10 mm
Battery 48 V / 315 Ah
Multi-vehicle scheduling on one shared map
VDA 5050 interface
Variants on page: VLR14S, VLR16S, VLR18S

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	2370 kg
Dimensions	L 2.31 m × W 1.27 m × H 2.6 m
Payload	1400 kg
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor factories and warehouses
Sensing & Compute
Connectivity	Fleet scheduling system; VDA 5050

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

ROBOT FORUMS

Loading forums...

TECHNICAL SPECIFICATIONS

Verified

Physical
Weight	2370 kg
Dimensions	L 2.31 m × W 1.27 m × H 2.6 m
Payload	1400 kg
Mobility
Movement Type	Wheeled
Speed	5.4 km/h
Environment	Indoor factories and warehouses
Sensing & Compute
Connectivity	Fleet scheduling system; VDA 5050

Manufacturer-sourcedThird-party sourcedUnsourcedSource status is based on this robot's listed sources.

FREQUENTLY ASKED QUESTIONS

What is the VLR14/16/18S?

The VLR14/16/18S is a stand-on reach mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that extends its mast forward to place and retrieve pallets in high racking within narrower aisles.

Who makes the VLR14/16/18S?

The VLR14/16/18S is made by i-Cow, a robotics company based in China.

How much does the VLR14/16/18S cost?

i-Cow has not publicly announced pricing for the VLR14/16/18S. You can enquire through RobotAIGeek for current pricing.

What is the VLR14/16/18S used for?

The VLR14/16/18S is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
