DESCRIPTION
VLN16S is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 6250 kg, 1600 kg payload.

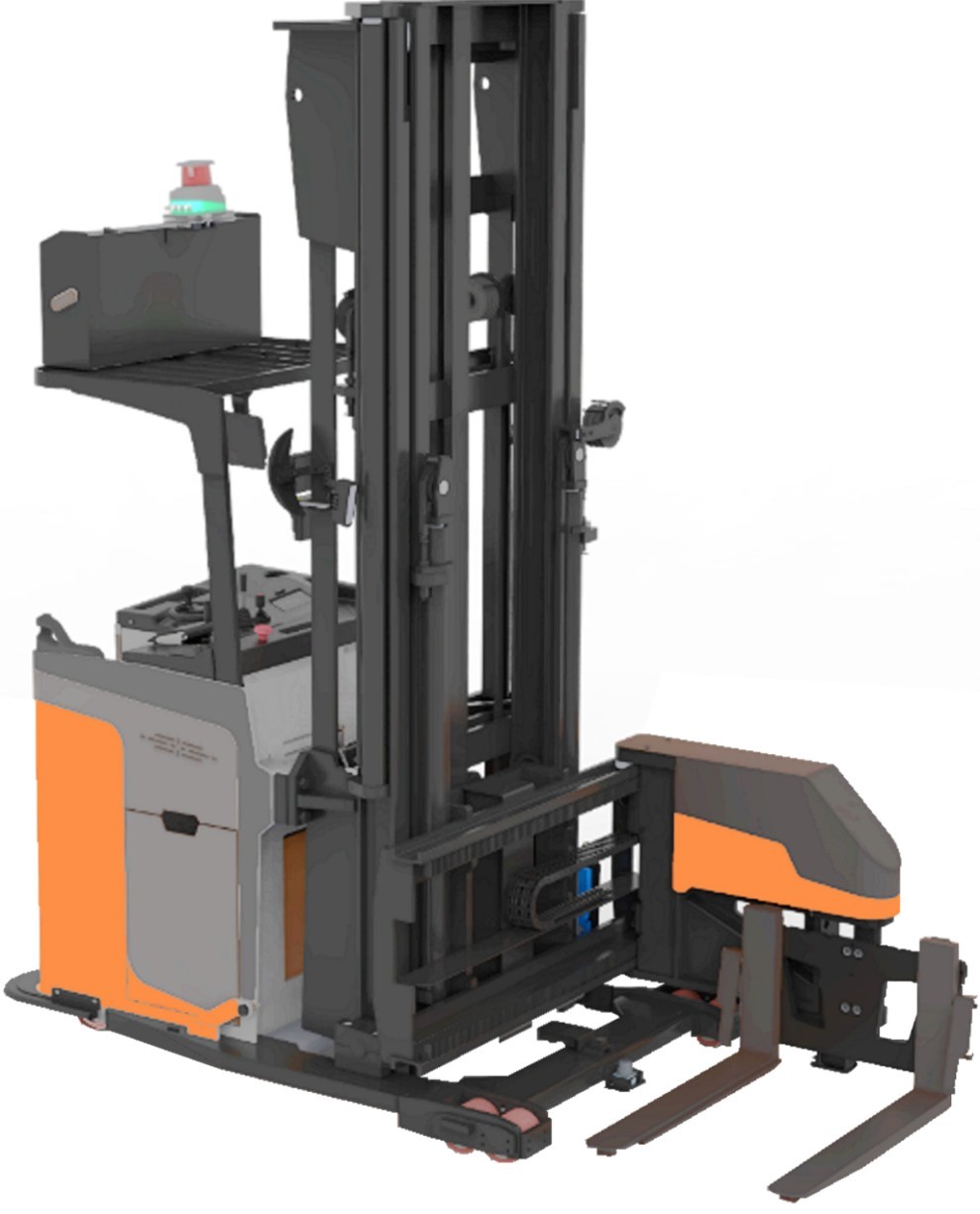

The VLN16S is a three-way narrow-aisle stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that works in very narrow aisles, storing and retrieving pallets at height without turning in the aisle. It is rated for 1,600 kg at a 600 mm load centre, lifts to 5000 mm, weighs 6,250 kg and measures 3,155 x 1,588 x 3,148 mm. Its forks measure 50 x 139 x 1250 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 2170 mm, runs on a 48 V, 450 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 1,600 kg at 600 mm load centre
- Lift height 5000 mm

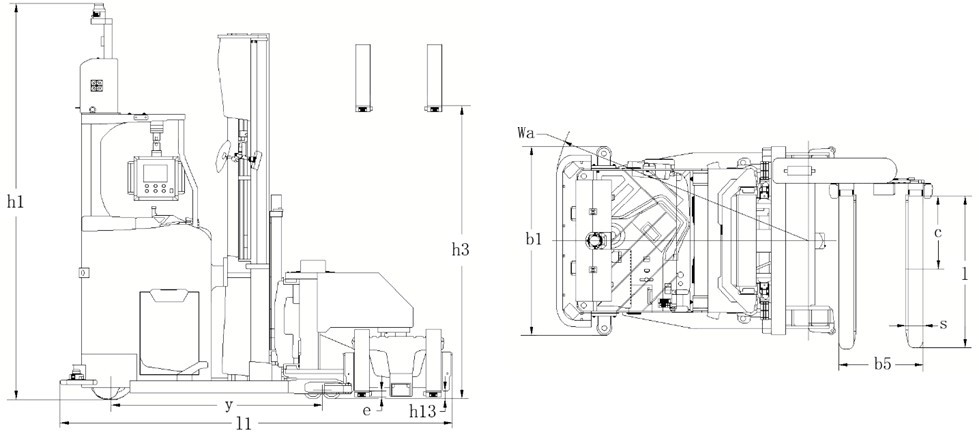

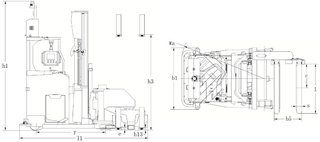

- Overall dimensions 3155 x 1588 x 3148 mm (L x W x H)
- Service weight 6,250 kg
- Forks 50/139/1250 mm (e/s/l)
- Turning radius 2170 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 48 V / 450 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 6250 kg |
|---|---|
| Dimensions | L 3.15 m × W 1.59 m × H 3.15 m |
| Payload | 1600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 6250 kg |
|---|---|
| Dimensions | L 3.15 m × W 1.59 m × H 3.15 m |
| Payload | 1600 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLN16S?
The VLN16S is a three-way narrow-aisle stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that works in very narrow aisles, storing and retrieving pallets at height without turning in the aisle.
Who makes the VLN16S?
The VLN16S is made by i-Cow, a robotics company based in China.
How much does the VLN16S cost?
i-Cow has not publicly announced pricing for the VLN16S. You can enquire through RobotAIGeek for current pricing.
What is the VLN16S used for?
The VLN16S is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLN16S?
The VLN16S has a payload capacity of 1,600 kg.
How much does the VLN16S weigh?
The VLN16S weighs 6,250 kg.
How fast is the VLN16S?
The VLN16S can move at speeds of up to 5.4 km/h.
