DESCRIPTION
VLC50 is an Industrial-Robot from i-Cow. It is built for Heavy-Load-Transportation, Lifting, Material-Handling. Key figures: 7850 kg, 5000 kg payload.

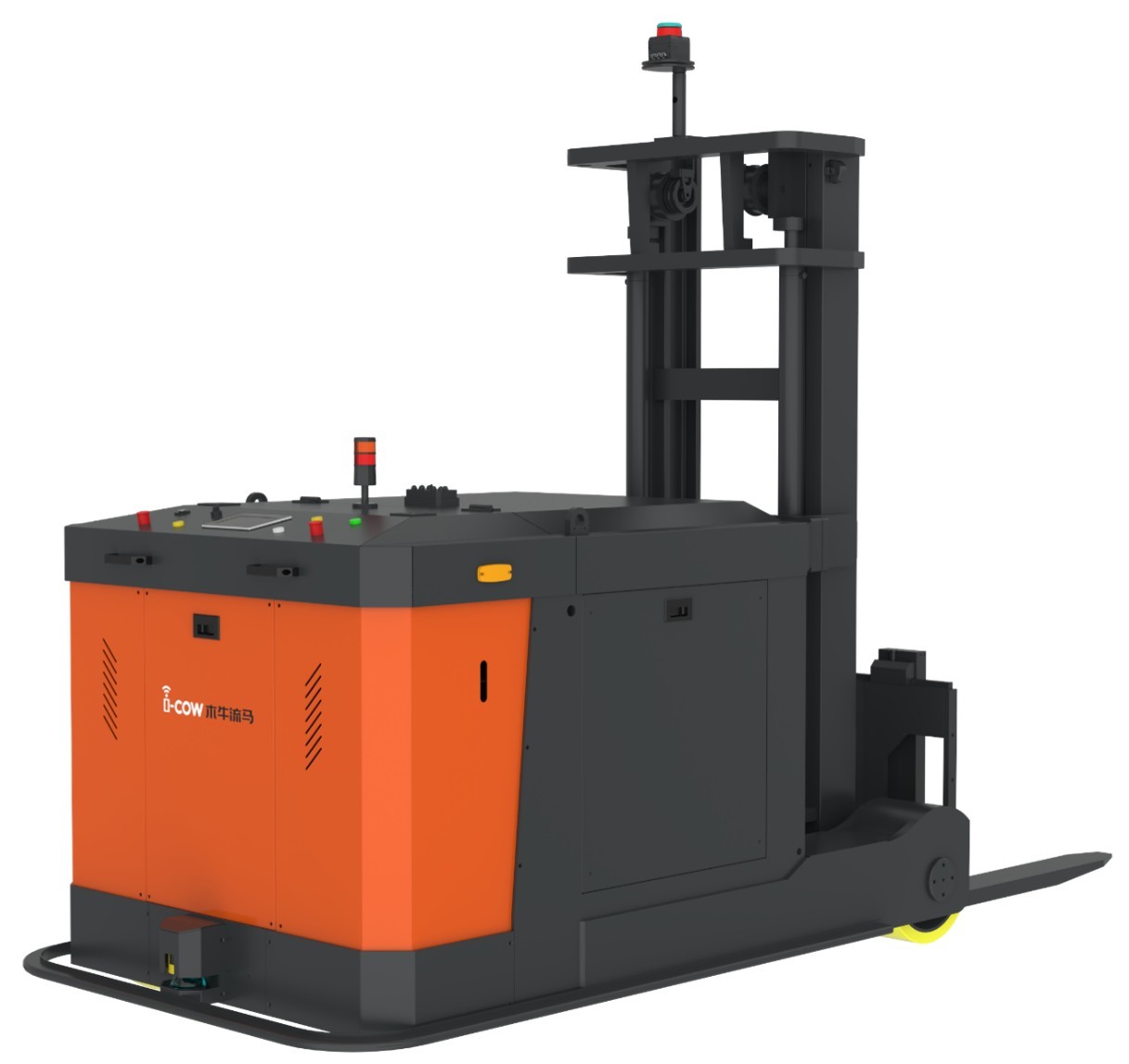

The VLC50 is a heavy-duty counterbalance mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that handles pallets without straddle legs, so it can pick from floor, racks and truck beds like a manned counterbalance truck. It is rated for 5,000 kg at a 500 mm load centre, lifts to 3000 mm, weighs 7,850 kg and measures 3,738 x 1,594 x 2,649 mm. Its forks measure 50 x 160 x 1000 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 2453 mm, runs on a 48 V, 315 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 5,000 kg at 500 mm load centre
- Lift height 3000 mm

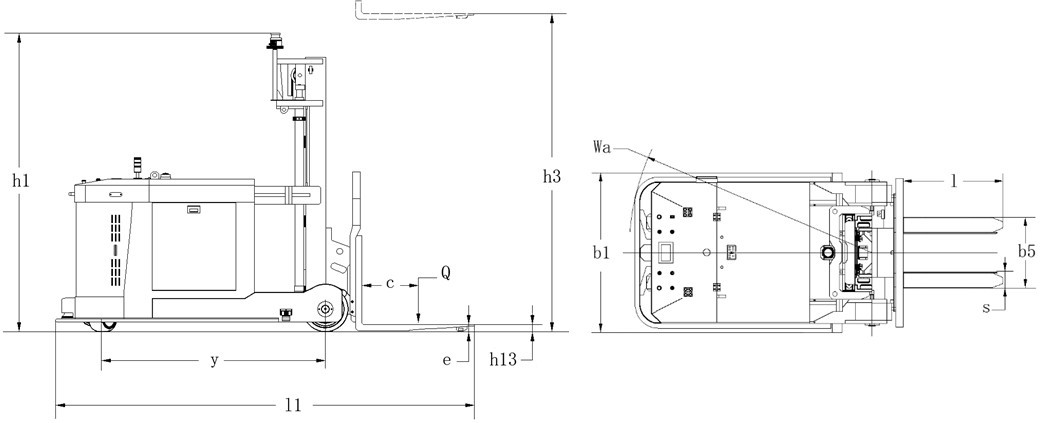

- Overall dimensions 3738 x 1594 x 2649 mm (L x W x H)
- Service weight 7,850 kg
- Forks 50/160/1000 mm (e/s/l)
- Turning radius 2453 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 48 V / 315 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 7850 kg |
|---|---|
| Dimensions | L 3.74 m × W 1.59 m × H 2.65 m |
| Payload | 5000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 7850 kg |
|---|---|
| Dimensions | L 3.74 m × W 1.59 m × H 2.65 m |
| Payload | 5000 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLC50?
The VLC50 is a heavy-duty counterbalance mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that handles pallets without straddle legs, so it can pick from floor, racks and truck beds like a manned counterbalance truck.
Who makes the VLC50?
The VLC50 is made by i-Cow, a robotics company based in China.
How much does the VLC50 cost?
i-Cow has not publicly announced pricing for the VLC50. You can enquire through RobotAIGeek for current pricing.
What is the VLC50 used for?
The VLC50 is designed for heavy-load-transportation, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLC50?
The VLC50 has a payload capacity of 5,000 kg.
How much does the VLC50 weigh?
The VLC50 weighs 7,850 kg.
How fast is the VLC50?
The VLC50 can move at speeds of up to 5.4 km/h.
