DESCRIPTION
VLC15/20 is an Industrial-Robot from i-Cow. It is built for Heavy-Load-Transportation, Lifting, Material-Handling. Key figures: 2700 kg, 1500 kg payload.

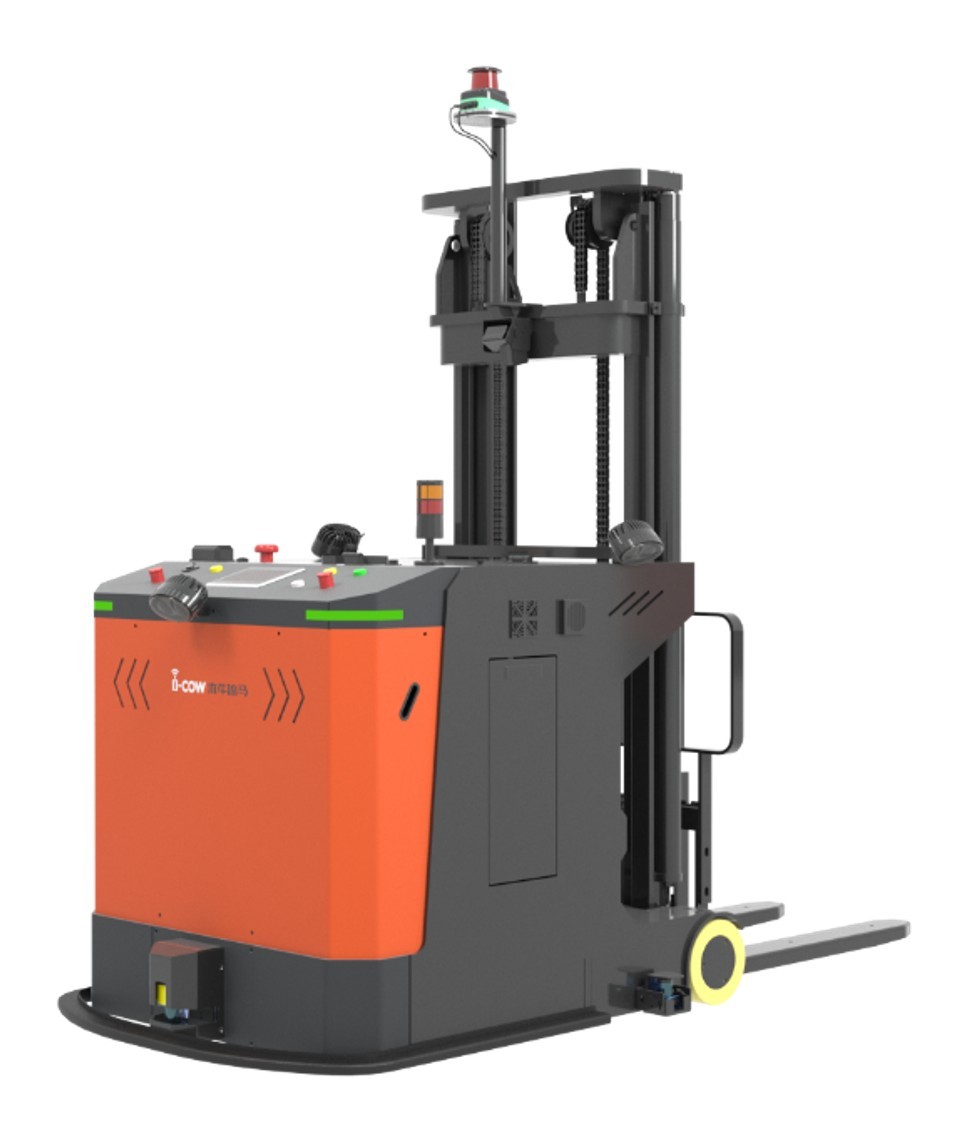

The VLC15/20 is a counterbalance mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that handles pallets without straddle legs, so it can pick from floor, racks and truck beds like a manned counterbalance truck. It is rated for 1,500 kg at a 500 mm load centre, lifts to 3000 mm, weighs 2,700 kg and measures 2,528 x 1,194 x 2,430 mm. Its forks measure 40 x 110 x 1000 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1375 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface. The figures above are for the VLC15; the same page lists VLC20 variants with different capacities.
FEATURES
- Rated load 1,500 kg at 500 mm load centre
- Lift height 3000 mm

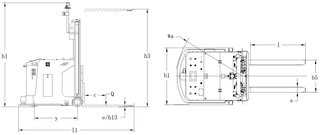

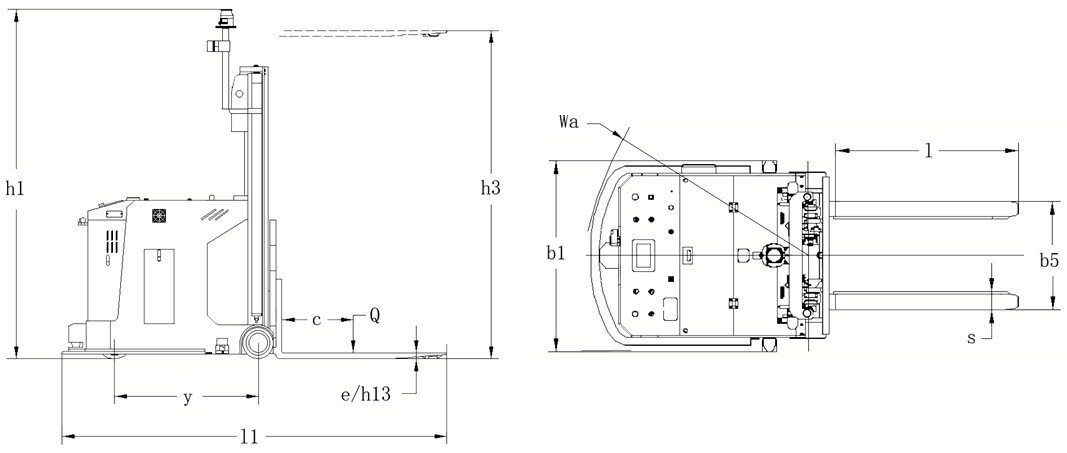

- Overall dimensions 2528 x 1194 x 2430 mm (L x W x H)
- Service weight 2,700 kg
- Forks 40/110/1000 mm (e/s/l)
- Turning radius 1375 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
- Variants on page: VLC15, VLC20
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2700 kg |
|---|---|
| Dimensions | L 2.53 m × W 1.19 m × H 2.43 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 2700 kg |
|---|---|
| Dimensions | L 2.53 m × W 1.19 m × H 2.43 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
marttiImage Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLC15/20?
The VLC15/20 is a counterbalance mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that handles pallets without straddle legs, so it can pick from floor, racks and truck beds like a manned counterbalance truck.
Who makes the VLC15/20?
The VLC15/20 is made by i-Cow, a robotics company based in China.
How much does the VLC15/20 cost?
i-Cow has not publicly announced pricing for the VLC15/20. You can enquire through RobotAIGeek for current pricing.
What is the VLC15/20 used for?
The VLC15/20 is designed for heavy-load-transportation, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLC15/20?
The VLC15/20 has a payload capacity of 1,500 kg.
How much does the VLC15/20 weigh?
The VLC15/20 weighs 2,700 kg.
How fast is the VLC15/20?
The VLC15/20 can move at speeds of up to 5.4 km/h.
