DESCRIPTION
VLB15M is an Industrial-Robot from i-Cow. It is built for Intralogistics, Lifting, Material-Handling. Key figures: 920 kg, 1500 kg payload.

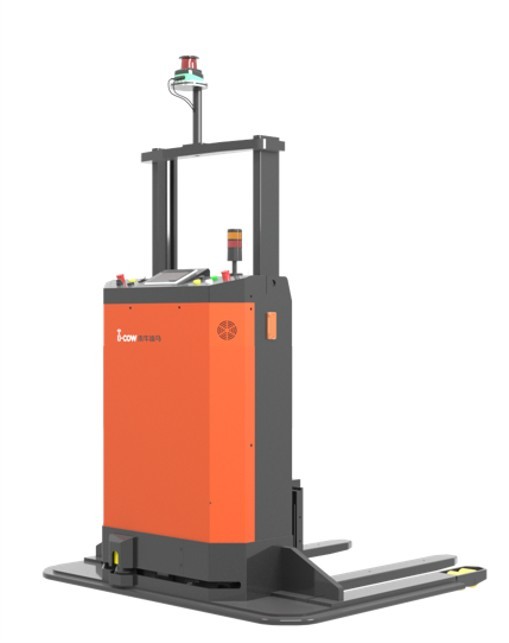

The VLB15M is a mini wide-leg stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that lifts pallets onto racks and conveyors and picks them back down. It is rated for 1,500 kg at a 600 mm load centre, lifts to 1200 mm, weighs 920 kg and measures 1,775 x 1,598 x 2,350 mm. Its forks measure 40 x 110 x 1200 mm (thickness x width x length). It travels at up to 1.5 m/s with ±10 mm positioning accuracy and a minimum turning radius of 1360 mm, runs on a 24 V, 210 Ah battery, and is dispatched with i-Cow's other AGVs through its multi-vehicle scheduling system, which runs mixed fleets on one shared map and supports the VDA 5050 interface.
FEATURES
- Rated load 1,500 kg at 600 mm load centre
- Lift height 1200 mm
- Overall dimensions 1775 x 1598 x 2350 mm (L x W x H)
- Service weight 920 kg
- Forks 40/110/1200 mm (e/s/l)
- Turning radius 1360 mm
- Travel speed 0-1.5 m/s
- positioning accuracy ±10 mm
- Battery 24 V / 210 Ah
- Multi-vehicle scheduling on one shared map
- VDA 5050 interface
- Variants on page: VLB10M, VLB15M
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 920 kg |
|---|---|
| Dimensions | L 1.77 m × W 1.6 m × H 2.35 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
ROBOT FORUMS
Loading forums...
TECHNICAL SPECIFICATIONS
Verified| Physical | |
| Weight | 920 kg |
|---|---|
| Dimensions | L 1.77 m × W 1.6 m × H 2.35 m |
| Payload | 1500 kg |
| Mobility | |
| Movement Type | Wheeled |
| Speed | 5.4 km/h |
| Environment | Indoor factories and warehouses |
| Sensing & Compute | |
| Connectivity | Fleet scheduling system; VDA 5050 |
Images
martti
Image Contributions
Videos
ROBOT FORUMS
Loading forums...
RATINGS
FREQUENTLY ASKED QUESTIONS
What is the VLB15M?
The VLB15M is a mini wide-leg stacker mobile robot from i-Cow (Muniu Liuma), an autonomous forklift that lifts pallets onto racks and conveyors and picks them back down. It is rated for 1,500 kg at a 600 mm load centre, lifts to 1200 mm, weighs 920 kg and measures 1,775 x 1,598 x 2,350 mm.
Who makes the VLB15M?
The VLB15M is made by i-Cow, a robotics company based in China.
How much does the VLB15M cost?
i-Cow has not publicly announced pricing for the VLB15M. You can enquire through RobotAIGeek for current pricing.
What is the VLB15M used for?
The VLB15M is designed for intralogistics, lifting, material-handling, and pallet-transportation. It is used in automotive, electronics, energy, and warehouse & logistics settings.
What is the payload capacity of the VLB15M?
The VLB15M has a payload capacity of 1,500 kg.
How much does the VLB15M weigh?
The VLB15M weighs 920 kg.
How fast is the VLB15M?
The VLB15M can move at speeds of up to 5.4 km/h.
